Fractal Design Torrent RGB

Introduction

Fractal Design is a Swedish company known for their minimalist design of their products. The color scheme present in F.D products is black and white, scheme present in cases, power supplies and fans. The concept of Fractal Design is to provide products with an extraordinary level of design, without compromising the important factors of quality, functionality and pricing.

Official product link:

https://www.fractal-design.com/products/cases/torrent/torrent/black-rgb-tg-light-tint/



Packaging and accessories

The Fractal Design Torrent RGB is delivered in a classic cardboard made box. The front side has a diagram of the case and its components. This type of exploded diagram is great for explaining each component of the case and their purpose.



The sides of the packaging are simple, with only the Fractal Design logo printed.



The internal packaging offers a good protection for the case. The Torrent RGB is held inside the box by two large foam pads. The added layer of protection is a simple plastic bag around the case.

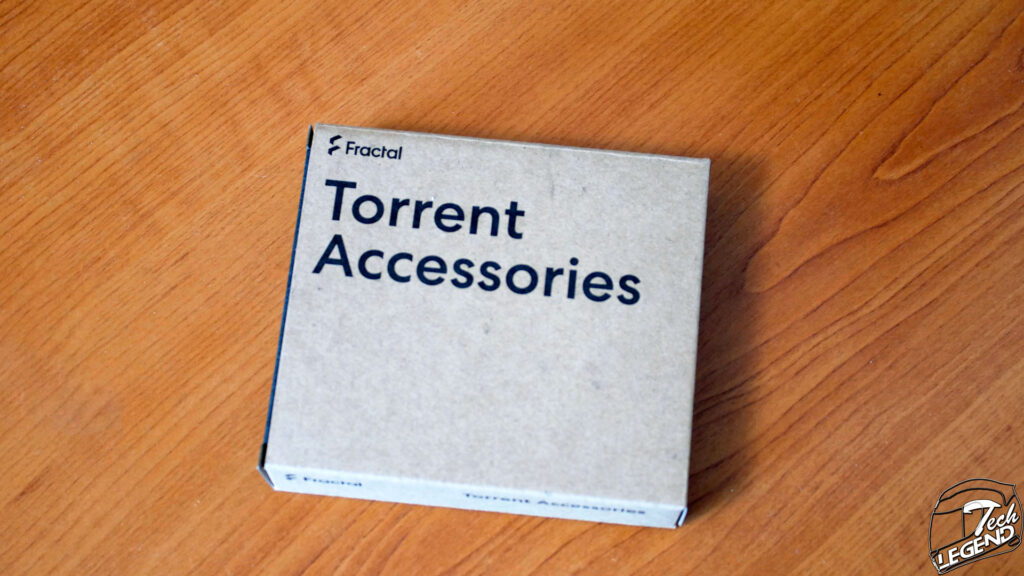

Accessories

The product comes with the following accessories:
– 1x Manual

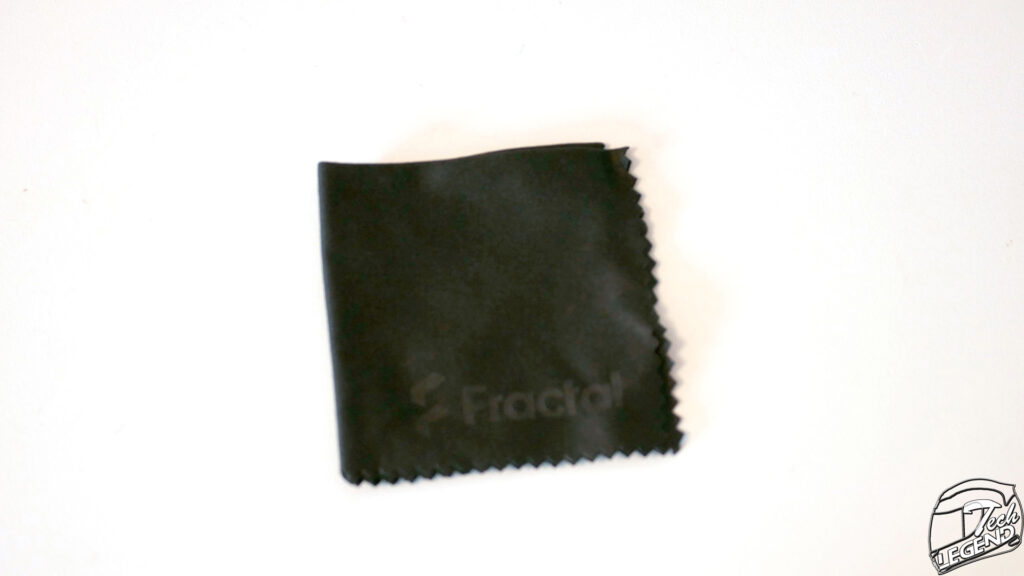

– 1x Microfiber cloth

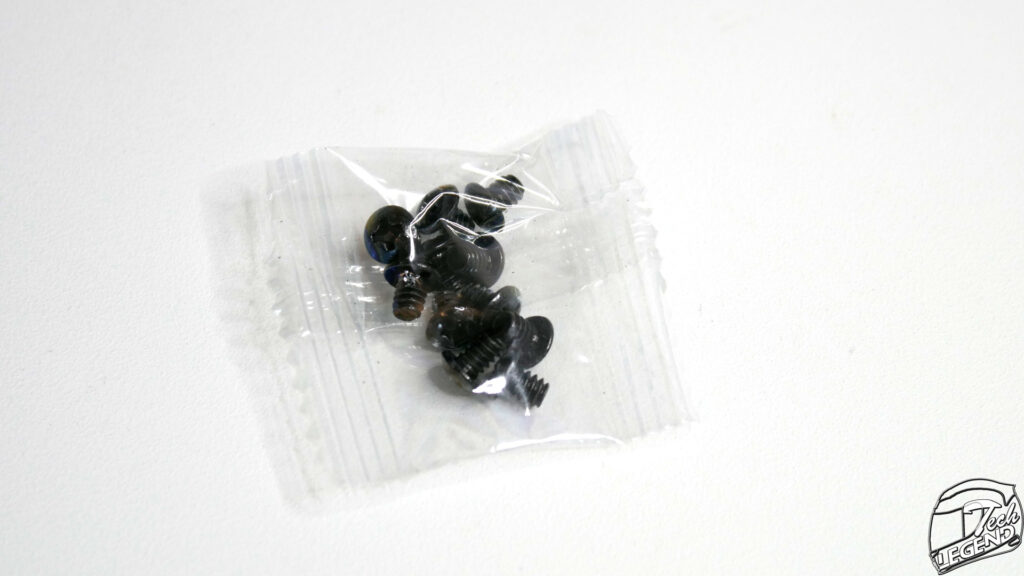

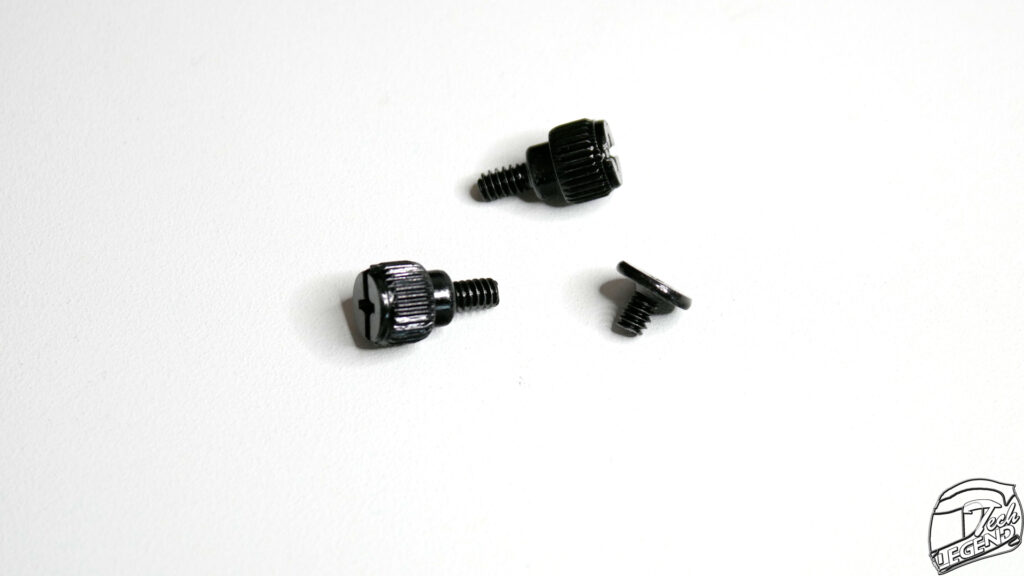

– 11x Mounting Screw (6-32)

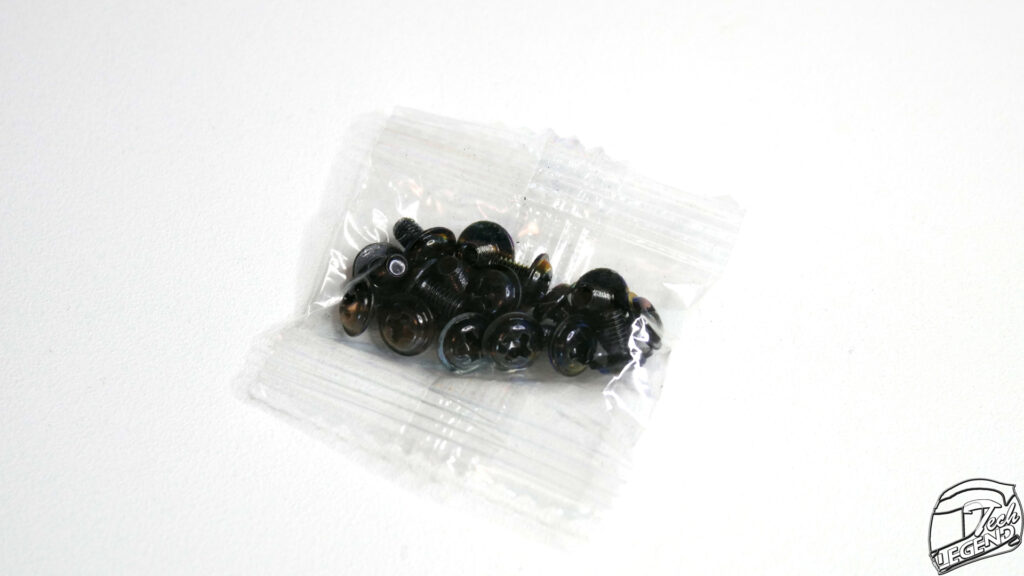

– 16x Mounting Screw (M3)

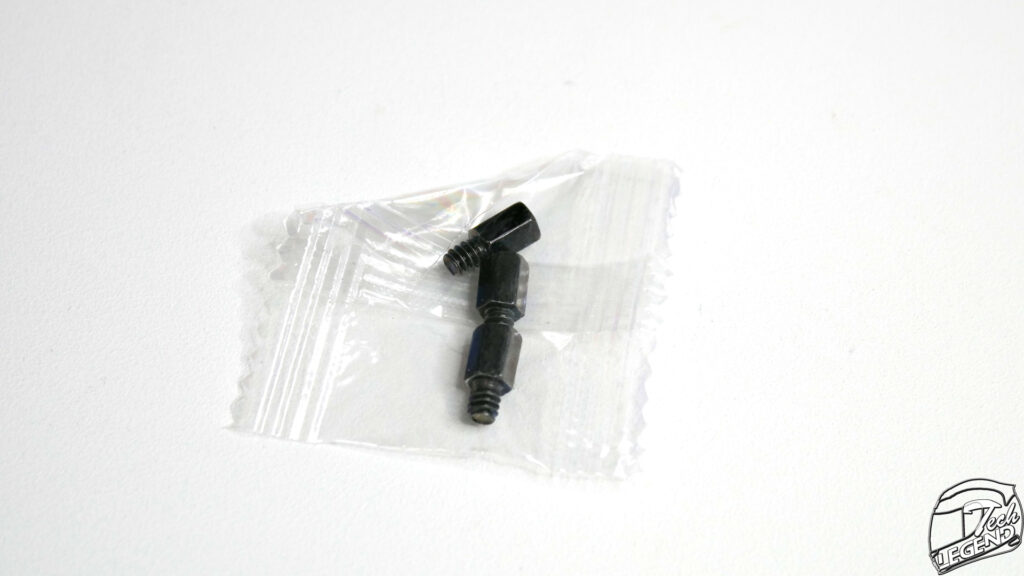

– 3x Additional motherboard standoff
– 1x Standoff Tool

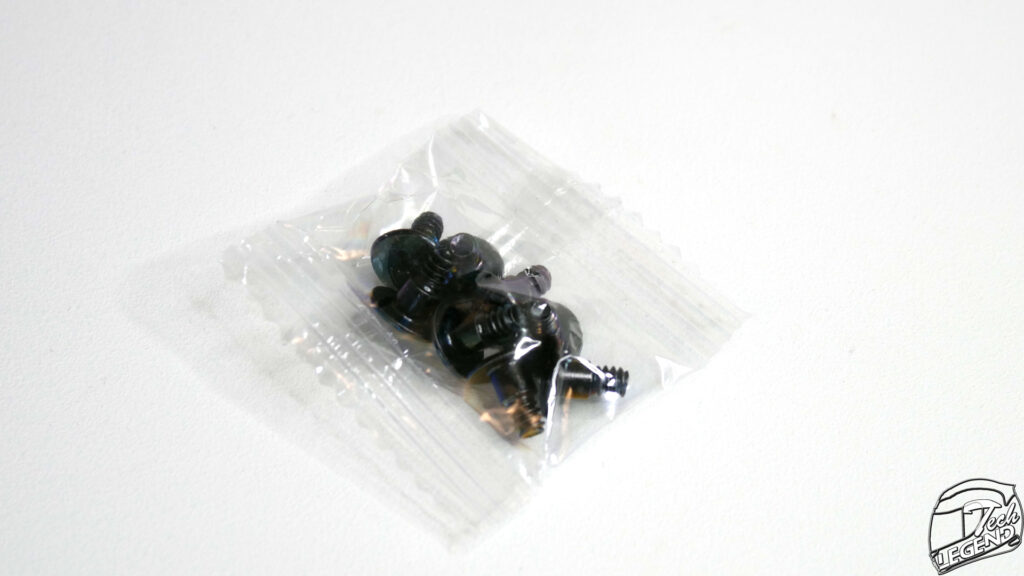

– 8x 3.5” Drive Screw

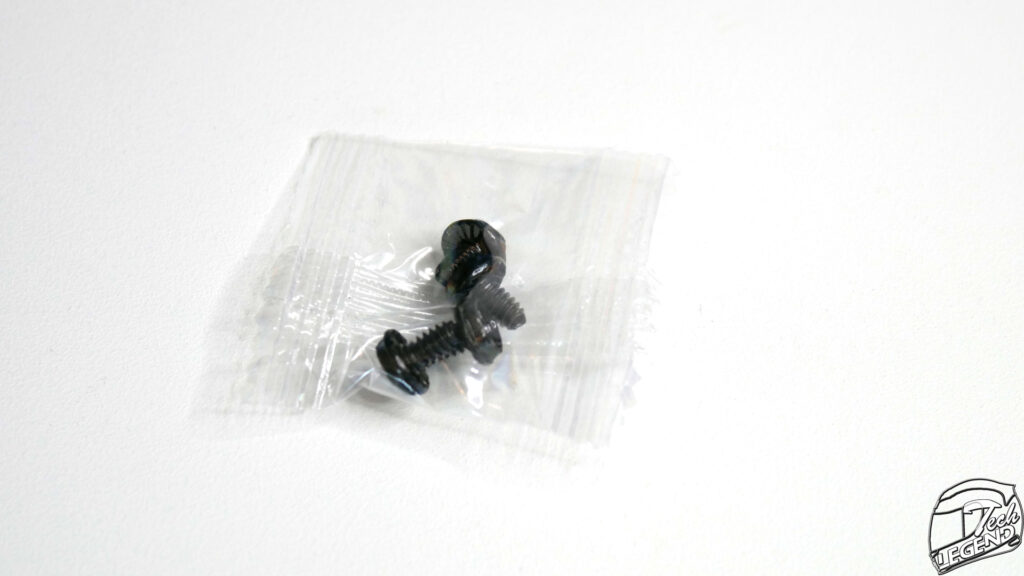

– 4x Power Supply Screw

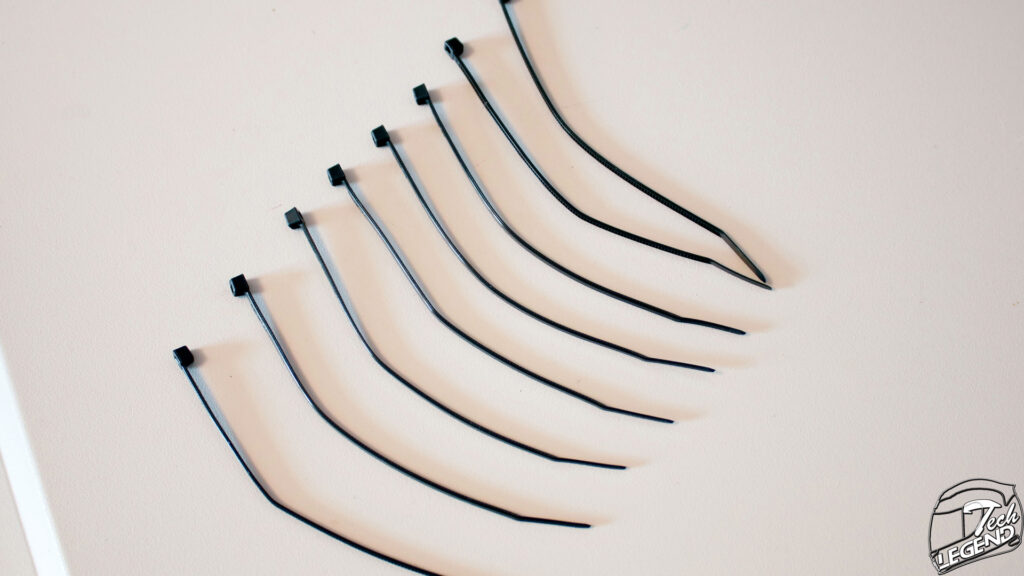

– 8x Zip ties

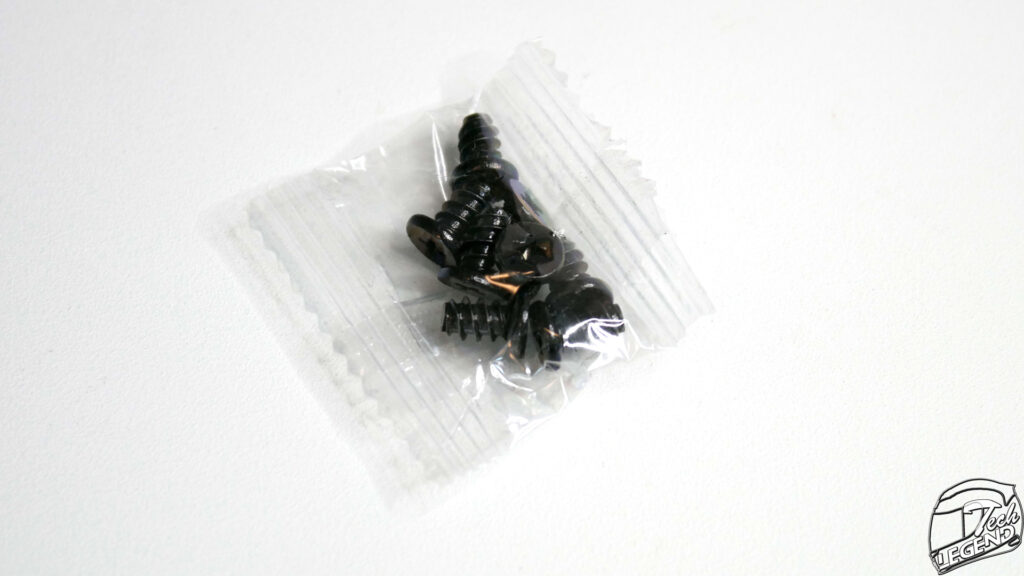

– 8x Fan Screw

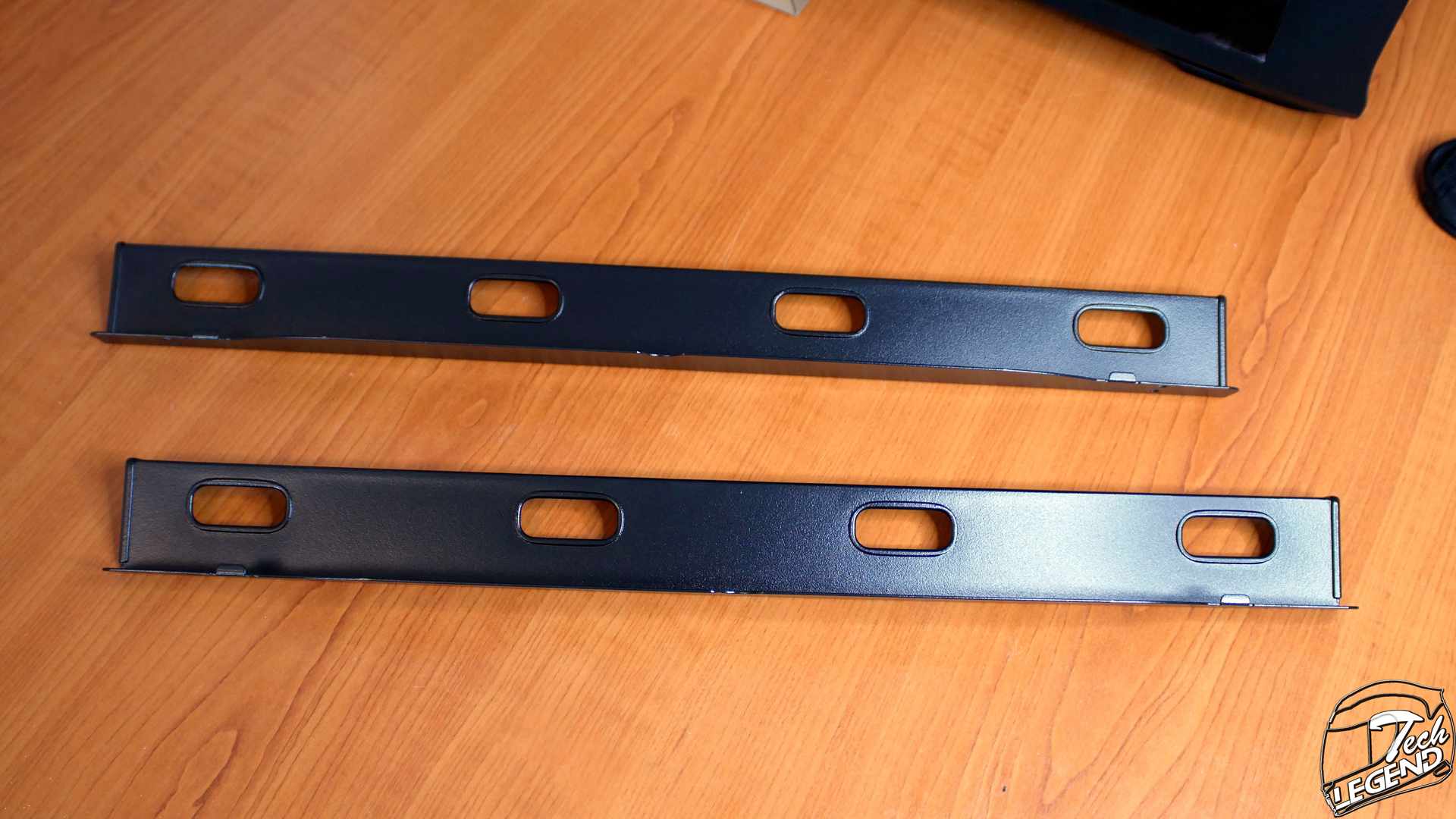

– 2x Fan brackets

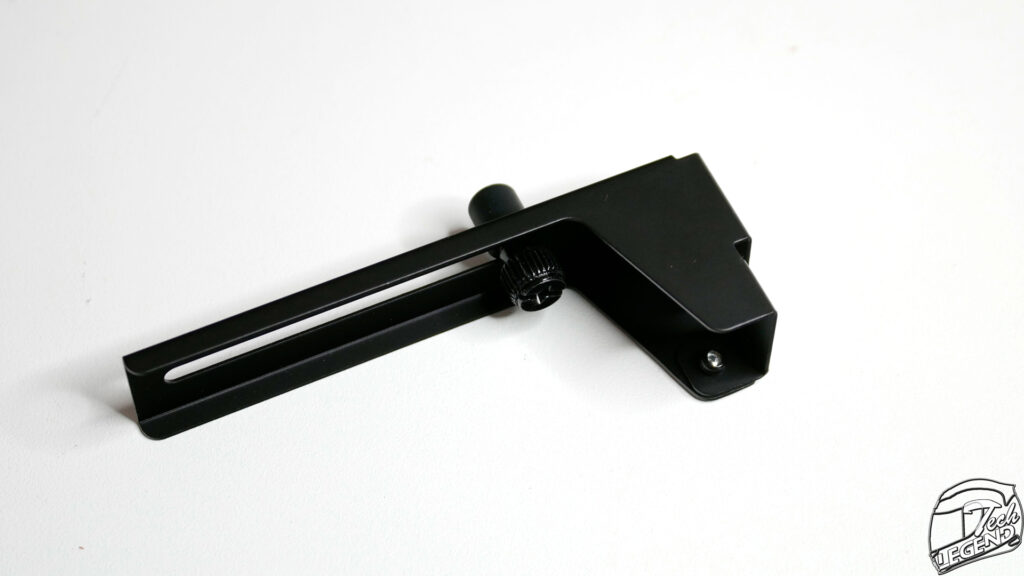

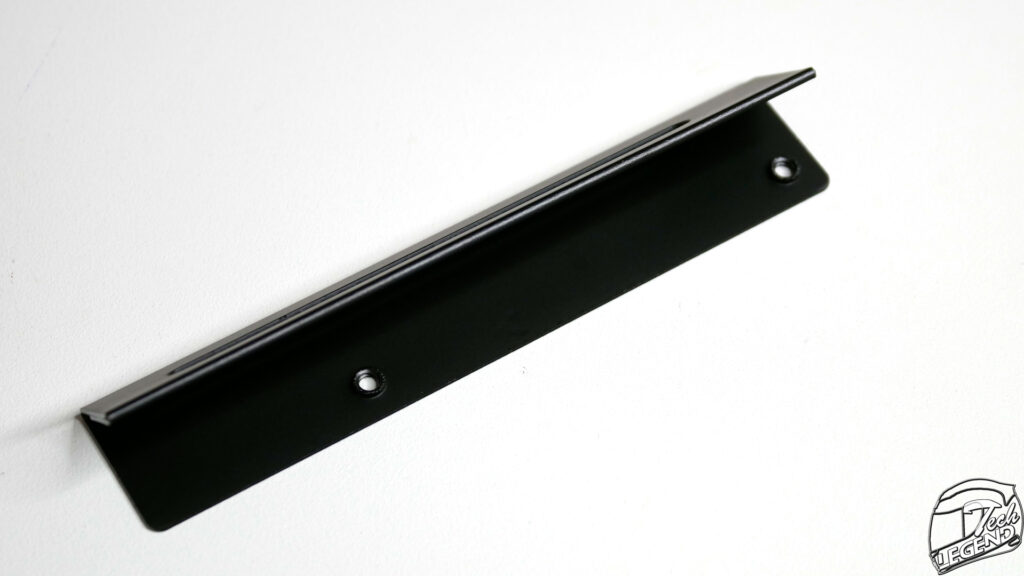

– 1x GPU support bracket



Specifications

Model: Torrent Black RGB TG
Colors available: Black, White, Gray
Warranty: 3 Years
Materials: Steel, plastic, and tempered glass
Motherboard Support: E-ATX, ATX, mATX, ITX, SSI-EEB, and SSI-CEB
Weight: 11.1 kg
Dimensions L x W x H (without stands): 544 x 242 x 530mm
Expansion Slots: 7
Drive Bays:
– 2x Internal 3.5″
– 4x Internal 2.5″
Front I/O:
– 1x USB 3.2 Gen2 Type-C
– 2x USB 3.0
– 1x Headphone
– 1x Microphone
– 1x Power button
– 1x Reset button
Cooling System:
Pre-Installed Fans:
– Front: 2x Fractal Design AL-18 ARGB 180mm;
– Bottom: 4x Fractal Design AL-14 ARGB 140mm.
Optional Fans:
– Front: 3x 140 or 3x 120mm;
– Top: N/A;
– Bottom: 3x 140mm or 120mm (3x 140mm included);
– PSU shroud: N/A.
Water cooling compatibility:
– Front – 120 / 140 / 240 / 280 / 360 / 420mm;
– Top – N/A;
– Bottom – 120 / 140 / 240 / 280 / 360 / 420mm;
– Rear – 120, 140 mm.
Clearance:
– CPU coolers up to 188 mm in height;
– Graphics cards up to 461 mm in length without front fans installed, or 423mm if installed;
– PSU: 230 mm
Dust Filtering:
– 1x Bottom removable filter;
– 1x Front removable filter.

Features:

– Designed for exceptional performance at controlled sound levels with included fan hub
– New layout with expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling
– Streamlined open interior provides plenty of breathing room for components and maximizes performance potential for both air and water cooling
– Both front and bottom panel can support extra-thick radiators and push-pull fan configurations up to 420 mm
– Removable top bezel and cable guides with cable straps make for easy installation and cable management
– Four dedicated SSD brackets included
– Included GPU support bracket
– Seamless tempered glass panels (on TG models)
– Three-year manufacturer’s warranty.
