Visual inspection
The Raijintek EOS 240 RBW has a modern design, with plenty of RGB integration into the CPU block and the included fans. One key difference between this CPU cooler and a regular 240mm AIO is that the EOS 240 RBW has its pump installed on the side of the radiator and not inside the CPU block. This is done to bypass the Asetek pump patent and to increase the performance of the cooler.
The EOS 240 RBW has a standard 240mm radiator and can accommodate up to four 120mm fans.

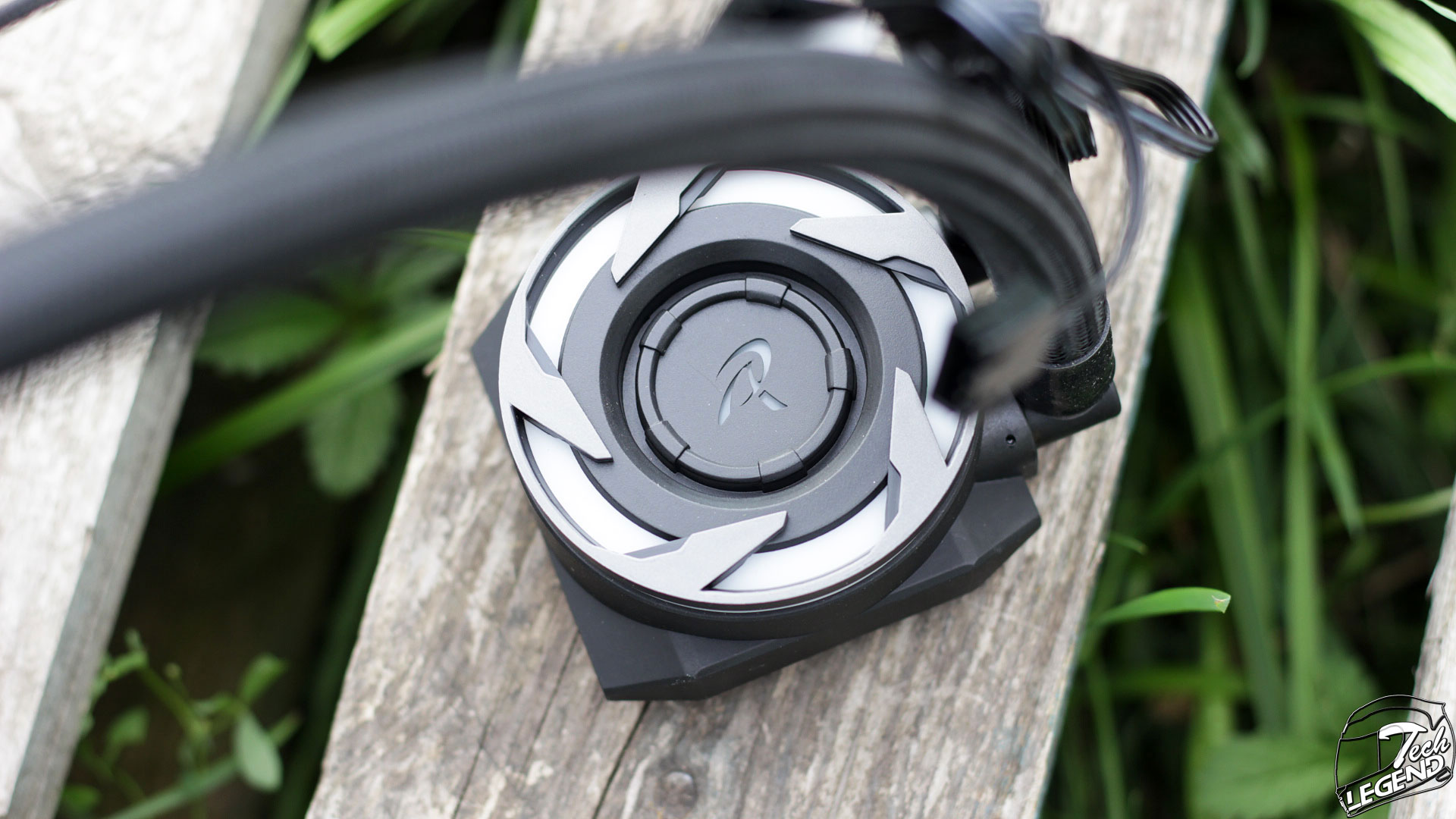

The CPU block is made entirely out of plastic and is quite small. This CPU block is not tall because the pump is installed on the side of the radiator. The top of the CPU block has a circular design with a ring that is illuminated by several RGB LEDs.
The Raijintek logo is installed at the center and it is also illuminated by RGB LEDs. Fortunately, this logo can be removed and rotated to suit your build.
The baseplate of the CPU cooler is made from solid copper. It is attached to the body of the block with no less than 10 screws. The surface of the baseplate is smooth and even, with a slight mirror like reflection present.

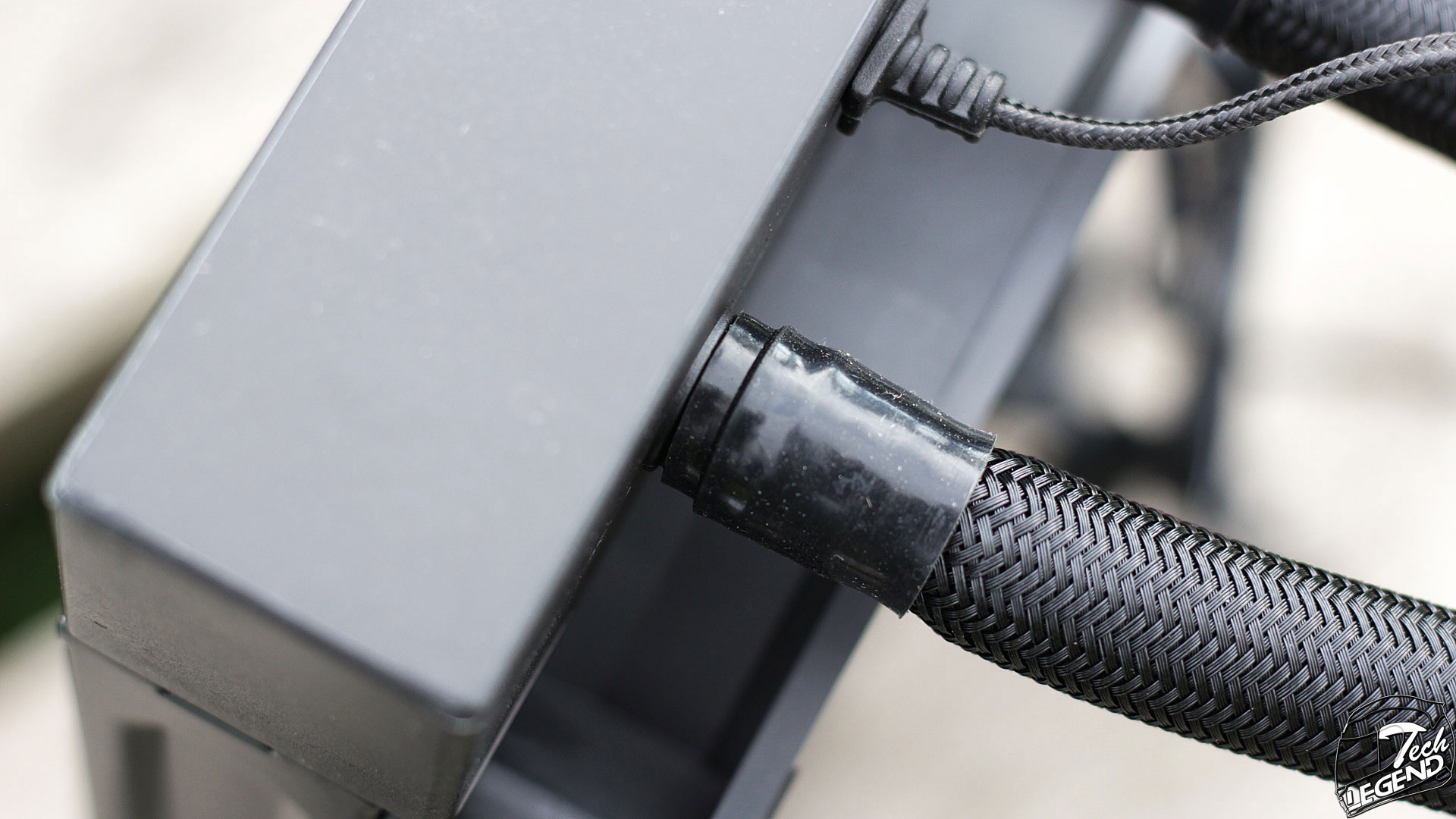

The tubes of the CPU cooler are connected to the block and radiator using standard plastic made fittings. On the CPU block side, the fittings are angled to 90° and can swivel. On the pump and radiator side of the cooler, the fittings used cannot move at all and are straight.

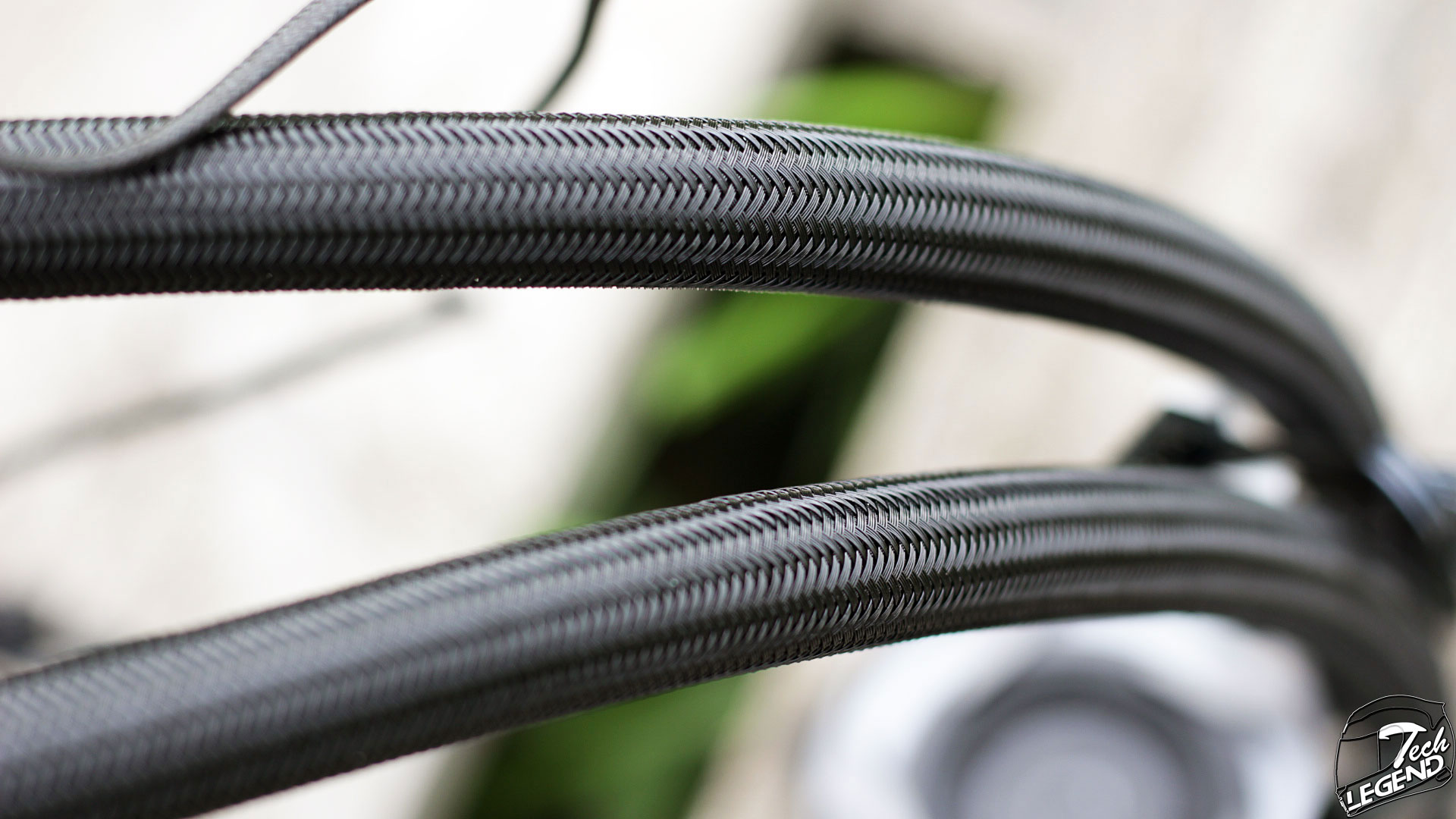

The tubes of the cooler have a length of 375mm and are covered by thick woven sleeving. They are flexible enough to not make the installation process difficult.
The pump of the EOS 240 RBW is installed on the side of the radiator. This is done to bypass the Asetek pump patent. In addition, installing the pump on the radiator and not inside the CPU block means a lighter and smaller block.
The pump has a maximum rated speed of around 4500RPM and uses a Ceramic Axis. Much like all inline pumps, it is powered through a standard SATA connector and it will always run at 100% RPM.

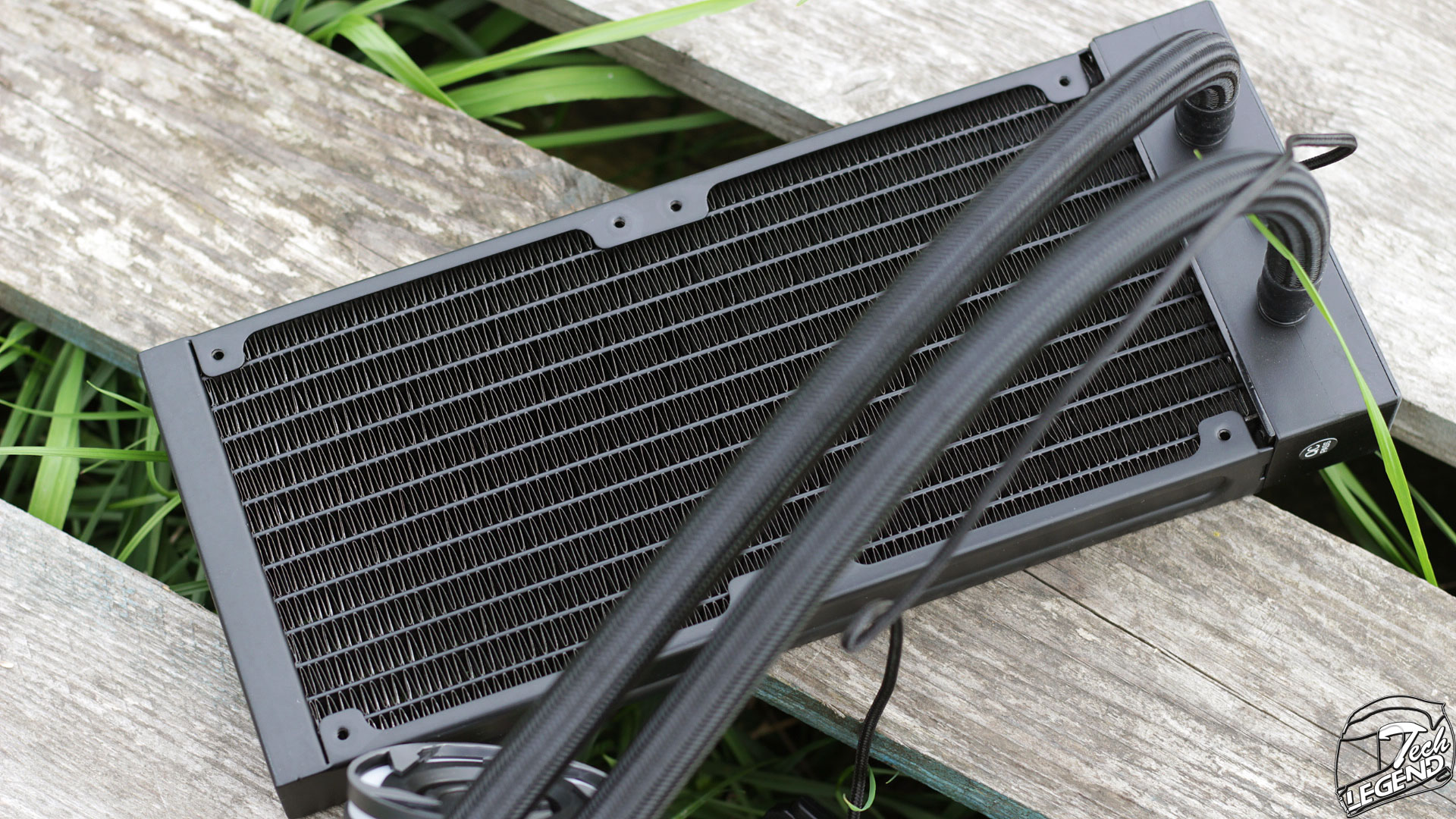

The radiator used on the EOS 240 RBW can accommodate four 120mm fans in a push pull configuration. Thanks to the pump, this radiator does not have the standard dimensions of a 240mm radiator. It has a length of 287mm, a width of 120mm and a thickness of 29mm.
The cooler uses two 120mm fans for its active cooling. These fans have the model number: ZY1202512HL. The minimum speed of these fans is 800RPM and the maximum speed is 1800RPM.

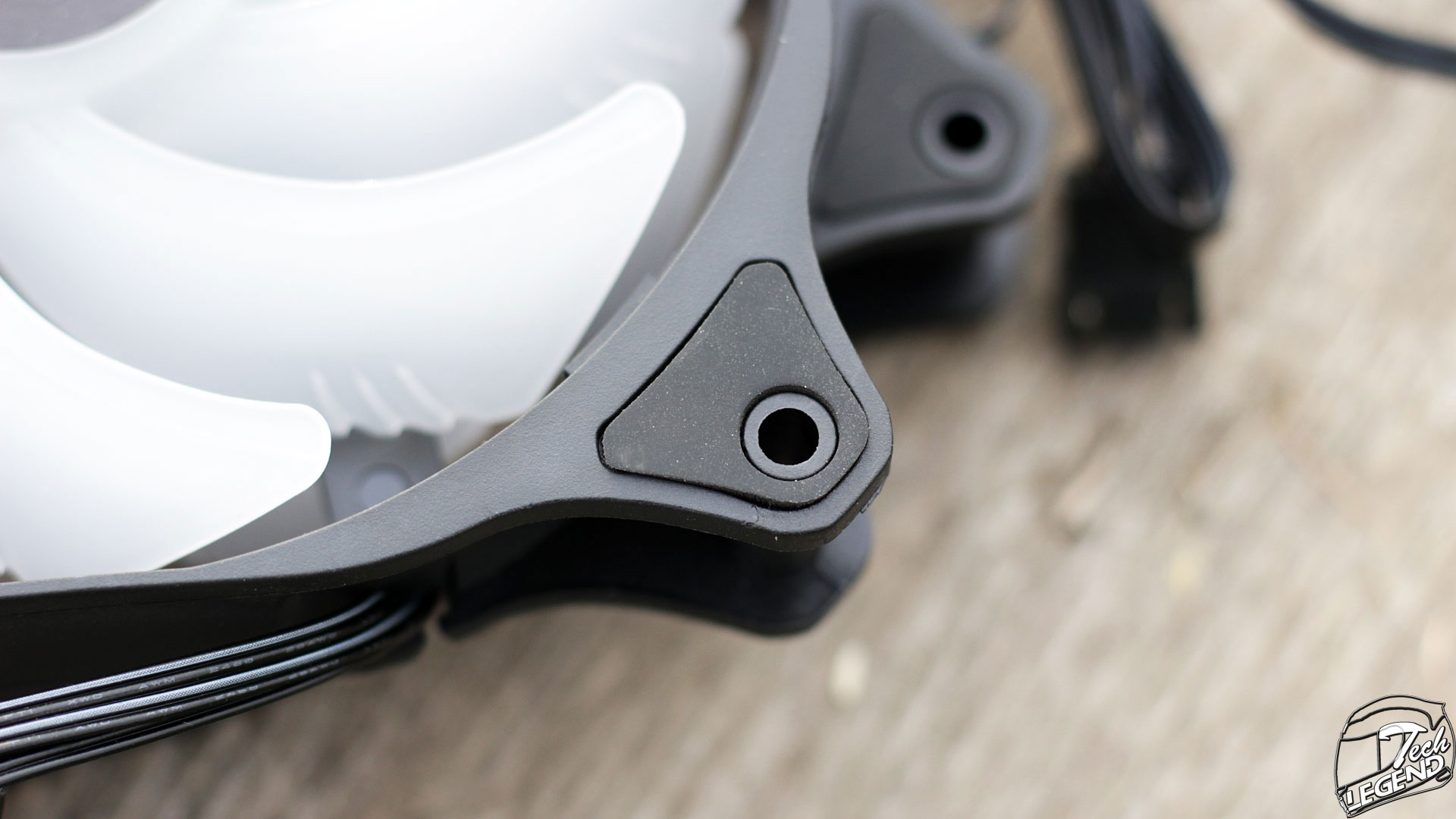

The fans have rubber pads on both sides of each corner, this ensures that the fan will not scratch the radiator. In addition, these rubber pads dampen the vibration of the fan and reduce the noise.

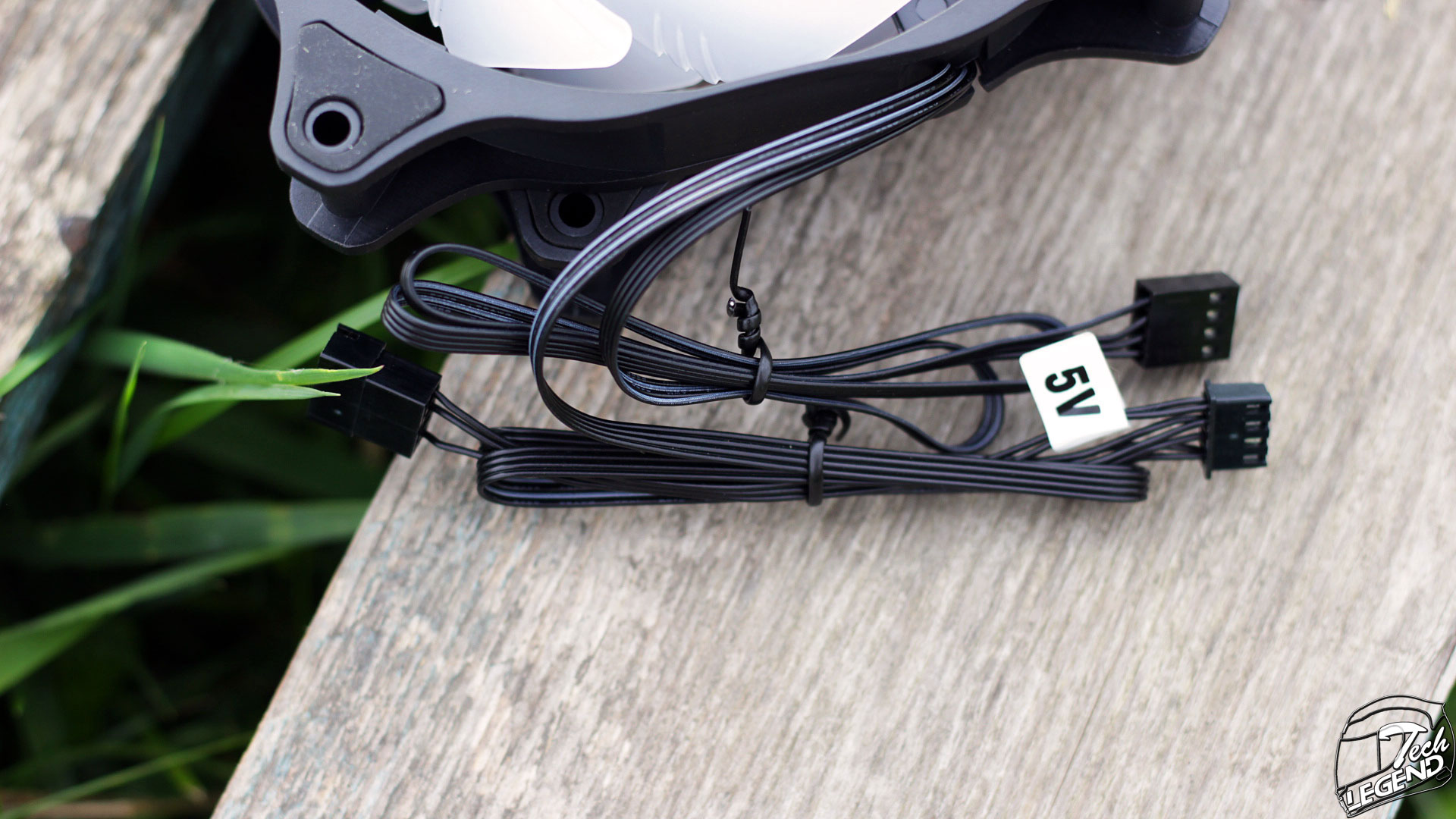

As is the case these days, these fans have two cables and multiple connectors. The power is delivered through a regular 4 Pin connector. It is worth noting that the wires of these fans are not covered by any sleeving.
