Iceberg Thermal IceSLEET X5

Introduction

Iceberg Thermal is a company that has been involved in the industrial sector before launching into the consumer market. The company has started selling six different CPU coolers and a few fan models on the consumer market. However, in the industrial sector, Iceberg Thermal is selling CPU coolers, graphics card coolers and custom cooling solutions.

Official product link:

https://www.iceberg-thermal.com/product/cpu-cooler/icesleet-x5/



Packaging and accessories

The IceSLEET X5 is delivered in a square cardboard made box. The design of the packaging is very simple, with no graphics and no unique shapes present apart from two labels. These labels use a dual color design and feature a single-color diagram of the CPU cooler and the manufacturer’s logo.



The back side of the packaging features the technical specifications of the CPU cooler and the included fan.

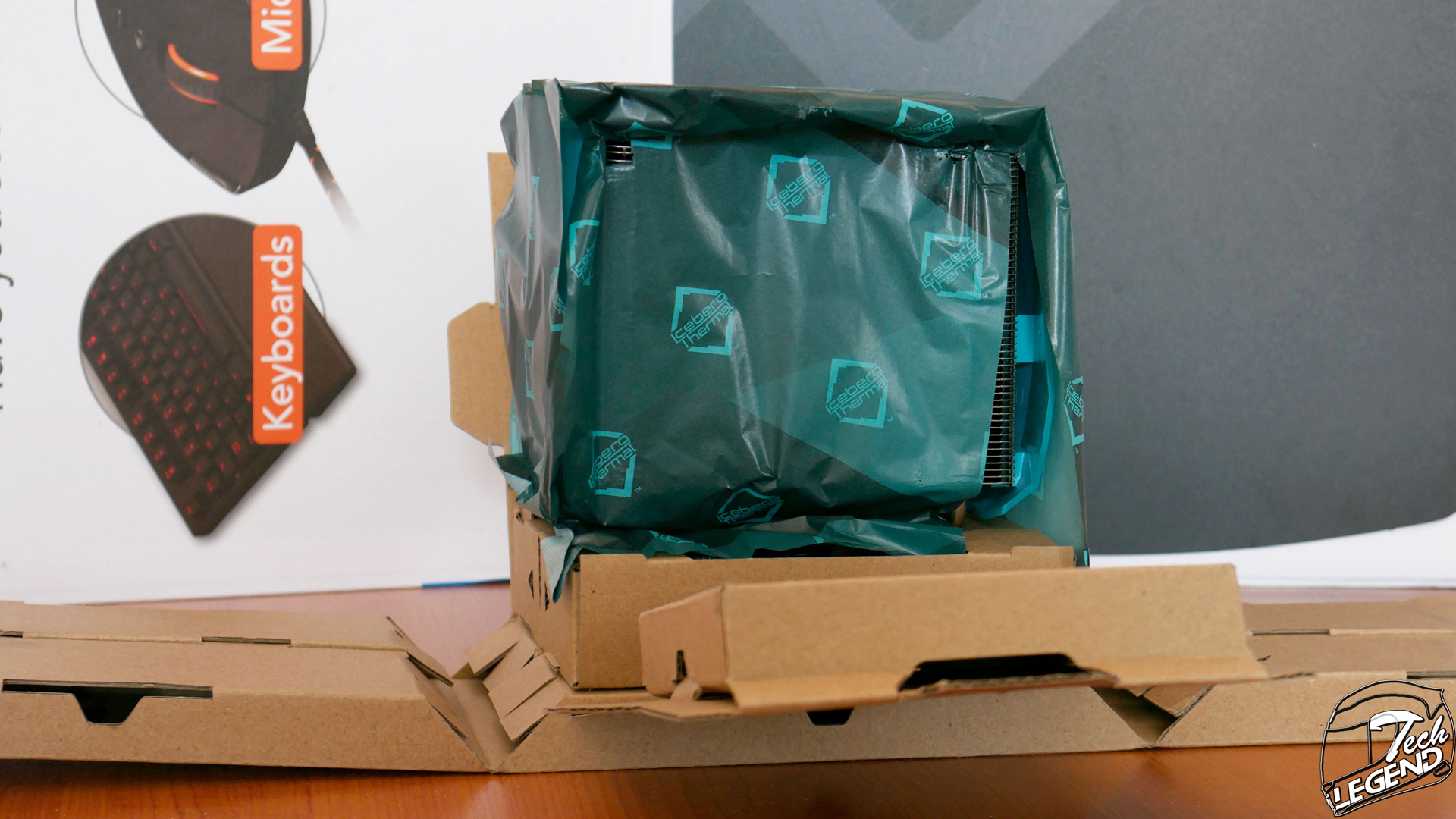

The cooler and the included accessories are protected by hard cardboard boxes. The cooler has a thin plastic cover which offers a good protection against scratches.

Accessories

The product comes with the following accessories:
– 1x User manual
– 1x FUZEIce™ Plus (0.8 g) thermal compound
– 1x backplate
– 4x Mounting nuts
– 2x Intel mounting bars
– 2x AMD mounting bars
– 4x Plastic spacers
– 4x Double thread screws AMD
– 4x Double thread screws Intel



Specifications

Model: IceSLEET X5
Supported sockets:
Intel: LGA 1200, 2066, 115X, 2011-0, 2011-3 (Square ILM), 1366, 775.
AMD: AM4, AM3(+), AM2(+), FM2(+), FM1.
Heatsink:
Materials: Copper (base and heat-pipes), aluminum (cooling fins)
Dimensions (with fan): (H)159mm x (W)146mm x (D)115mm
Heatpipes: 5x – Ø6 mm
Weight: 852g
Fan(s):
Model: IceSLEET X5
Dimensions: Proprietary 120mm
Bearing type: Fluid Dynamic Bearing
Min. Rotational Speed (+/- 10%): 500 RPM
Max. Rotational Speed (+/- 10%): 1850 RPM
Max. airflow: 76 CFM
Max. acoustical noise: 36 dB(A)
Connector: 4-Pin PWM
Voltage Range: 12 V
MTBF: > 150.000 h
Warranty: 2 Years

Features:

– 5 Tuned Copper Heat Pipes
– Compatible with Intel/AMD
– Vivid ARGB Lighting
– Auto START and STOP Feature:
– The Fan is Silent, Until Duty Cycle Reaches 21% Loading
– Complete Bond Soldering Between Fin Sheets
– Copper Base Fully Covers the Chipset
– Nickel Plate Finishing
