Testing
The following system was used to test the cooler:
– Processor: Intel i9 9900K @ 5GHz
– Motherboard: ASRock Z390 Phantom Gaming X
– RAM: Ballistix Tactical Tracer 16GB DDR4 @ 2666MHz
– GPU: MSI GeForce RTX 2070 Super Gaming X Trio
– SSD: Crucial MX 500GB
– HDD: WD 1 TB Blue
– CPU Cooler: CoolerMaster MasterLiquid 240 with NoiseBlocker eLoop B12-PS
– Display: AOC i2769VM
– Case: Phanteks Enthoo Luxe White
– OS: Windows 10 64-bit
The above system has a power consumption of approximately 502W when in full load and 68W when idle, in order to test the efficiency of the Power Supply, the power draw of the system was measured at the wall socket. Also, the voltages were measured on the +12v +5v and +3.3v using a multi-meter.
To load the system to its maximum the stability test of the AIDA64 Extreme 6.25.5400 was used with Intel Burn Test V2.
The Power Supply was tested with the system both idle and at maximum load.
Power Supply efficiency
For rail voltage tolerance levels, ATX (Power Supply Design Guide) specify that a 5% variable fluctuation is acceptable.

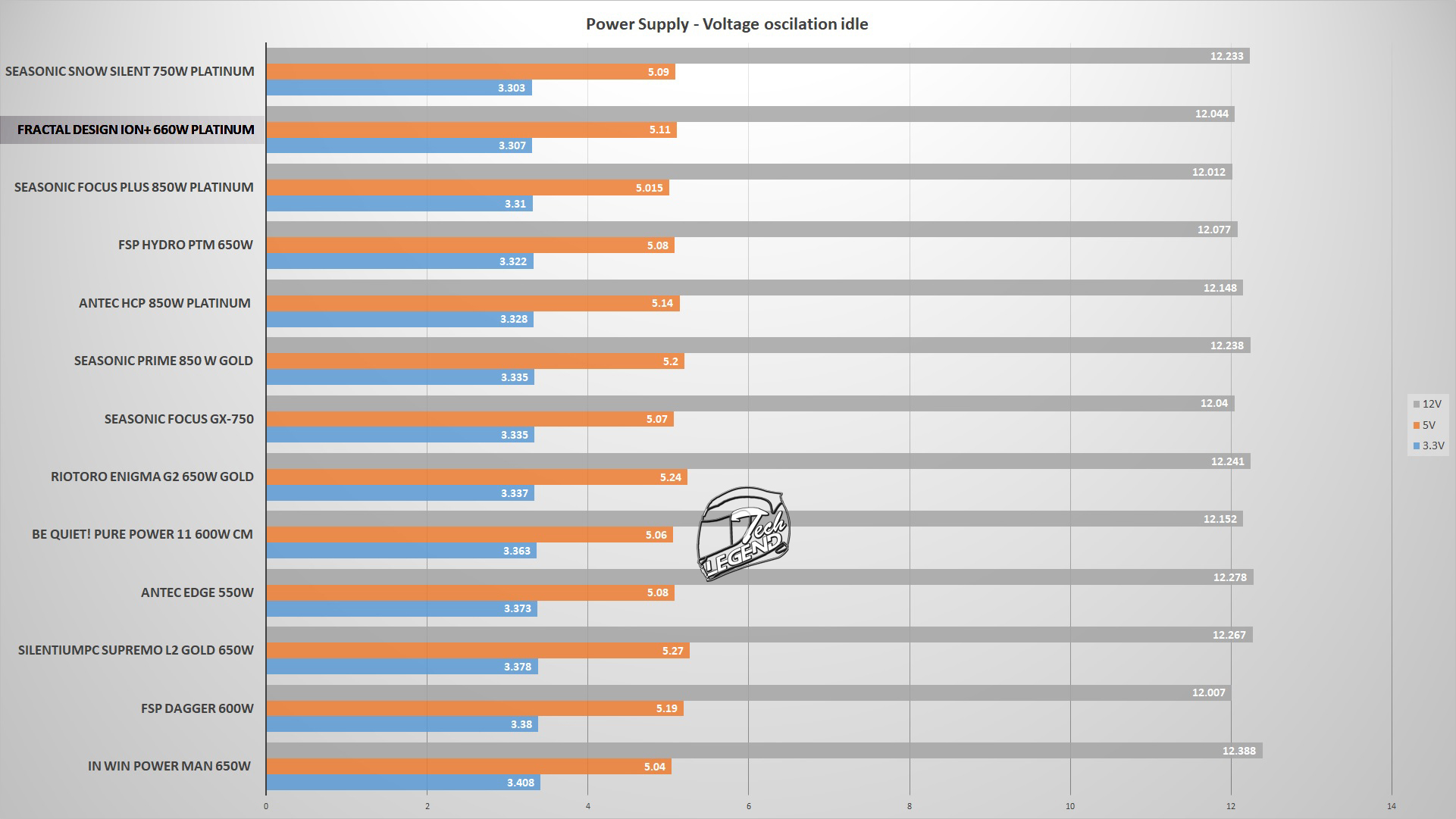

Voltage oscillation idle
Voltage oscillation load
The noise level was measured at three different distances from the fans (10cm, 20cm, 30cm.) the noise was measured with a margin of error of ± 5 db.
Final thoughts
The Fractal Design Ion+ 660W Platinum has a price of around 118 USD or EUR. The newest addition to the Fractal Design power supply lineup, has plenty to offer. Starting with the design which at first glance looks basic, however it isn’t. The case of the power supply has a split design at the top, with a matte finish contrasting the glossy surface of the fan grill.
The performance is very good, the efficiency peaked at around 93.1%, with a load of approximately 70% of the total wattage. The voltage osculation is also good, remaining under the 1.5% value.
The Ion+ 660W Platinum is also silent, thanks to its 140mm Dynamic X2-GP14 fan and the semi-passive fan control system. In addition, the semi-passive operating mode of the fan can be switched On or Off using the dedicated button.
The power supply reached a peak of 24 decibels measured at the standard 10 centimeters from the system. The fan has no bearing noise or wind turbulence.
In conclusion, the Fractal Design Ion+ 660W Platinum is worth considering especially for a high-end gaming system. The power supply has a 10-year warranty, which is a statement for the internal build quality. The Ion+ 660W Platinum is also silent and has a good design that will match any system. In terms of performance, the power supply is one of the best I’ve tested so far, thanks to the usage of high-quality components.
