be quiet! Silent Wings Pro 4 120 & Silent Wings 4 120 High Speed



Introduction

Registered as a trademark of Listan GmbH & Co. KG in 2002, BeQuiet! is a brand who manufactures Power Supply units, CPU coolers, PC cases, and case fans. The main target groups for products in the BeQuiet! range are PC enthusiasts and gamers as well as smaller and larger PC integrators. The company’s headquarters is in Glinde, close to Hamburg. At the present time the company also has branches in Poland, Taiwan and China. The major market of the Be Quiet! brand is Europe.

Official product link:

https://www.bequiet.com/en/casefans/3705

https://www.bequiet.com/en/casefans/3701



Packaging and accessories

The Silent Wings 4 120 High Speed and the Pro variant are packaged in identical boxes, the only differences being in the name and specifications printed. The design of these boxes is simple and follows the design language of the be quiet! brand. The front side of the box features a profile photo of the fan alongside its complete name and main features.



The back side of the packaging has the complete technical specifications. If you need more info, then you can scan the provided QR code which links to the be quiet! website.

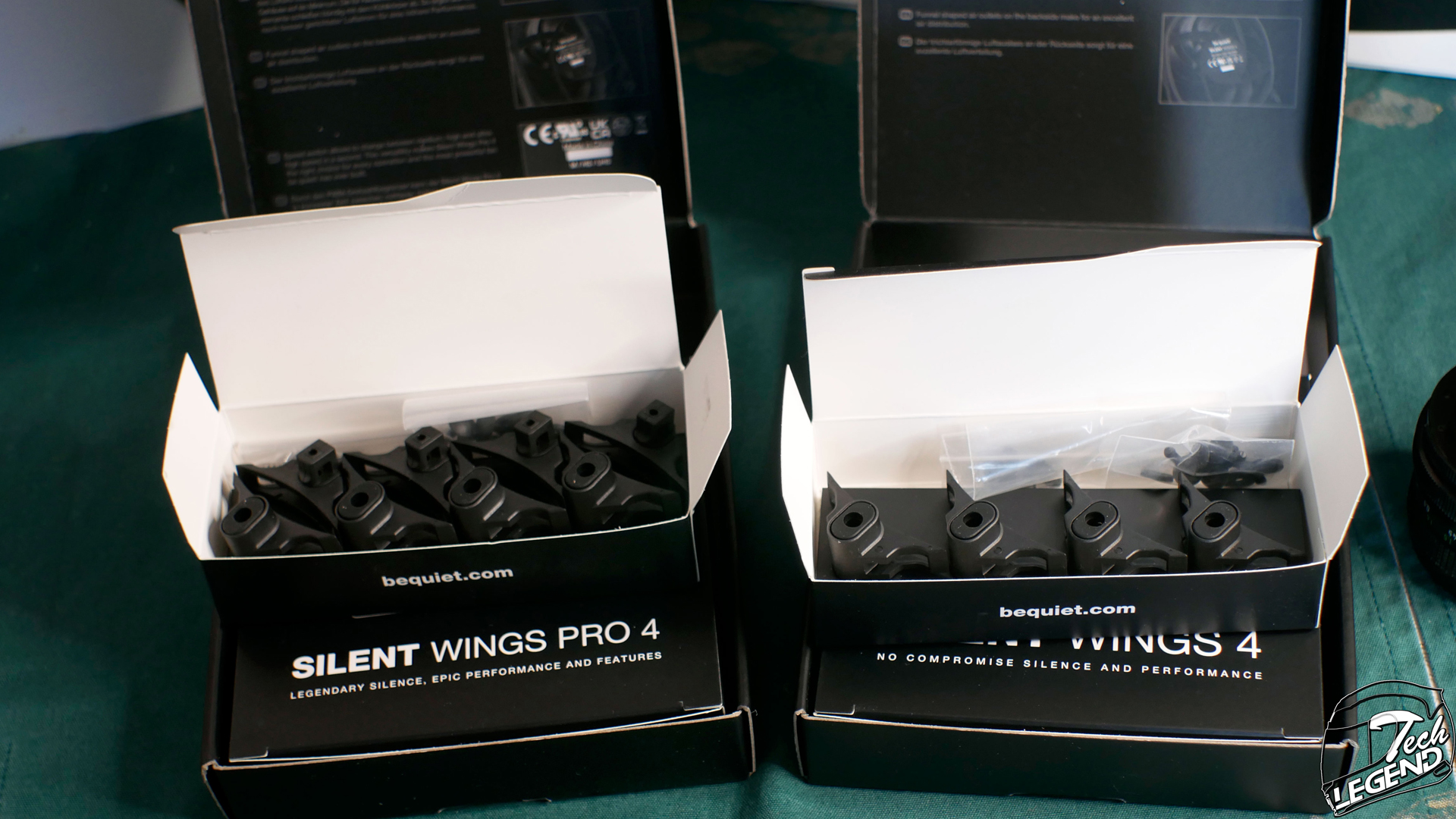

The inside of the box is divided into multiple small boxes, each correctly labeled and with its own monochrome graphics.



Accessories

The product comes with the following accessories:

Silent Wings Pro 4 120

– 1x User Manual;
– 4x Phillips screws;
– 4x Plastic push pins;
– 4x Rubber washers;
– 4x anti-vibration mounts;
– 4x plastic mounts;
– 4x Radiator square mounts;

Silent Wings 4 120 High Speed

– 1x User Manual;
– 4x Phillips screws;
– 4x Plastic push pins;
– 4x Rubber washers;
– 4x anti-vibration mounts;
– 4x plastic mounts;



Specifications

Silent Wings Pro 4 120
Model: Silent Wings Pro 4 120
Size: 120 x 120 x 25
Bearing: Fluid dynamic bearing
Number of blades: 9
Blade Geometry: Optimized for radiators and heat sink usage
Rated Voltage: 12 V
Max Input Power: 3,6 W
Min. Rotational Speed: 600 RPM
Rotational Speed (+/- 10%): 2500 RPM / 3000RPM (Ultra High-Speed Mode)
Static Pressure: 5.31mm H₂O
Airflow: 83.9 CFM
Acoustical Noise: 36.9 dB(A)
Lifetime MTBF: > 300.000 h
Connector: 4-Pin PWM
Warranty: 5 years

Silent Wings 4 120 High Speed
Model: Silent Wings 4 120 High Speed
Size: 120 x 120 x 25
Bearing: Fluid dynamic bearing
Number of blades: 9
Blade Geometry: Optimized for radiators and heat sink usage
Rated Voltage: 12 V
Max Input Power: 2.4 W
Min. Rotational Speed: 600 RPM
Rotational Speed (+/- 10%): 2500 RPM
Static Pressure: 3.96mm H₂O
Airflow: 76.7 CFM
Acoustical Noise: 31.2 dB(A)
Lifetime MTBF: > 300.000 h
Connector: 4-Pin PWM
Warranty: 5 years
