Introduction

Xilence Technology Co., Ltd. was founded in 2003 and is a German-Chinese manufacturer of components for cooling and noise reduction in PCs. The range of products consists of cases, power supply units, case fans, notebook coolers, CPU-, HHD-, GPU-, RAM- and Northbridge-coolers.

img_2188



Official product link

http://www.xilence.de/en/products/power-supplies.html

Packaging and accessories

The power supply comes packaged in a cardboard box with two colors and a white background with red accents.
The front side of the packaging presents the product using an image of it, the name and a few features of the power supply.

img_2175

The sides of the box are simple, in the middle there are printed both the name and logo of the manufacturer alongside the name of the product’s line.

img_2180

The back side of the box presents the connectors of the Power Supply and its specifications. On the right side there is printed an overview image of the product.

img_2179img_2182

Accessories

The product comes with the following accessories:
–    1x Manual
–    1x AC Power Cord
–    4x Metal screws

img_2183 img_2184 img_2185

Specifications

Name: Xilence Performance A+ 530W
Model:  XN061
Max. DC Output: 530W
Efficiency: 80 PLUS® Bronze
Modular: No
Intel Haswell Ready: Yes
Operating temperature: 15°C – 40°C
Fan: 120mm Sleeve-Bearing
Protections:
–    Under Voltage Protection
–    Over Current Protection
–    Over Temperature Protection
–    Short Circuit Protection
–    Over Load Protection
Connectors and cables:
–    1 x 24(20+4)-pin (520mm)

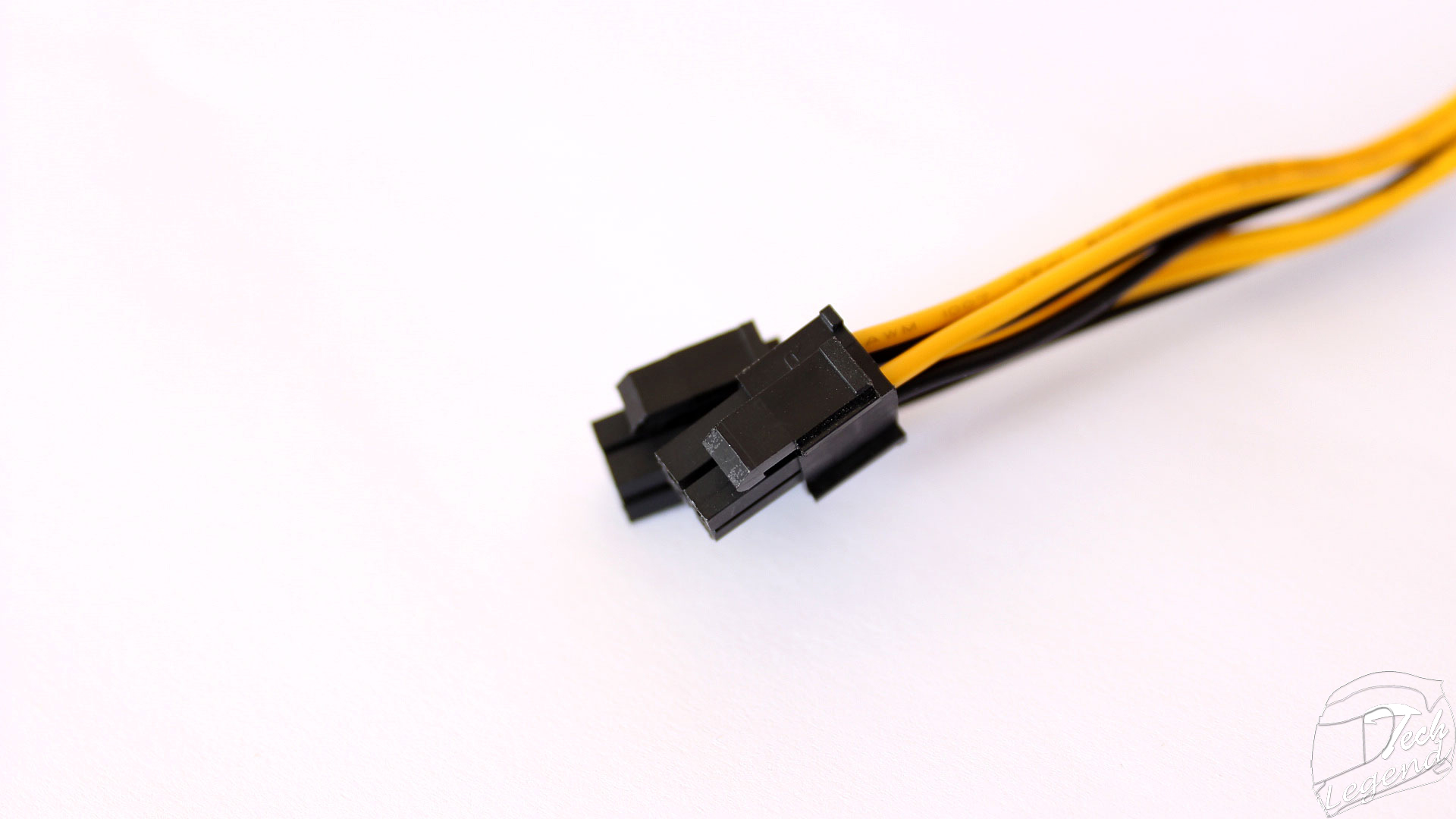

–    1 x 8(4+4)-pin ATX12V/EPS12V (600mm)
–    2 x 8(6+2)-pin PCI-E (480mm)
–    3 x Molex (150mm)

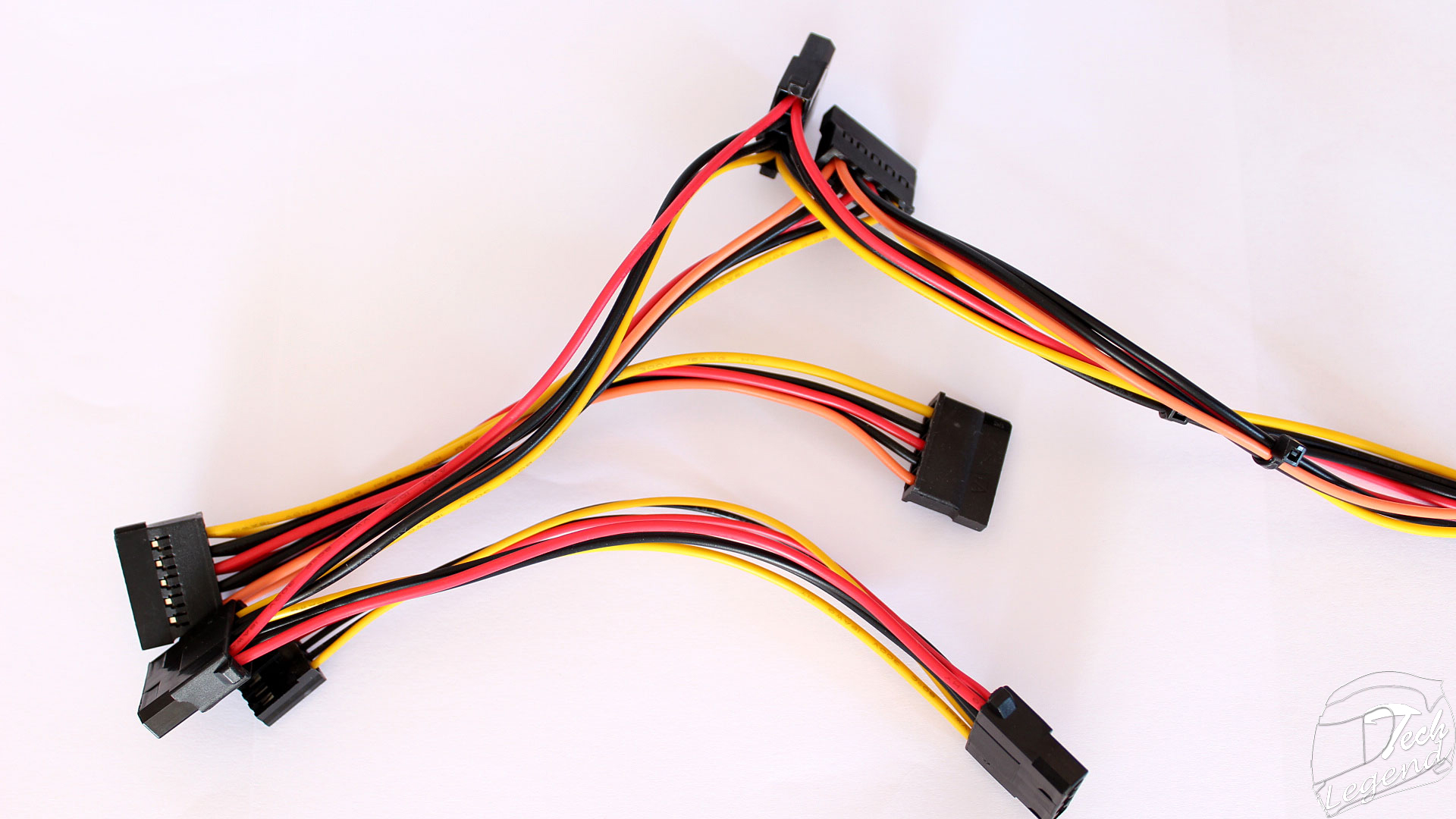

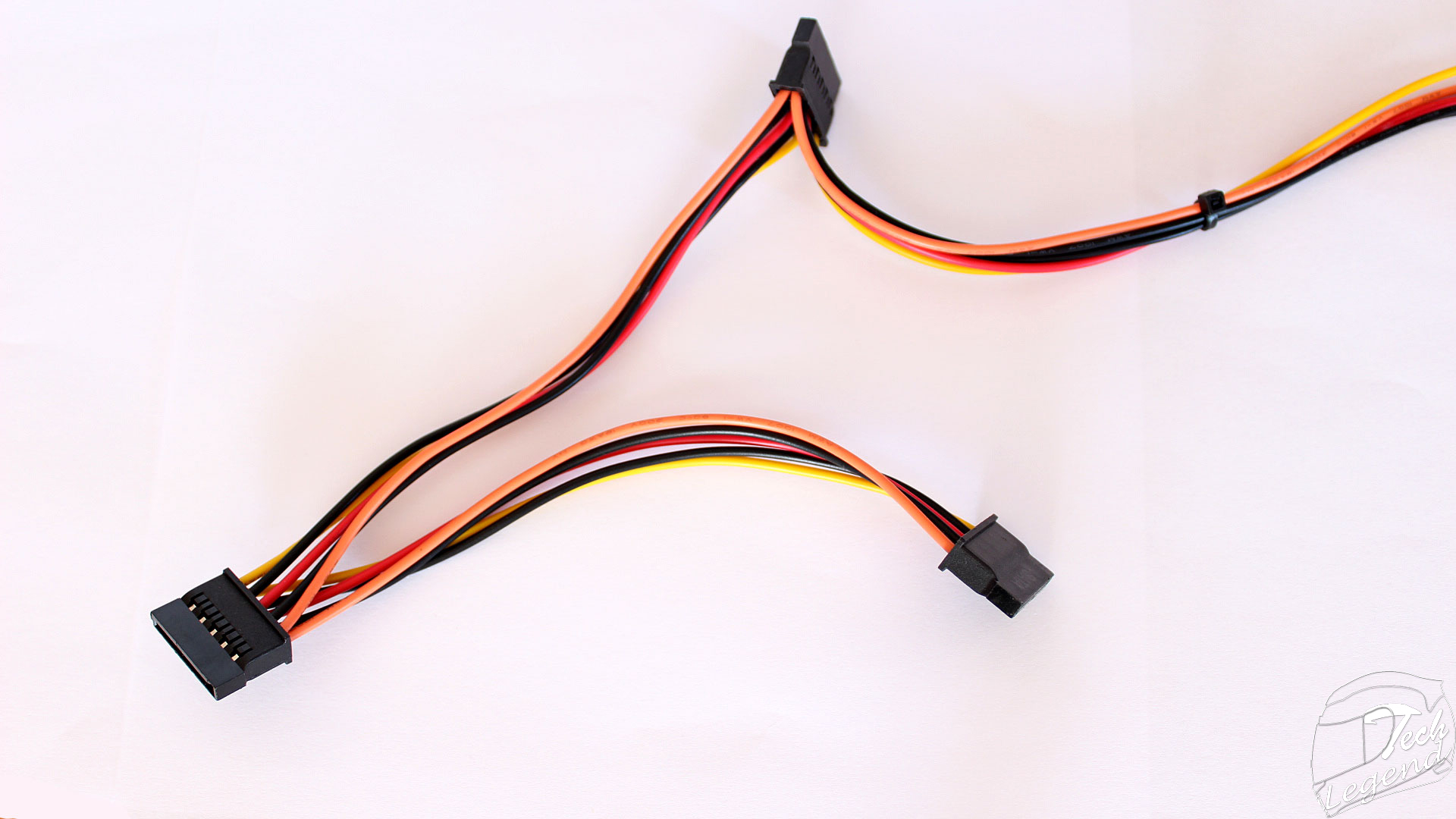

–    3 x SATA (480mm+150mm+150mm)
–    2 x SATA (480mm+150mm+150mm)
–    1x Floppy (+150mm)
Power Distribution:
12V1: ATX, 8-pin socket, Peripheral
12V2: 16-pin socket
Weight: 1.8 kg
Compliance: ATX12V v2.4, EPS 2.92
Warranty: 24 months

Features:

–    Extremely silent cooling: large 120mm fan
–    Excellent air flow design for a better heat dissipation
–    Full safety design:◦Over Voltage Protection (OVP)
–    Under Voltage Protection (UVP)
–    Over Current Protection (OCP)
–    Over Temperature Protection (OTP)
–    Short Circuit Protection (SCP)
–    Over Load Protection (OLP)
–    Low stand-by consumption
–    High energy efficiency: 80+ BRONZE® certified (complies with ErP2014 norm)
–    Active-PFC

Visual inspection

The Performance A+ 530W model has a simple design, the power supply is painted in matte black. In combination with the 120mm fan, the power supply maintains the Xilence black-red color scheme.
The Power supply has reduced dimensions, it measures 150mm in width and 140mm in depth with a weight of 1.8kg.

img_2189 img_2197

The front grill which covers the 120mm fan maintains the overall look of the Power Supply, the grill being matte black. In the center there is the Xilence logo.

img_2193 img_2203

On the back side the Power Supply uses a honeycomb-style grill, here we find both the the on/off switch and the AC socket.

img_2199 img_2202

On the side we have the label with the specifications of the PSU while on the opposite side there is embossed the name and logo of Xilence.

img_2194 img_2204

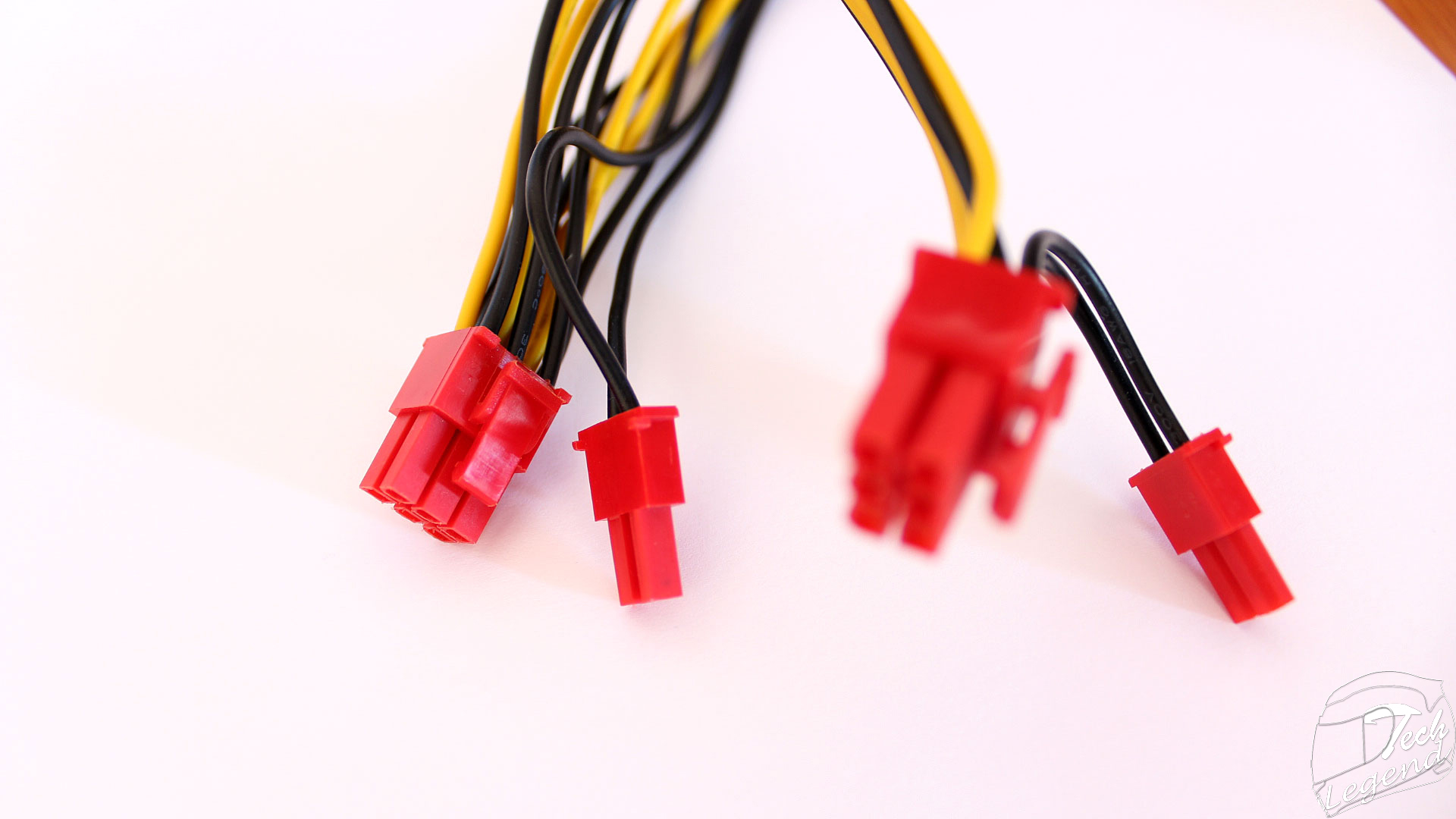

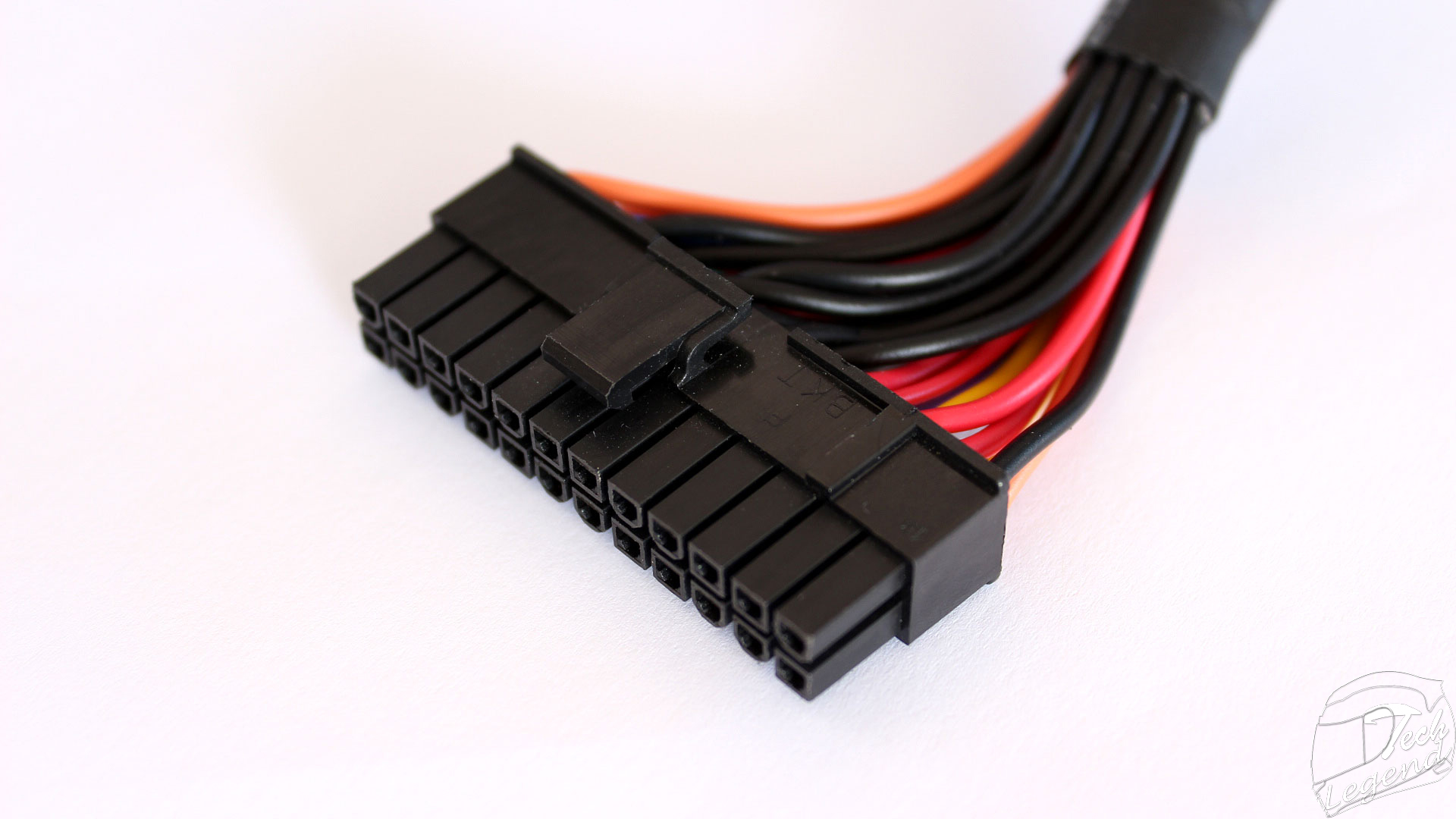

The cables of the Power Supply are exposed, the only sleeve covered cable is the motherboard 24-Pin cable. Also the PCIe cables use red connectors in order to be easier to find and differentiate.

img_2207

img_2217



The fan used is provided by Evercool, model EFS-12E12L, specifications: 12 V, .16A, 1400 RPM, 51.87 CFM, 29 dBA. Also the fan is connected to the PSU pcb using a 2-pin molex connector.

img_2222 img_2223img_2220



Despite the compact format used, the interior of the Power Supply is airy, the components are being cooled by two aluminum heat sinks.

img_2219 img_2224 img_2230 img_2245 img_2246 img_2251



Behind the AC receptacle we find two Y capacitors.

img_2226 img_2227



In the APFC section we find installed two capacitors manufactured by 12KUANG JIN ENTERPRISE, the company is based in Taipei, Taiwan, the capacitors have the following specs: 180μF/450V, next to it we have a filtering coil.  On the right side there are placed four Y capacitors.

img_2240 img_2243 img_2244



Next to the primary capacitors on a vertical PCB there is the PWM controller, model CM6800TX, manufactured by Champion.

img_2253 img_2254



The standby PWM controller is placed in the center of the Power Supply next to the primary heatsink, it is model EM8569A manufactured by Excelliance MOS.

img_2234



Responsible for the Power Supply’s protections there is the supervisor IC model: ST9S429-PG14, manufactured by Sitronix, it is placed on the lower side of the Power Supply next to its cables.

img_2236



The capacitors used in the Performance A+ 530W are manufactured by 12KUANG JIN ENTERPRISE, secondary capacitors are manufactured by ChengX.

img_2229 img_2248 img_2249 img_2250



Testing

For testing a professional PSU tester was used, the Chroma ATE 8000. This tester is located at the testing center of the Listan GmbH manufacturer, the parent company of both Be Quiet! and Xilence.

foto-1 foto-2 foto-3 foto-4



The efficiency of the power supply was measured at a load starting at 35W or 10% of the PSU’s capacity, up to 550W or 110%.

efficiency



This test shows the voltage oscillation of the power supply’s rails, these oscillations are measured in millivolts (mV). The test is conducted with the load of the power supply starting from 10% up to 110%.

voltage-noise



Cross Load

crossloads



The noise level was measured at three different distances from the fans (10cm, 20cm, 30cm.) the noise was measured with a margin of error of ± 5 db.

sound



Final thoughts

The Performance A+ 530W model stands out through its good build quality and silent operation during use.
The performance of the power supply is good, having a maximum efficiency of 89.36% at a load of 210W. Also the voltage oscillation is good, especially when we take into consideration the price range of the power supply. Thr 120mm fan remains silent throughout the use of the PSU.
The cables are rigid enough to maintain their shape, but flexible not to impend the assembly process, as a side note; in the future the cables can be completely black to create a better look.
In conclusion, the Xilence Performance A+ 530W is a power supply with good build quality and an excellent performance-price ratio. The PSU offers protections such as: OVP, UVP, OCP, OTP, SCP, OLP and is 80+ BRONZE certified. All these while being competitively priced. This power supply is ideal for a budget oriented system.
