Antec High Current Pro Platinum 850W

antec-logo

Introduction

Antec, Inc. is the global leader in high-performance computer components and accessories, founded in 1986. Antec has maintained its position as a worldwide leader and international provider of quiet, efficient and innovative products. Antec has also achieved great success in the distribution channel, meeting the standards required by its customers.

img_1565



Official product link:

http://www.antec.com/product.php?id=706572&fid=358&lan=ec

Packaging and accessories

The power supply comes packaged in a multicolored cardboard box with a black background and white & yellow accents. The front side of the packaging is silver and reflective, in the middle there is printed the name of the product’s line while below there are a few features of the product such as: Power, Efficiency and Modularity. On the right side there are printed both the name and logo of the manufacturer on a yellow background.

img_1545

The sides of the box presents a few features & specifications of the product.

img_1551 img_1553

The back side of the box presents the features of the product, on the upper part we find printed several icons of certifications (80 Plus Platinum, Nvidia SLI, Haswell Ready, ErP Lot 6 compliance).

img_1549

Both the power supply and the modular cables come packaged in a black textile bag each.

img_1559

Accessories

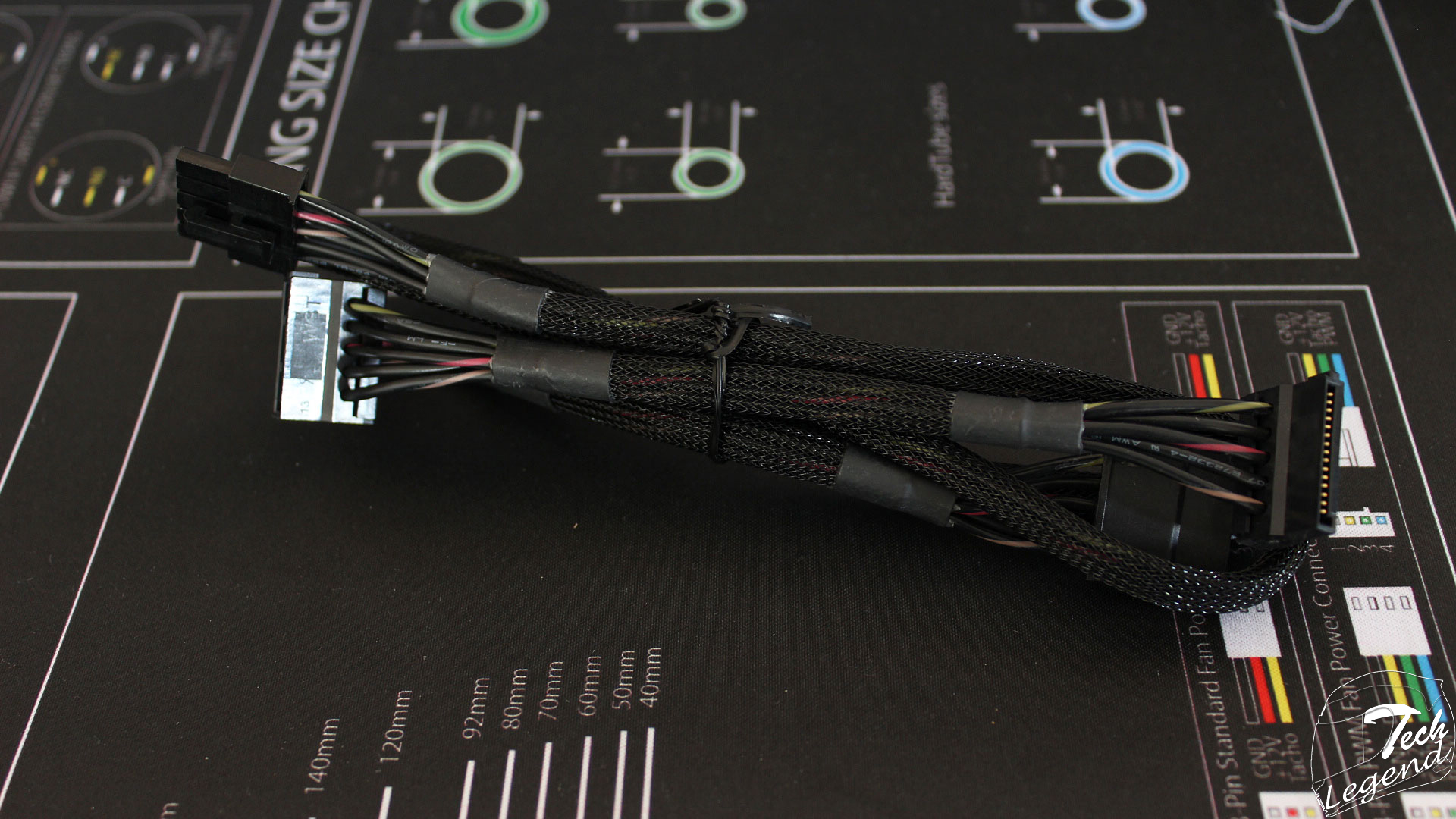

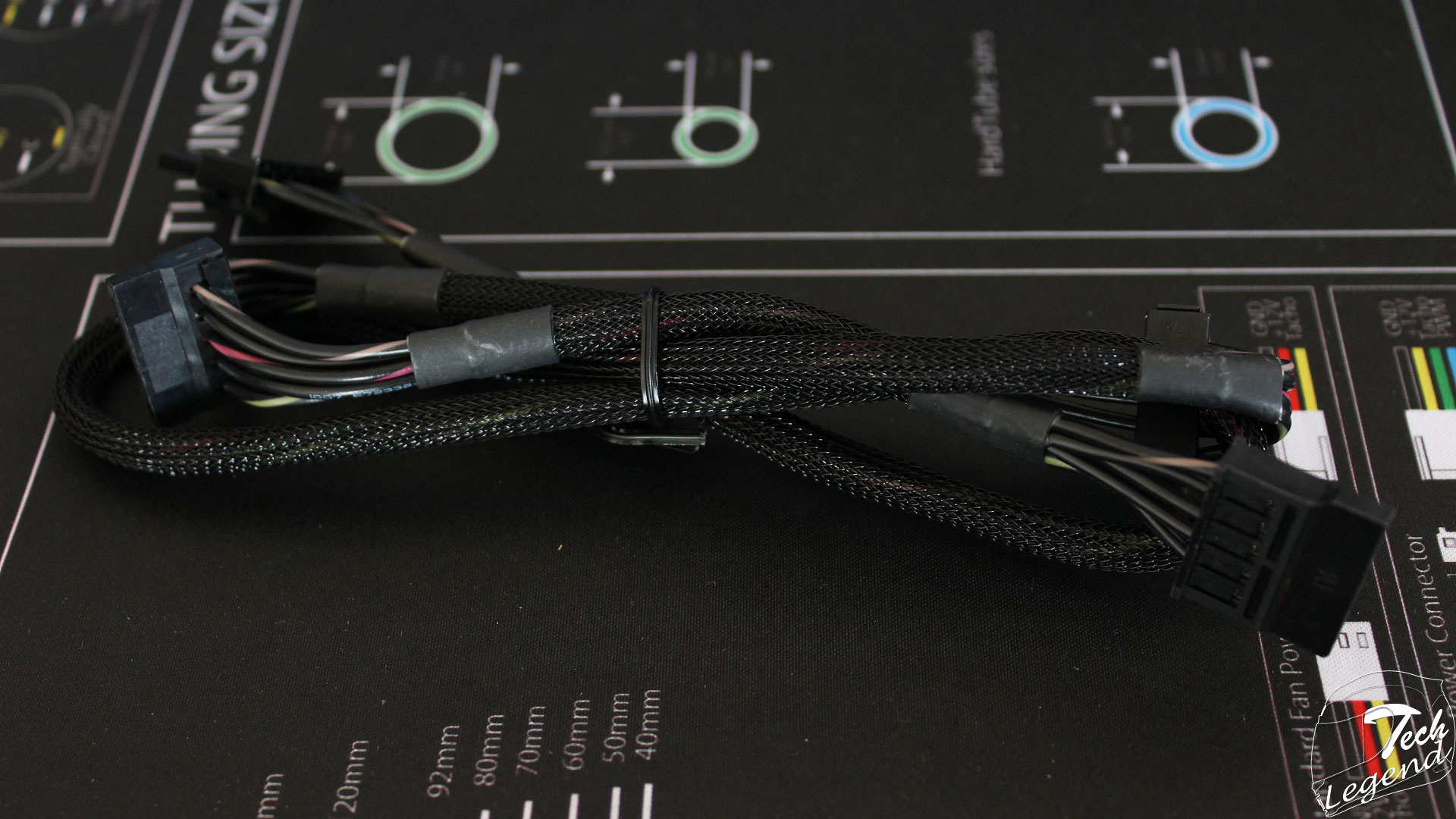

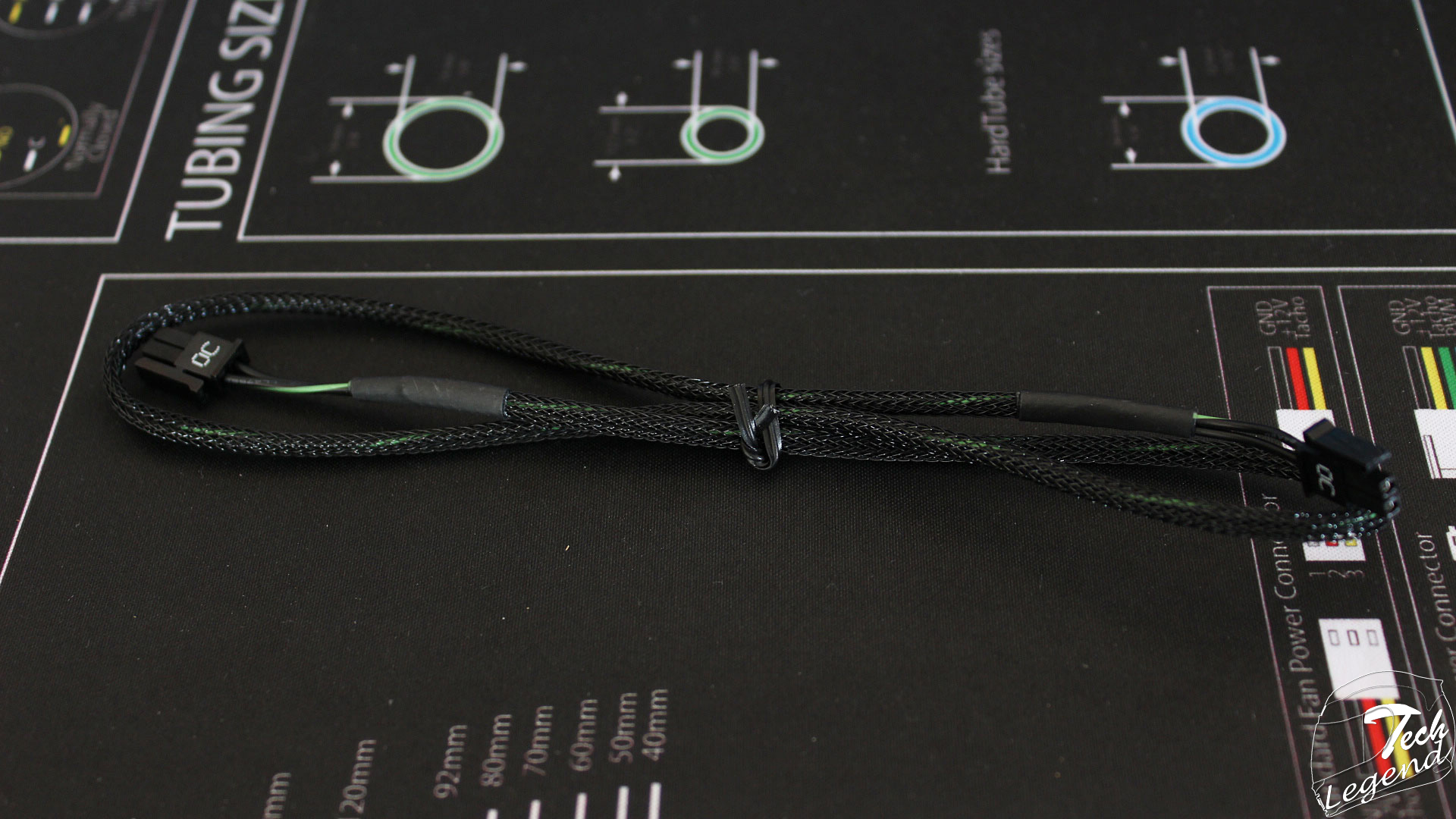

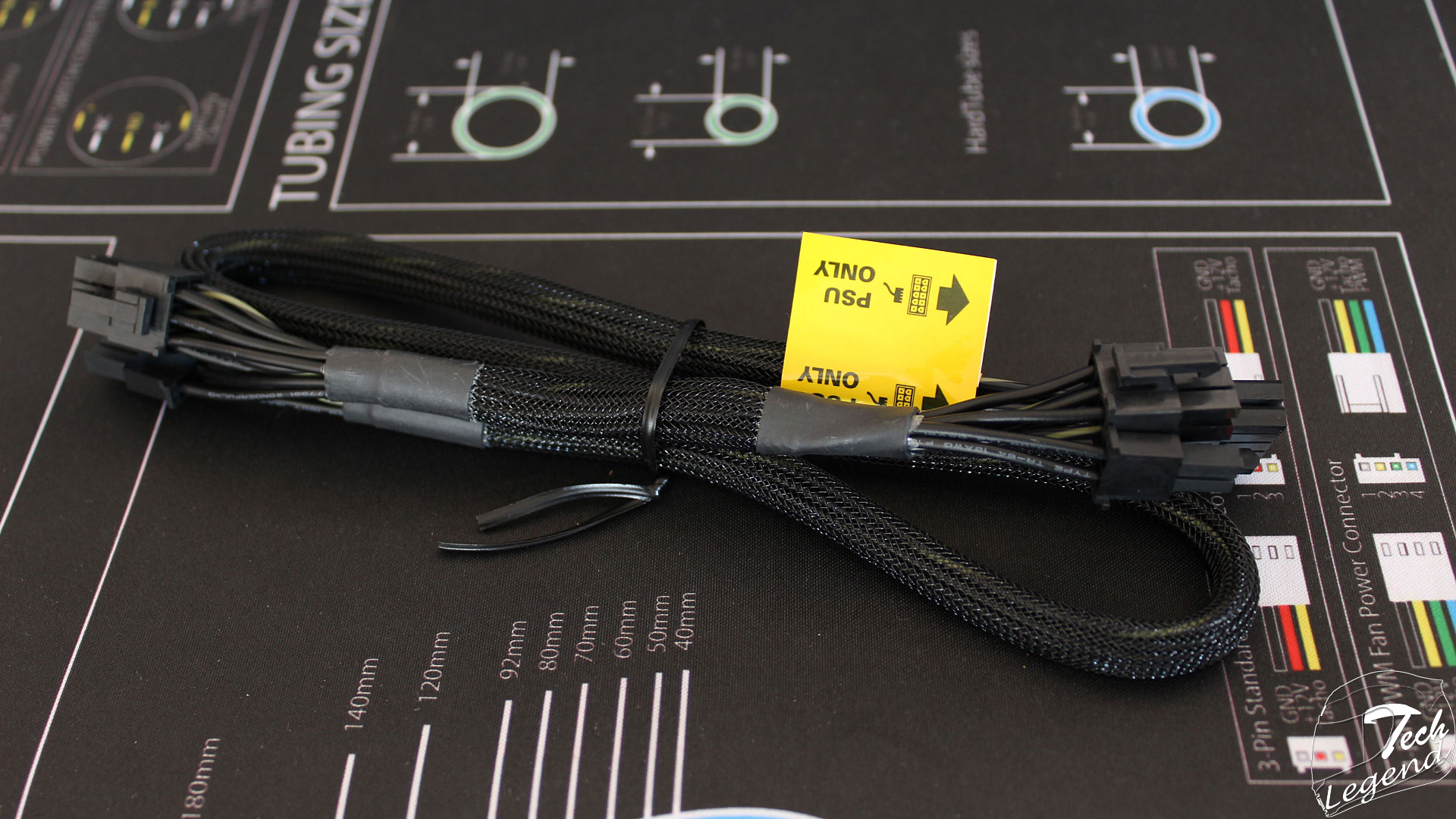

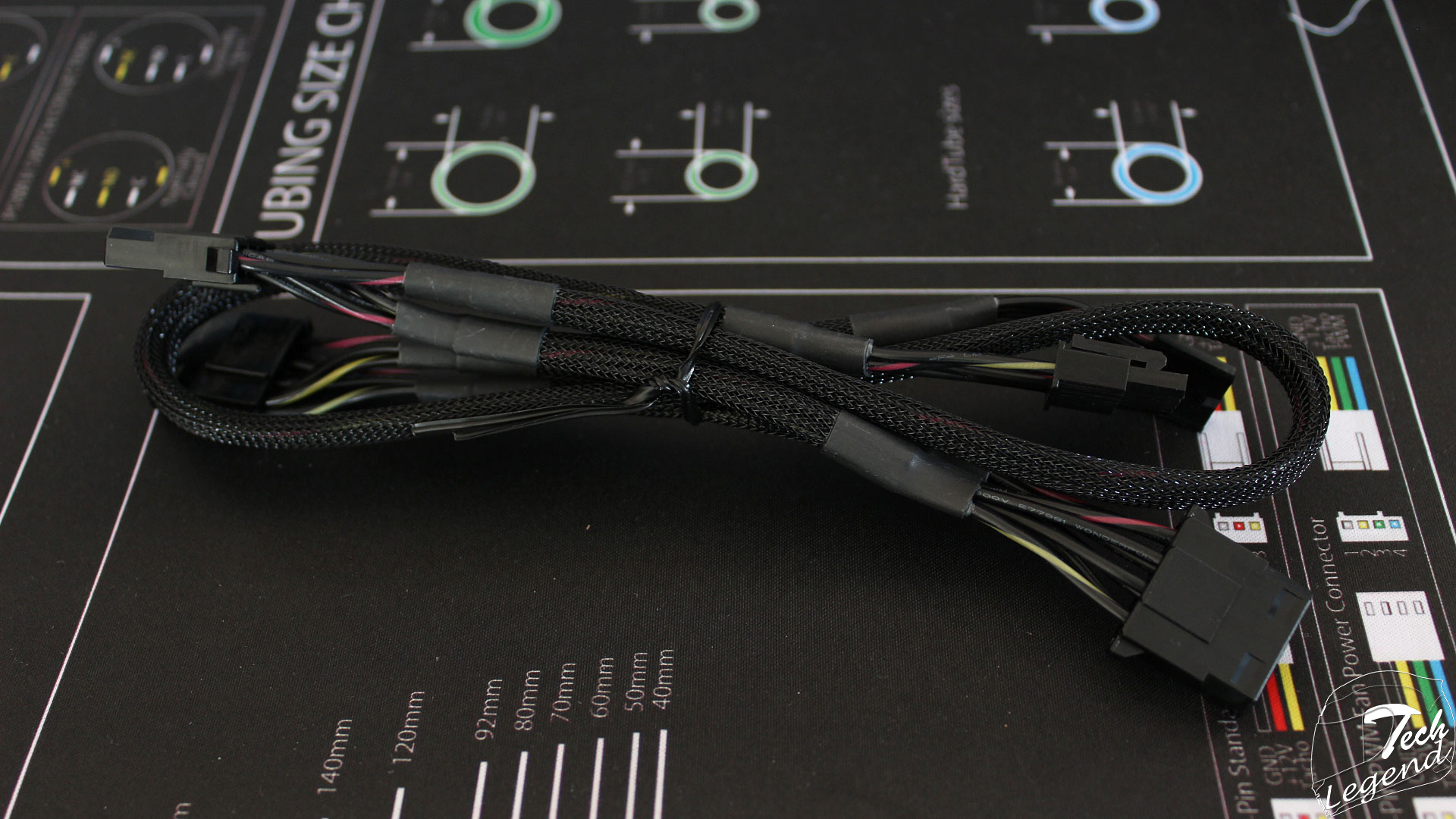

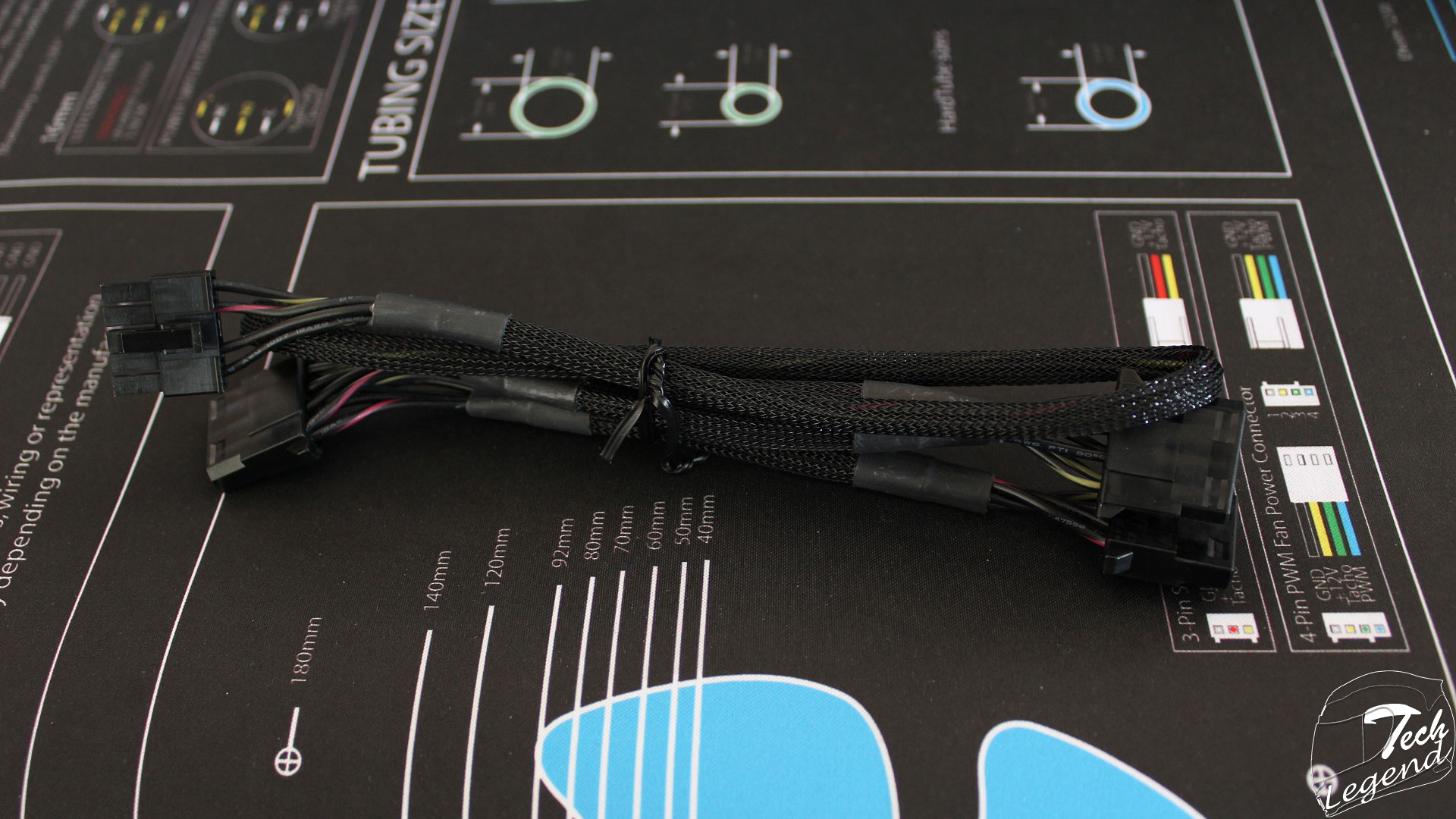

The product comes with the following accessories:
–    1x Manual

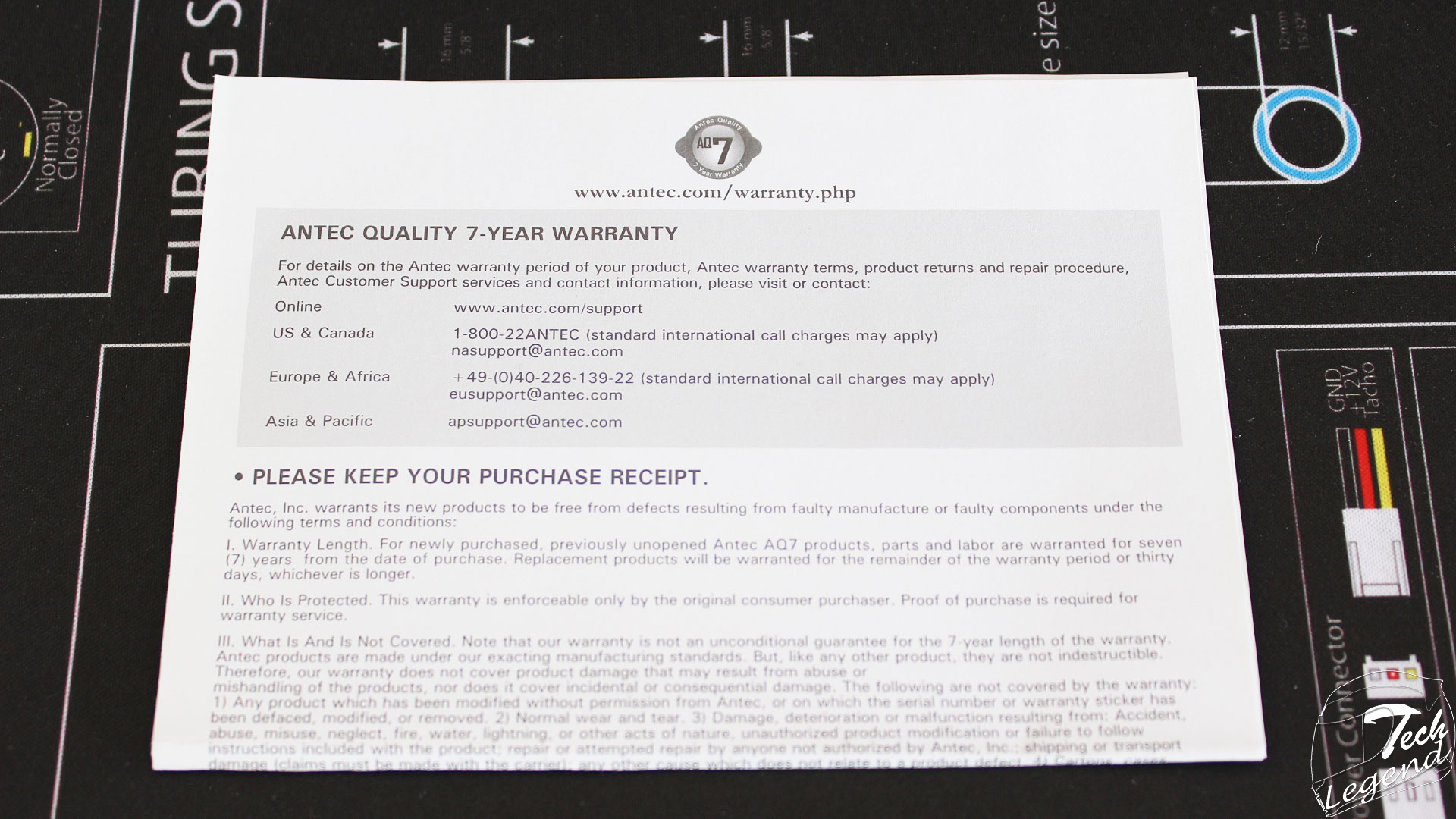

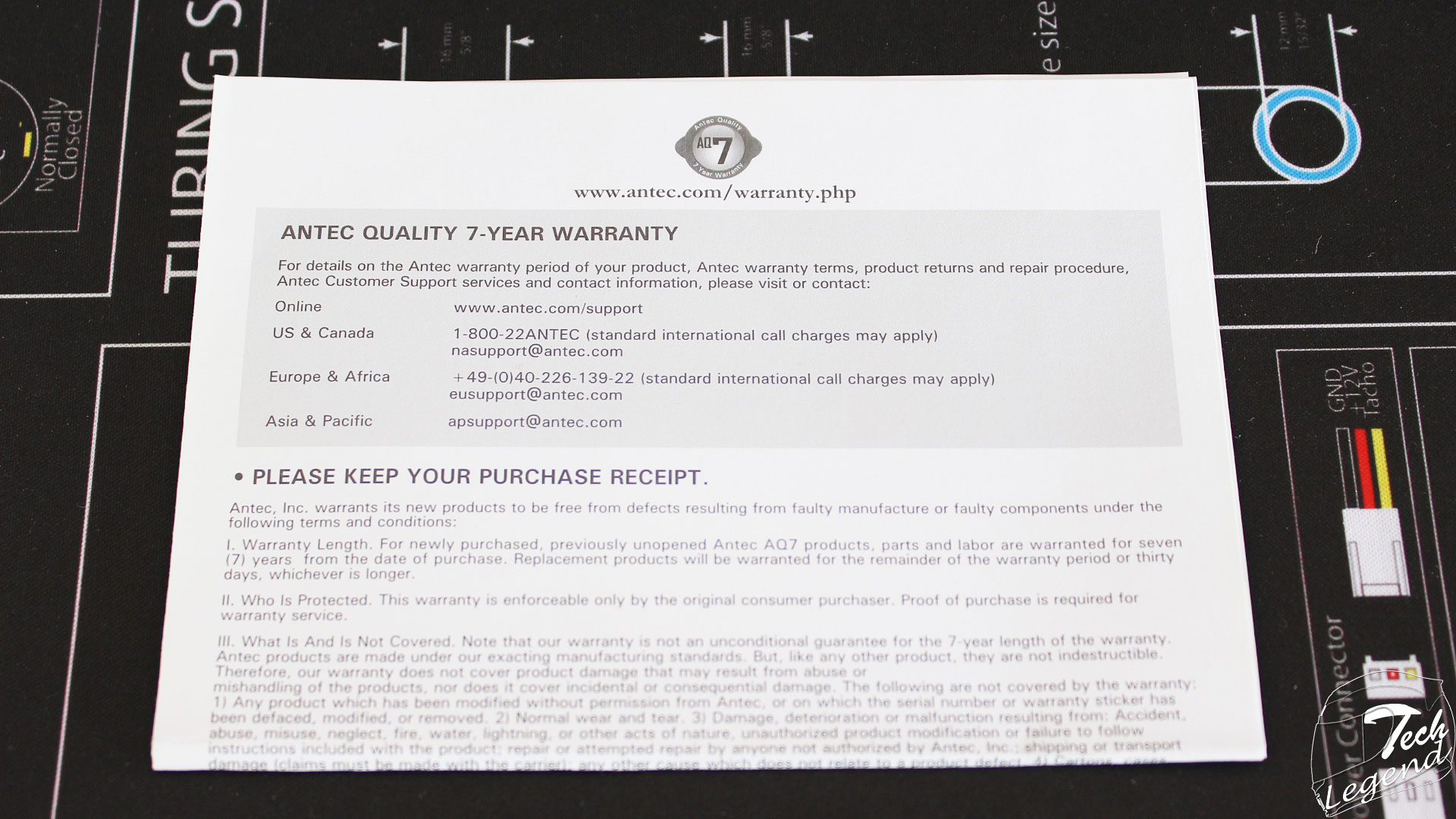

–    1x Warranty

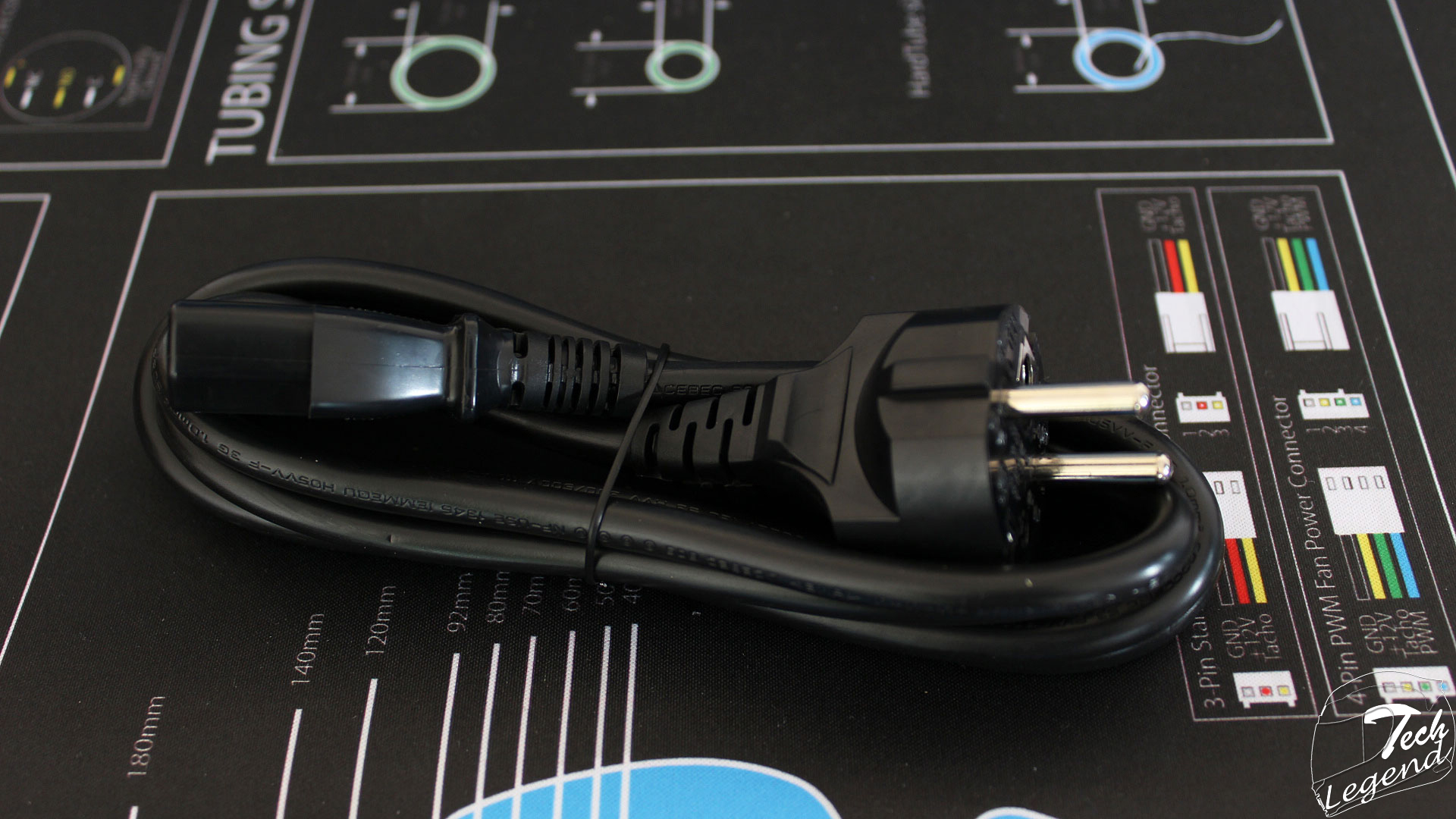

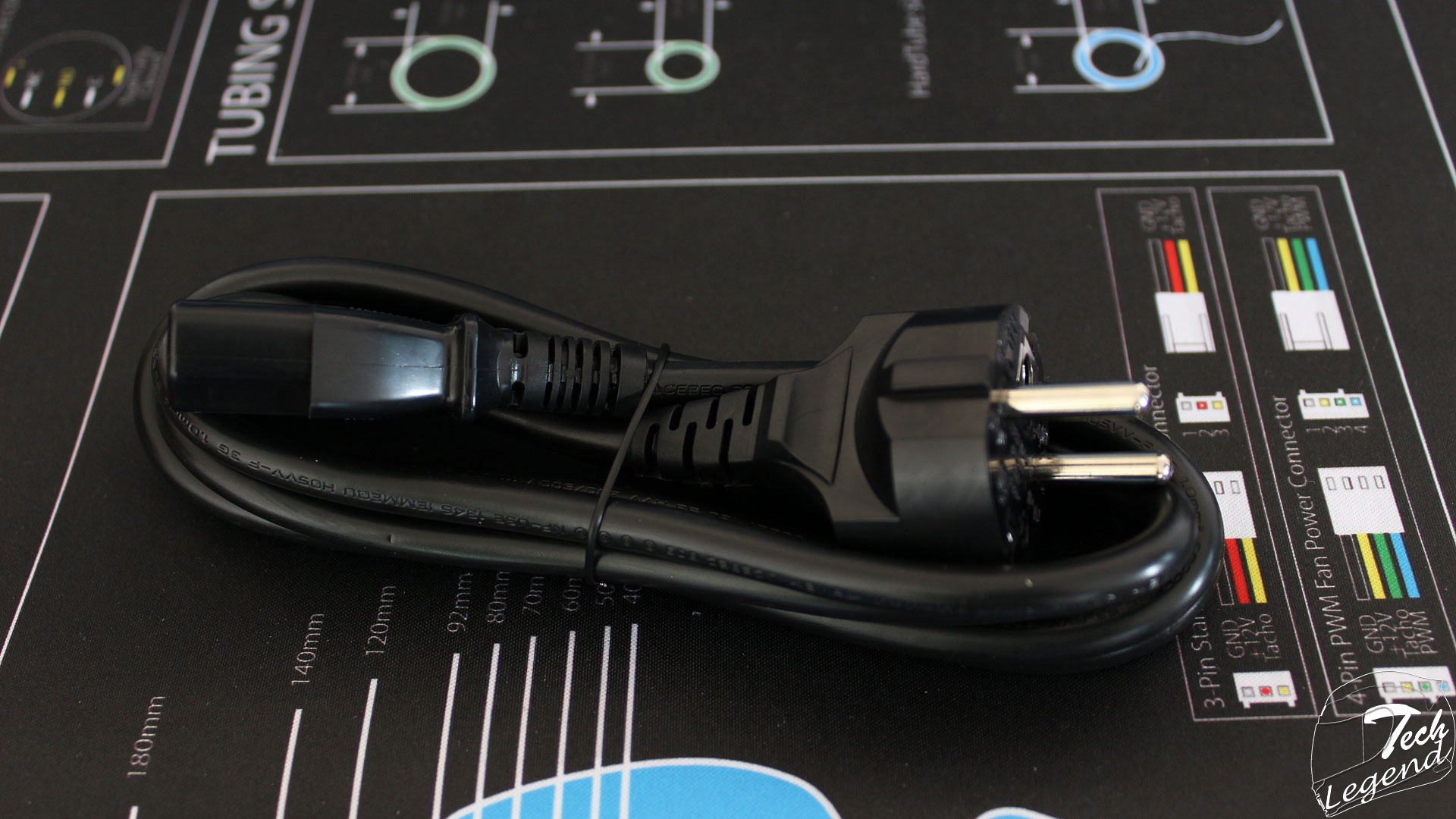

–    1x AC Power cord

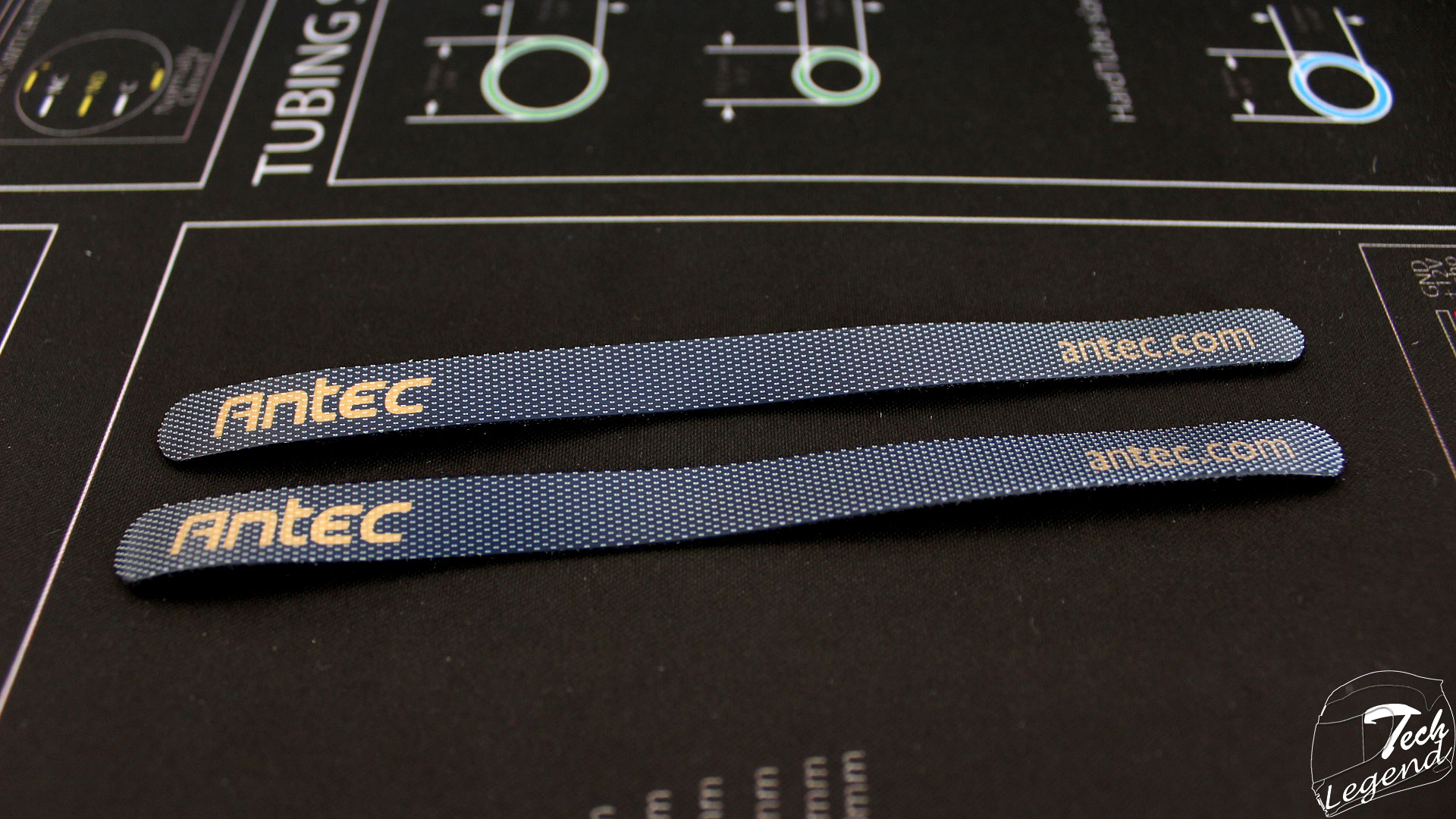

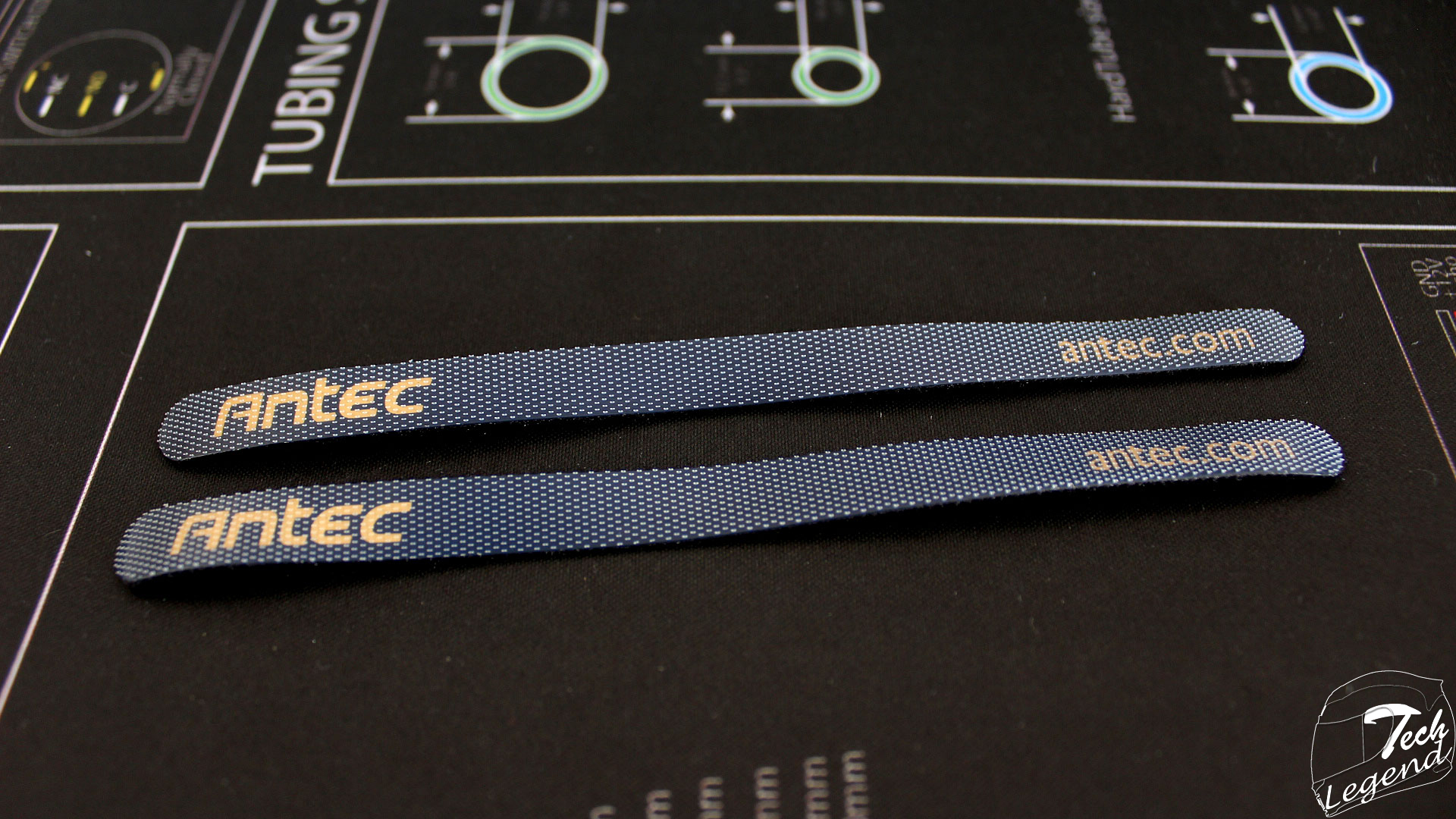

–    2x Antec branded Velcro straps

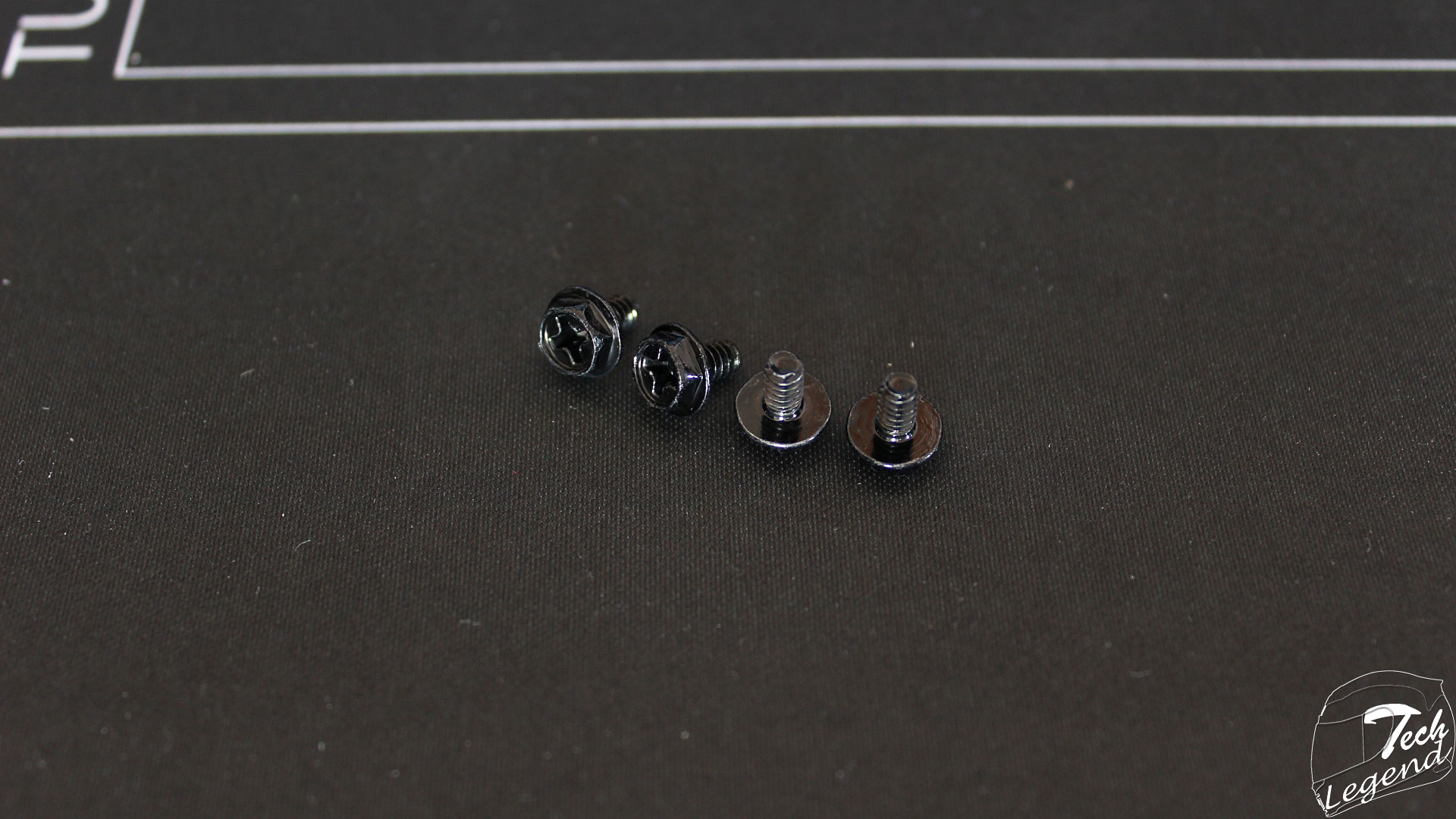

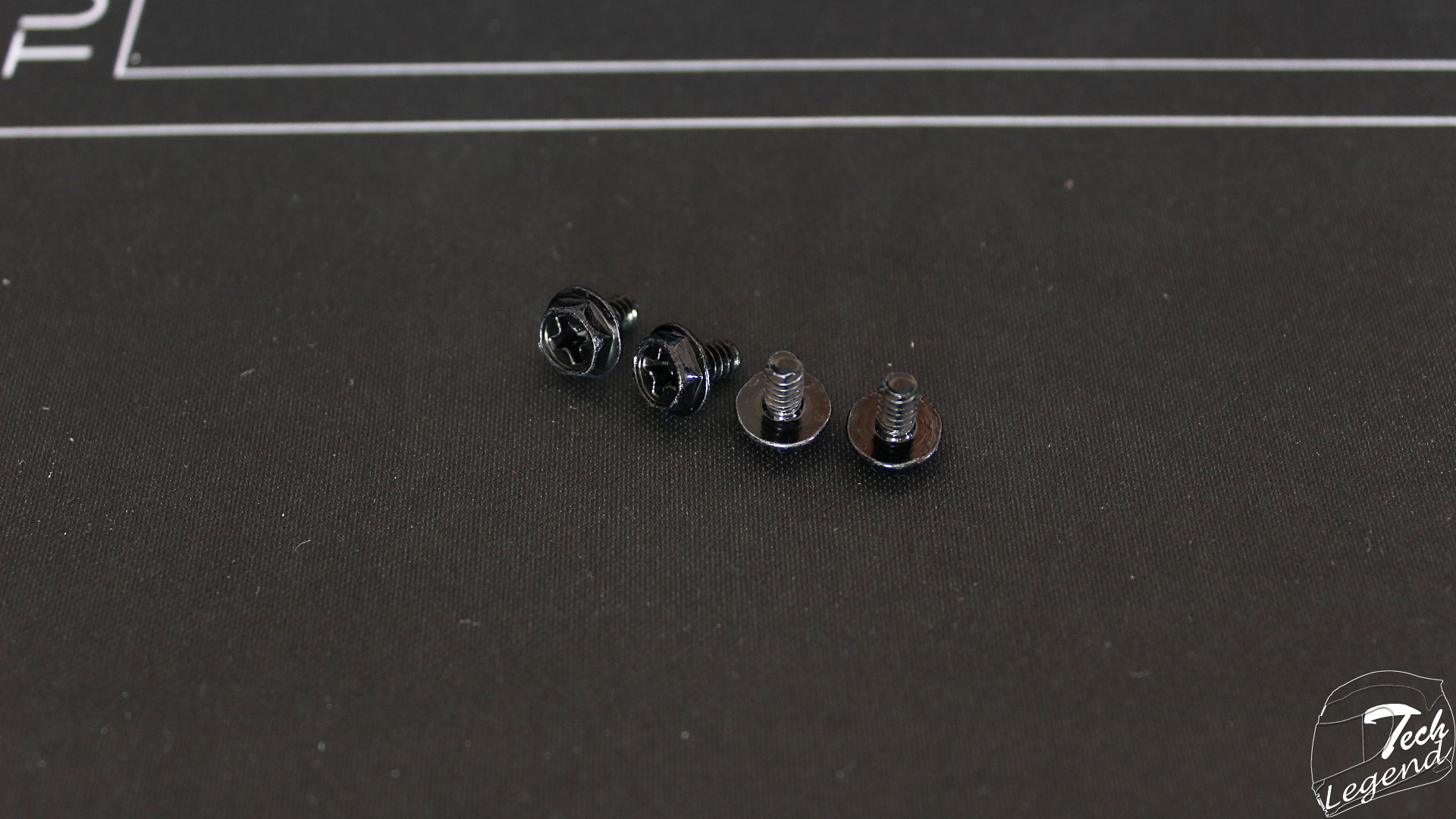

–    4x Black metallic screws

img_1594



Specifications

Name: Antec High Current Pro Platinum 850W
Model: HCP-850 Platinum
Max. DC Output: 850W
Efficiency: 80 PLUS Platinum
Modular: Full Modular
Intel Haswell Ready: Yes
Operating temperature: 0°C – 50°C
Fan: 135 mm Double Ball-Bearing Fan (AFB1312M)
Protections:
–    Over Voltage Protection
–    Under Voltage Protection
–    Over Power Protection
–    Over Temperature Protection
–    Over Current Protection
–    Short Circuit Protection
–    Surge & Inrush Protection
–    No Load Operation
–    Brown-Out Protection
Connectors and cables:

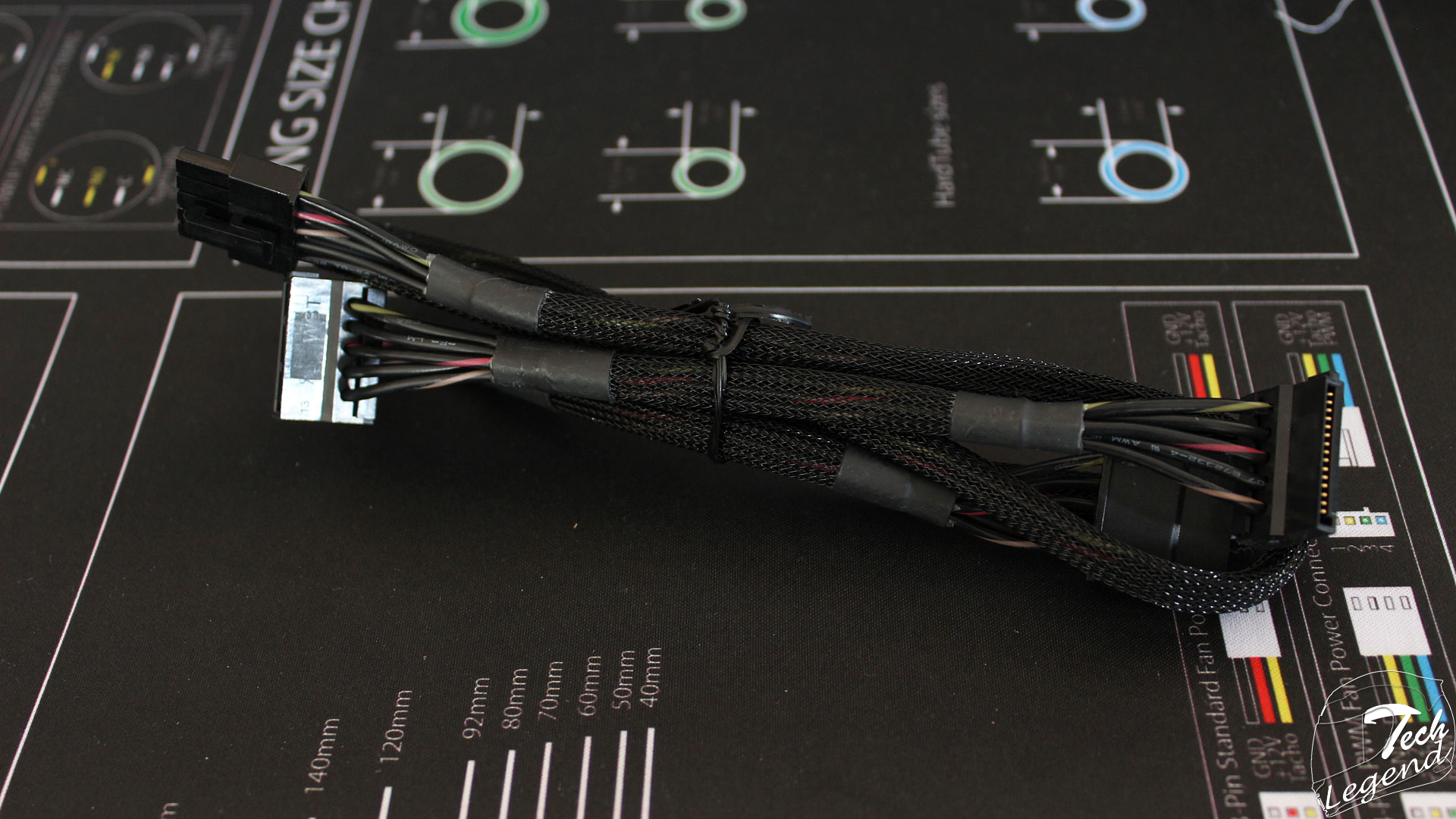

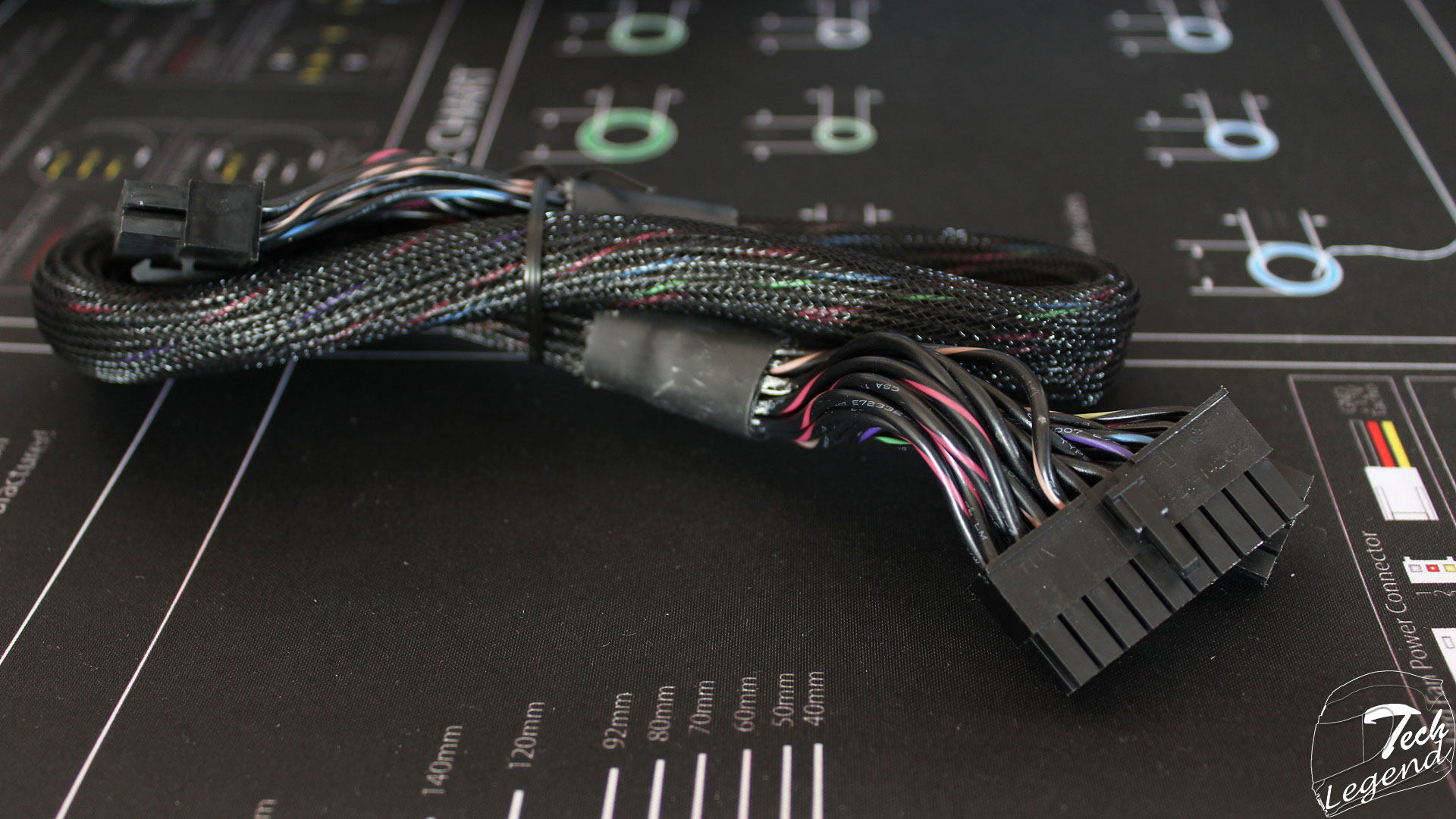

–    1x 24 pin ATX connector 560mm

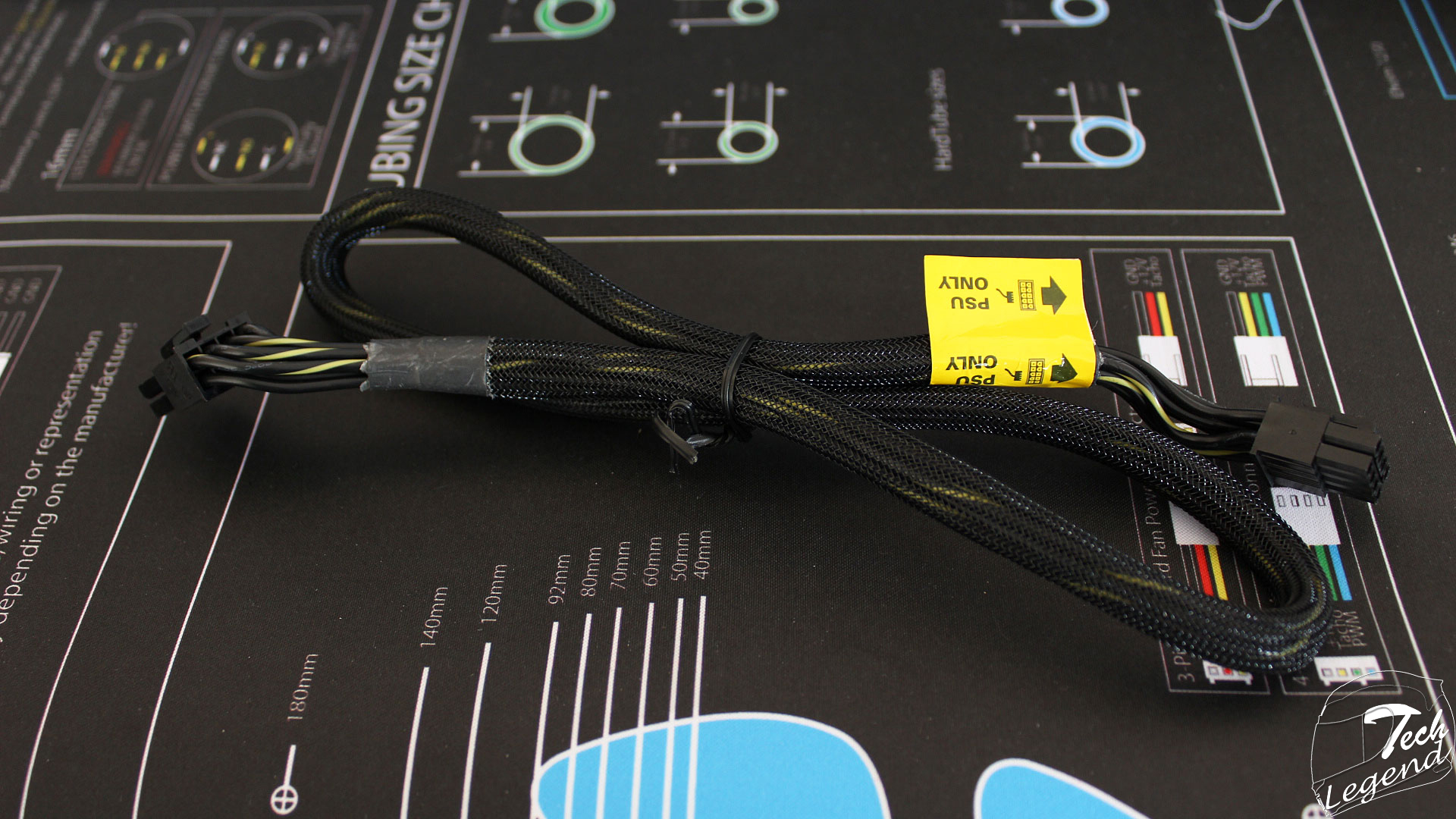

–    1x 8 pin EPS12V (650mm)

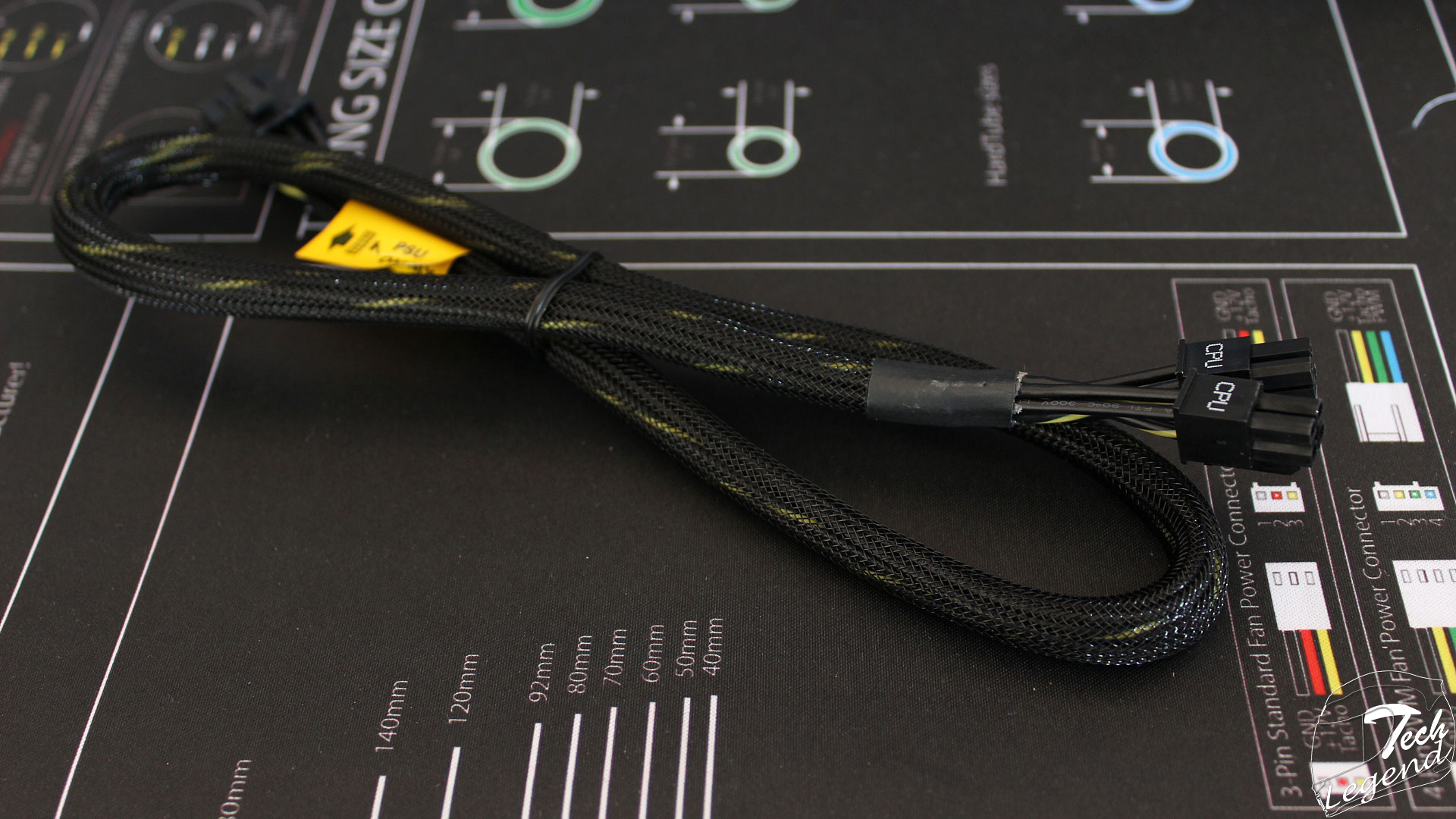

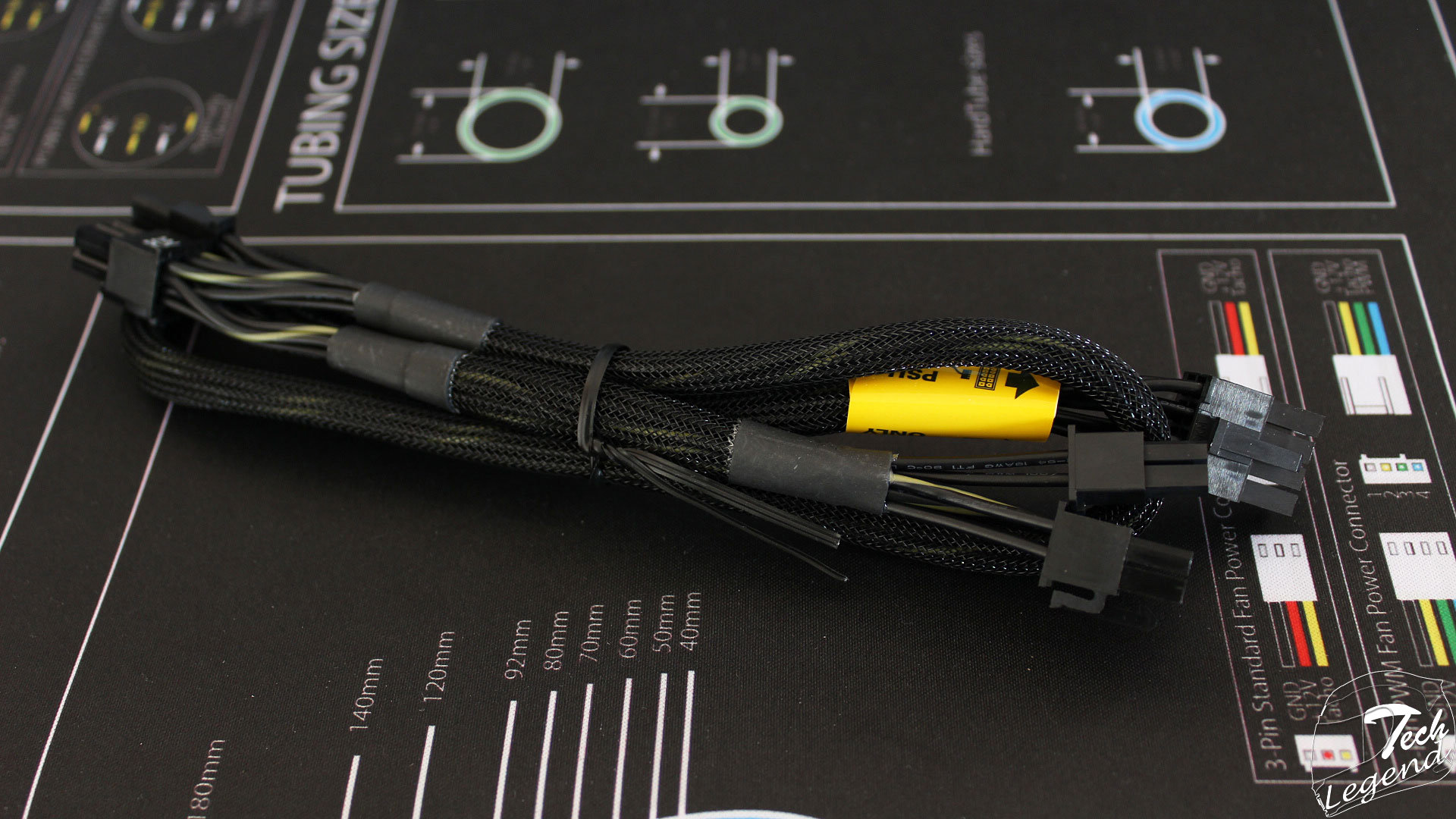

–    1x 4+4 pin EPS12V/ATX12V (650mm)

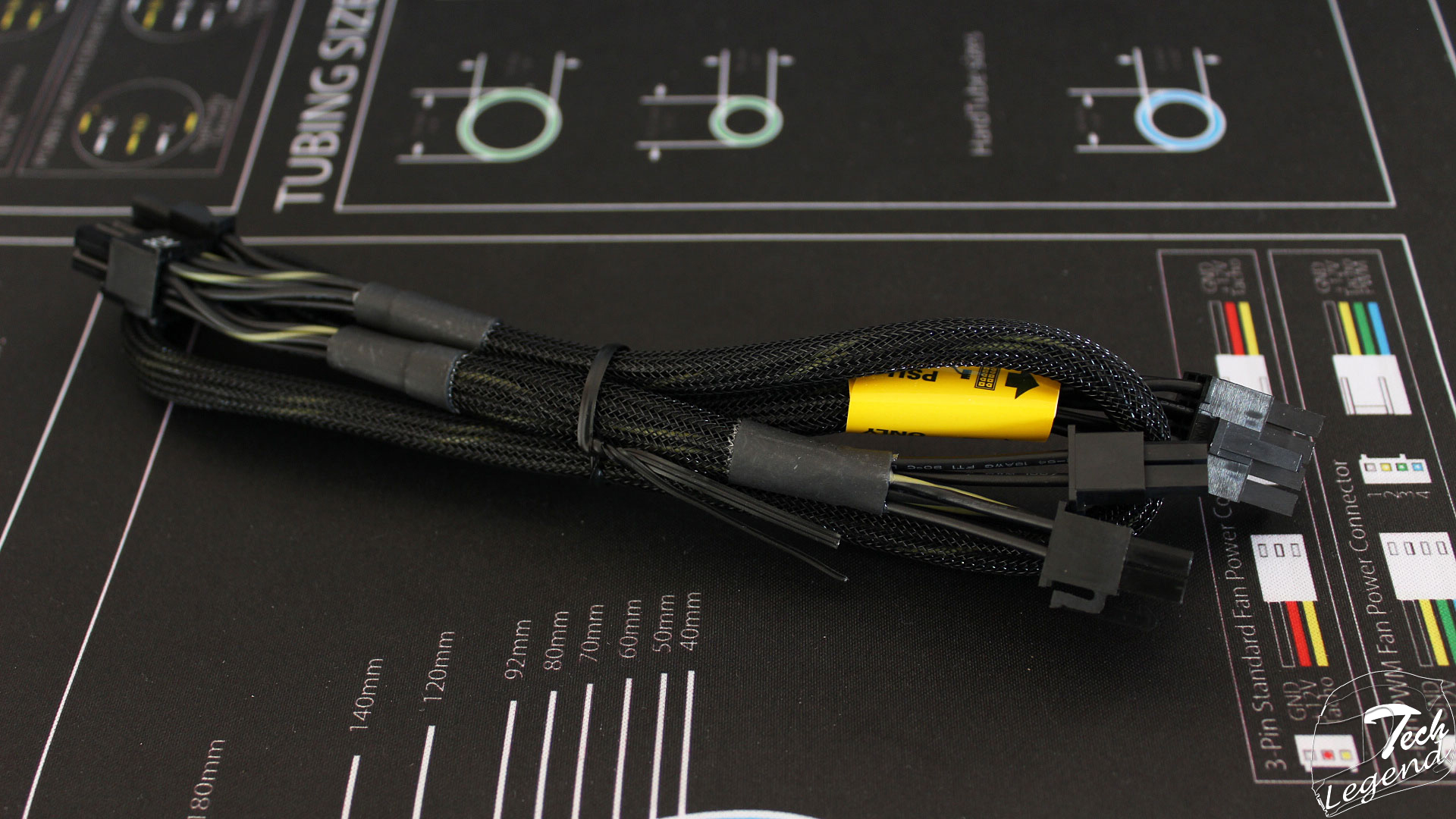

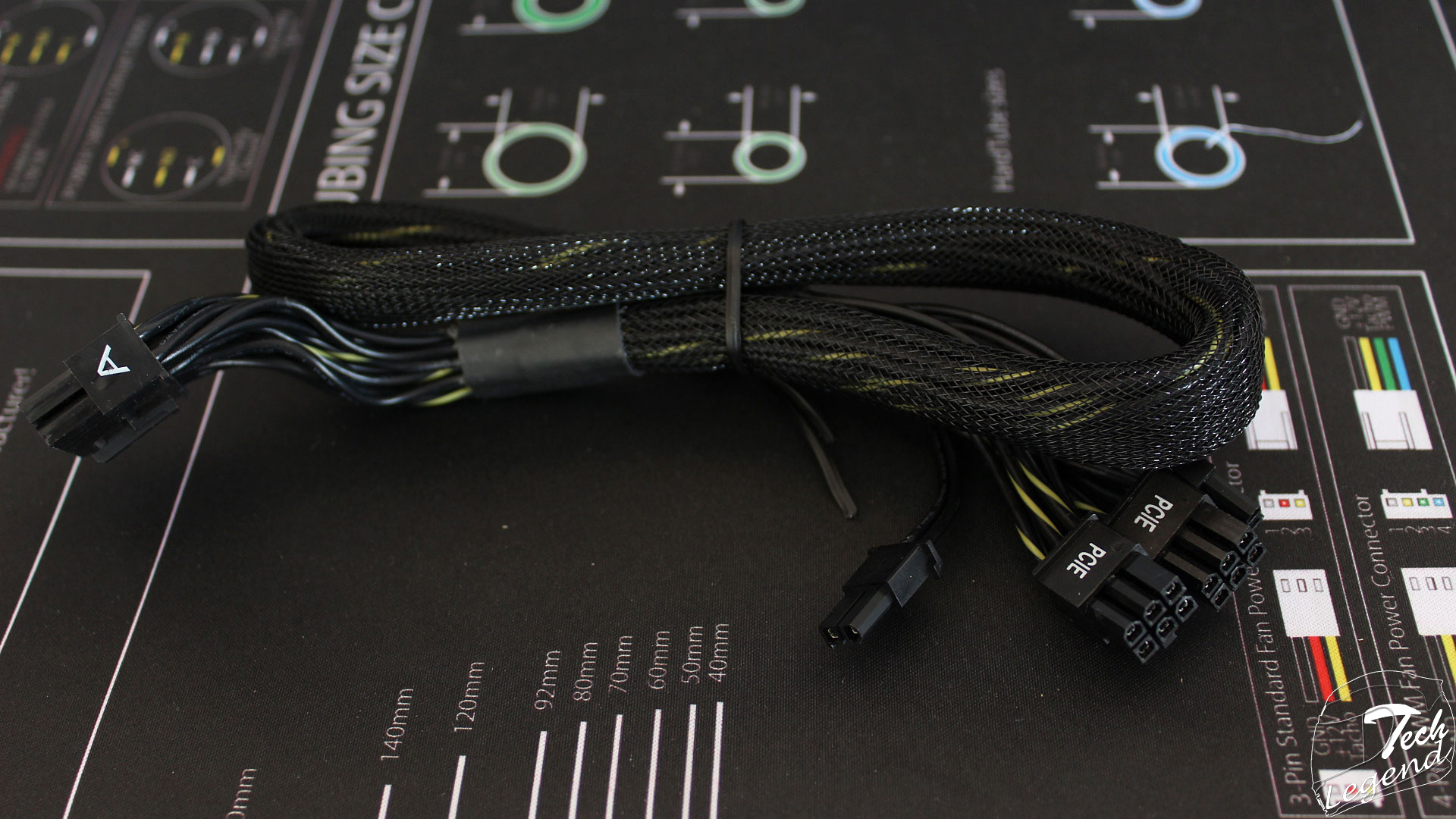

–    4x 6+2 pin PCIe (550mm+150mm)
–    2x 6+2 pin PCIe (550mm)

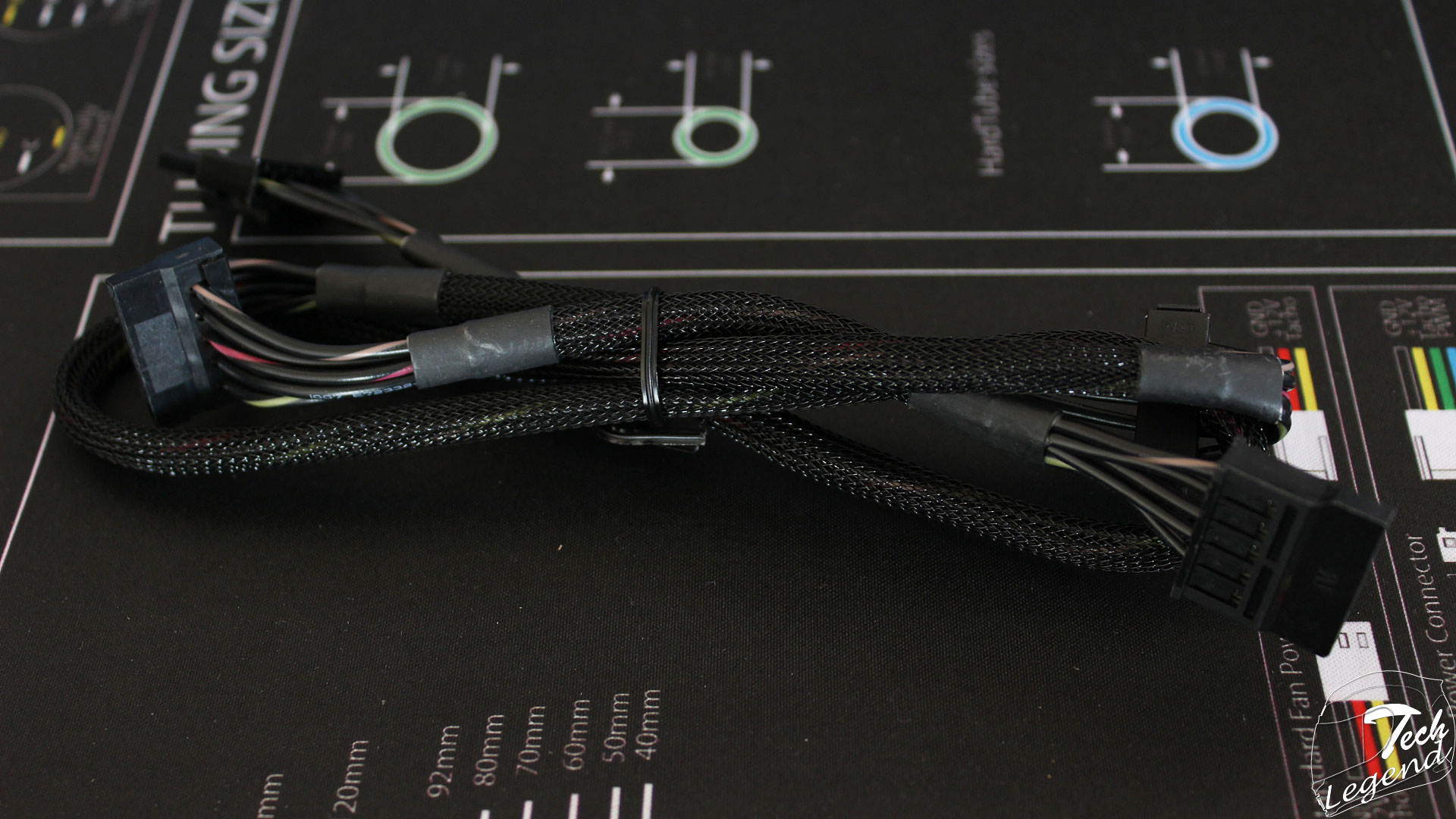

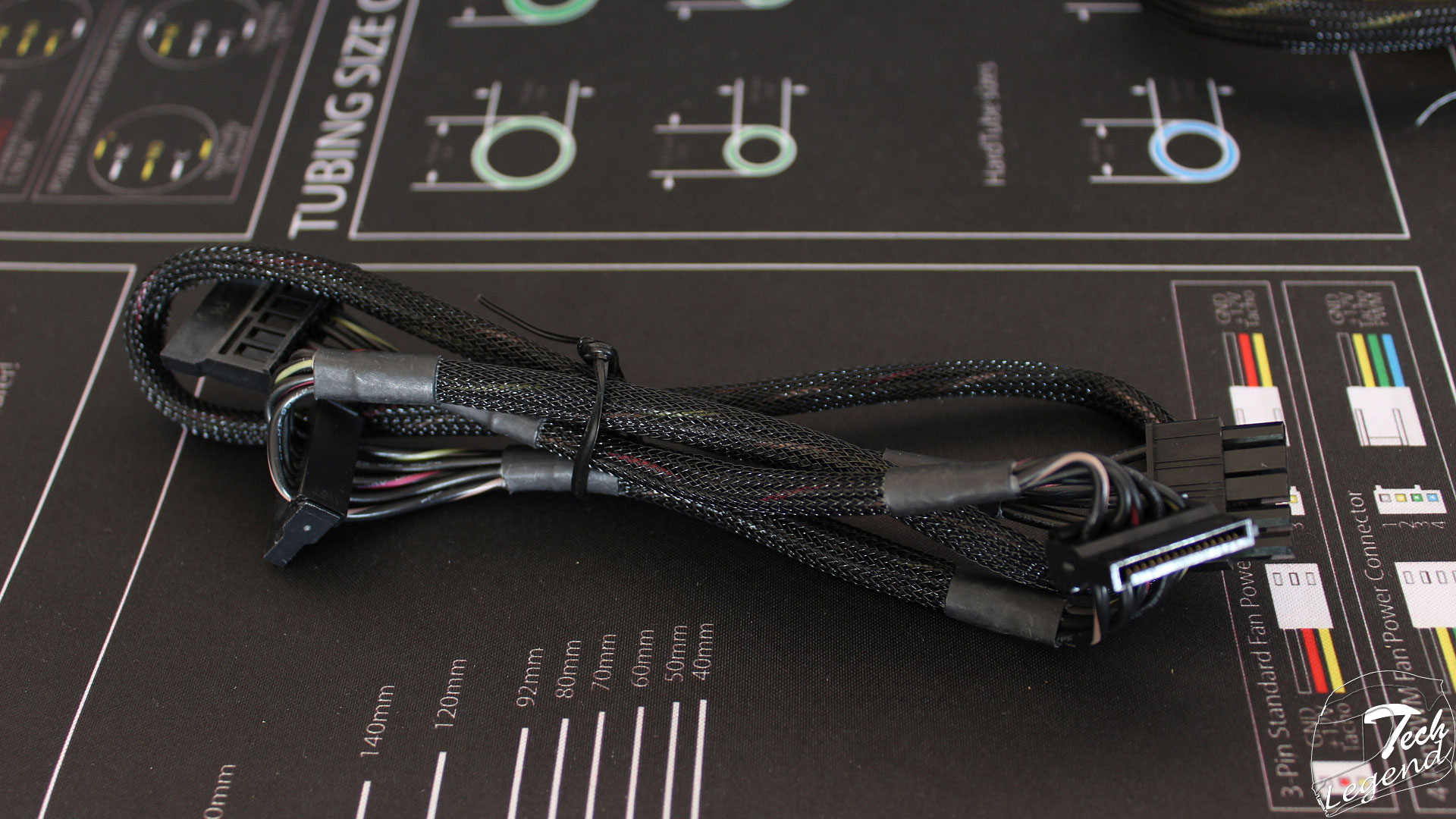

–    9x SATA (550mm+150mm+150mm)

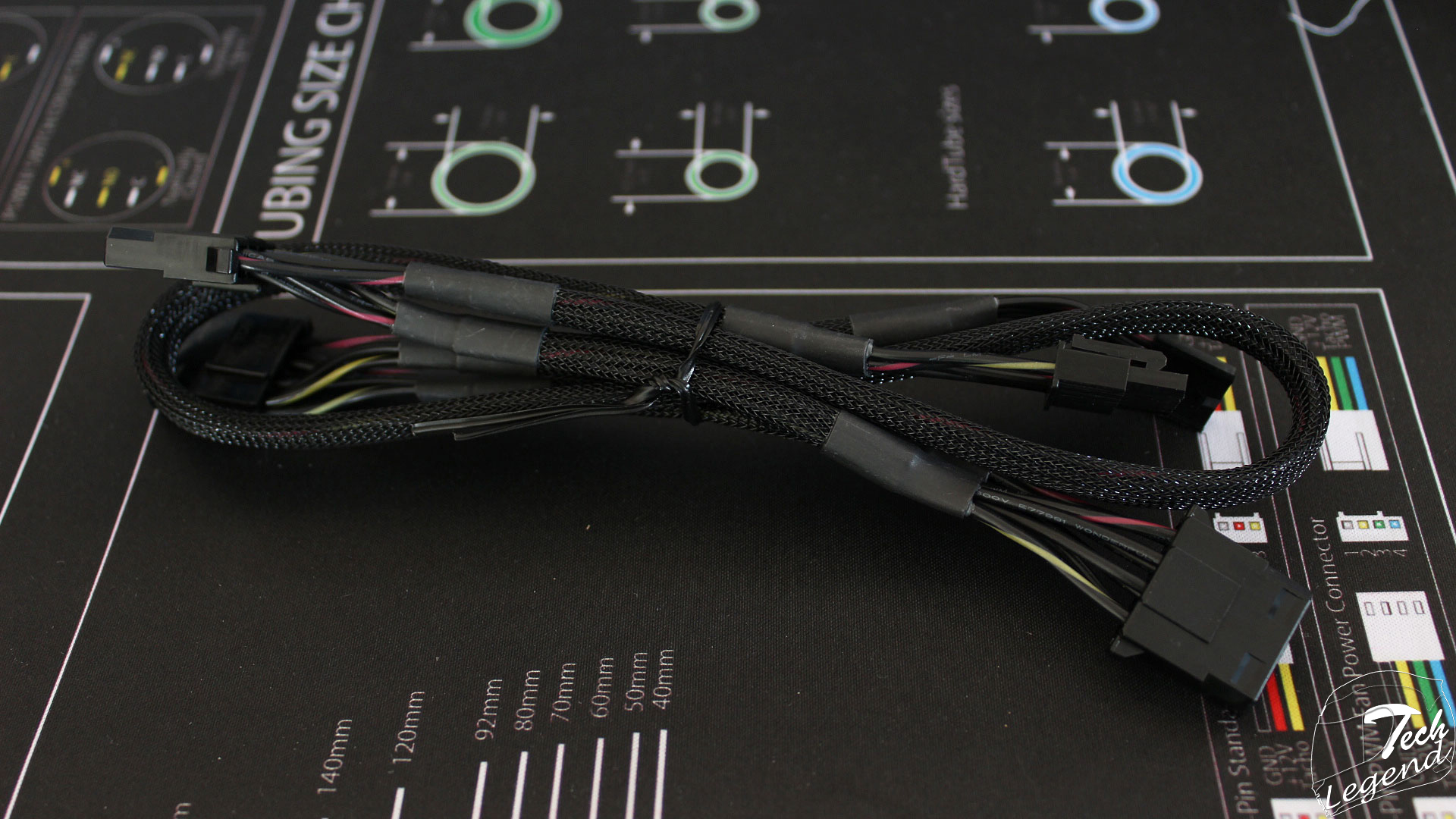

–    3x 4 pin Molex (550mm+150mm+150mm)
–    3x 4 pin Molex (550mm+150mm+150mm)
–    1x FDD (+150mm)
–    1x OC Link cable (550mm)

Power Distribution:
12V1: ATX, 8-pin socket, Peripheral
12V2: 16-pin socket
Dimensions: 150 mm (W) x 86 mm (H) x 190 mm (D)
Weight: 2.2 kg
Compliance: ATX12V v2.31, EPS 2.92
Warranty: 7 years

Features:

–    80 PLUS® PLATINUM certified – Up to 94% efficient, to reduce your electricity bill.
–    AQ7 – Antec Quality 7 year warranty and lifetime global 24/7 support.
–    High Current Rails – 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility.
–    16-pin Socket – Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes.
–    28(20+8)-pin MBU socket – World’s first socket for possible future MBU connectors.
–    135 mm DBB Silence – Whisper-quiet high-quality double ball bearing fan with long lifetime.
–    OC Link™ – Allows 2 HCP Platinums to work in tandem to power the most demanding systems.
–    High Current Rails – 4 High Current +12V rails with high load capabilities ensure maximum CPU & GPU compatibility.
–    All Japanese Heavy-Duty Caps – All high-performance Japanese capacitors ensure tightest DC stability and regulation.
–    PhaseWave™ Design – A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
–    Stealth Wires – All wires darkened for minimal visibility in chassis.



Visual inspection

The HCP Platinum 850W model has a minimalist design, the paint is of high quality just like the build quality.

img_1564 img_1591



The front grill which covers the 135mm fan maintains the overall look of the Power Supply, the grill being matte black. In the middle of the grille there is the logo of the manufacturer.

img_1567 img_1576 img_1592



On the back side the PSU uses a honeycomb-style grill, here we find both the the on/off switch and AC slot and the manufacturer’s logo.

img_1588



On both sides there is a sticker with both the name and logo of the manufacturer, next to it there is the name of the PSU and its power.

img_1573 img_1575



The front side is occupied by the 13 connectors for the modular cables, on the right side we find the OC Link connector which allows two HCP Platinum power supply to be connected and work at the same time.

img_1589img_1666 img_1621



On the top of the Power Supply we have the label with the specifications of the PSU.

img_1580 img_1583

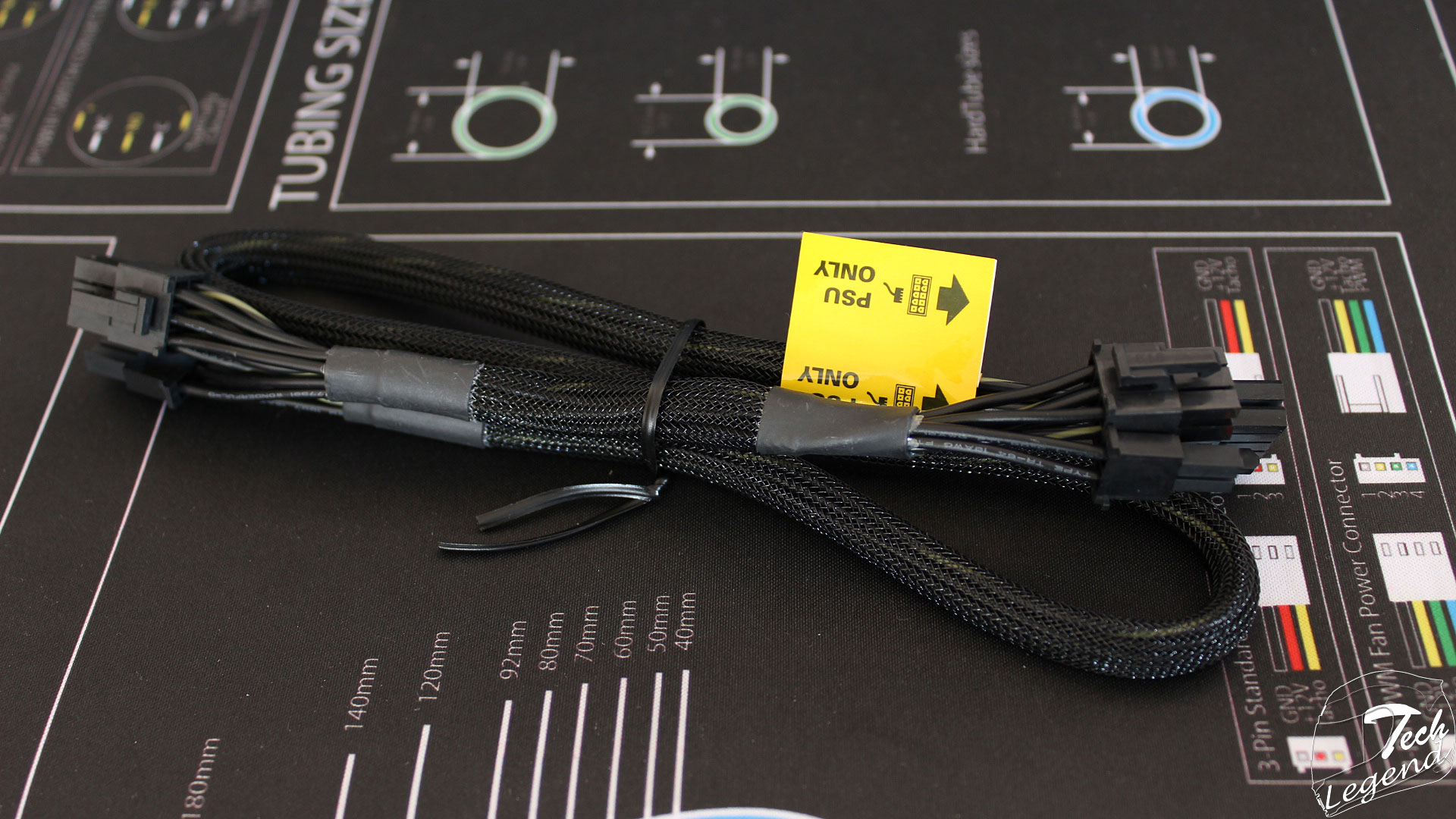

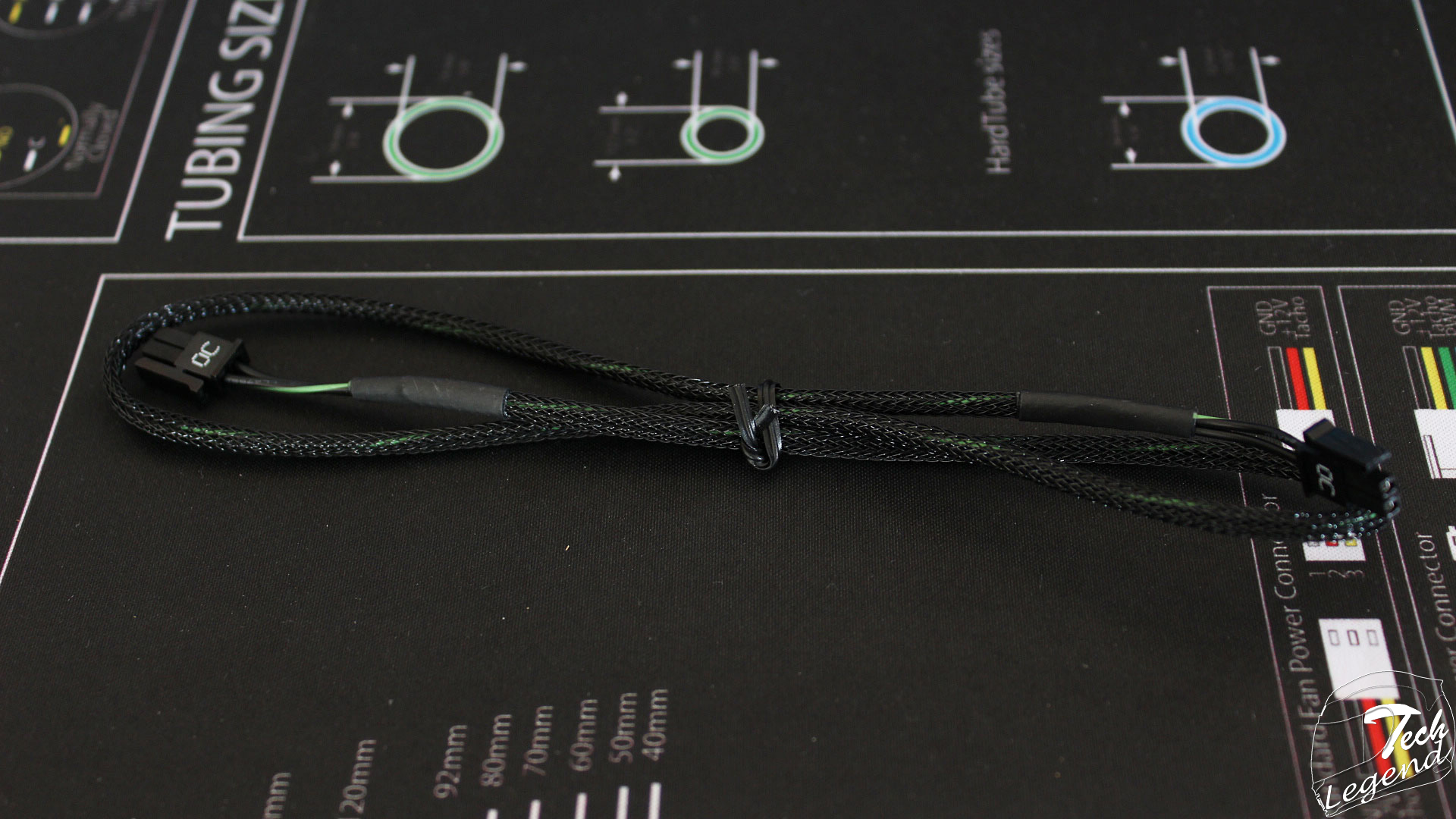

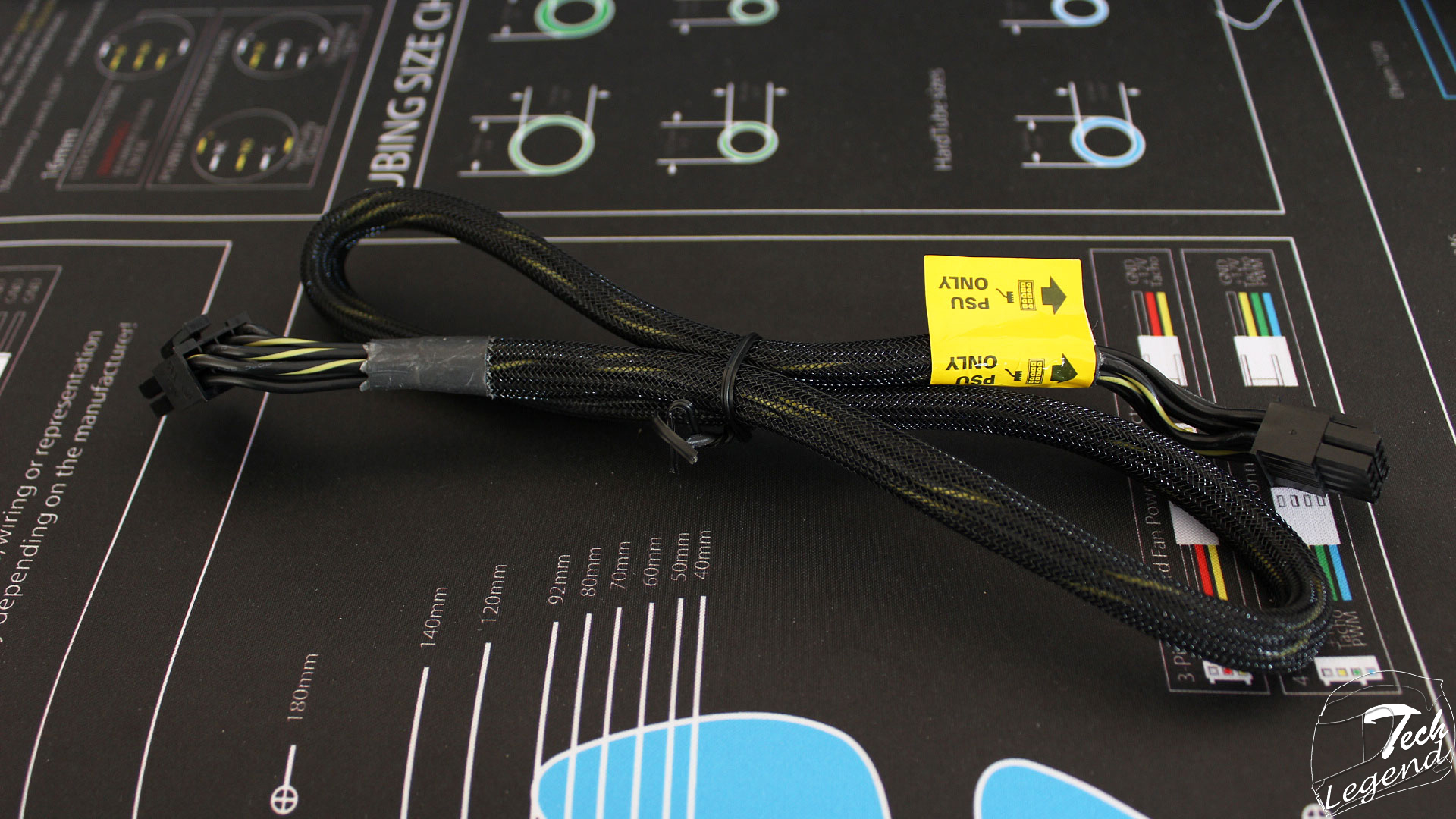

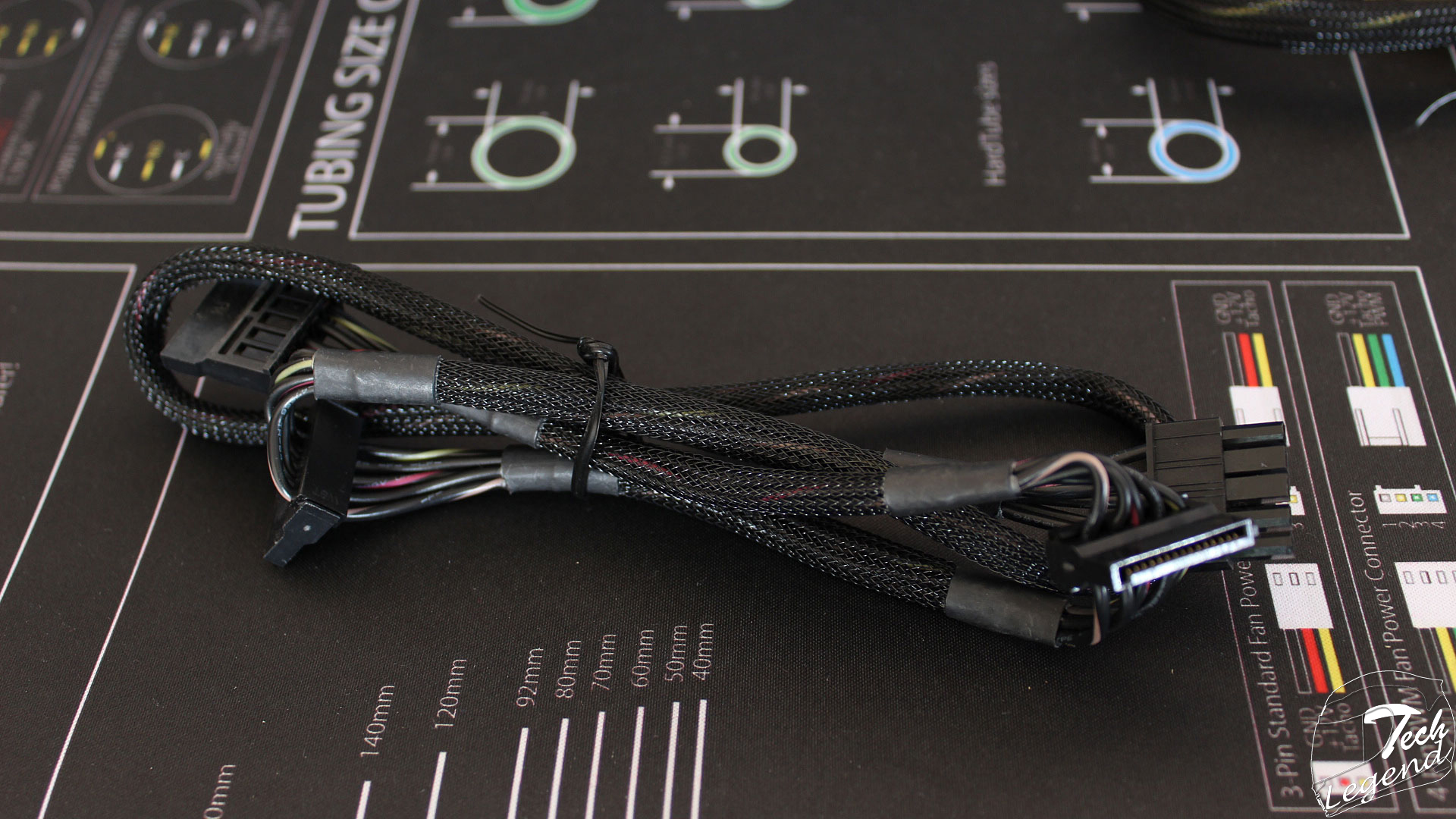

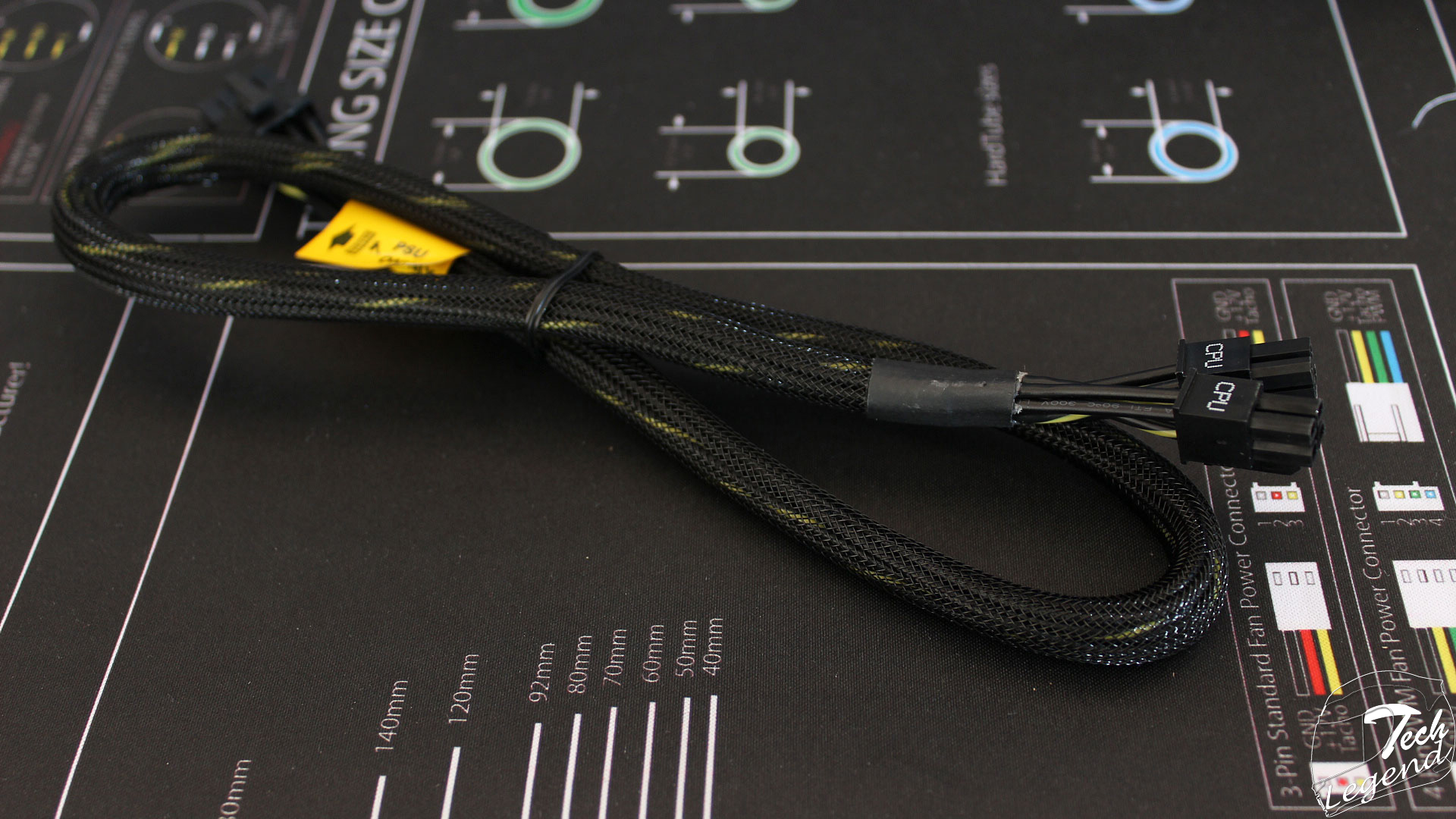

The cables of the Power Supply are completely black and covered in sleeving almost to the end or nearly to the connector.

img_1600



The fan used is provided by Delta Electronics, model AFB1312M specifications: 12V, 0.38A, 135 mm. Also the fan is connected to the PCB using a 2-pin Molex connector.

img_1622 img_1624 img_1625



The electronic in the case of this power supply is manufactured by Delta Electronics, the OEM of the High Current Pro series is also Delta Electronics. The passive cooling of the electronics is ensured by four all black metallic heatsinks.

img_1626 img_1659 img_1671 img_1662 img_1663 img_1652



Behind the AC receptacle we find 2 Y capacitors and one X capacitor.

img_1628 img_1630



In the APFC section we find installed two capacitors manufactured by Rubycon with the following spec: 390μF/450V, next to it we have a filtering coil which is covered on the sides with silicone to prevent vibrations.

img_1651 img_1661



Behind the two main capacitors, mounted on a vertical PCB there is the PFC (Power Factor Correction/Controller) CM6502S manufactured by Champion.

img_1677 img_1674



The PWM standby controller is positioned next to the main capacitors, model TNY280PG.

img_1640



Responsible for the Power Supply’s protections there is the supervisor IC model: DWA103N, it is placed on a vertical PCB located on the lower side of the Power Supply next to its connectors.

img_1635 img_1636



The capacitors used in the HCP Platinum are manufactured by Rubycon, the electrolytic capacitors are manufactured by Nippon Chemi-Con.

img_1632 img_1639 img_1645 img_1649 img_1657



Testing

The following system was used to test the Power Supply:
–    Processor: Intel i5 4690K @ 4.5 GHz
–    Motherboard: MSI Z97 Gaming 9 ACK
–    RAM: 8GB Crucial Ballistix Tactical
–    GPU: MSI GeForce GTX 970 Armor 2X
–    SSD: Samsung 840 EVO 120GB
–    HDD: WD 1TB Blue / Samsung SpinPoint F3 500GB
–    CPU Cooler: SilverStone Tundra TD02 with NoiseBlocker eLoop B12-PS
–    Display: AOC i2769VM
–    Case: Phanteks Enthoo Luxe White
–    OS: Windows 10 64-bit

The above system has a power consumption of approximately 495W when in full load and 67W when idle, in order to test the efficiency of the Power Supply, the power draw of the system was measured at the wall socket. Also, the voltages were measured on the +12v +5v and +3.3v using a multi-meter.
To load the system to its maximum the stability test of the AIDA64 Extreme (5.90.4200) was used with Intel Burn Test V2.
The Power Supply was tested with the system both idle and at maximum load.

Power Supply efficiency



For rail voltage tolerance levels, ATX (Power Supply Design Guide) specify that a 5% variable fluctuation is acceptable.

Voltage oscillation idle

Voltage oscillation load

The noise level was measured at three different distances from the fans (10cm, 20cm, 30cm.) the noise was measured with a margin of error of ± 5 db.

Final thoughts

The High Current Pro Platinum 850W model is a power supply with an exceptional build quality, the Delta design being among the best, and the 80 PLUS Platinum certification reflects that. Also when we talk about the power supply’s electronics, we have details such as the isolation of some components of the PSU using silicone to reduce vibrations and prevent noises (coil whine), or the usage of Japanese capacitors made by Nippon Chemi-Con and Rubycon. The exterior build quality is excellent starting from the paint and moving to the connectors and fan.
Although the fan doesn’t stop when the power supply is at idle, it remains silent throughout the operation.
The cables are flexible enough to facilitate the installation process of the system, also they are entirely black and covered in high quality sleeving almost to the end or close to the connectors.
In conclusion, the Antec High Current Pro Platinum 850W power supply is ideal for users who want a Platinum certified power supply with a 7year warranty and numerous protections. The main characteristic of this product being the quality offered by both Delta Electronics and Antec.
