Fractal Design Celsius+ S24 Prisma

Introduction

Fractal Design is a Swedish company known for their minimalist design of their products. The color scheme present in F.D products is black and white, scheme present in cases, power supplies and fans. The concept of Fractal Design is to provide products with an extraordinary level of design, without compromising the important factors of quality, functionality and pricing.

Official product link:

https://www.fractal-design.com/products/water-cooling/celsius-plus-s24-prisma/celsius-s24-prisma/



Packaging and accessories

The Celsius+ S24 Prisma is delivered in a two-tone cardboard box, with multi color accents.
The front side of the packaging features a profile photo of the cooler and fans powered on, showcasing the RGB elements integrated into the product. The complete name of the cooler is printed alongside the Fractal Design logo, on the upper left corner.



The sides of the box present the cooler specifications and the radiator dimensions. In addition, brief description of the cooler in multiple languages is printed on the other side.



The back of the packaging features a monochrome diagram of the cooler, and has a brief description of each of the main features.



The cooler and the included accessories are protected by a soft cardboard tray. Additional protection is offered by plastic bags for the cooler and semi-opened cardboard boxes for the fans.



Accessories

The product comes with the following accessories:
– 1x User manual

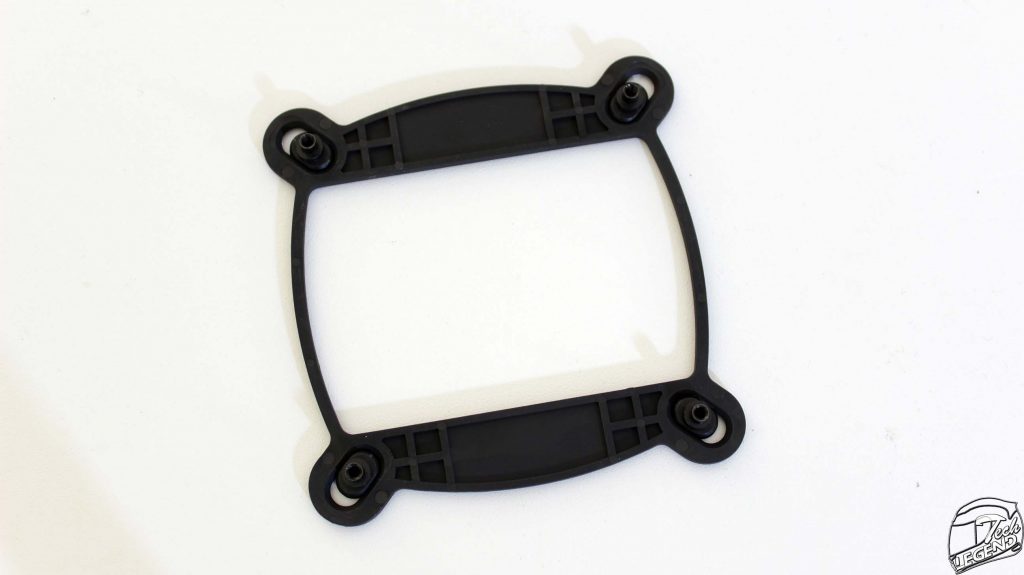

– 1x Intel backplate

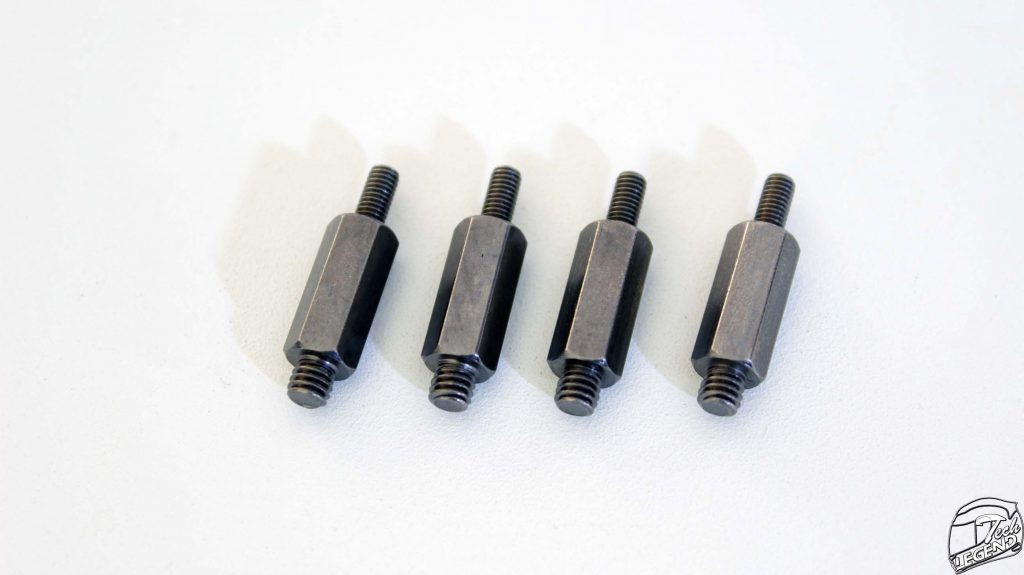

– 4x LGA115x mounting standoff

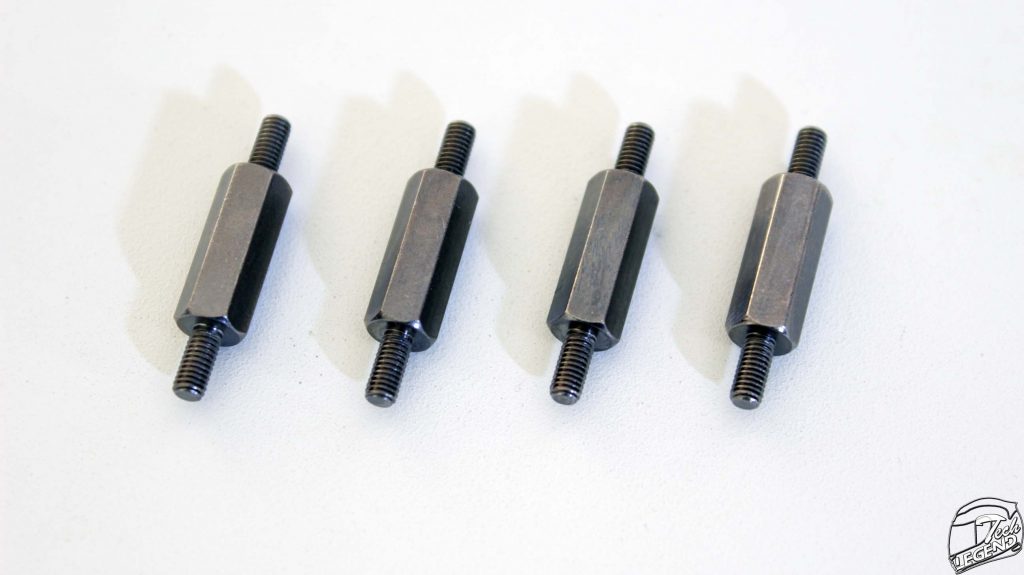

– 4x LGA 2011 mounting standoff
– 1x AMD mounting standoff

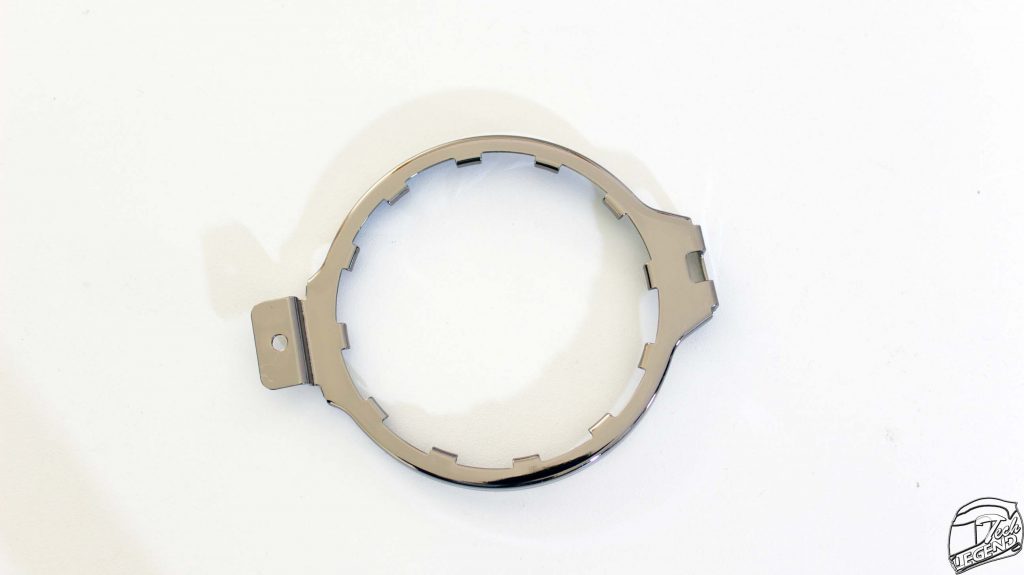

– 1x AMD bracket

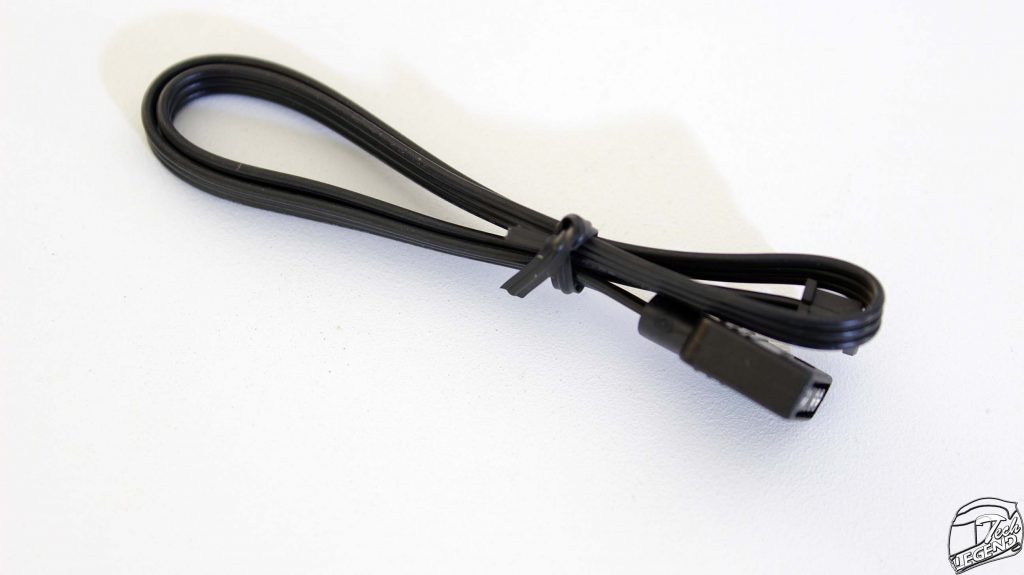

– 1x 5V ARGB cable

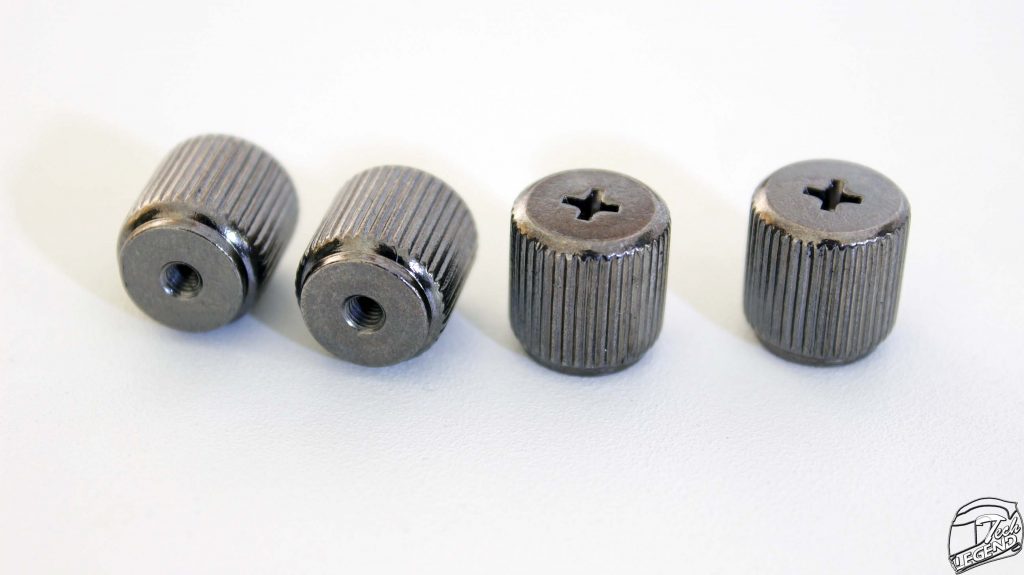

– 4x Thumbscrews
– 8x Fan screws

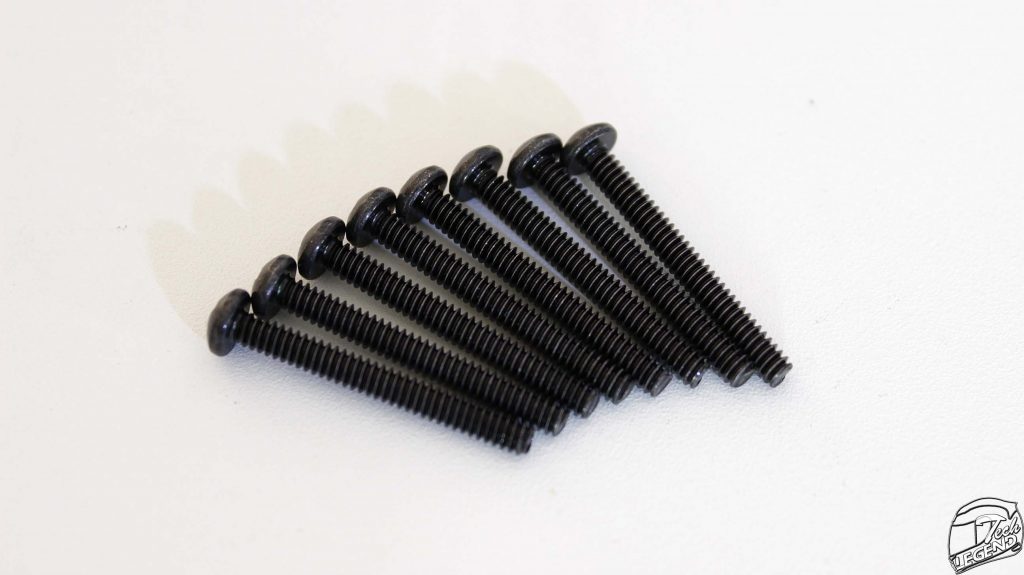

– 8x Radiator screws

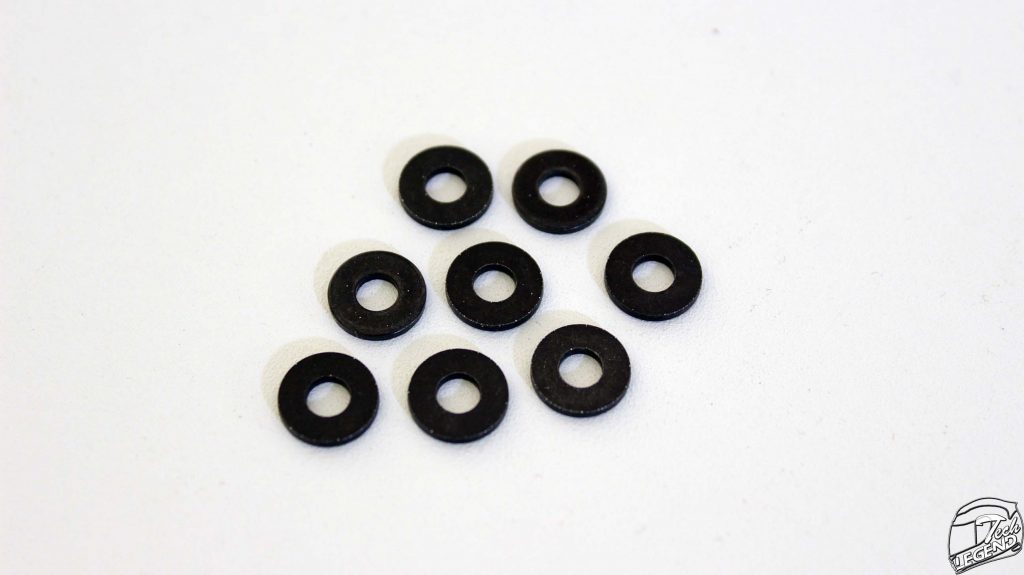

– 8x Radiator screw washers



Specifications

Model: Celsius+ S24 Prisma
Supported sockets:
Intel: LGA1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box).
Heatsink:
Materials: Copper (base plate), aluminum (radiator & radiator fins).
Water Block Dimension: 45 x 62mm86 x 75 mm
Pump Bearing: Ceramic bearing and shaft
Pump Speed: 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C.
Pump lifespan: 50.000 Hours
Tube length: 400mm
Radiator dimensions: 122 x 31 x 284 mm
Radiator materials: Aluminum
Fans included: 2 pcs
Model: Prisma AL-12 PWM ARGB
Fan dimensions: 120 mm x 120 mm x 25 mm
Fan Speed: 500 – 2000 RPM
Fan Airflow: 85.71 CFM
Fan bearing type: LLS (Long Life Sleeve)
Warranty: 5 Years

Features:

– ARGB-enabled PWM hub;
– Prisma ARGB PWM fans;
– Tinted glass pump face with backlit logo;
– Smart Auto or PWM control for fans;
– Supports the most common sockets for both Intel and AMD;
– Braided tube sleeves readily contain both the fan control cables and ARGB wires;
– 5-year manufacturer’s warranty.
