ASRock X570 Creator

Introduction

ASRock Inc. is established in 2002, specialized in the field of motherboards. ASRock strives to build up its own brand. With the 3C design concept, “Creativity, Consideration, Cost-effectiveness”, the company explores the limit of motherboards manufacturing while paying attention on the eco issue at the same time, developing products with the consideration of eco-friendly concept.



Official product link:

https://www.asrock.com/mb/AMD/X570%20Creator/index.asp



Packaging and accessories

The ASRock X570 Creator motherboard comes in a classic format cardboard packaging with an abstract pattern as the main design element.
The front side of the box has at its center the Creator series emblem and the model name of the motherboard. The main features of the product are listed on the lower side of the box, while the ASRock logo is located on the upper right corner.



The back of the packaging presents the motherboard layout and the main features. The right side features a top view of the motherboard and a color diagram of the I/O panel. The main specifications are listed on the lower right corner alongside two QR codes.



The sides of the box are simple with only the name of the motherboard being printed.



The main protection offered by the packaging consists in a soft high-quality foam that is attached to the motherboard with zip-ties. Impact protection is offered on all sides and on the back of the motherboard.



Accessories

The product comes with the following accessories:
– 1x User manual
– 1x Quick Installation Guide,
– 1x Support CD,

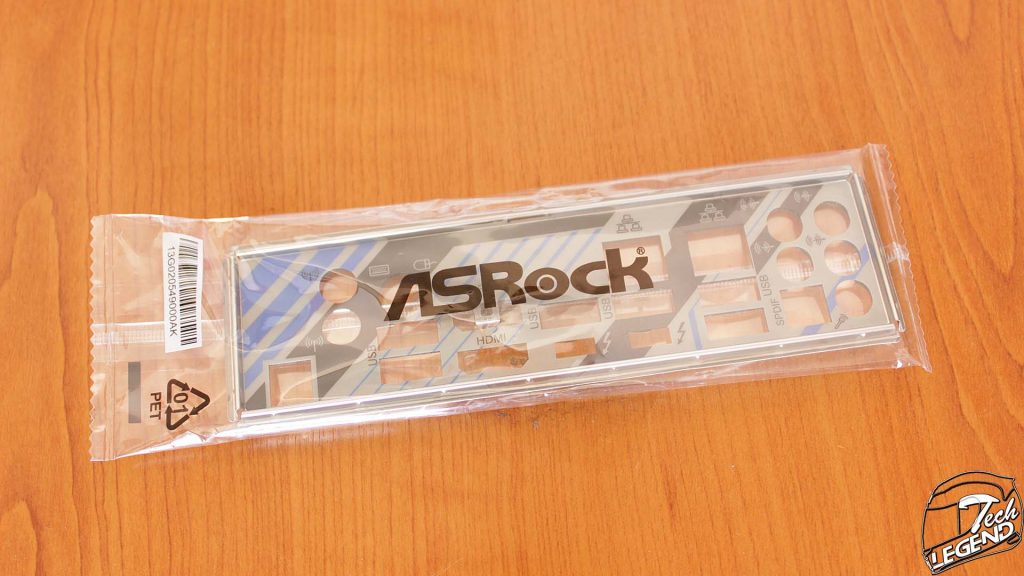

– 1x I/O Shield,

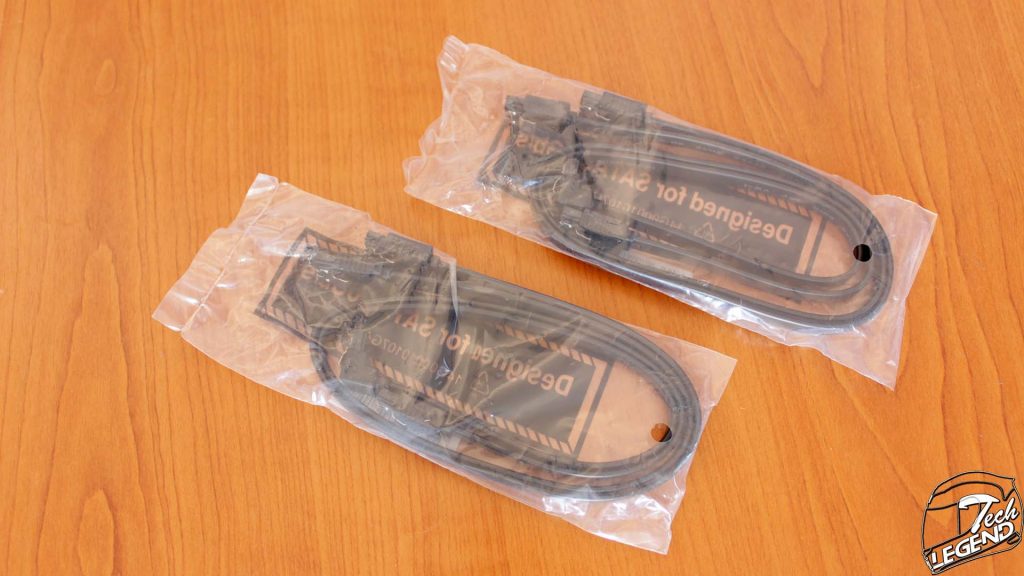

– 4x SATA Data Cables,
– 1x ASRock SLI_HB_Bridge_2S Card,

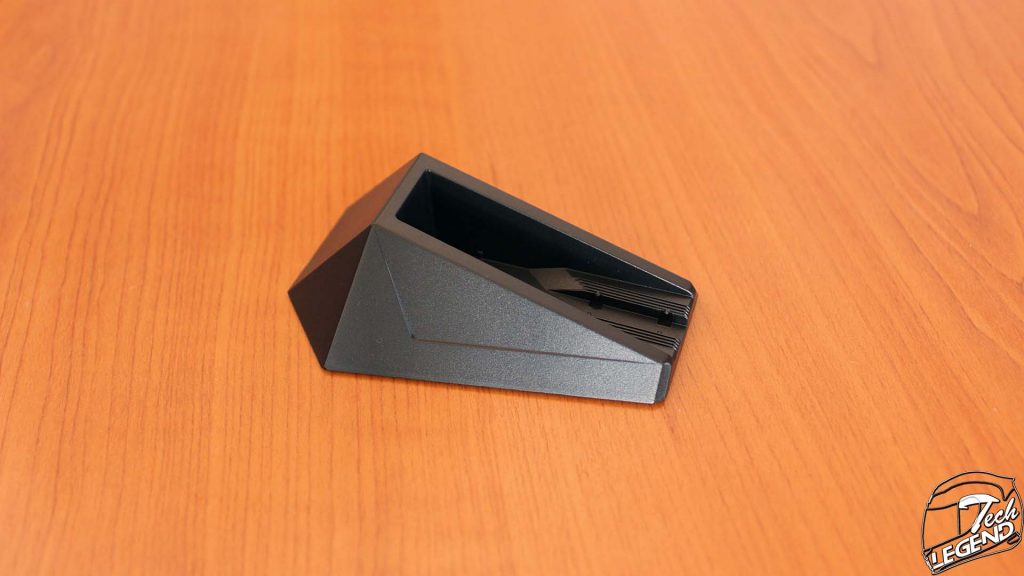

– 1x ASRock WiFi 2.4/5 GHz Antenna,

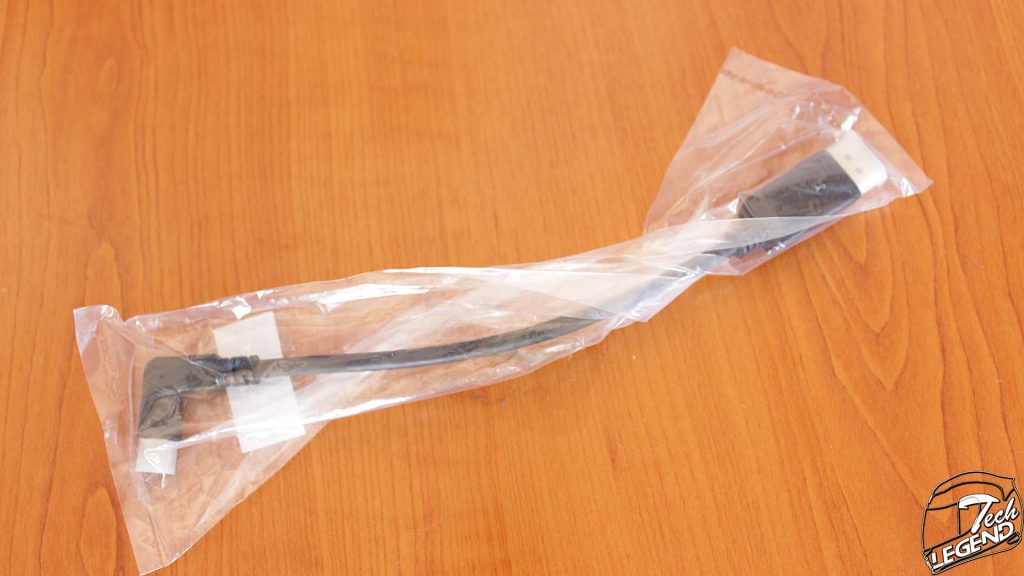

– 1x Right Angle Mini DisplayPort to DisplayPort Cable,

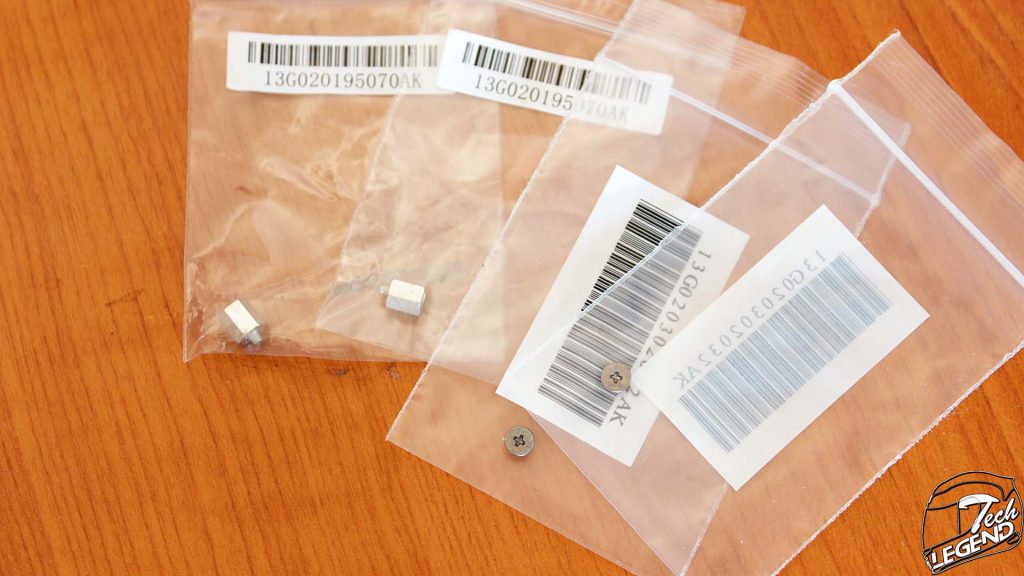

– 2x Screws for M.2 Sockets,
– 2x Standoffs for M.2 Sockets.



Specifications

MODEL: X570 Creator
CPU SUPPORT: AMD AM4 socket Ryzen™ 2000 and 3000 series
SOCKET: AM4
CHIPSET: AMD X570
POWER DESIGN:
– CPU: 12 Power Phase design
– Memory: 2 Power Phase design
FORM FACTOR: ATX 30.5 cm x 24.4 cm
INTEGRATED GRAPHICS: No
MEMORY: 4x DDR4 DIMM Slots
– DDR4 4666+(OC) / 4400(OC)/2133 ECC & non-ECC Memory.
– Max. capacity of system memory: 128GB
BIOS: 1x 256Mb AMI UEFI Legal BIOS with GUI support
Expansion Slots:
– 3x PCI Express 4.0 x16
– 3x PCI Express 2.0 x1
STORAGE:
– 4x SATA3 6.0 Gb/s support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 4x SATA3 6.0 Gb/s Connectors – ASMedia ASM1061
– 1x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110
– 1x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110
NETWORKING:
– 1x 10 Gigabit LAN 10/100/1000/2500/5000/10000 Mb/s (AQUANTIA AQC107)
– 1x Intel 802.11ax WiFi Module
PORTS:
– 2x Antenna Ports
– 1x PS/2 Mouse/Keyboard Port
– 1x HDMI Port
– 1x DisplayPort 1.4 Input
– 1x Optical SPDIF Out Port
– 2x USB 3.2 Gen2 Thunderbolt™ 3 Type-C Ports (40Gb/s for Thunderbolt™ protocol; 10 Gb/s for USB3.2 protocol) (Supports ESD Protection)
– 6x USB 3.2 Gen1 Ports (Supports ESD Protection)*
– 2x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
– 1x BIOS Flashback Button
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
AUDIO: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
FAN HEADERS: 5x 4-Pin

Features:

– XXL Aluminum Alloy Heatsink
– IR3555M Dr. MOS 60A
– Nichicon 12K Black Caps
– AQUANTIA 10G LAN
– Intel 802.11ax WiFi
– ASRock Thunderbolt 3 Type C USB 3.2 Gen2
– ASRock Front Panel Type C USB 3.2 Gen2 Header
– ASRock Steel Slot Gen4
– ASRock Full Coverage M.2 Heatsink
– ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
