Arctic Freezer 34 eSports



Introduction

ARCTIC initiated the trend towards quiet cooling systems for desktop PCs in 2001 and has given distinction to it ever since. Today ARCTIC is one of the leading manufacturers in computer cooling and has acquired profound knowhow in consumer electronics.
Up until 2009, ARCTIC COOLING focused solely on cooling solutions. In 2010, we became ARCTIC with the additional aim to provide a comprehensive set of innovative consumer electronics and peripherals. ARCTIC’s long term goal is nothing less than being present in everybody’s home.

Official product link:

https://www.arctic.ac/eu_en/freezer-34-esports.html

Packaging and accessories

The Freezer 34 eSports is delivered inside a cardboard box that measures 170mm in height, 100mm in depth and 127mm in length. The overall design of the packaging has the same black and white color combination, as entire Freezer range of products. The front side features a profile imagine of the cooler and fan assembly with the name of the product and a QR code placed on the lower part.



The sides of the box present the full specifications of the heatsink and fan as well as list the main features of the CPU cooler. A diagram of all the components of the mounting system is also present on one side



The back side features the four main features of the Freezer 34 eSports, and a brief comparison with other similar priced CPU coolers. An in-depth diagram of the Fluid Dynamic Bearing used by the BioniX P120.



The packaging offers no protection for the cooler and fan, inside the box there is no padding or even a foil to cover the products.



Accessories

The product comes with the following accessories:
– 1x Manual QR Card

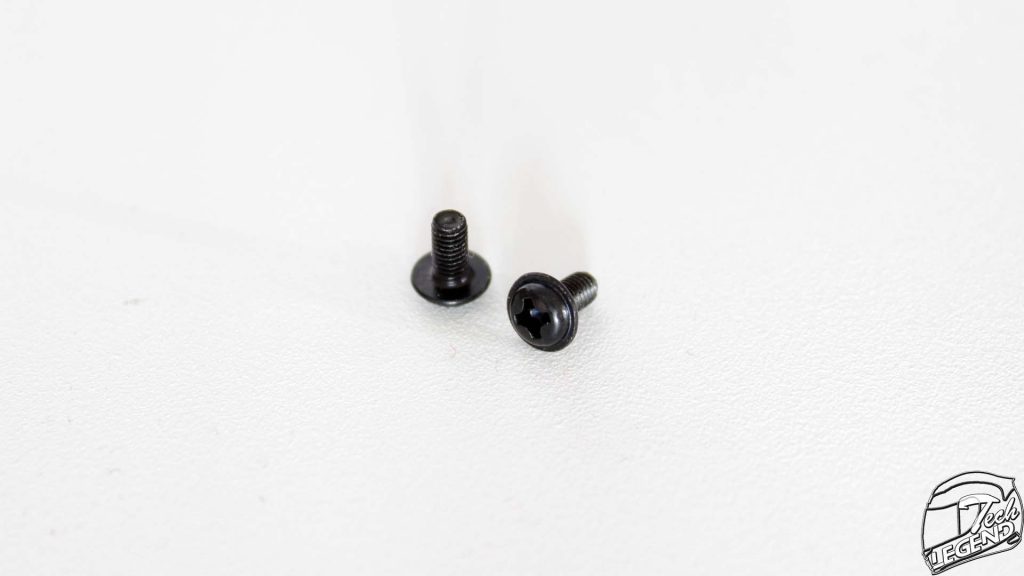

– 2x Screws
– 4x Thumb Nuts

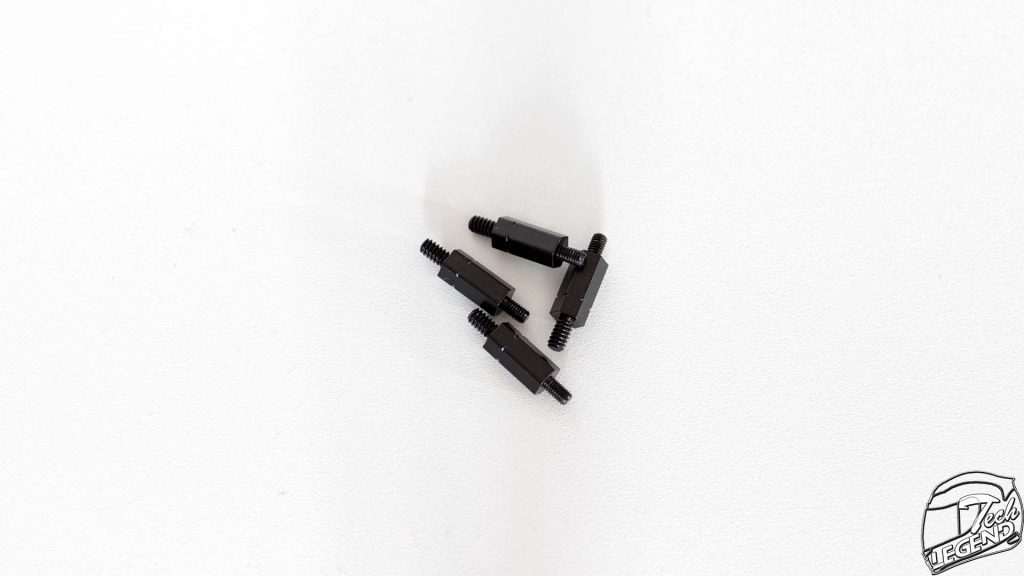

– 4x Intel 115X Standoffs

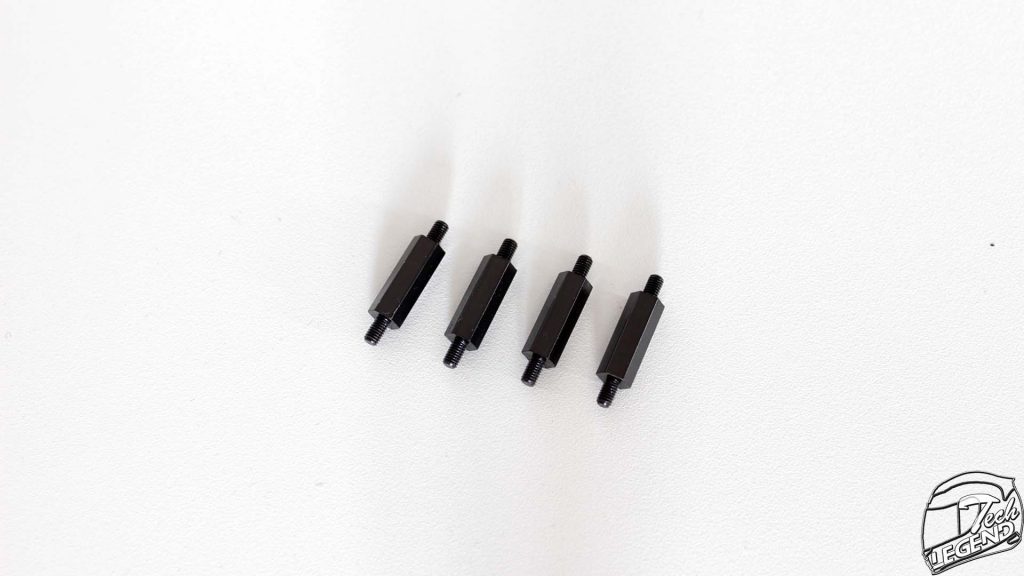

– 4x Intel 2011 Standoffs
– 4x AMD AM4 Standoffs
– 1x MX-4 thermal compound (0.8g)

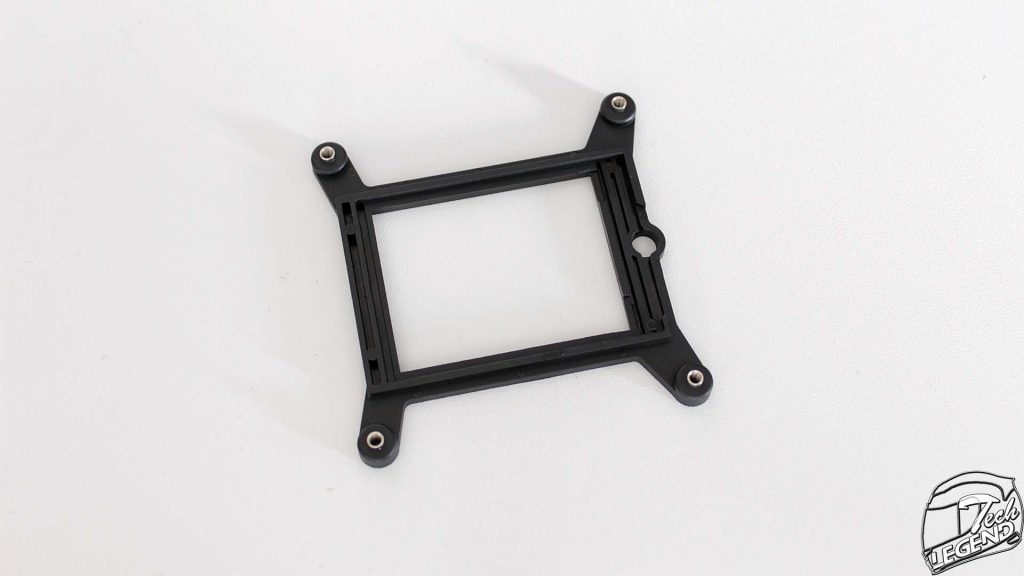

– 1x Backplate

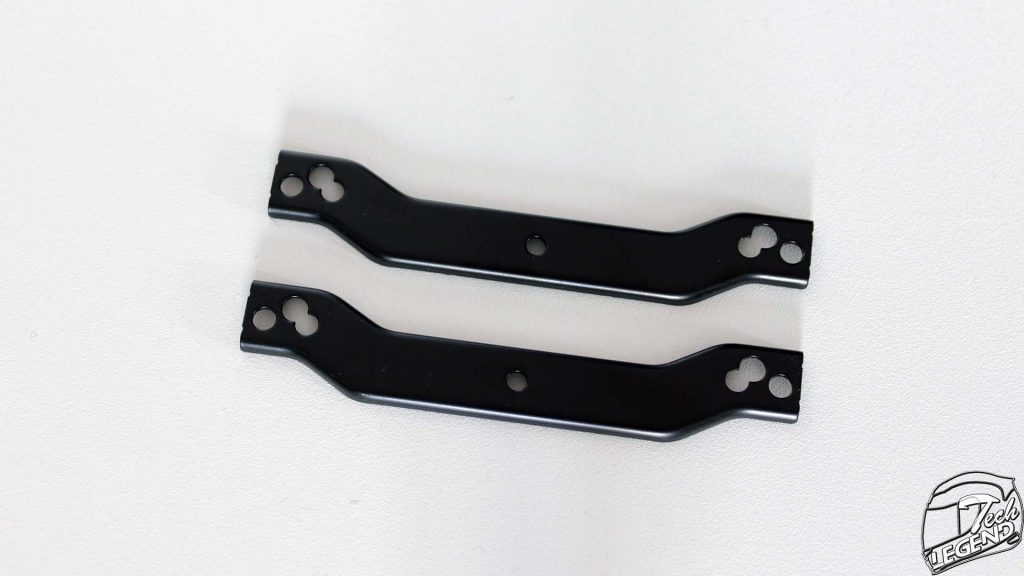

– 2x Mounting clips
– 2x Fan mounting clips

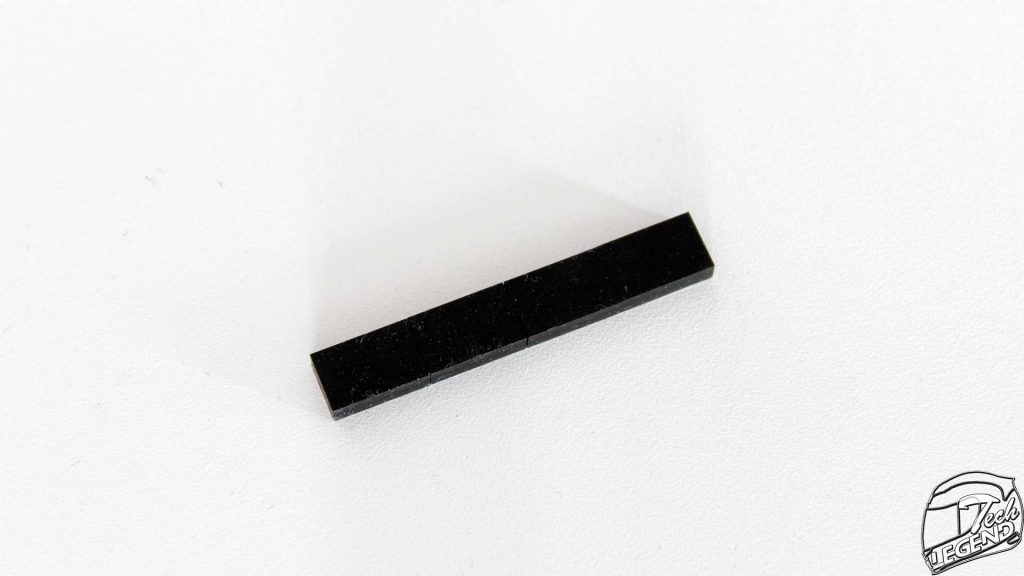

– 4x Rubber spacers



Specifications

Model: ACFRE00057A
Supported sockets:
Intel: Socket LGA1151, 1150, 1155, 1156, 2066, 2011(-3)
AMD: Socket AM4
Recommended for TDP up to: 200 Watts
Heatsink:
Materials: Copper (base and heat-pipes), aluminum (cooling fins), soldered joints
Dimensions: 124 x 157 x 88 mm (including fan)
Heatpipes: 4x – Ø6 mm
Fins: 54x
Fin Thickness: 0.4 mm
Weight: 627g including fan
Fan(s):
Model: BioniX P120
Dimensions: 120 x 120 x 27 mm
Bearing type: Fluid Dynamic Bearing
Rotational Speed (+/- 10%): 200 – 2100 rpm (±10%) (PWM-controlled)
Airflow: 67.56 CFM
Static pressure: 2.75 mm H2O
Acoustical Noise: 0.45 Sone
Connector: 4-Pin PWM
Warranty: 10 Years

Features:

– New P-Fans for Increased Performance
– Improved Heat Dissipation
– Thermal Coating
– MX-4 Thermal Paste Included
– Easy Installation & Secure Hold
– Optimal RAM Compatibility
