Introduction
Sea Sonic Electronics Co., Ltd was founded in 1975 with its headquarters in Taipei, Taiwan, it is a company specialized in the manufacturing of power supplies for the consumer & industrial markets. In 1981 the company starts the production of power supplies for PC type of systems, being one of the first manufacturers to do so.
SeaSonic manufactures and sells power supplies under its own brand and is also the OEM manufacturer for many other power supplies companies. This makes Seasonic one of the well-known and respected brands in the industry.
Official product link:
Prices and availability
Amazon:
Newegg:
Packaging and accessories

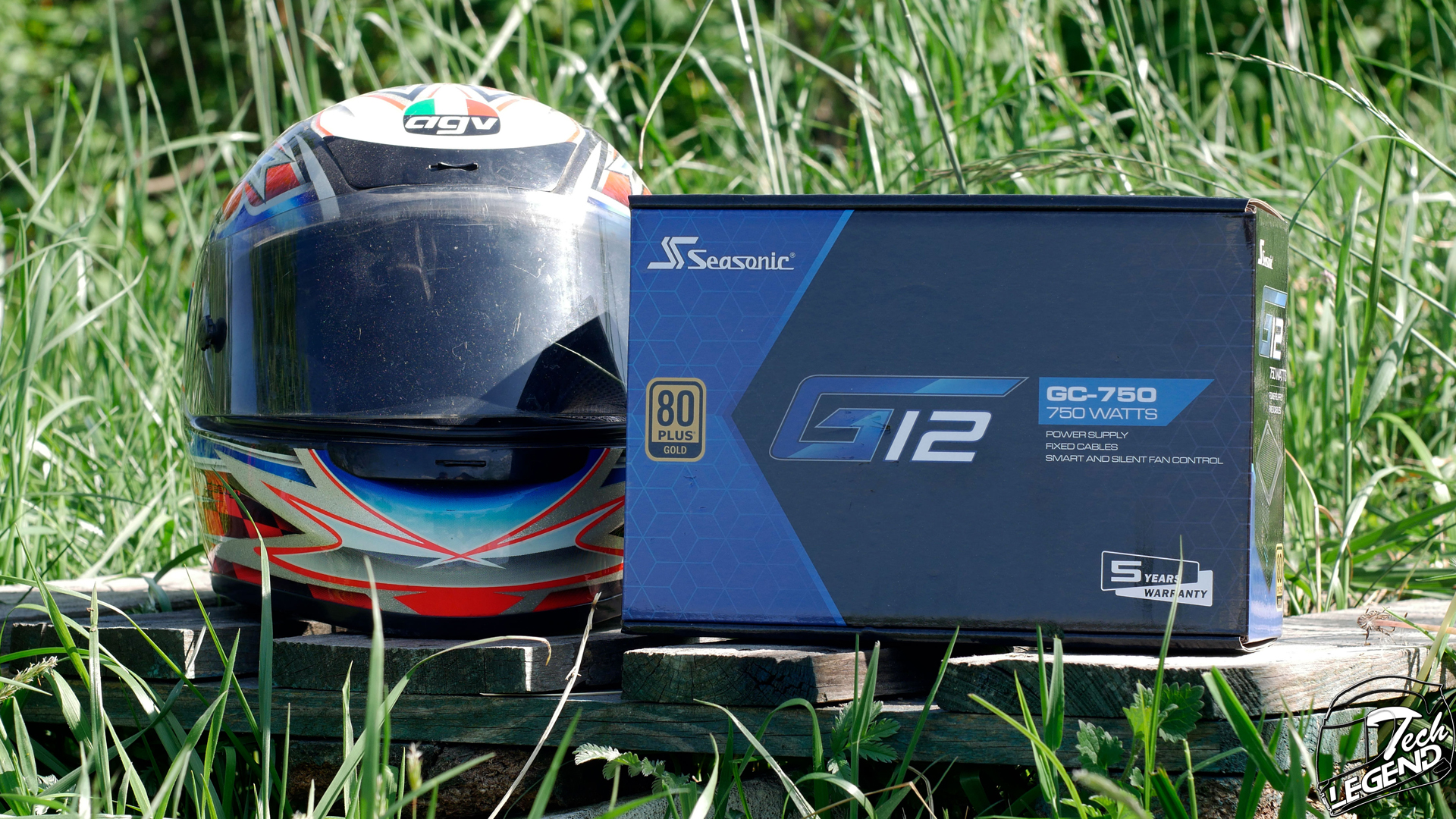

The Seasonic G12 GC-750W Gold is packaged in a standard size cardboard box. The front of the packaging has the usual Seasonic graphics, with an abstract design serving as the background for the entire box.
The front part of the box is simple, it only has the brand name and the series name and logo, with the wattage and main features on the lower part.

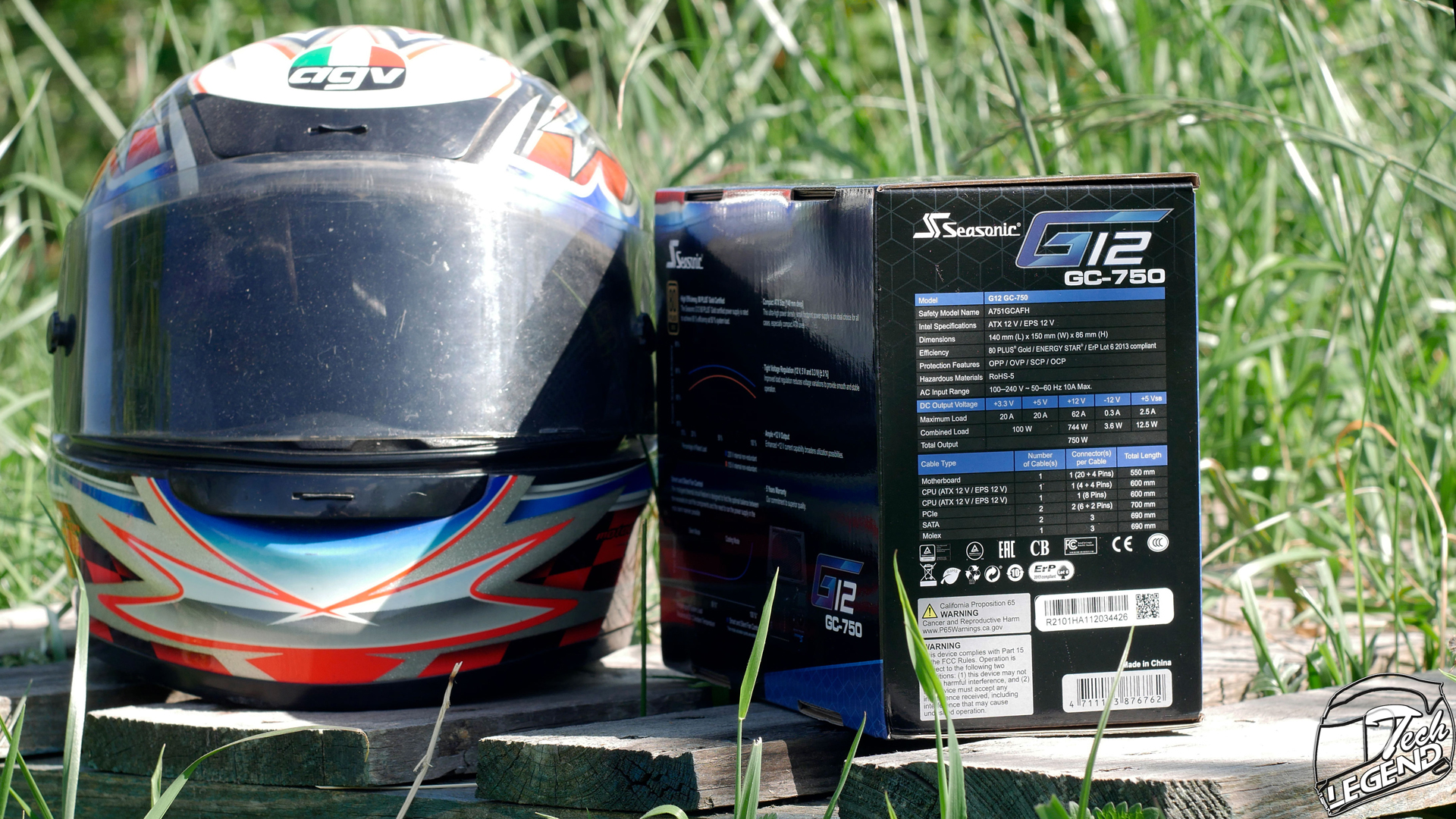

The sides of the box offer the complete technical specifications of the power supply.

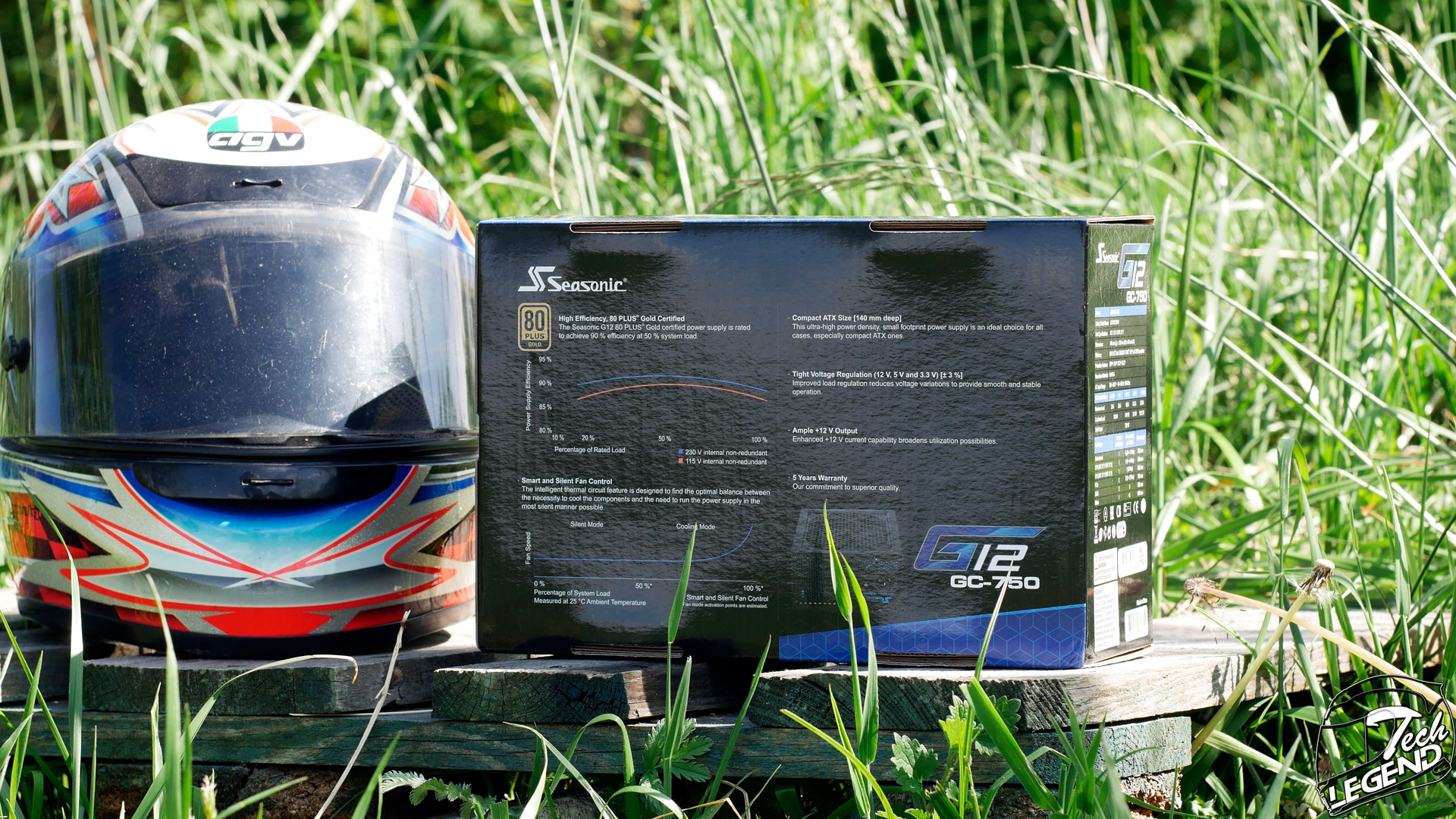

The back side of the packaging has a full color diagram of the power supply’s performance in terms of the efficiency. The main features of the unit are described on the lower and right parts.

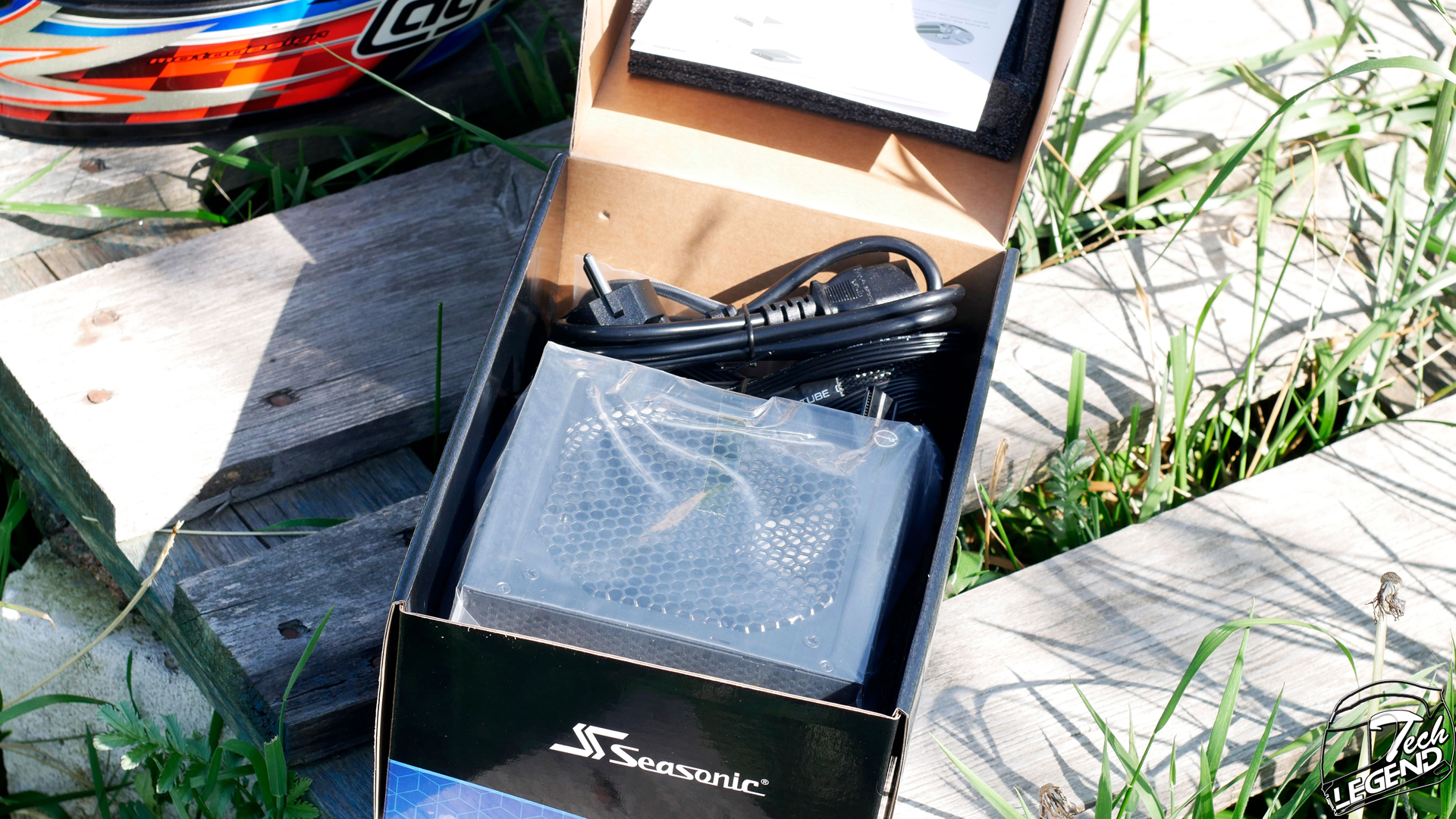

The power supply and its accessories area well packaged inside the cardboard box; however, the protection is minimal. I am saying this because there is not much in terms of foam or bubble wrap to dampen any hits the unit might take.
Accessories
The product comes with the following accessories:
– 1x Manual;

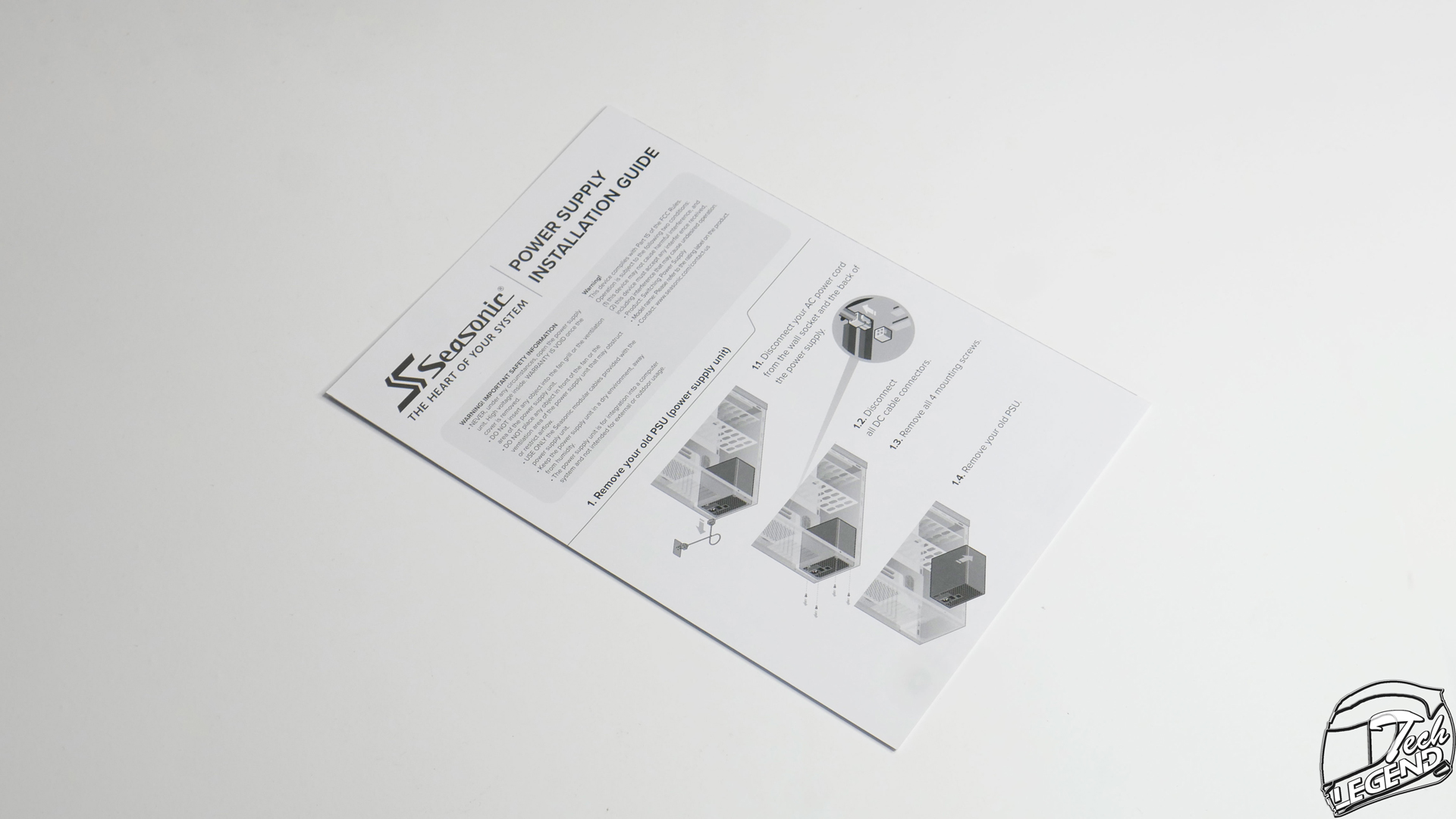

– 1x Quick installation guide;

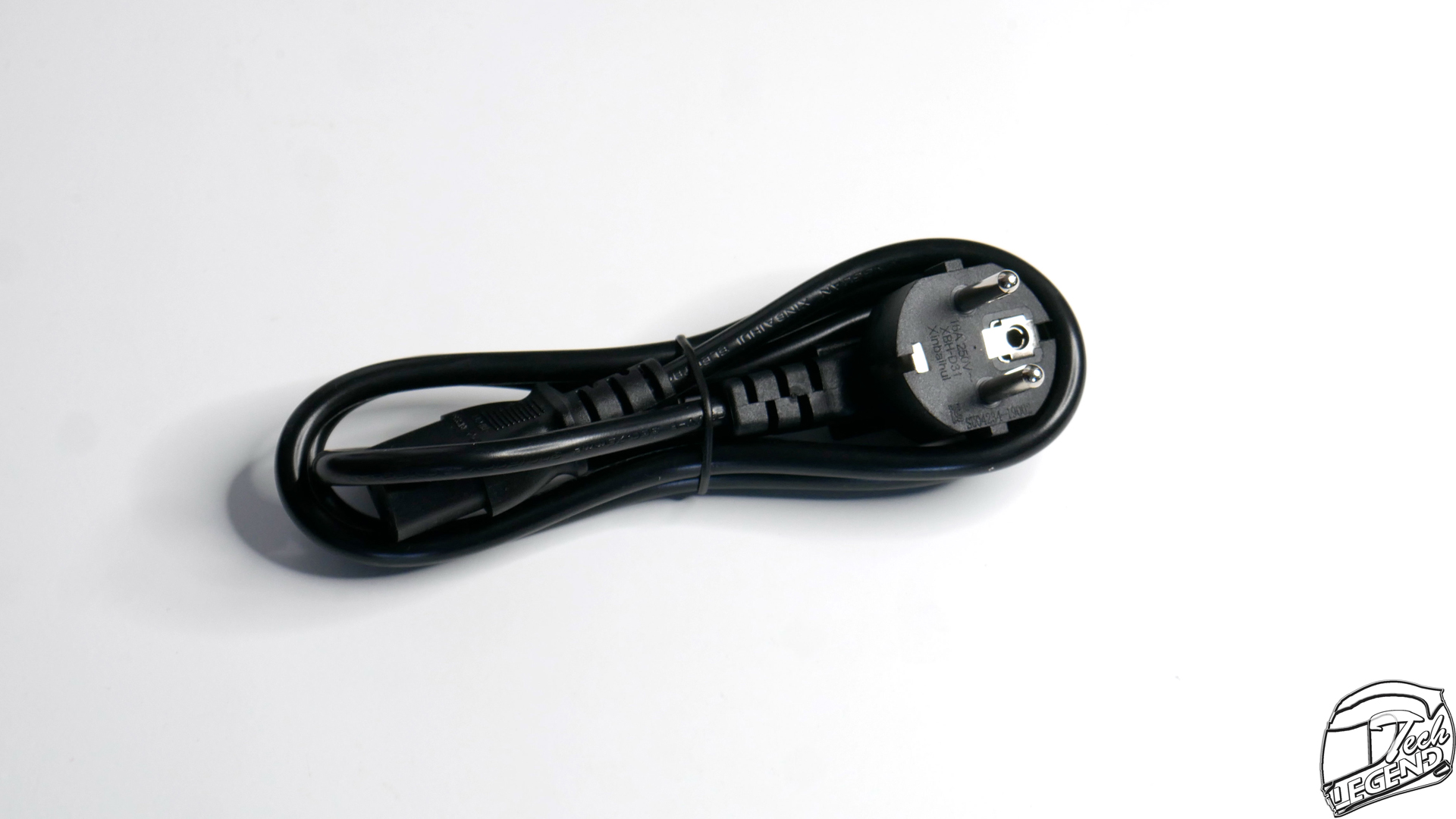

– 1x AC Power cable;

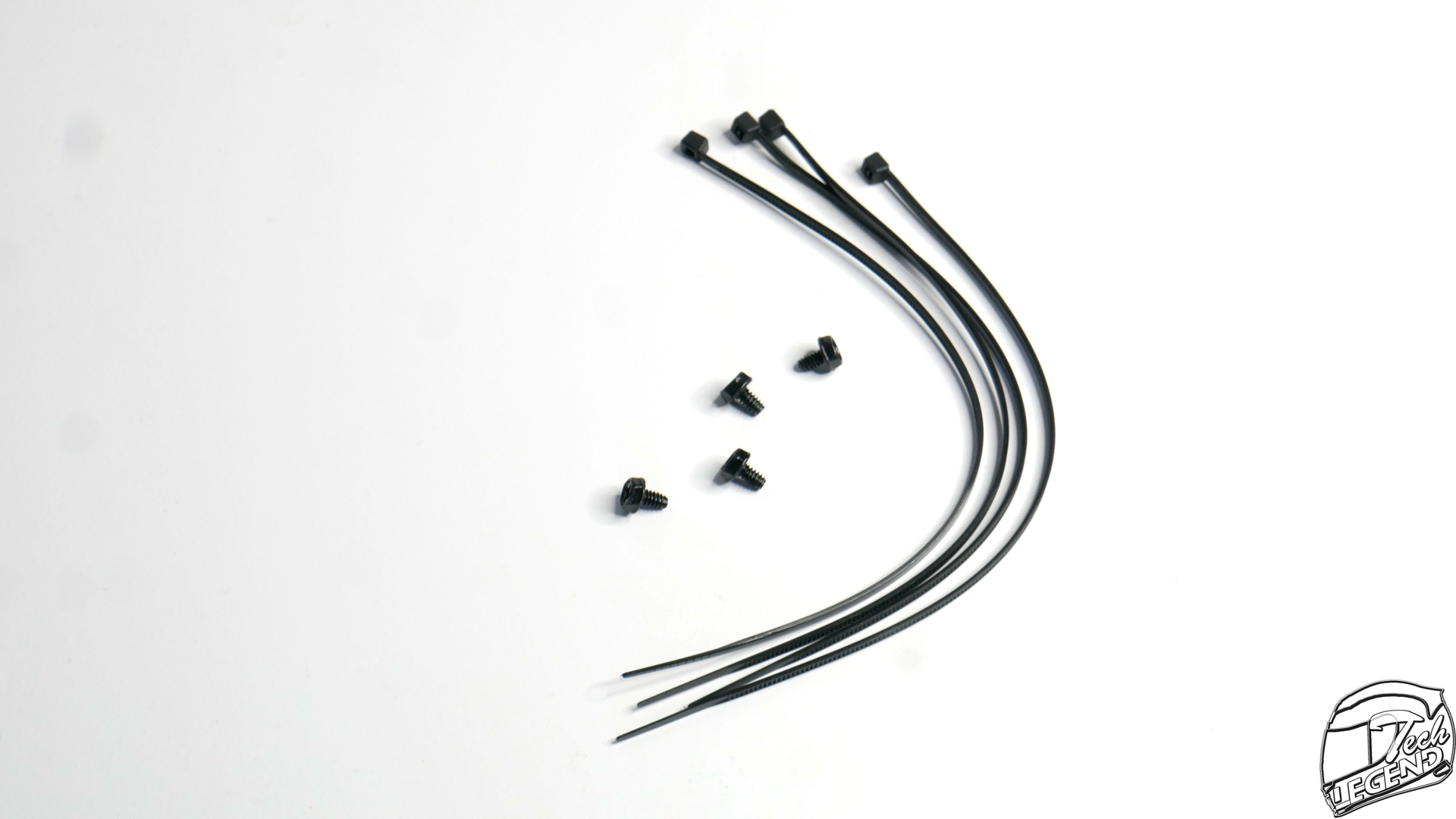

– 4x Metallic screws;
– 4x Zip ties.
Specifications
Model: G12 GC-750
Max. DC Output: 750W
Efficiency: 80PLUS® Gold
Modular: Not modular
Form Factor: Intel ATX 12 V
Operating temperature: 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
Fan Size: 120 mm
Fan bearing: Sleeve Bearing
Fan Control: Smart and Silent Fan Control
Life Expectancy of fan: 100,000 hours at 40 °C, 15 % – 65 % RH
Protections:
– Over Power Protection,
– Over Voltage Protection,
– Under Voltage Protection,
– Over-Current Protection,
– Short Circuit Protection,
– Over Temperature Protection.
Connectors and cables:
– 1x 24 / 20-Pin motherboard connector (550mm)
– 2x 8 / 4-Pin CPU (600mm)
– 3x PCIe 8/6-Pin (550mm)
– 2x SATA 3x connectors per cable (690mm)
– 1x Molex 3x connectors per cable (690mm)
Dimensions:
Power Supply: 140 mm (L) x 150 mm (W) x 86 mm (H)
Weight: N/A
MTBF @ 25 °C, excl. fan: 150,000 hours
Warranty: 5 years
Features:
– 80 PLUS Golf Certified
– High Efficiency, 80 PLUS® Gold Certified
– Compact ATX Size [140 mm deep]
– Smart and Silent Fan Control
– ight Voltage Regulation (12 V, 5 V, 3.3 V) [± 3 %]
– Ample +12 V Output
– 5 Years Warranty
