Introduction
Noctua is a company specialized in designing and producing of high-end coolers and fans for PC type systems. The company was founded in 2005 by Rascom Computerdistribution and Taiwanese company Kolink International. Today Noctua is present in more than 30 countries, being one of the most known manufacturers of cooling solutions.
Official product link:
https://www.noctua.at/en/products/nh-d9l-chromax-black
Prices and availability
Amazon:
Newegg:
Packaging and accessories
The Noctua is delivered in a standard cardboard box, that has a glossy texture on all sides.

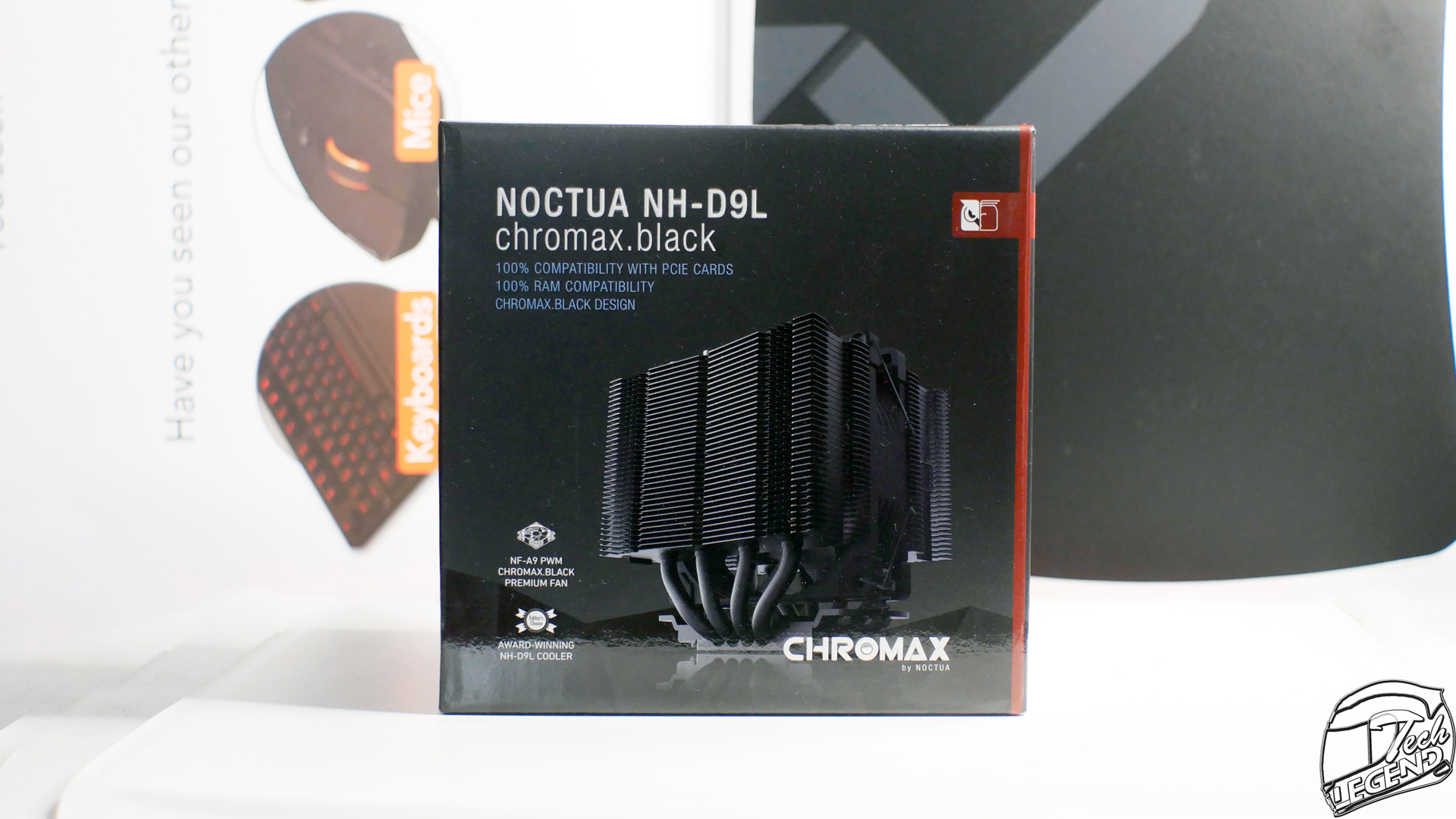

The front features a profile image of the CPU cooler alongside its main features listed around the image. The background is a simple all black background with nothing going on.

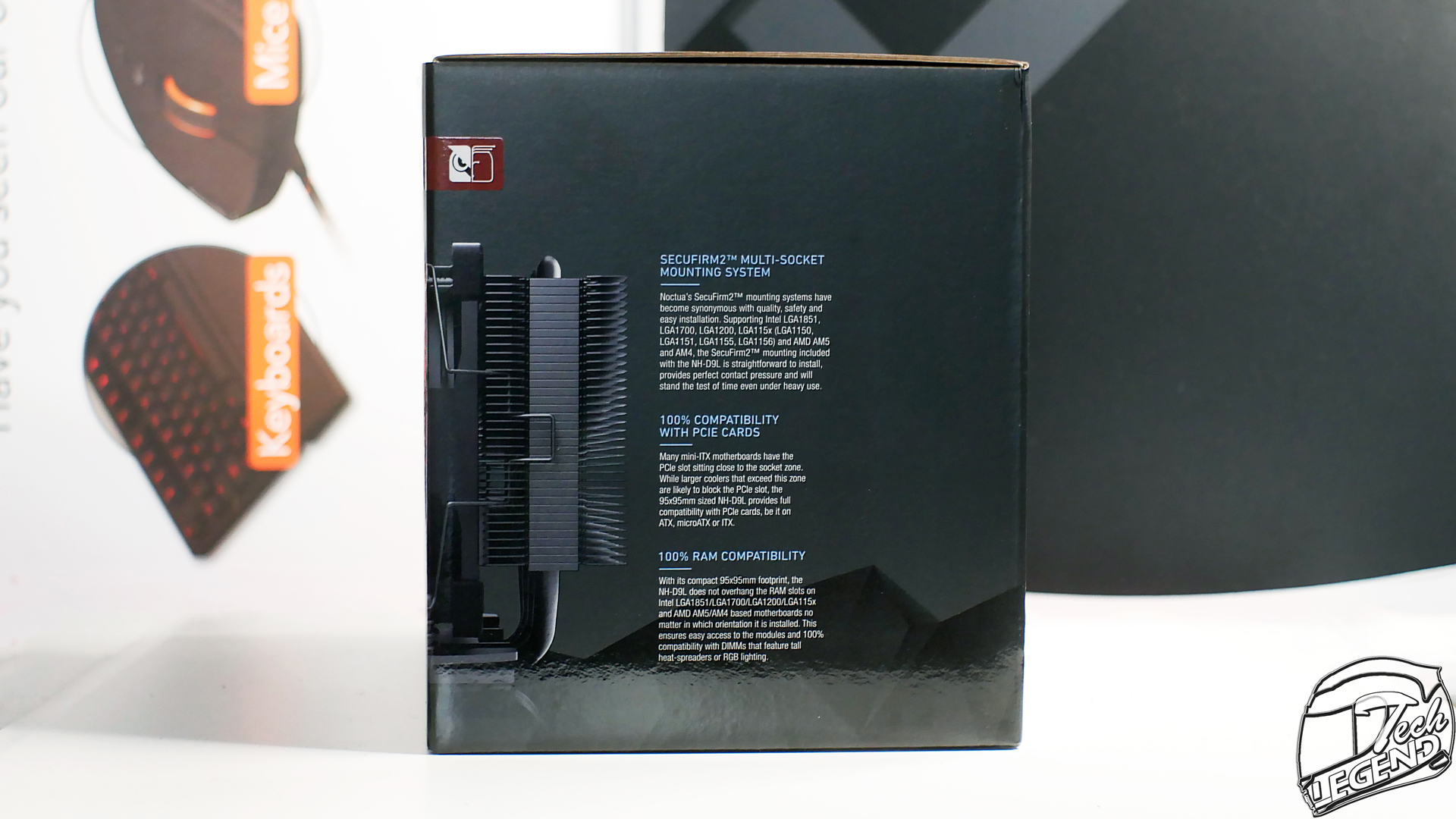

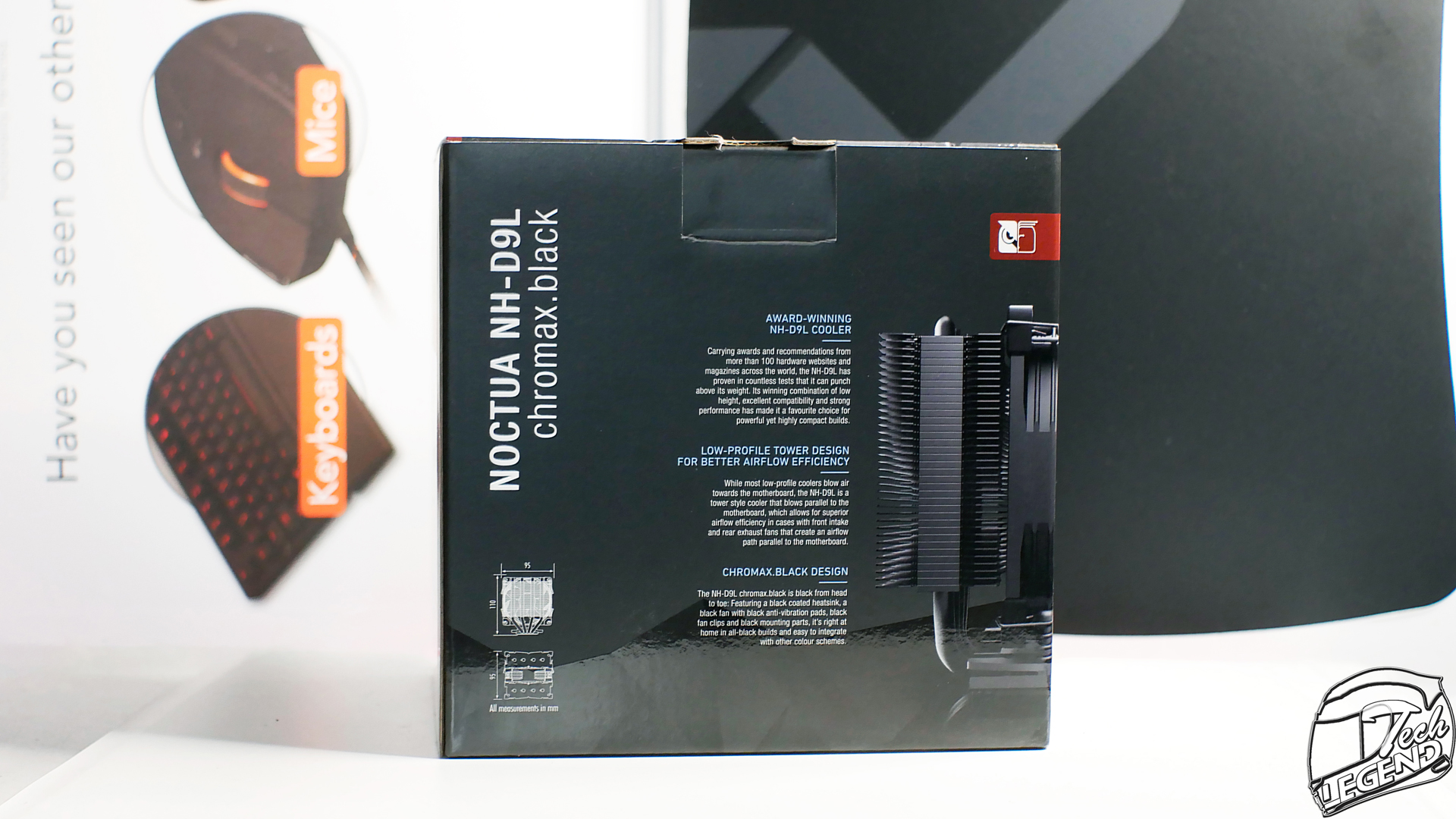

The back of the box and one of the sides, are used to present the main features of the CPU cooler and its general design. It’s neat way to deliver the relevant information without ruining the overall design of the packaging.

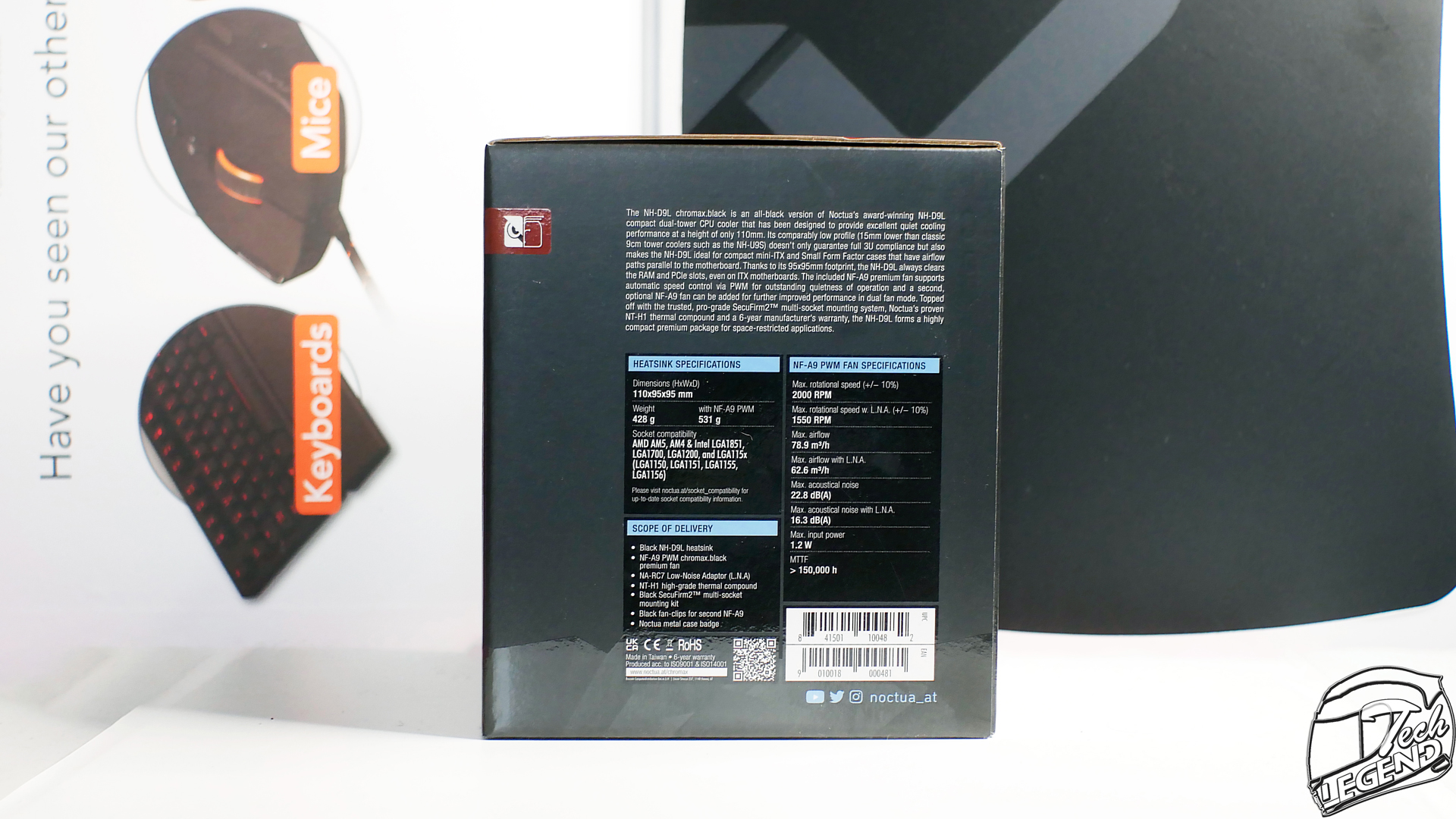

The side of the box is used to list all the technical specifications of both the heatsink and the included fan. In addition, the complete list of the included items in the package is printed here as well.

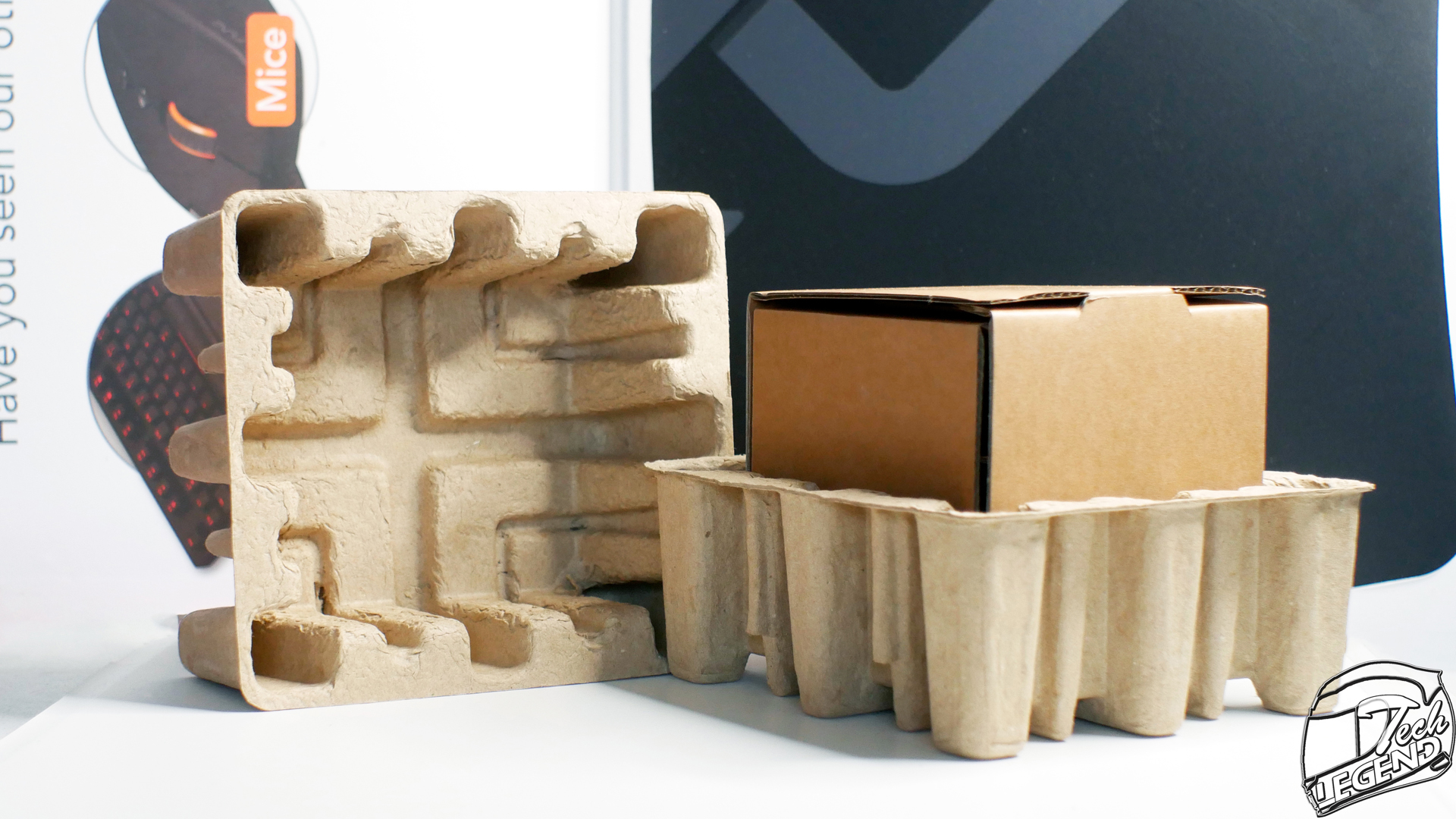

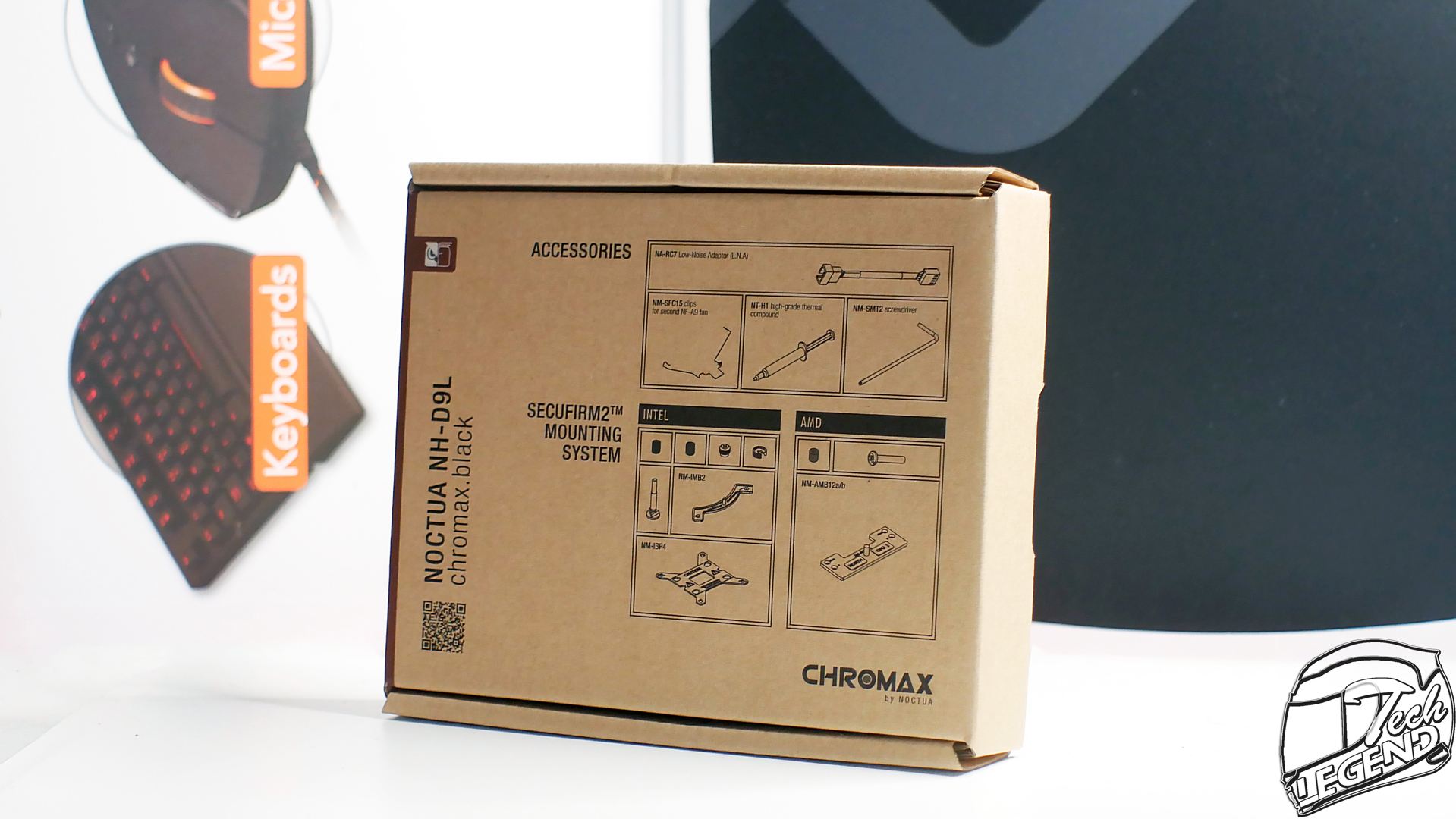

The cooler is protected by a cardboard tray. The accessories are placed in a separate cardboard box.

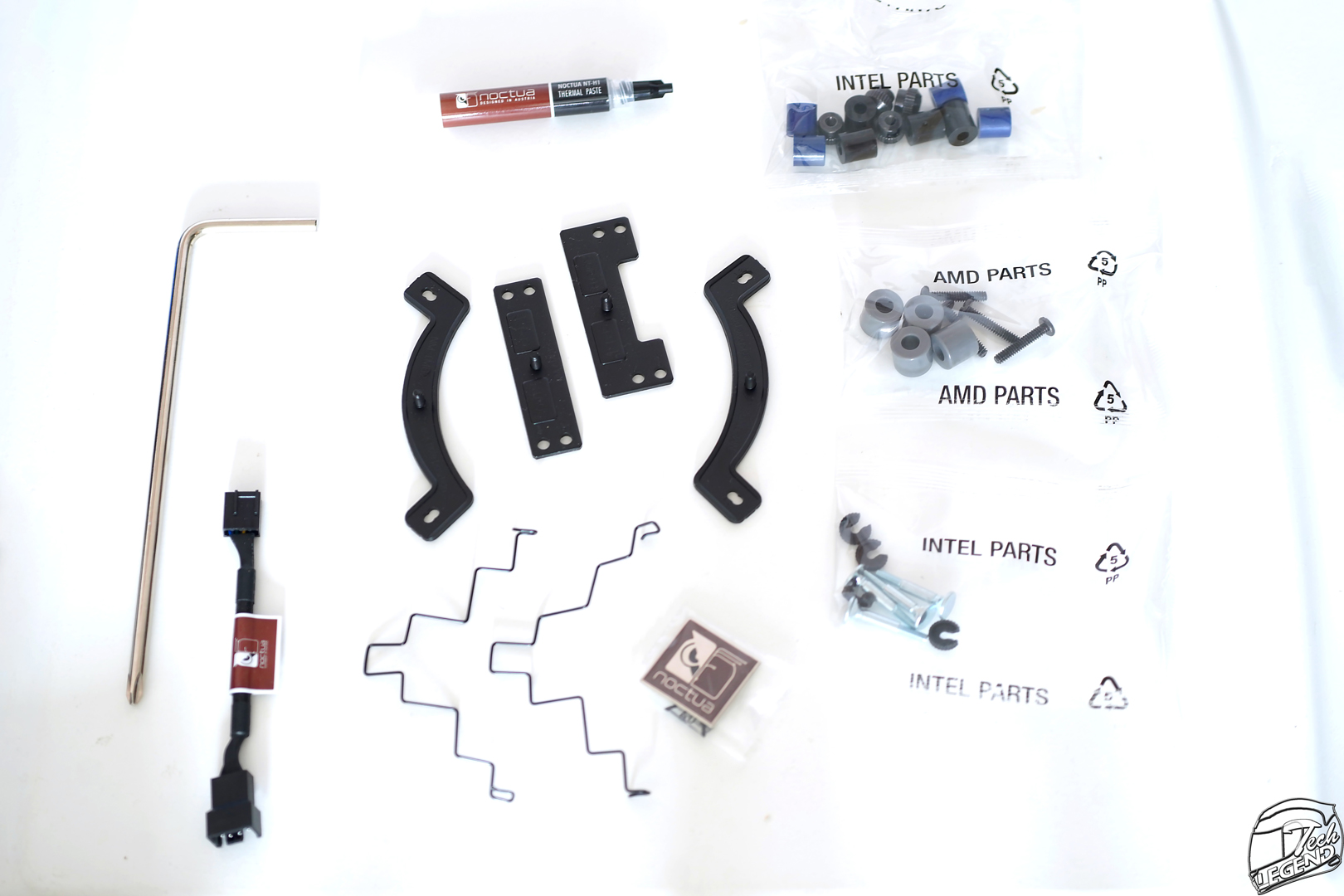

Accessories
The product comes with the following accessories:

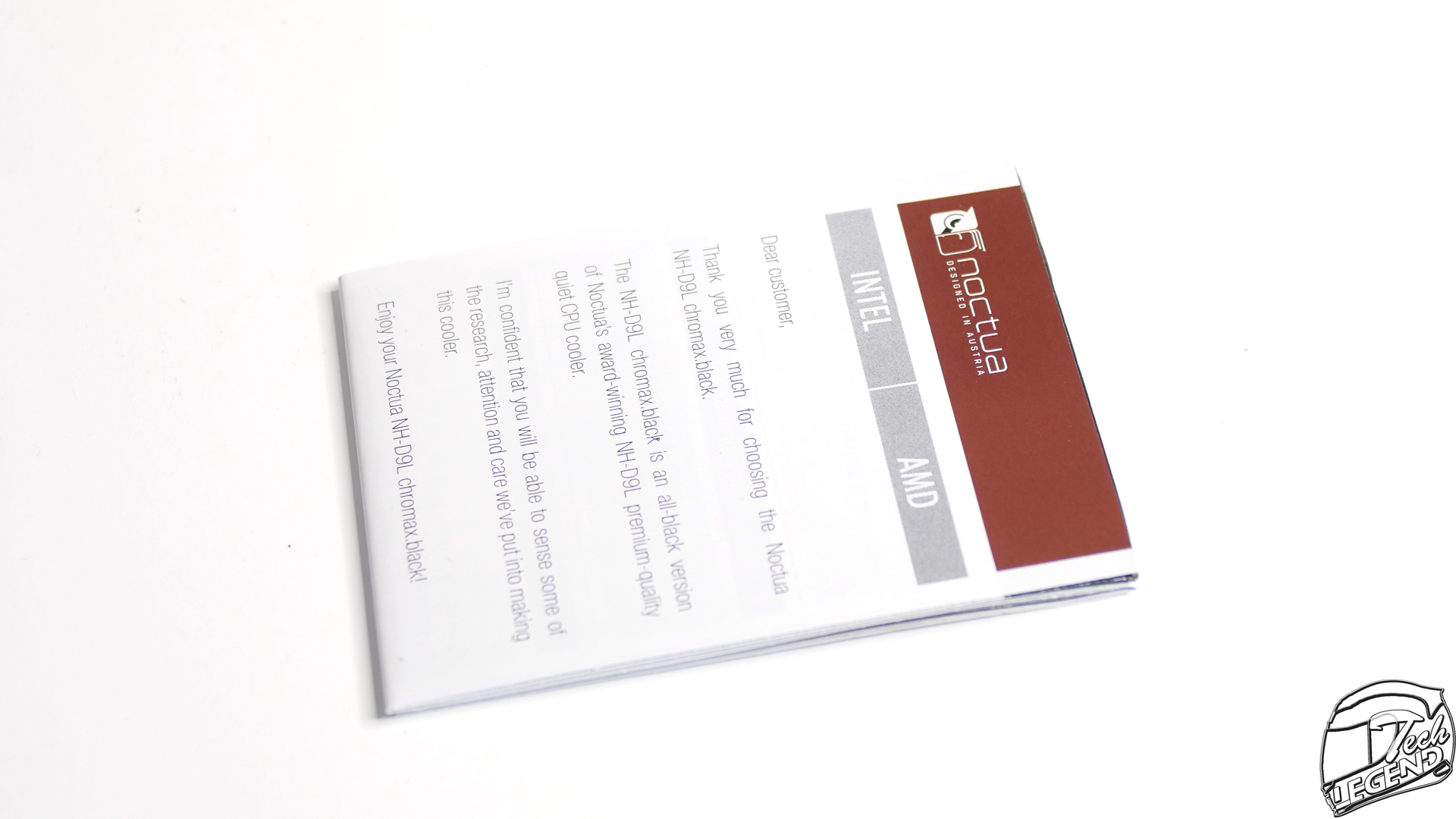

– 1x User manual
– 1x Noctua Metal Case-Badge
– 1x NT-H1 high-grade thermal compound
– 1x Low-Noise Adaptor (L.N.A.)
– 1x Phillips Screw Driver
– 2x Metal Fan Clips

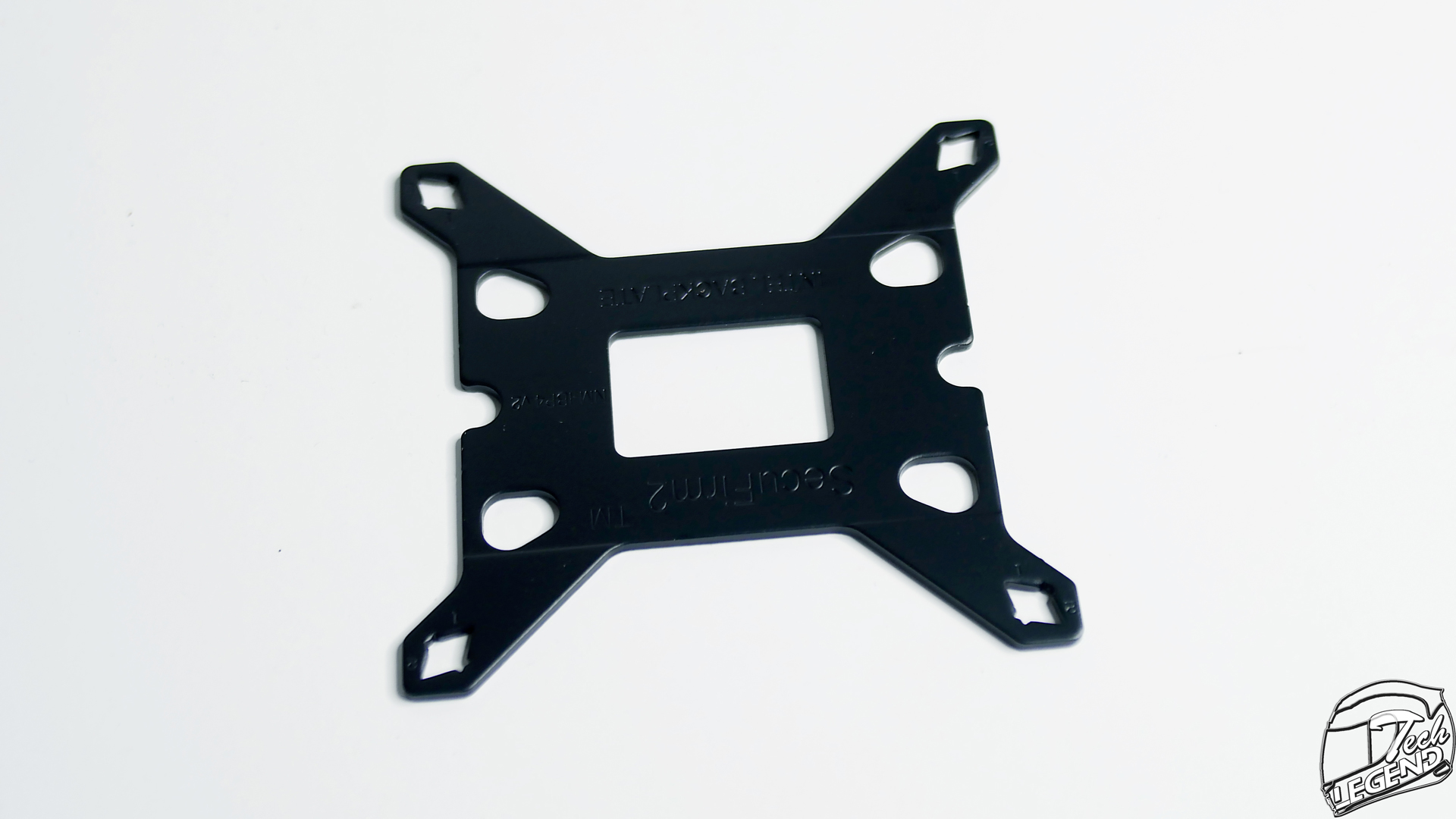

– 1x NM-IBP2 Backplate
– 2x NM-IBB2 Mounting Bars (Intel)
– 2x NM-AMB8 Mounting Bars (AMD)
– 4x NM-APS4 Plastic Spacers for AM4
– 4x NM-APS5 Plastic Spacers for AMD
– 4x NM-ALS1 Screws for AMD
– 2x NM-AMB11 Mounting Bars
– 4x NM-IBT2 Bolts
– 2x NM-IMB3 Mounting Bars
– 4x NM-ITS1 Thumbscrews
– 4x NM-IPS1 Spacers
Specifications
Model: NH-D9L
Supported sockets:
Intel: LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA2066
AMD: AMD AM5, AM4
Heatsink:
Materials: Copper (base and heat-pipes), aluminum (cooling fins)
Dimensions (without fans): (H)110mm x (W)95mm x (D)95mm
Heatpipes: 4x – Ø6 mm
Cooling Fins: x35 (per heatsink tower)
Weight: 531g
Fans Type Supported: NF-A9 PWM
Fan(s):
Model: NF-A9 PWM chromax.black.swap
Dimensions: 92 x 92 x 25 mm
Bearing type: SSO2
Max. Rotational Speed (+/- 10%): 2000 RPM
Min. Rotational Speed (PWM, +/-10%): 0 RPM
Max. airflow: 78.9 m³/h (46.44 CFM)
Max static pressure: 2.28 mm H₂O
Max. acoustical noise: 22.8 dB(A)
Connector: 4-Pin PWM
Voltage Range: 12 V
Warranty: 6 Years
Features:
– Compact dual-tower design
– Premium NF-A9 92mm fan
– Low-profile tower design for better airflow efficiency
– 100% RAM compatibility
– 100% compatibility with PCIe cards
– NT-H1 thermal compound
– SecuFirm2 multi-socket mounting system
– Compatibility with past and future sockets
– NT-H1 thermal compound
– Soldered interface between heatpipes and fins
– 6-year manufacturer’s warranty
