Visual inspection

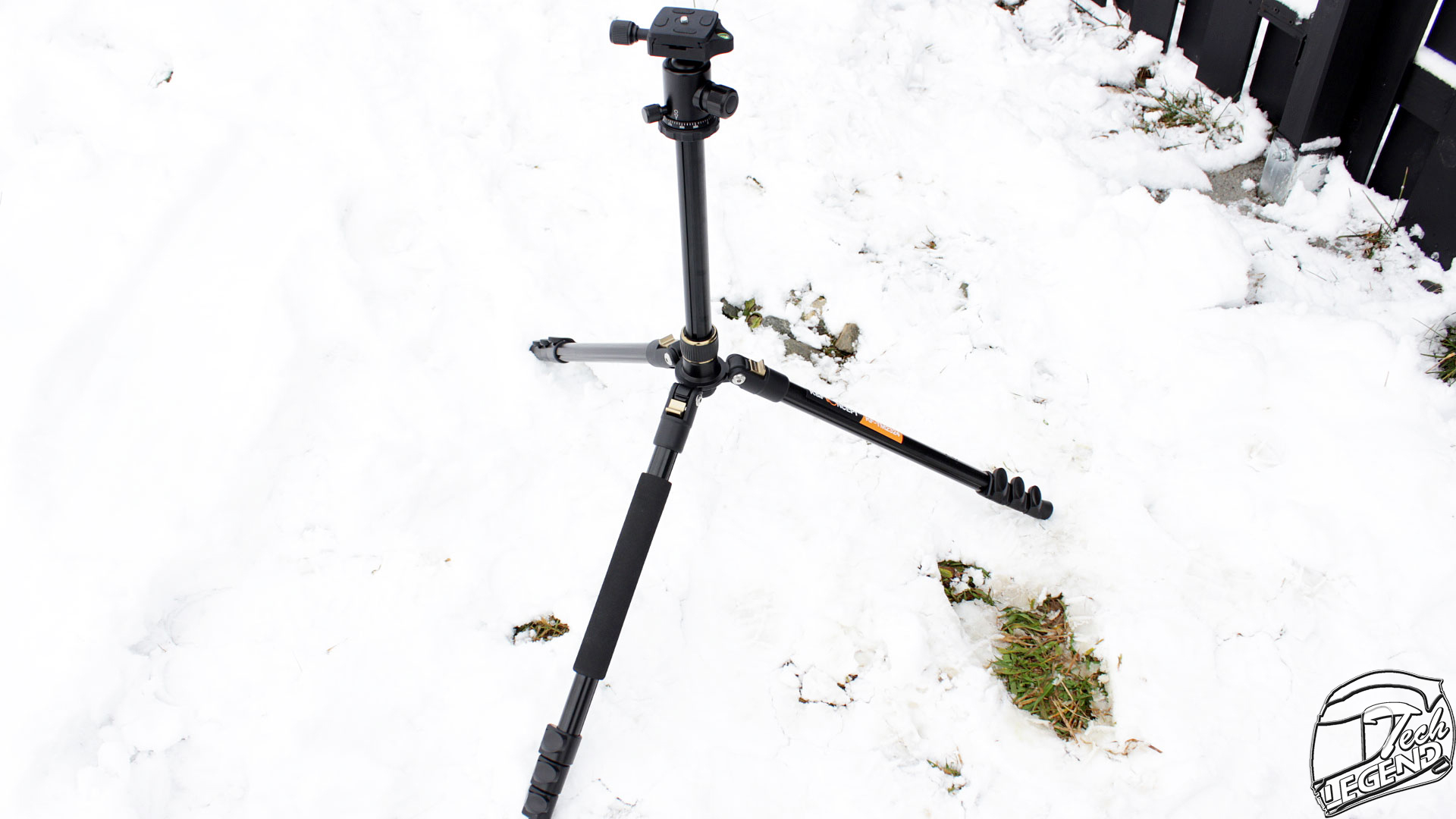

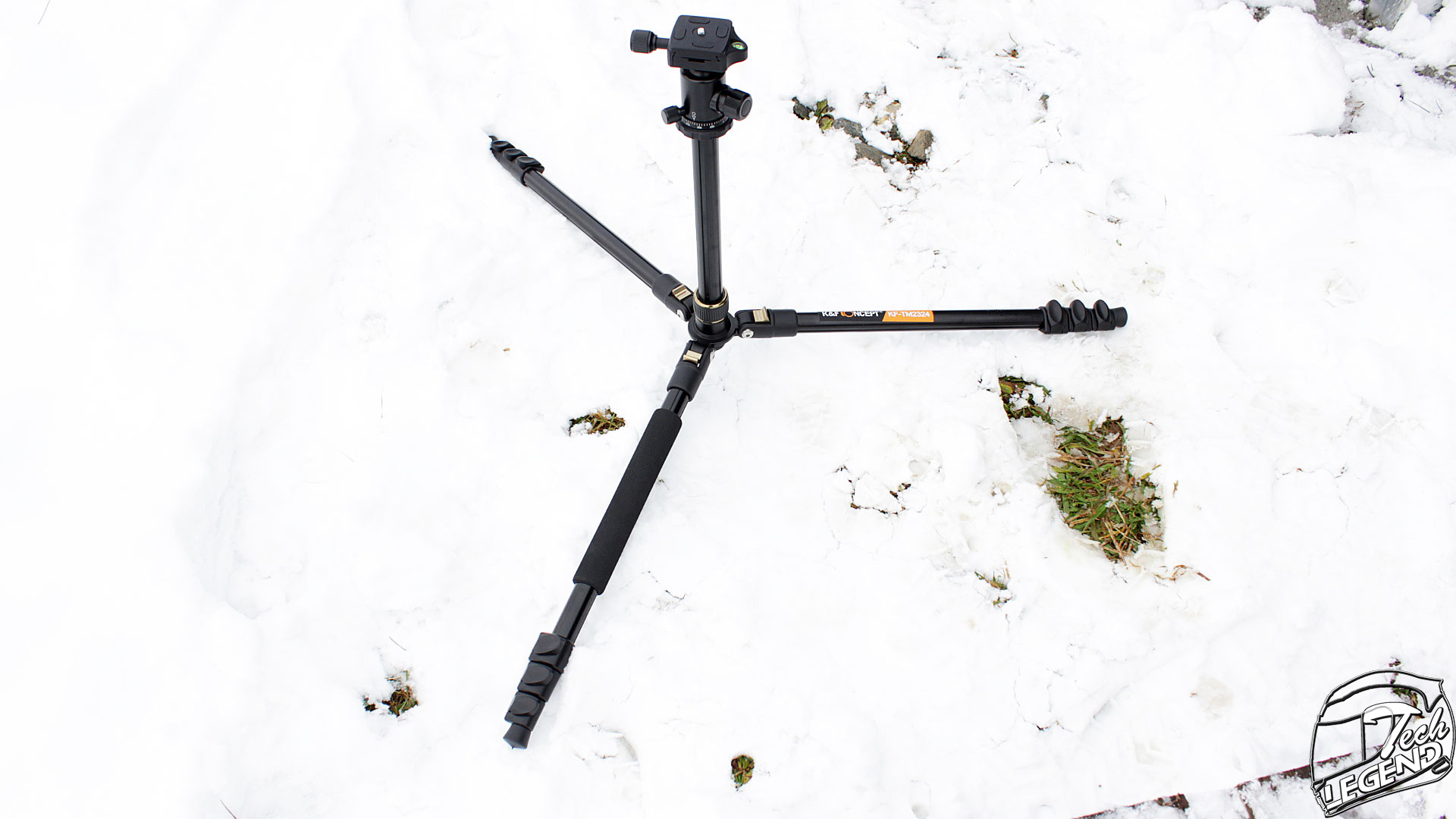

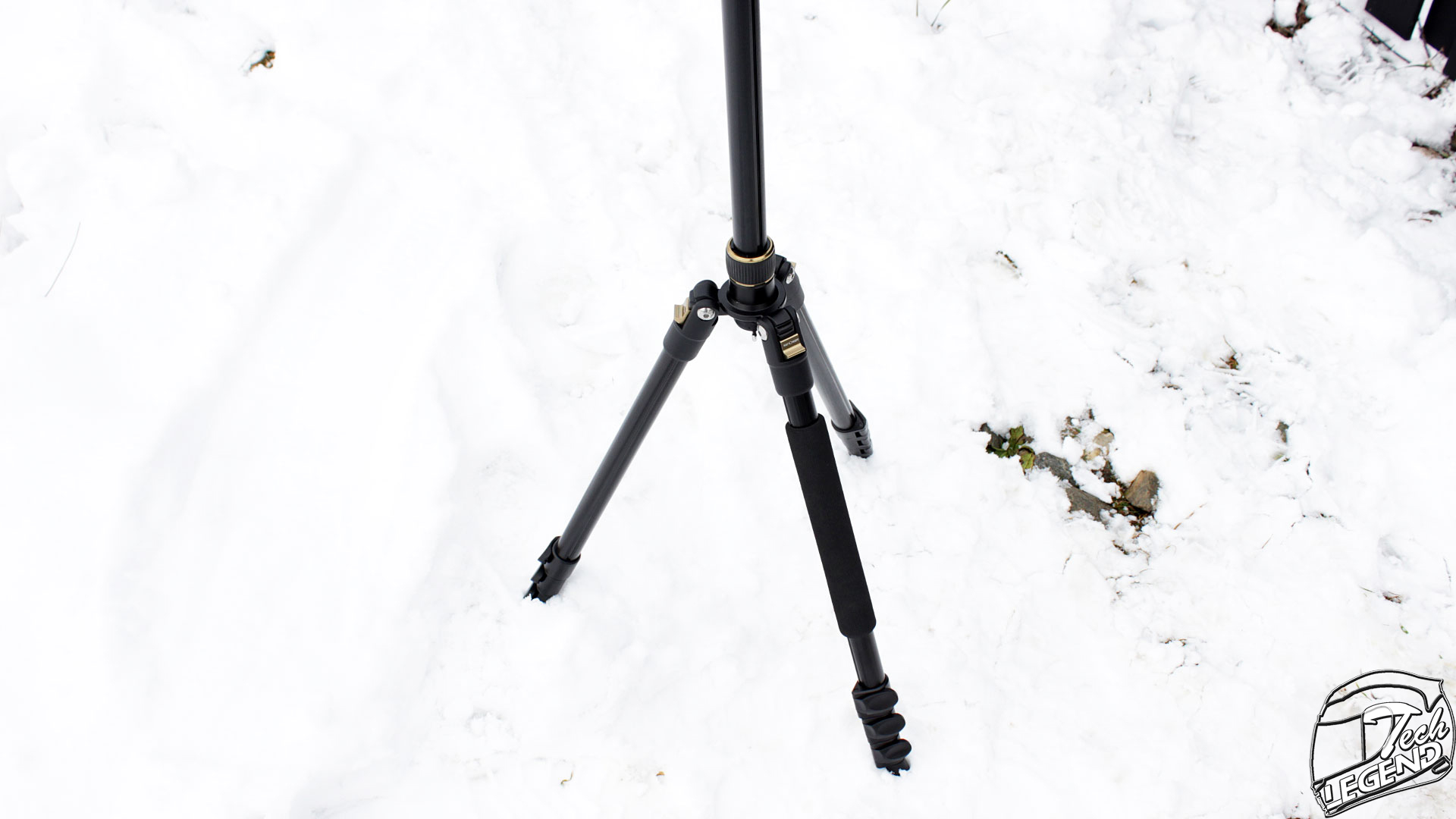

The KF-TM2324 is a lightweight travel tripod that has a maximum load capacity of 10kg and a maximum height of 1565mm. The design of the tripod is simple, with gold accents on important components, and a matte black finish on the body.

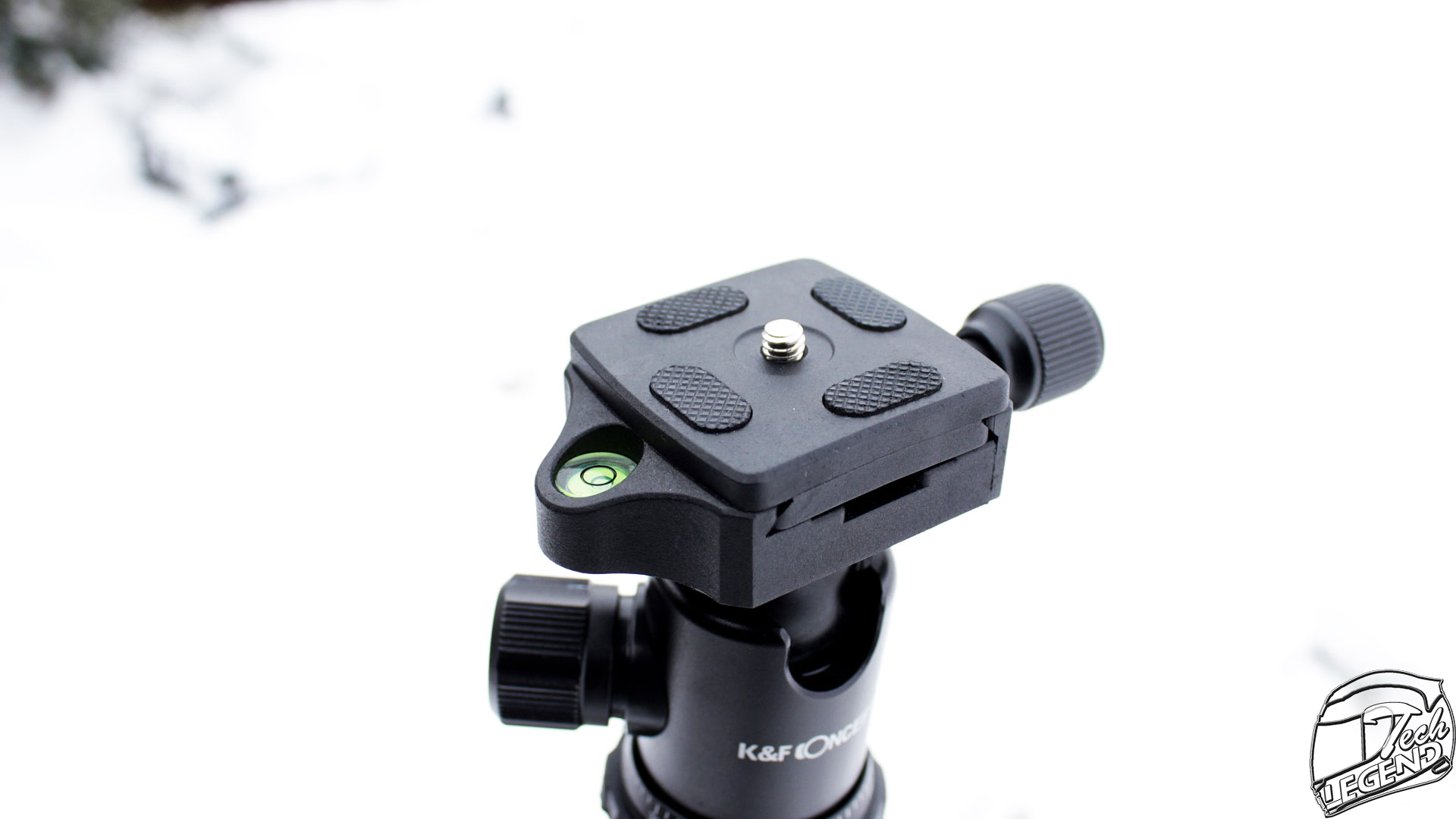

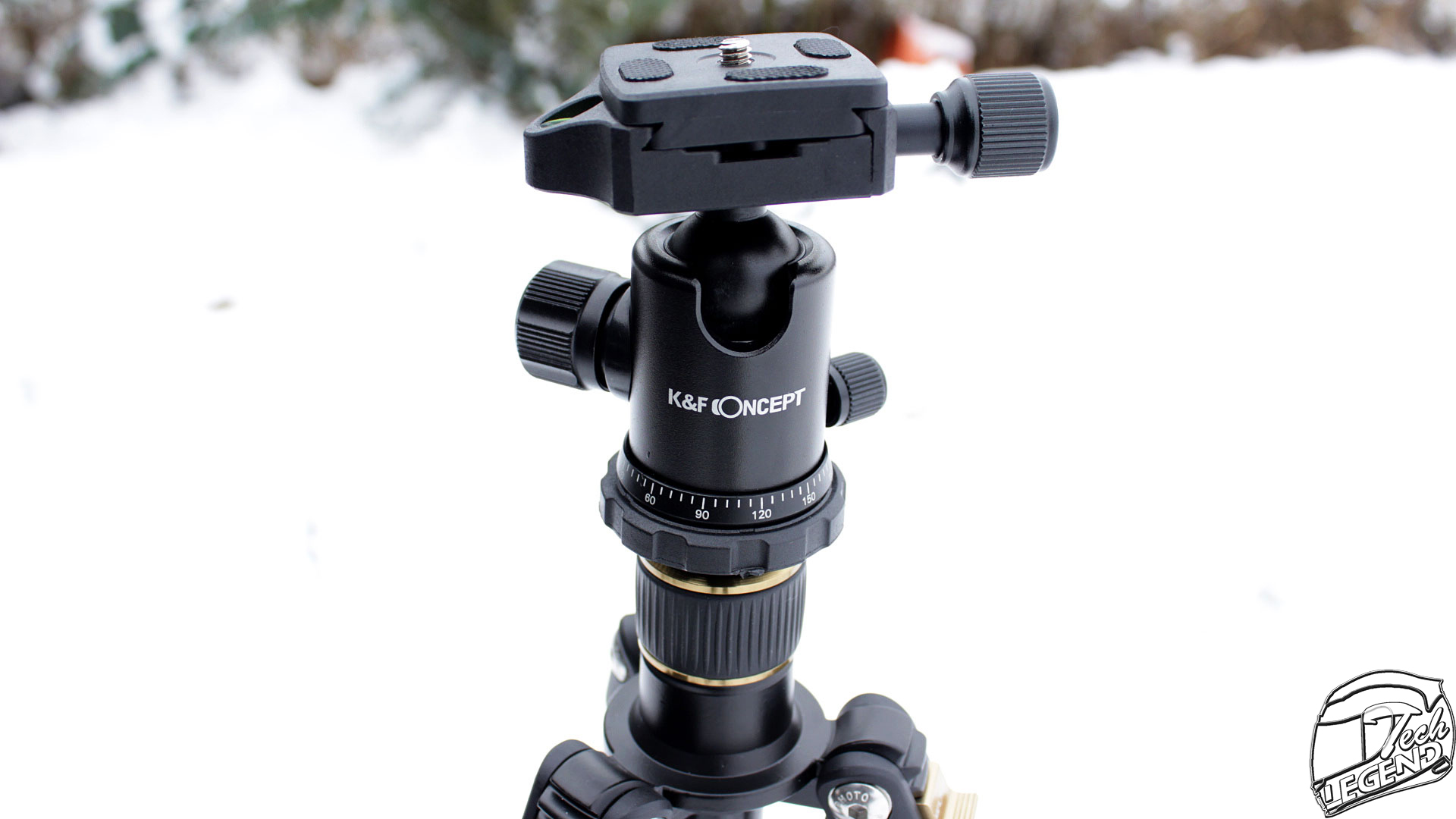

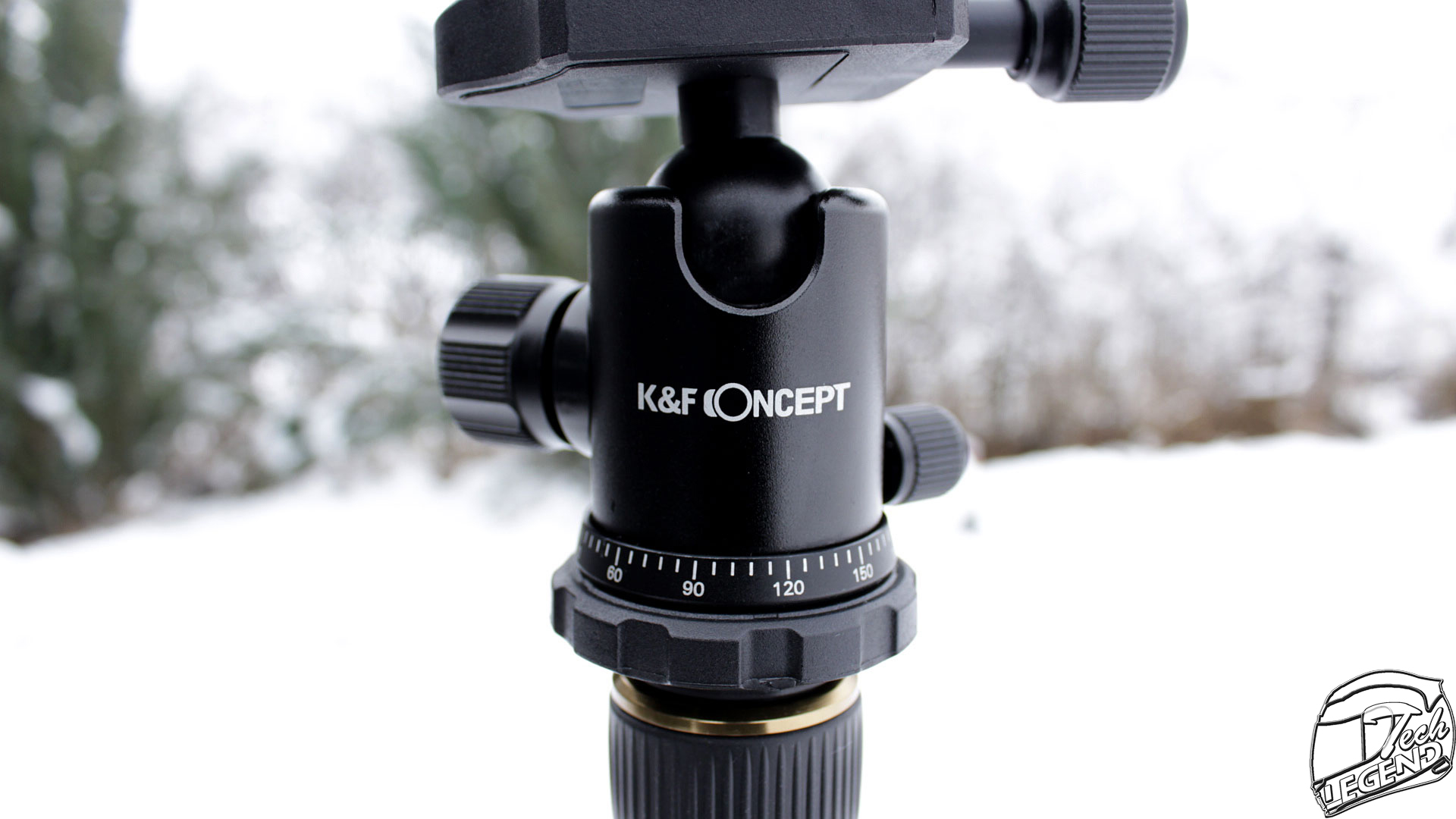

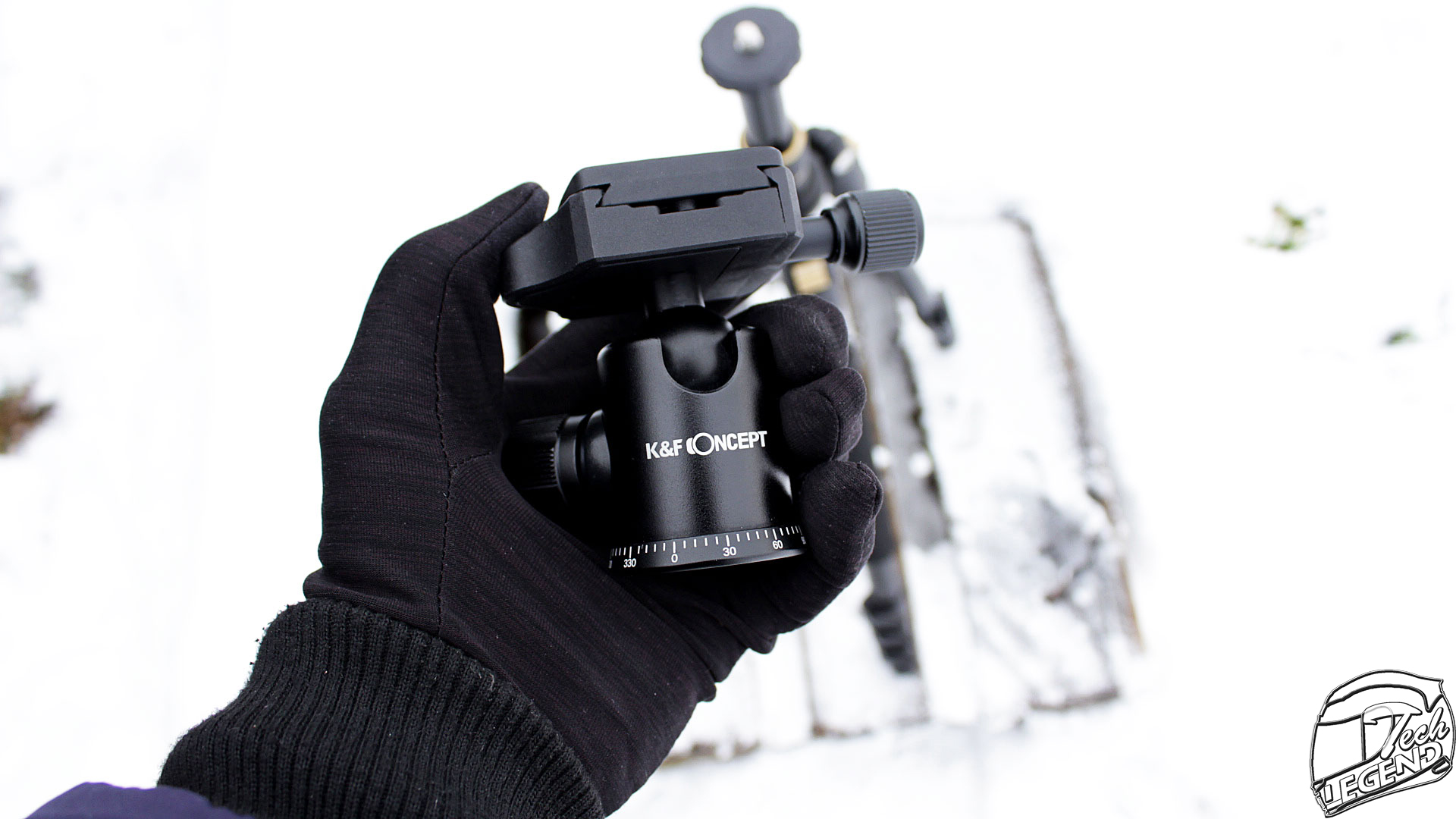

The tripod head preinstalled on the KF-TM2324 is a standard ball head. This type of tripod head allows for free adjustment on all axis. In addition, the bottom part of the head has white numerical markings to facilitate 360° panoramic photography. This ball head also has included a simple liquid bubble level.

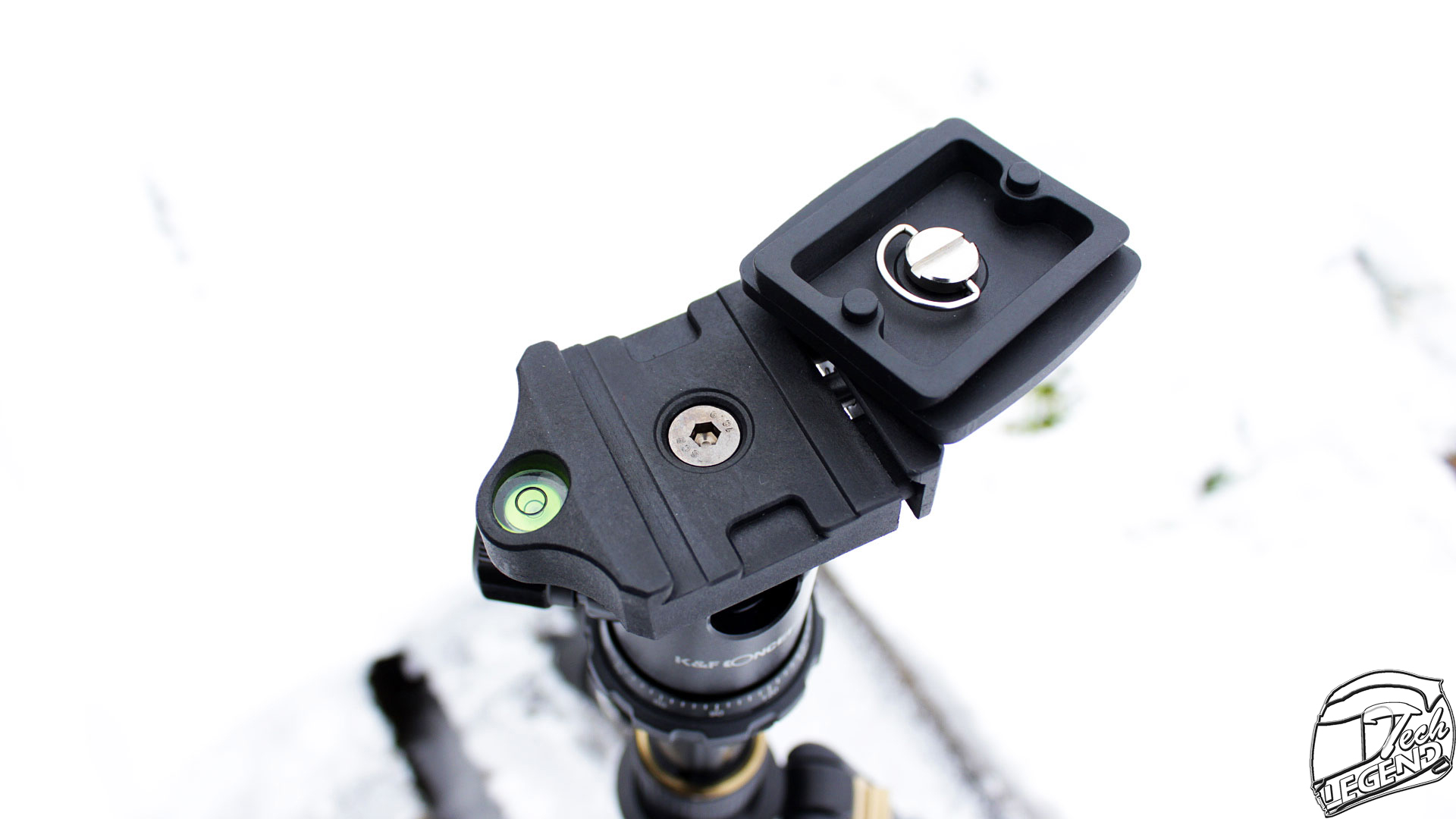

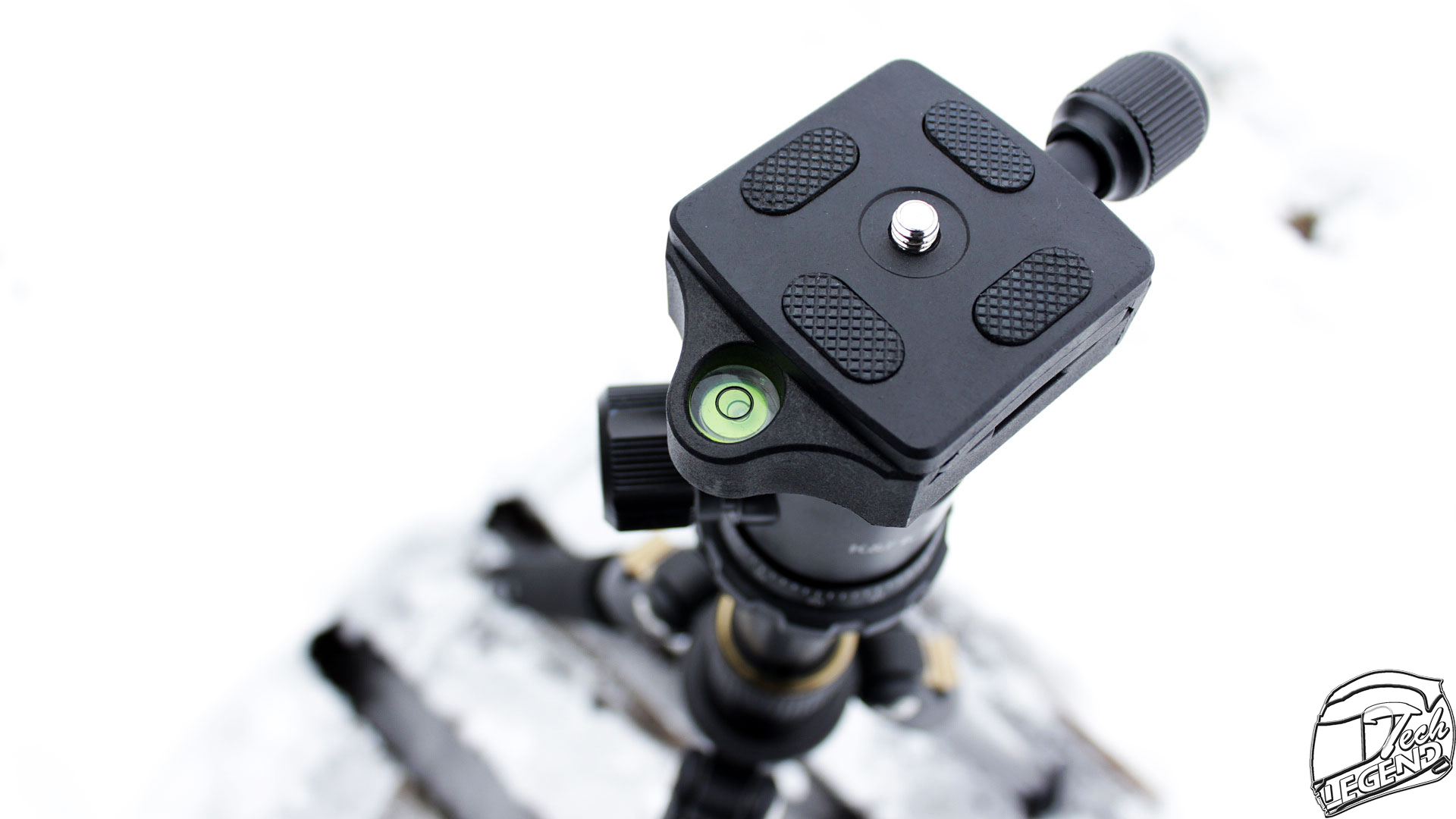

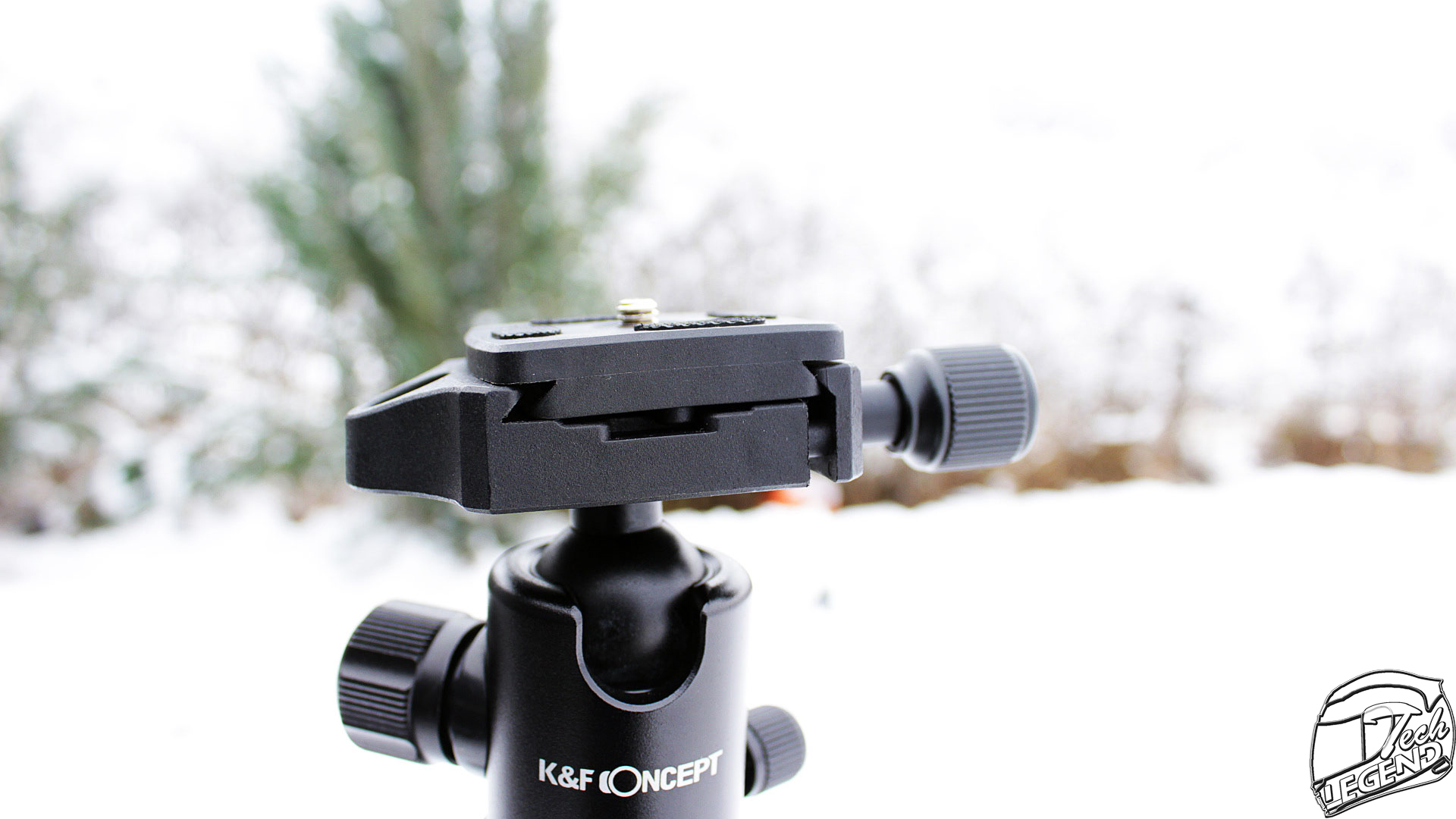

The top plate found on the tripod head is made entirely out of plastic, and features rubber pads on the upper side. Fortunately, the mounting screw of the top plate has a hook which allows you to use it with no tools.
The system used to hold the top plate on the tripod head is a classic vice clamp system.

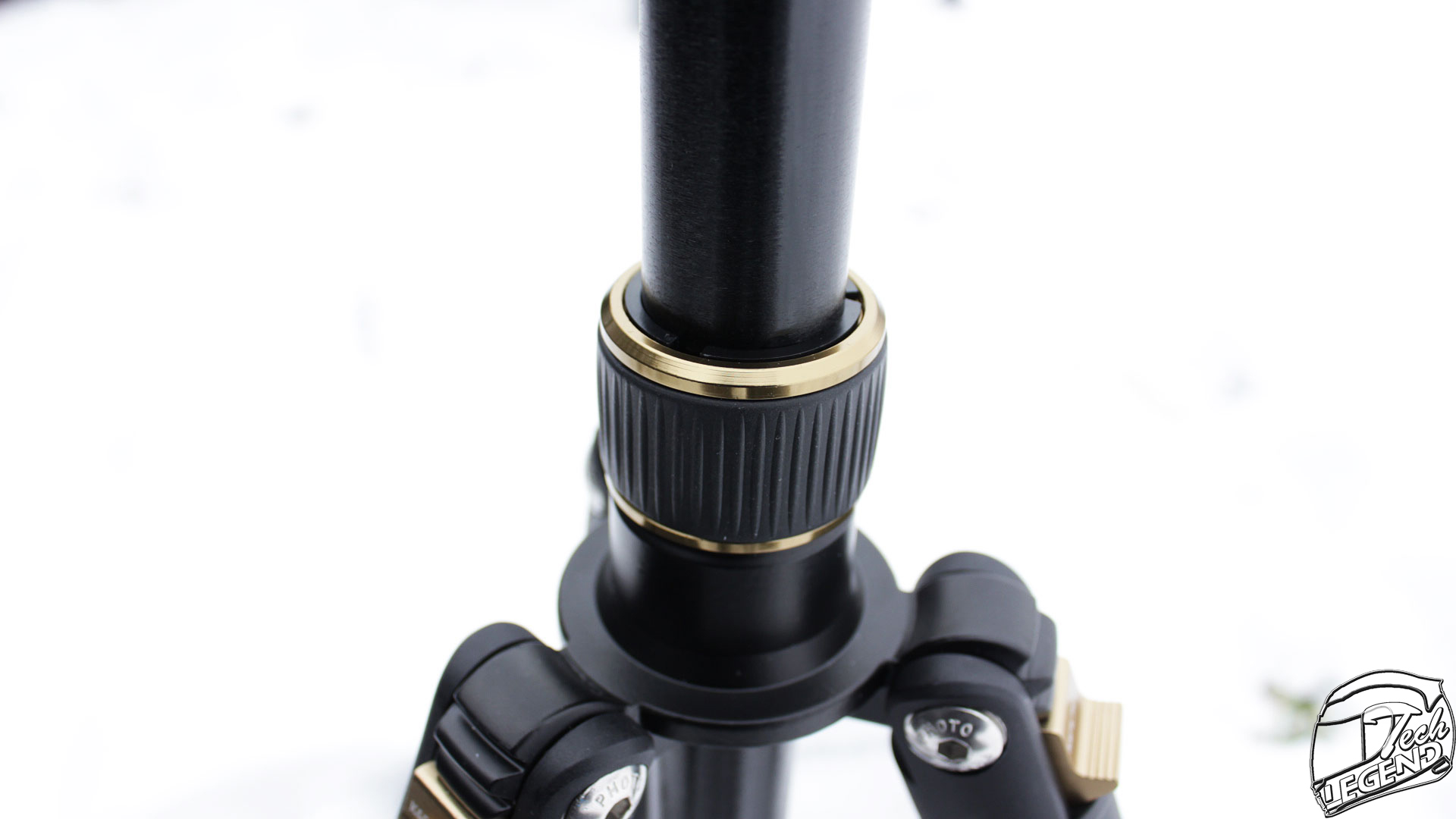

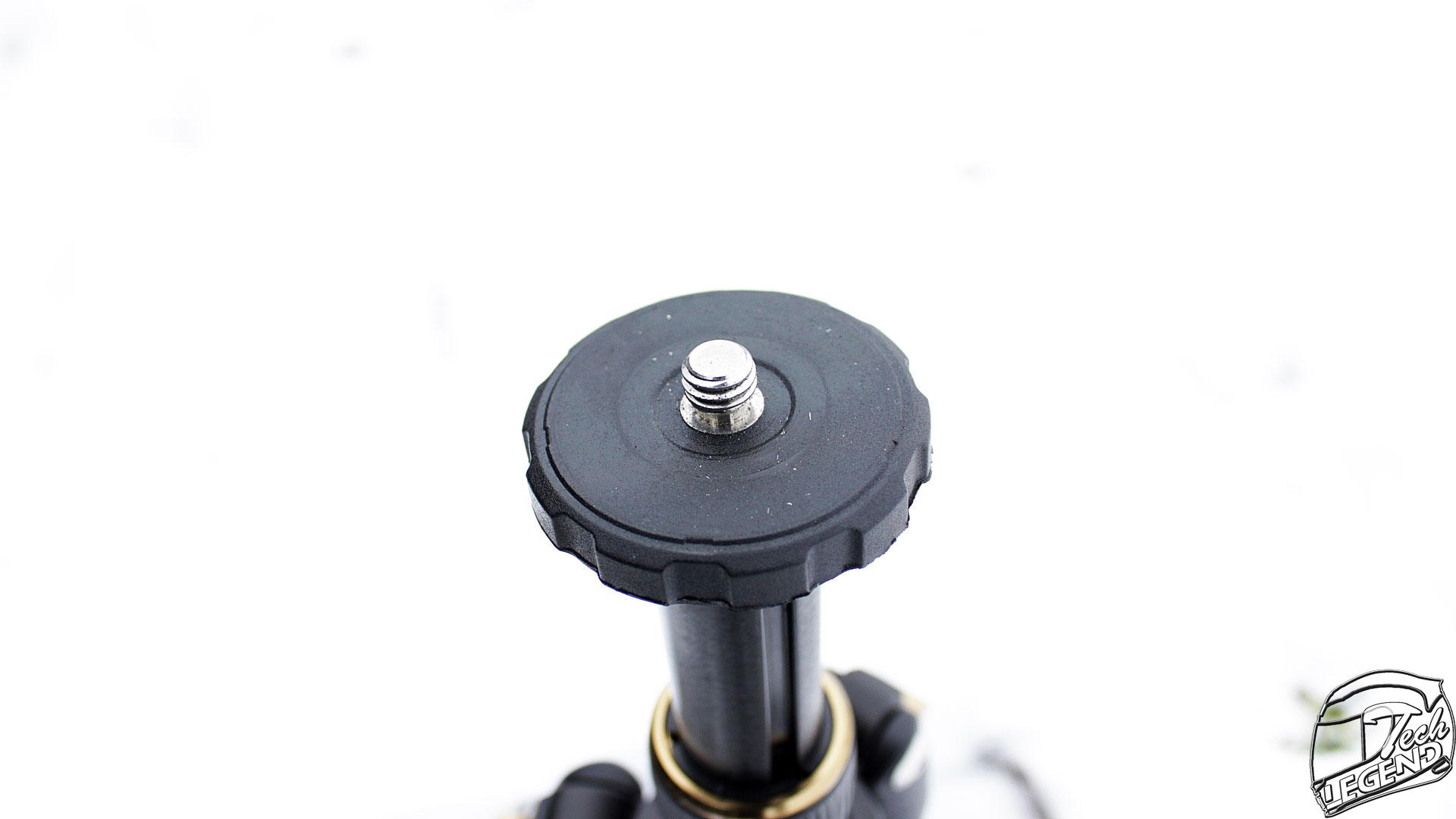

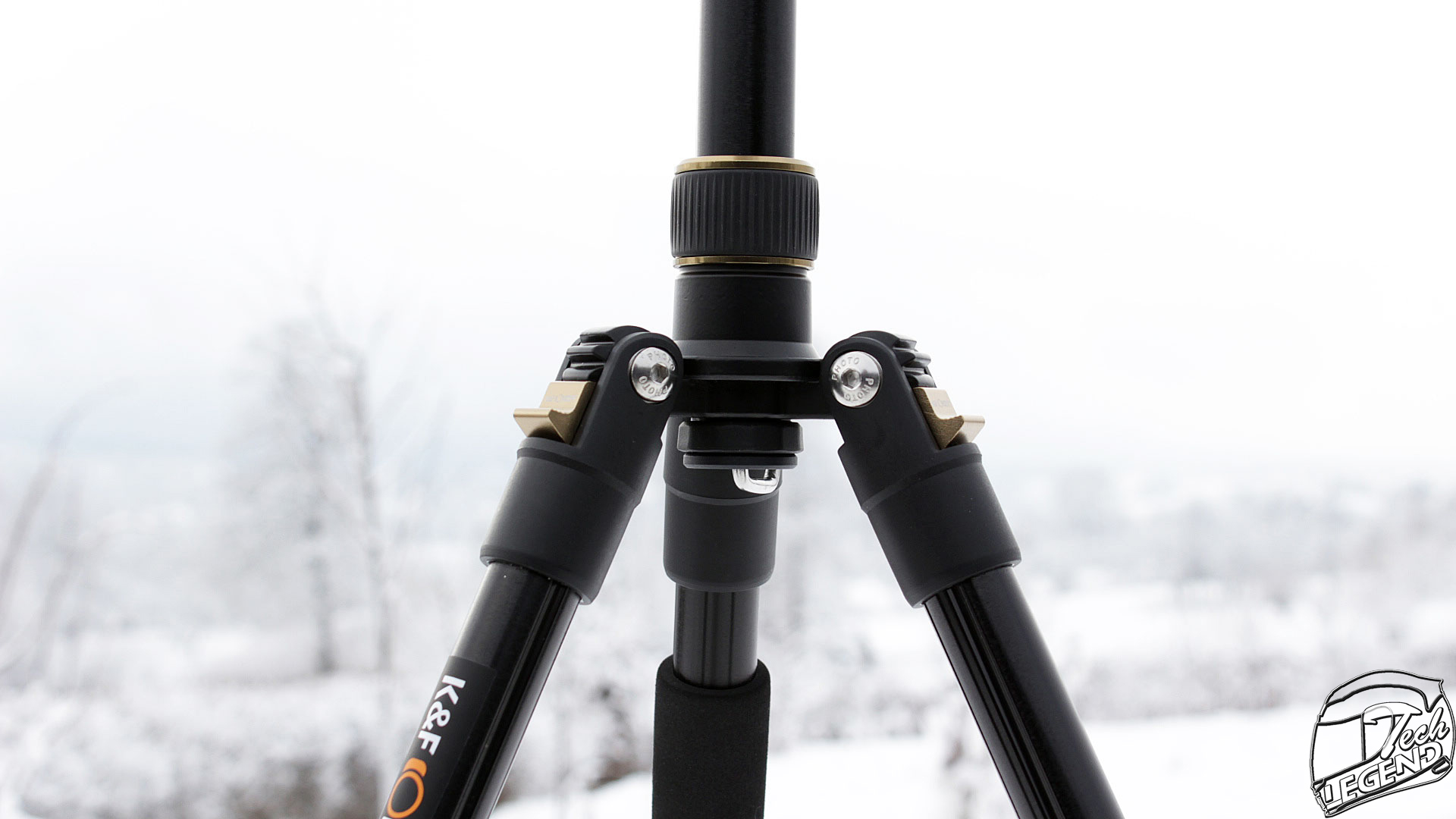

The main beam of the tripod, which also serves as the base where the tripod head mounts can move on a vertical axis. This beam is held in place by a single large nut that is attached to the upper part of the tripod body. This nut has gold accents on the upper and lower parts, while the middle is covered by a textured rubber surface.

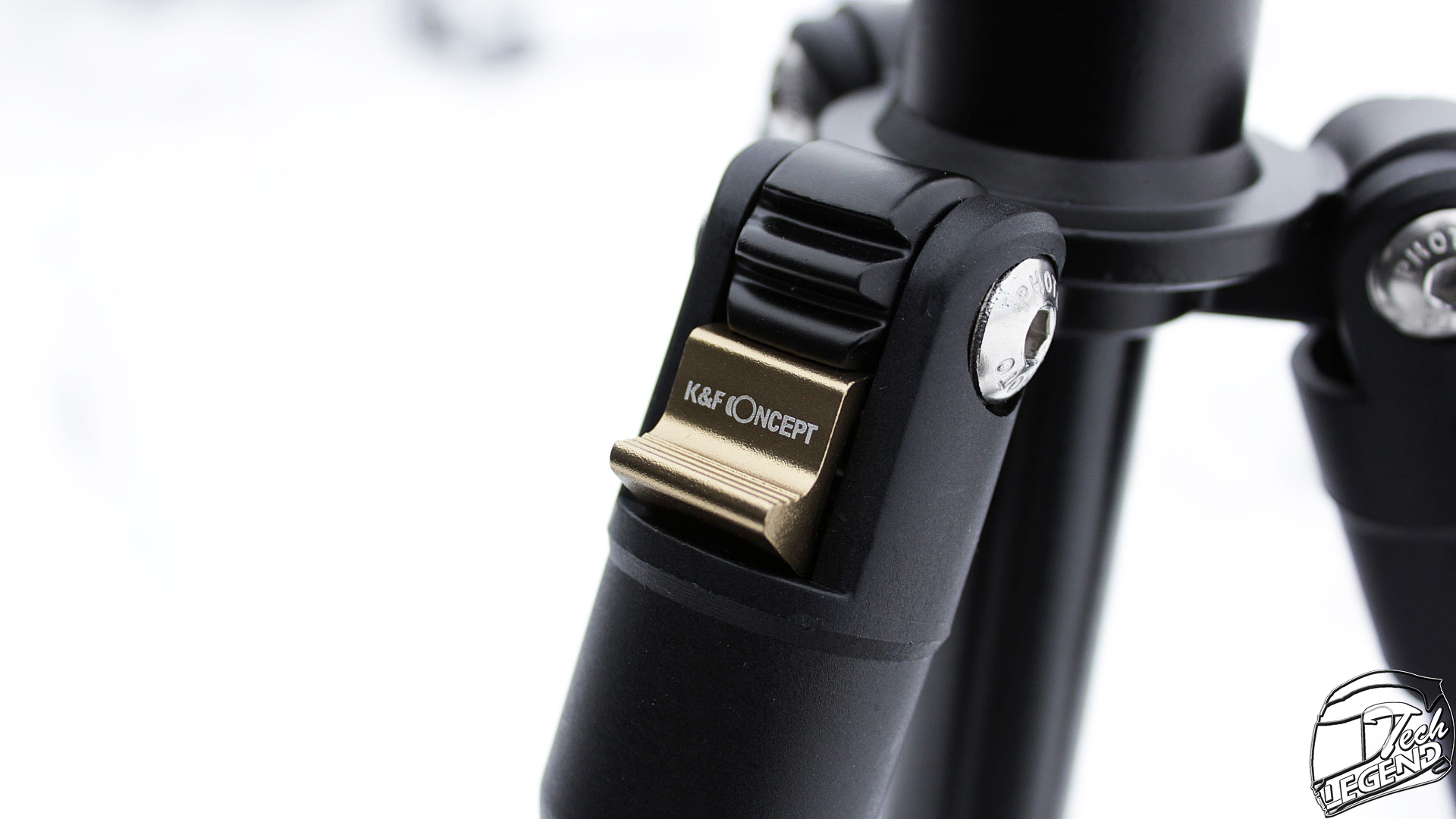

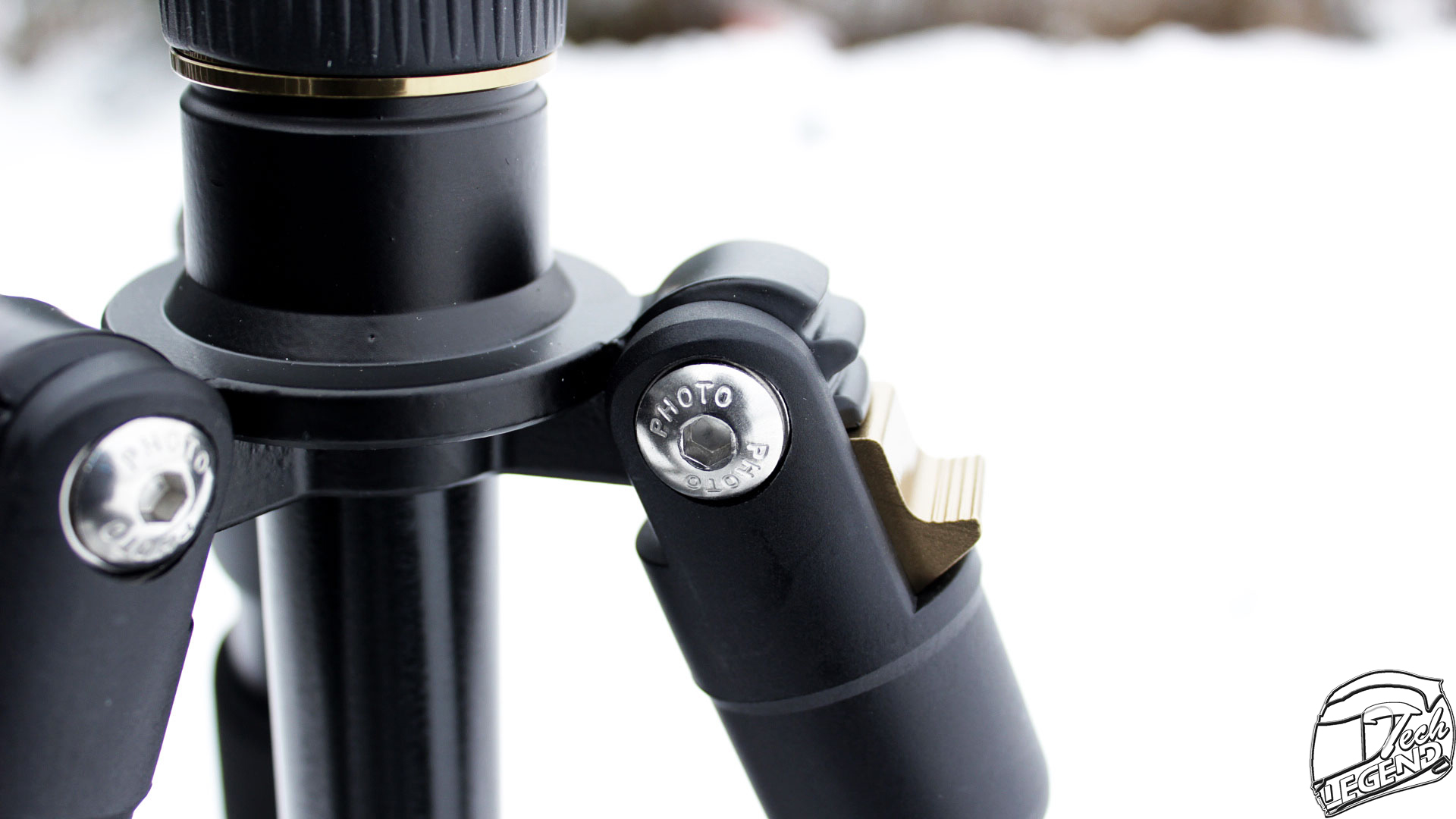

The legs of the tripod can be rotated upwards and allow the usage of an inverted layout. The system used to stop the rotation of the legs is a simple spring-loaded button which needs to be pressed to allow for the rotation of the legs.

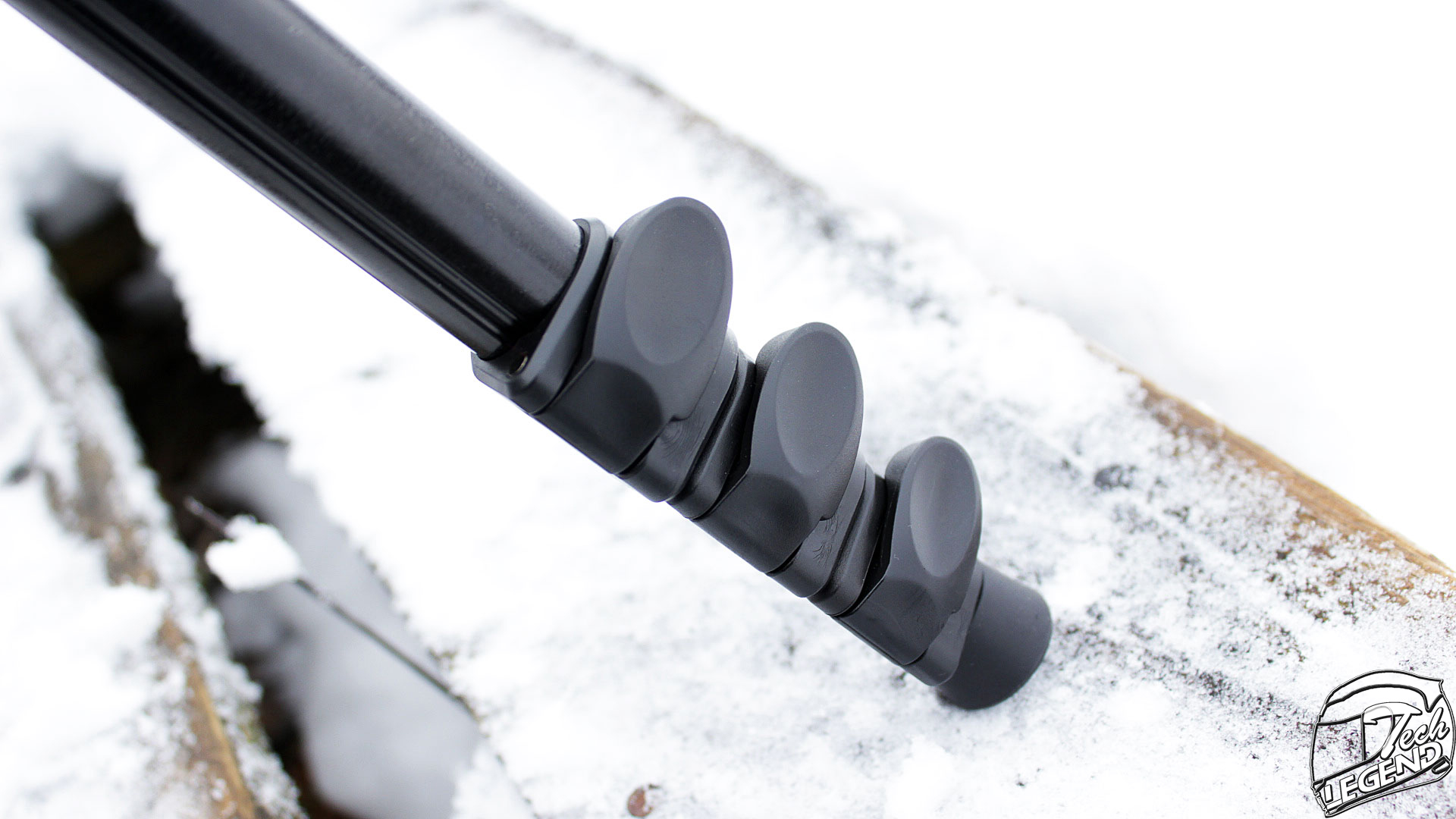

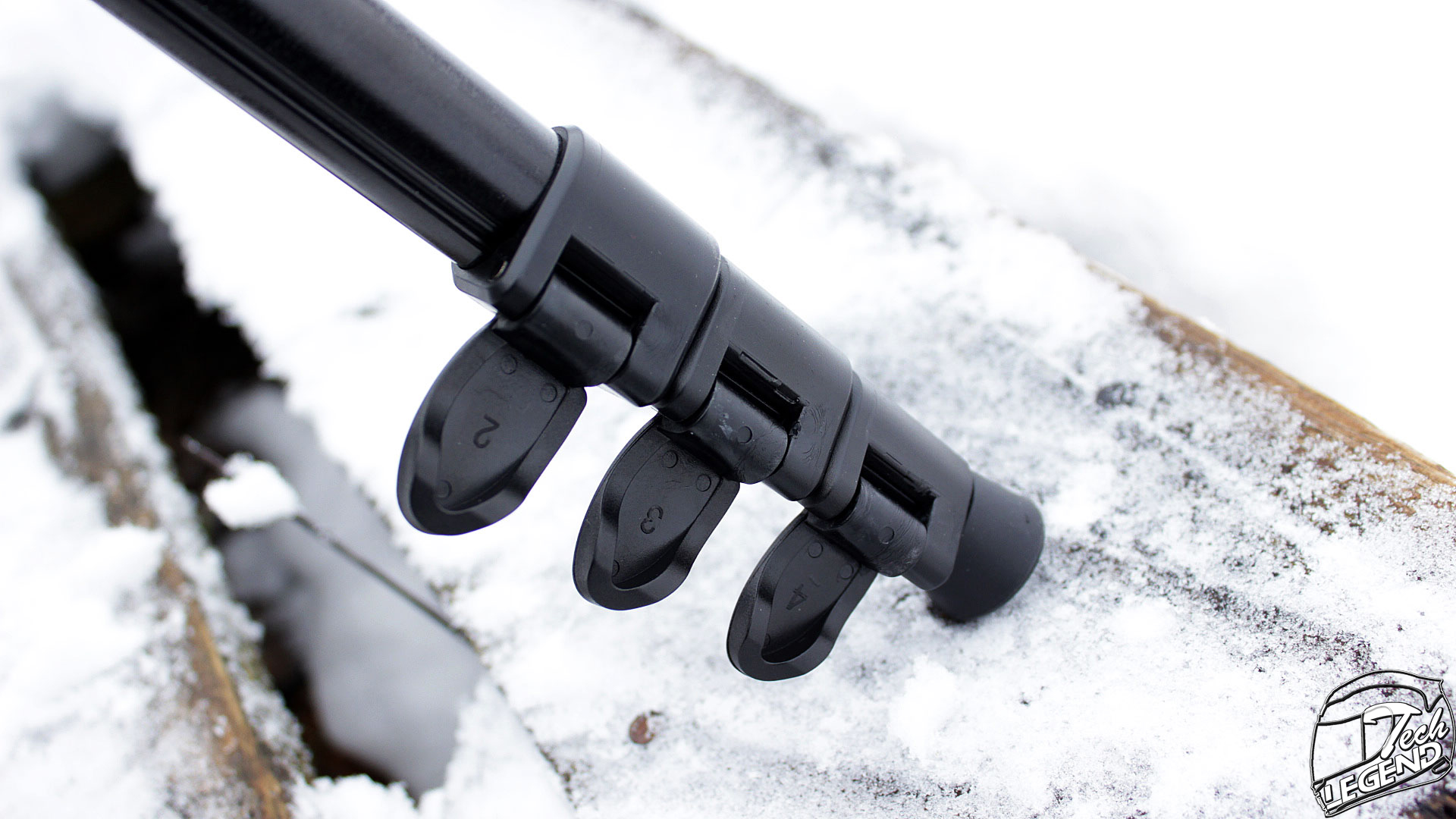

The legs are telescopic and retract inside the casing of the bigger leg on the upper side. The legs are stopped from rolling out by plastic quick release clips. A quick thing to one is that only a single leg has a foam pad installed.

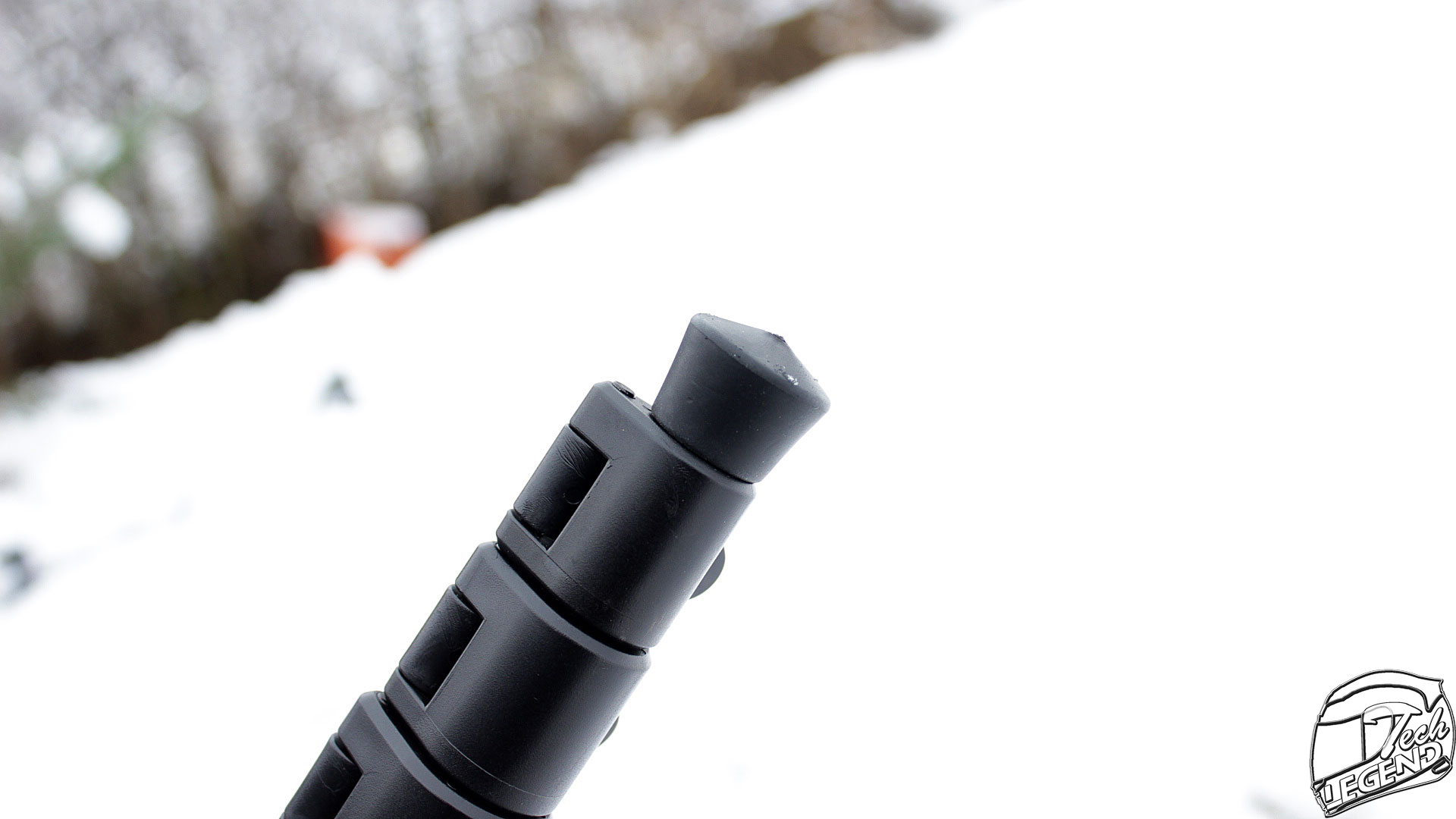

The base of the legs is covered by hard rubber which not only increases the grip of the tripod on the ground but also prevents easy damage to the rubber material itself.

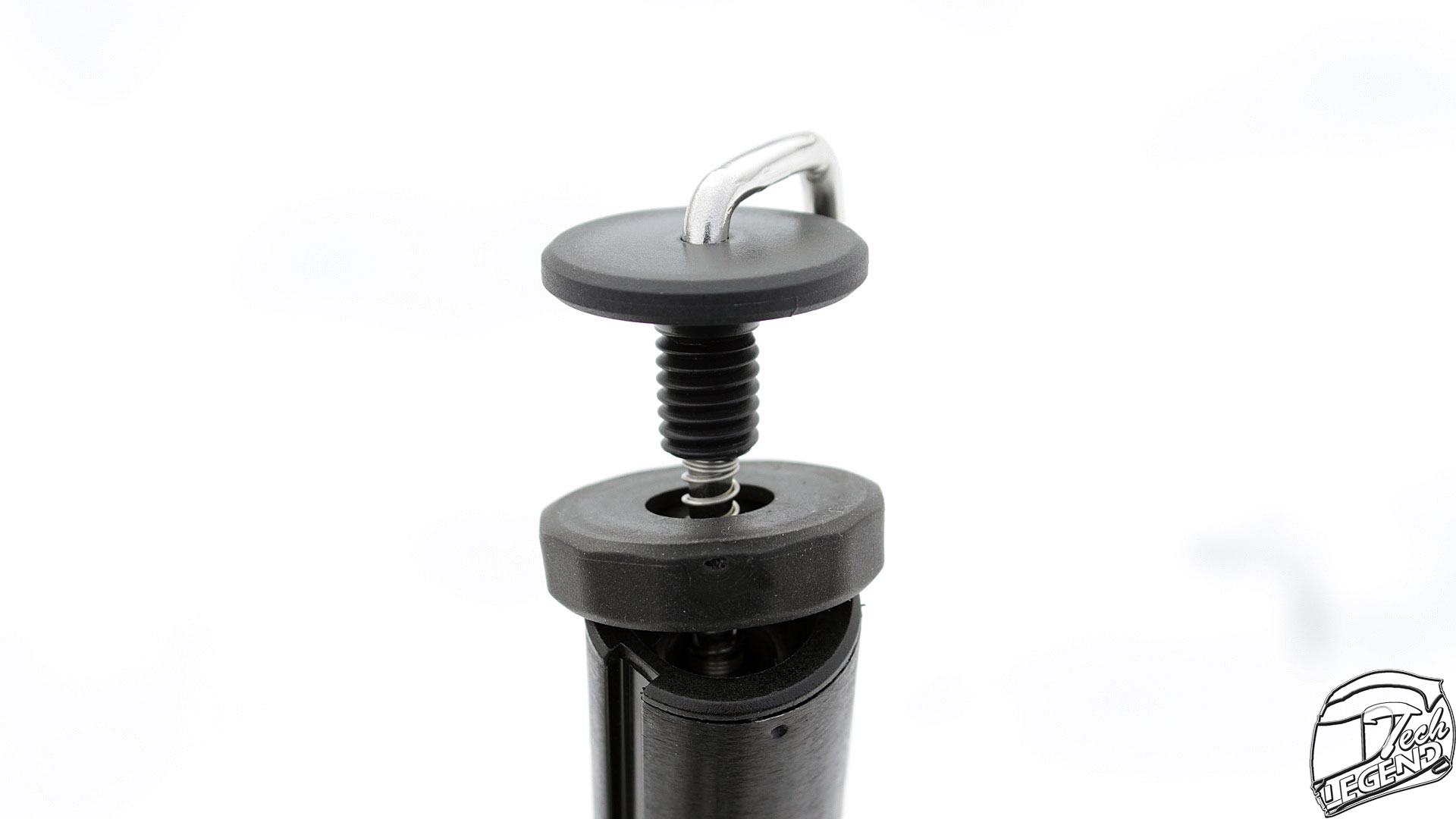

At the bottom of the main beam, there is a spring-loaded hook which can be used to hold additional equipment or to add more weight to further stabilize the tripod
