IIyama G-Master G2530HSU-B1



Iiyama Electric Co Ltd is a company specialized in the manufacture of monitors and display systems. The company was founded in 1973 by banker Kazuro Katsuyama and started its business by manufacturing television boards and components for Mitsubishi in the Nagano Prefecture region.
The manufacture of monitors under its own brand started in 1981 and kept going until today, IIyama being one of the brands known for the quality of the products and the panels used in its monitors.

Official product link:


Packaging and accessories

The monitor is packaged in a standard cardboard box with a glossy texture, the background is composed out of the G-Master “Black Hawk” android symbol.
The front side presents the monitor with the help of a general image of it, while on the left side a couple of the monitor’s features are presented.


The back side of the box is in contrast with the front, being completely white and the only graphics element present is the G-Master robot. However, on the right side there are printed both the name of the series and the model of the monitor.


The monitor is held in place inside the box with the help of two hard Styrofoam pieces, these make contact with a plastic bag that covers the monitor.



The monitor comes with the following accessories:
– 1x Manual

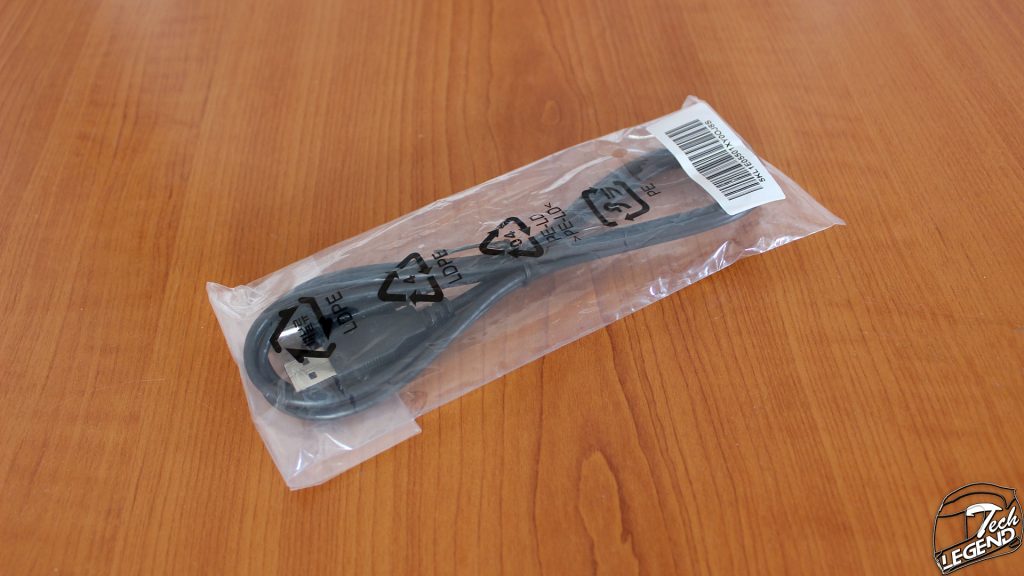

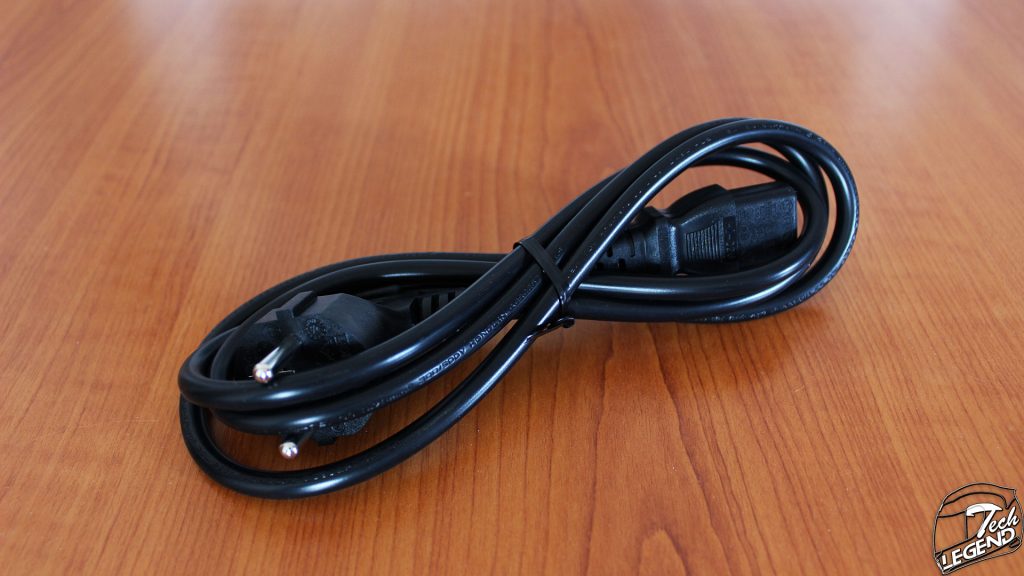

– 1x Power AC Cable

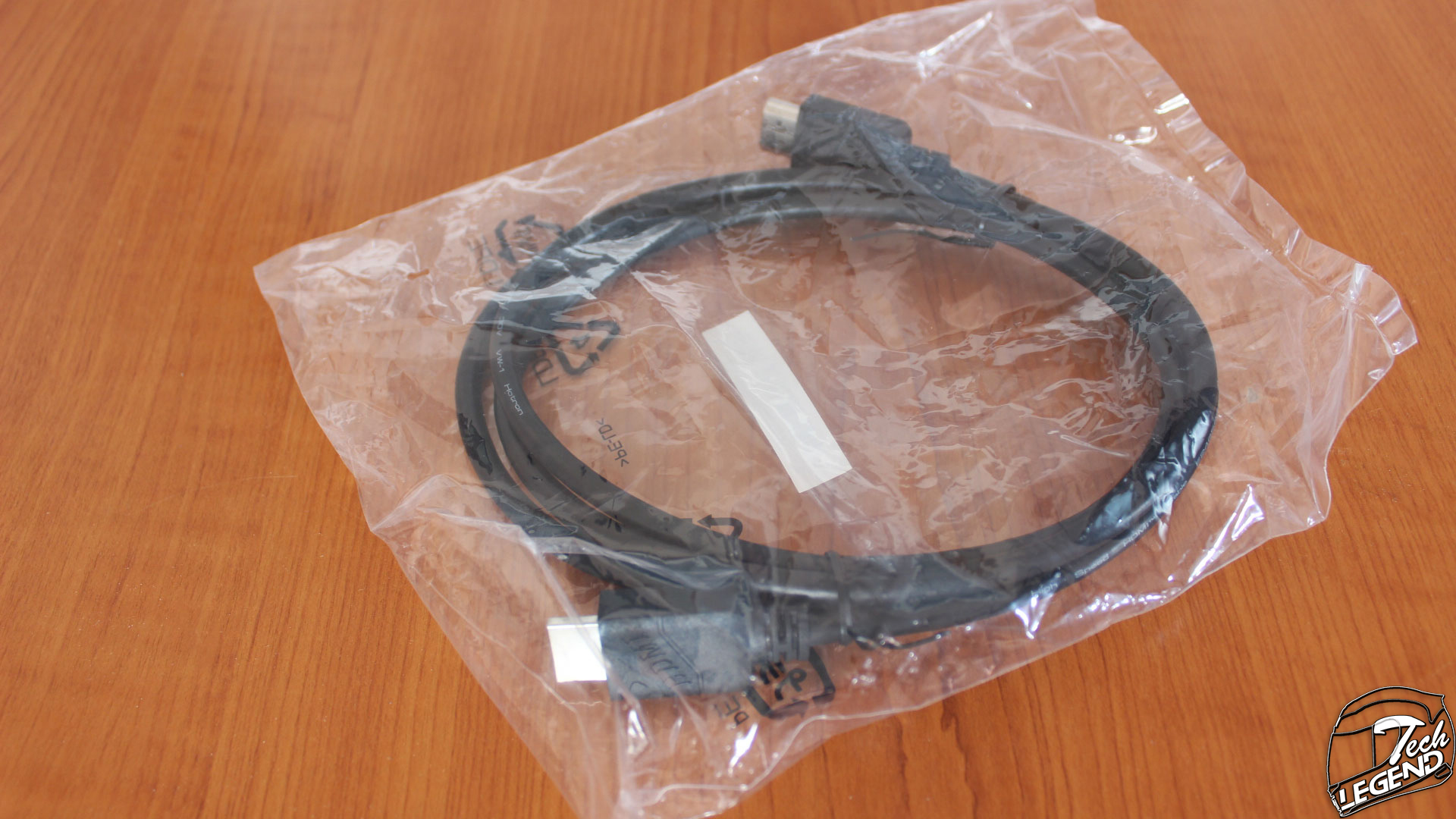

– 1x HDMI Cable
– 1x USB Port cable



Model: G2530HSU-B1
Panel Type: TN
Size: 24.5″
Aspect ratio: 16:9
Display Type: LED backlit
Resolution: 1920 x 1080 @75Hz
Response time: 1ms grey-to-grey
Maximum refresh rate: 75Hz
Vertical sync: FreeSync
Brightness: 250 cd/m² typical
Contrast Ratio: 1000:1
Dynamic Contrast Ratio: 12 000 000: 1 ACR
Color Depth: 16.7 Million
Refresh Rate: 60Hz
Dimensions: 557.5 x 401 x 197 mm
Power Consumption: 35W
Color: Black
Speakers: 2x with 2W power
Weight: 4 kg
– 1x Display Port
– 1x HDMI
– 1x VGA
– 1x Headphone jack
– 2x USB 2.0


– FreeSync™ Technology
– 1ms: Fast response time is key to ultra-smooth game. It reduces ghosting and blurring providing the user with a rich experience to improve performance.
– Black Tuner: The users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
– PREDEFINED AND CUSTOM GAMING MODES: Have it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memmorize your own settings.


Visual inspection

The monitor is part of the “Black Hawk” G-Master line of products and uses a 24.5” TN panel while using AMD’s FreeSync technology and a resolution of 1920 x 1080. The exterior design of the monitor is simple, the case has a matte texture while the Iiyama logo is placed on the center of the inferior panel.


The back side of the monitor features a plastic made case, in the middle there is a VESA slot for mounting the monitor on a wall or a movable monitor arm. On the lower side, there is a K-slot for securing the monitor with a cable.


The monitor’s imputs are placed on the underside of the back case, these are the following:
– 1x Display Port
– 1x HDMI
– 1x VGA
– 1x Headphone jack
– 2x USB 2.0


On the left side there is the AC power connector of the monitor alongside two audio type jacks.


In the case of the G2530HSU-B1 model, the buttons are placed on the right side of the panel on its underside. These are labeled in white on the case of the monitor, next to them there is the activity LED of the monitor.



The following system was used to test the monitor:
– Processor: Intel i5 4690K @ 3.9 GHz and overclocked to 4.5 GHz
– Motherboard: MSI Z97 Gaming 9 ACK
– RAM: Crucial Ballistix Tactical 8GB DDR3 @ 2133MHz
– GPU: MSI Radeon R9 390X Gaming 8GB
– SSD: Samsung 840 EVO 120GB
– HDD: WD 1 TB Blue
– PSU: SeaSonic Snow Silent
– Case: Phanteks Enthoo Luxe White

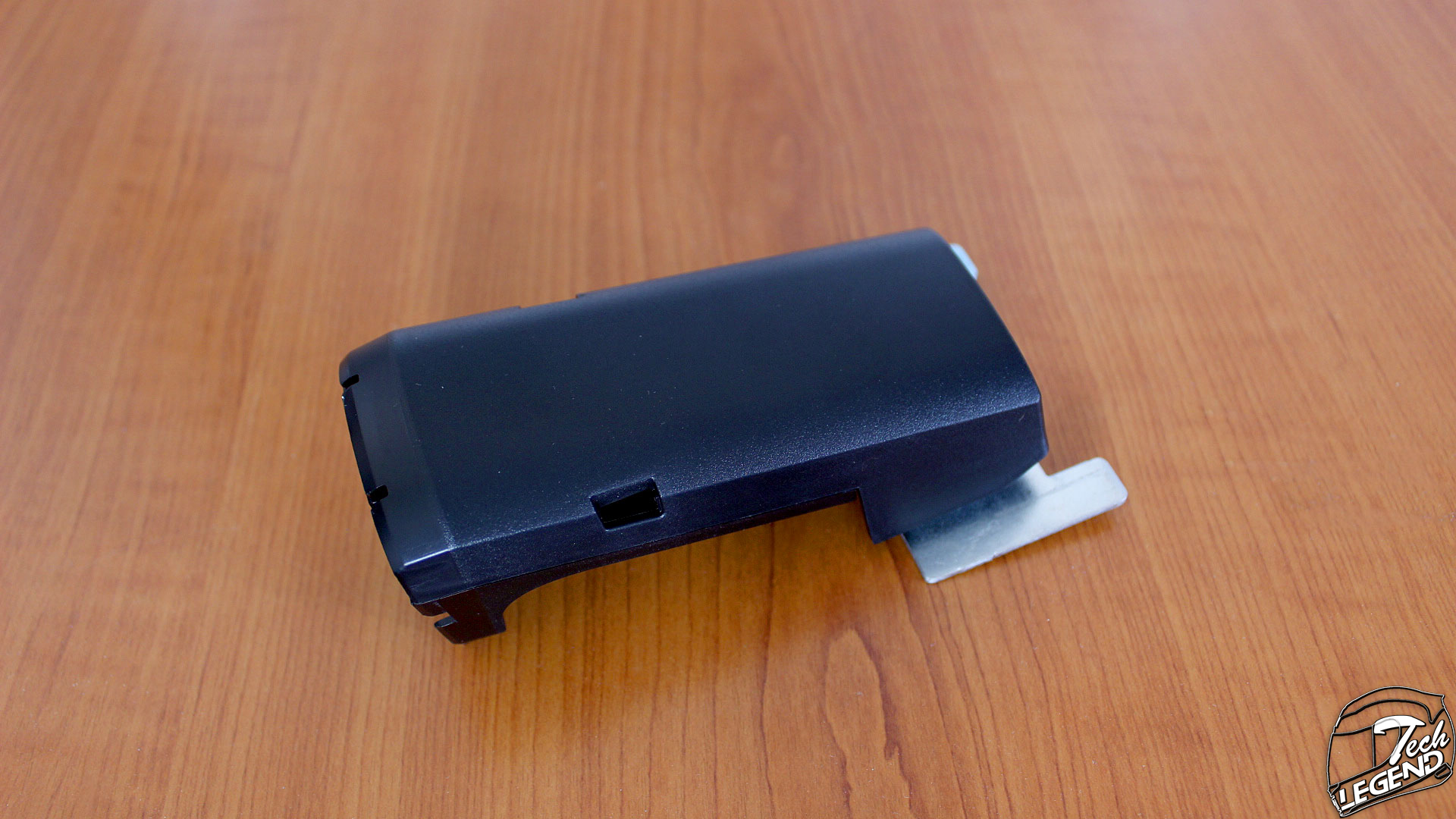

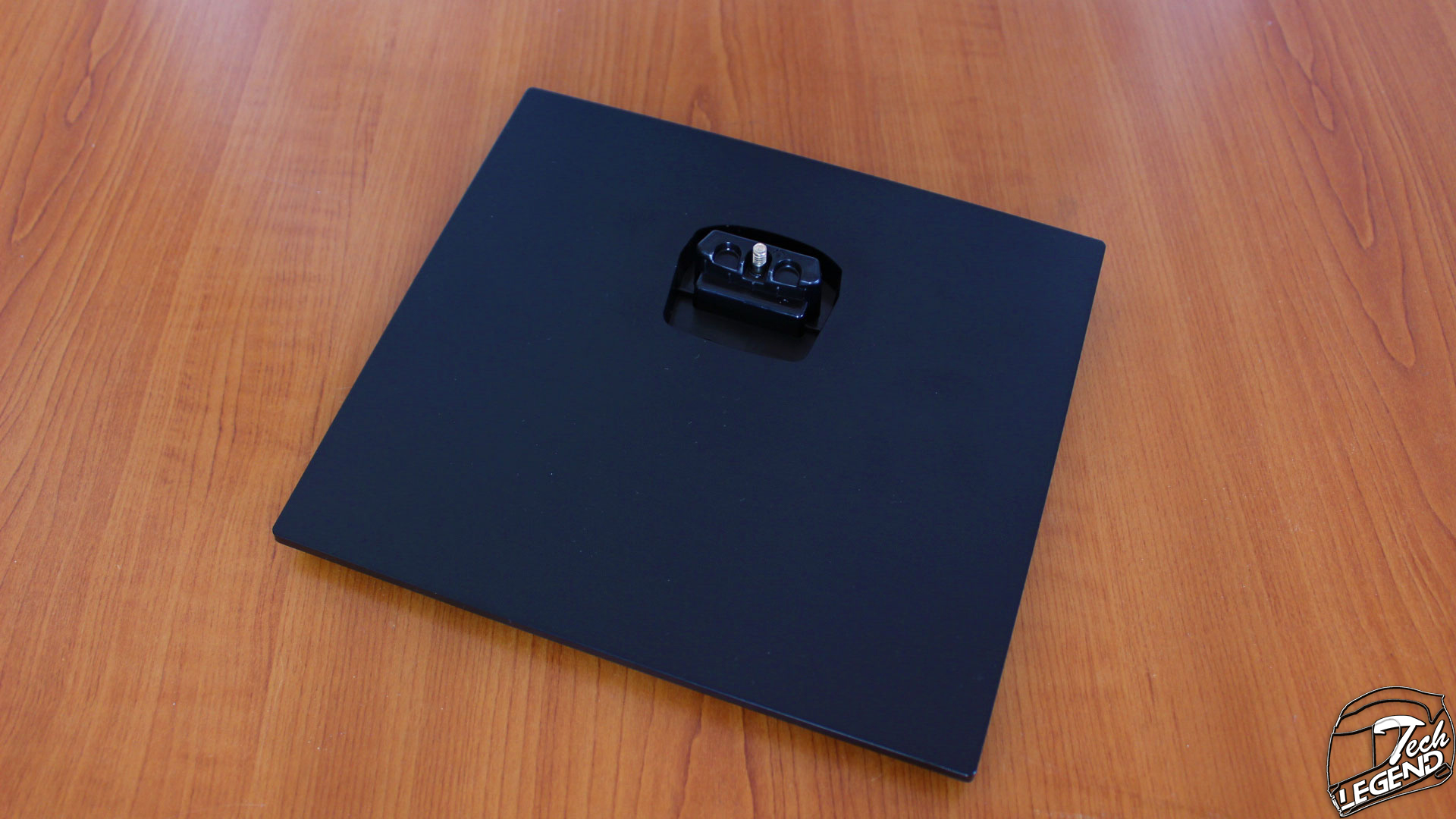

The stand of the monitor is composed out of two segments, the vertical section slides and clamps on the back of the monitor. The platform is mounted on the vertical pylon with the help of a preinstalled metallic screw.


The monitor screen can be adjusted tilt-wise 22° in front and only 5° on the back, the height adjustment is not available due to the design of the stand of this monitor.


The TN panel used in the case of the G2530HSU-B1 model offers 1ms grey-to-grey response time and features the AMD FreeSynch technology. In addition, the viewing angles are acceptable for a TN panel while the “Back light” bleeding is kept to a minimum.


The panel offers a good color rendering quality; however, the TN panels excel in terms of contrast processing, and the G2530HSU-B1 is no exception.

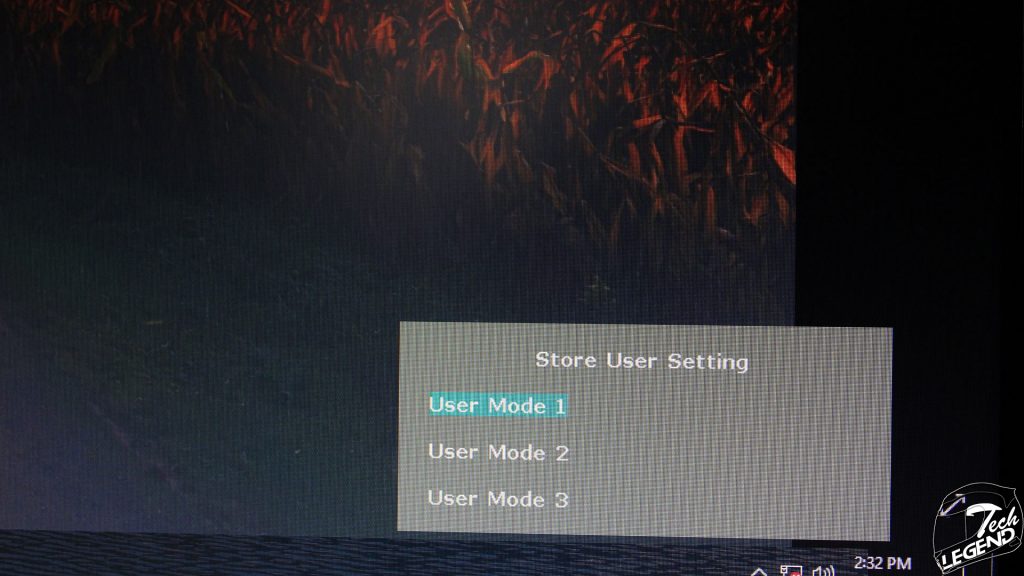

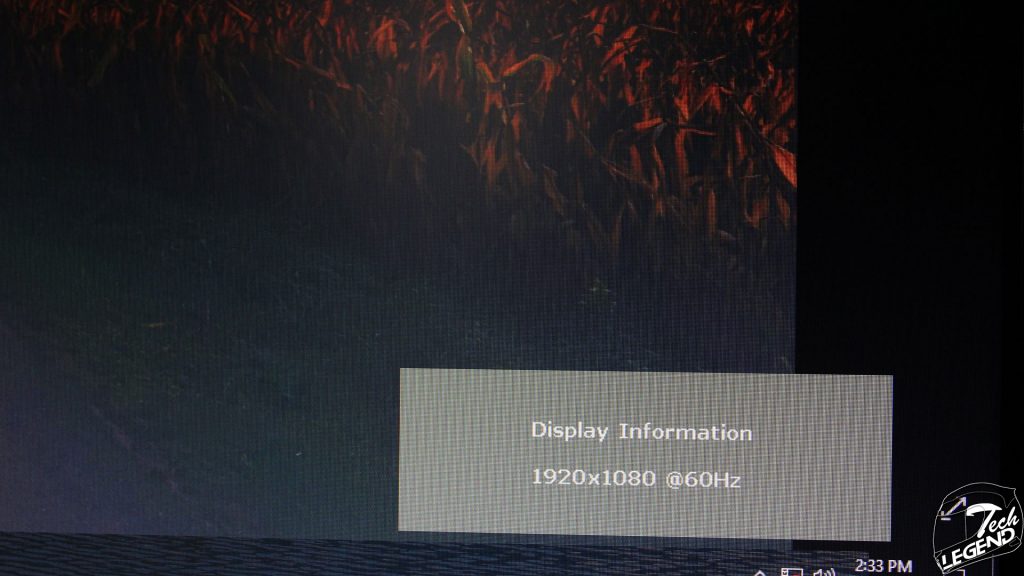

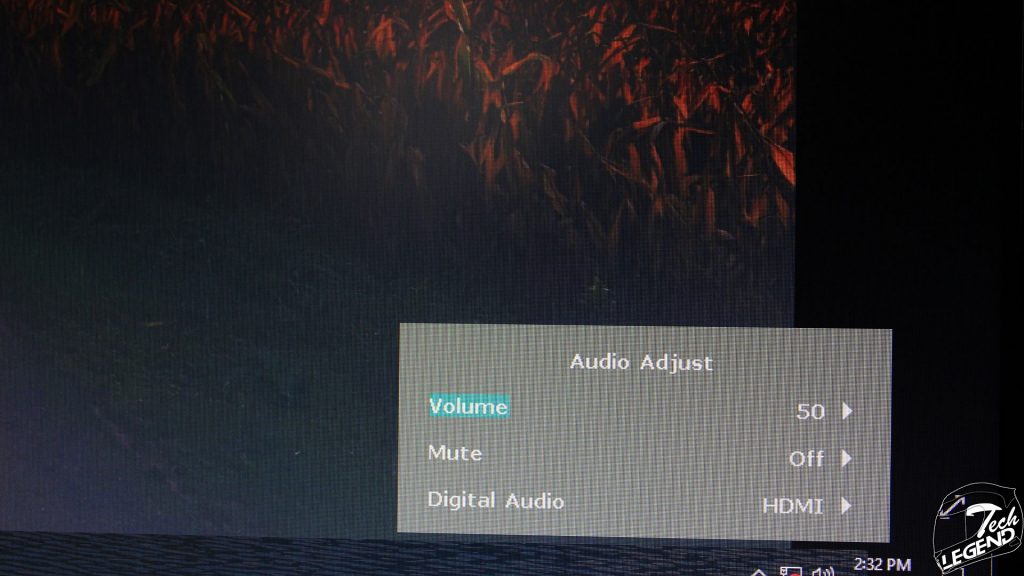

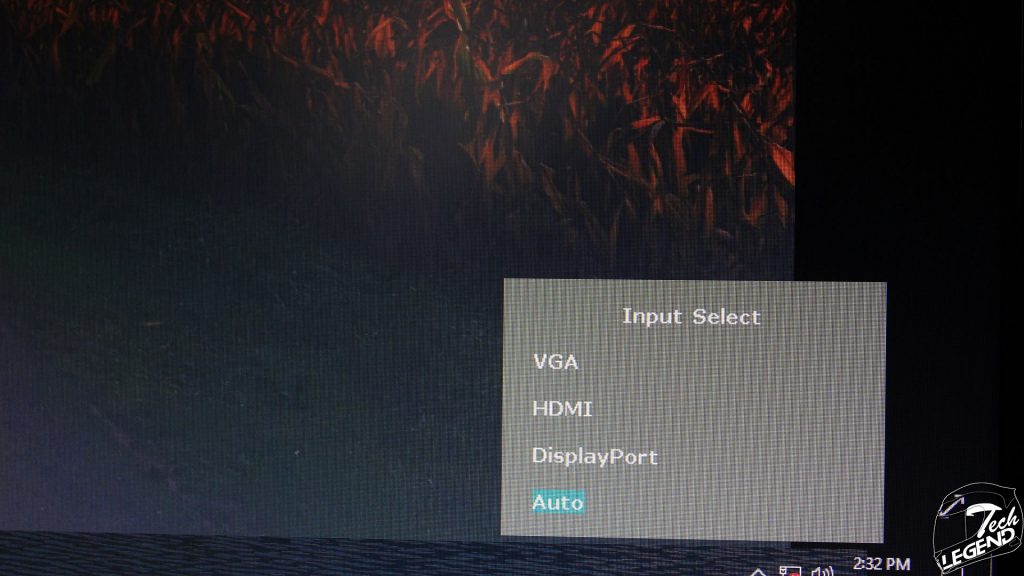

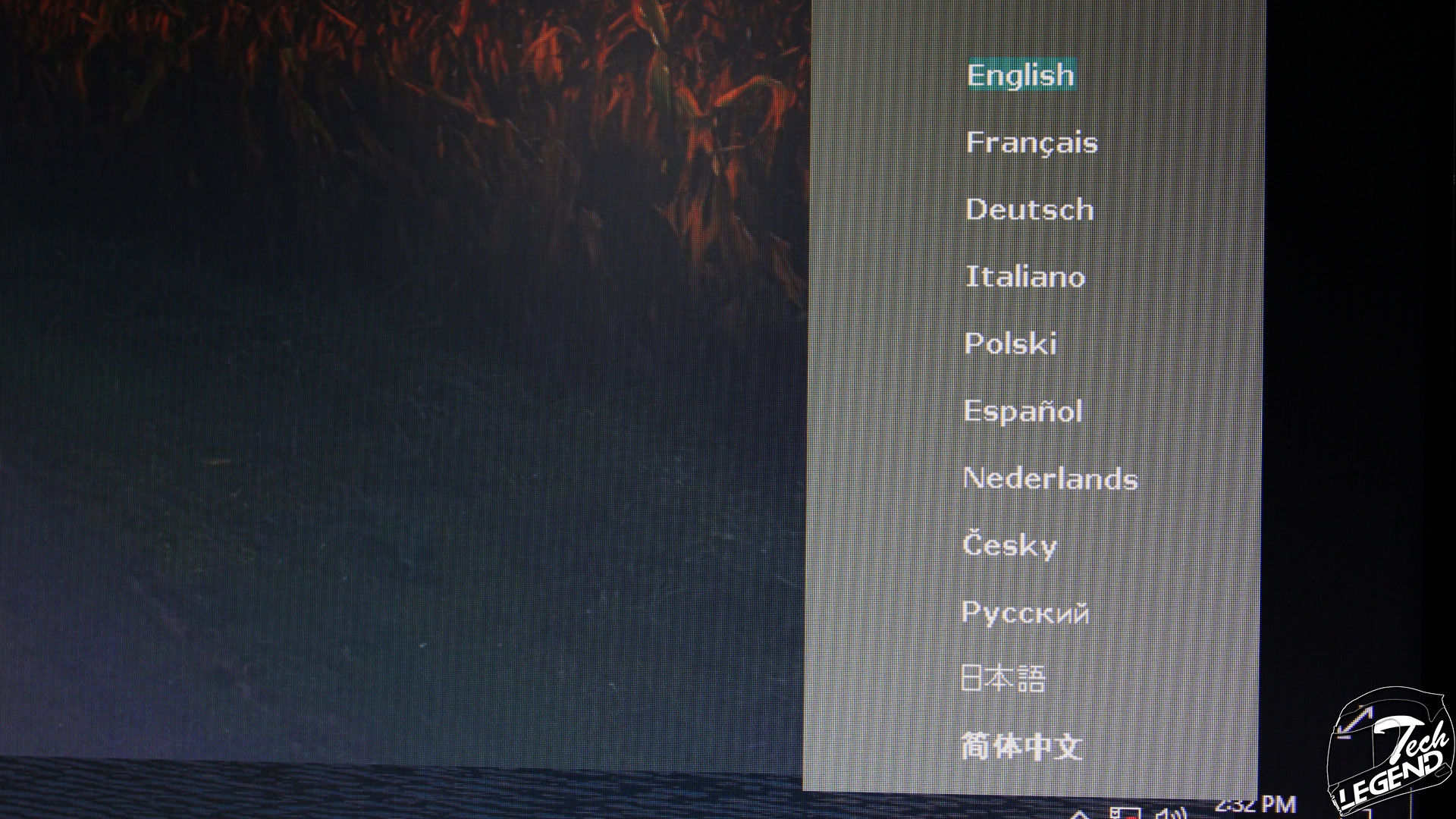

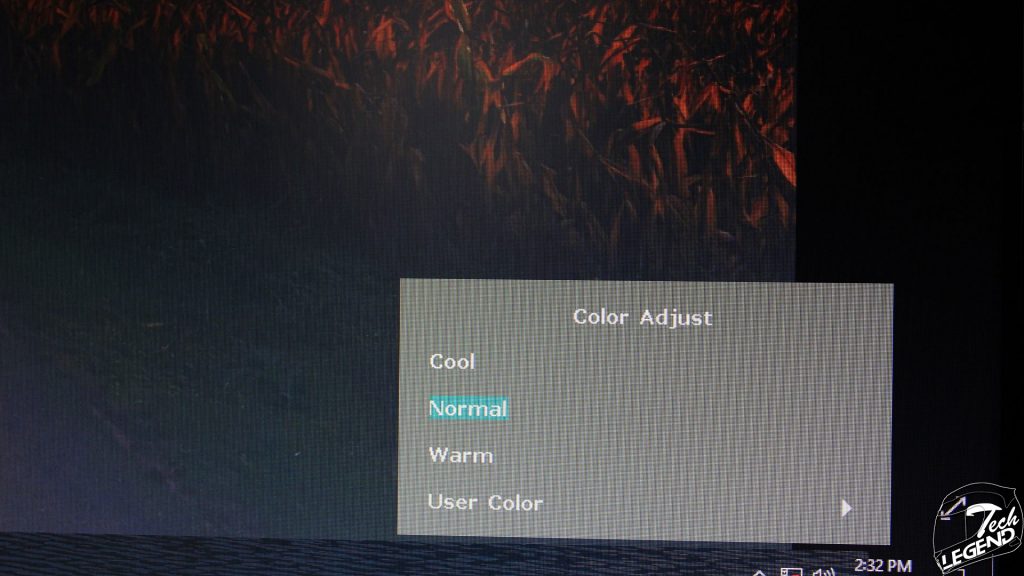

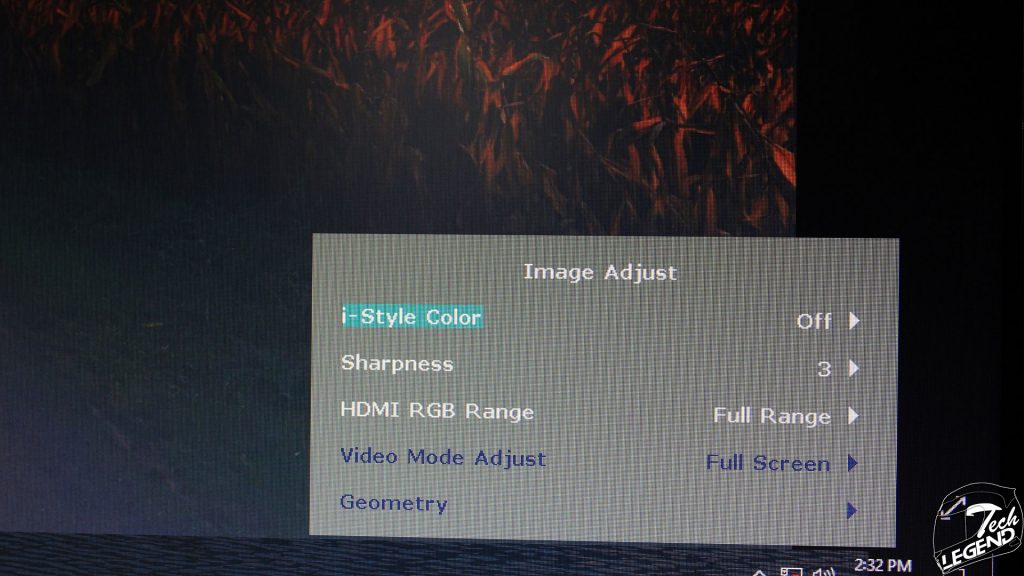

The menu is structured and divided into categories also the animation is fluid, in addition the menu of the monitor is available in 11 different languages. All the settings are done through the buttons located at the bottom of the monitor.


The gaming performance is very good due to the usage of FreeSync, in this case, a minimum of 45-50 frames per second (FPS) in games is required for a good experience with FreeSync activated. The color vibrancy and rendering is good for a TN panel however it is not near to an IPS display; however, the TN compensates through its excellent contrast.


Final thoughts

The Iiyama G-Master G2530HSU-B1 is a budget oriented monitor, which limits the options offered to the most important for the gaming industry, in this case, a TN panel which features AMD’s FreeSync technology.
The two 2W speakers are acceptable and this is the reason why they should be used at a minimum volume for the best experience.
The adjustment of the monitor is simple and acceptable for this price range. In addition, the build quality is very good, Iiyama maintains its brand name for quality and performance even with this low price monitor.
In conclusion, the G-Master G2530HSU-B1 offers all the necessary options for gaming even at a competitive level, due to it’s TN panel and 1ms refresh rate. The colors are rendered with good vibrance and fidelity while the strong suit of this panel is the contrast. The USB hub is limited by it’s USB 2.0 speeds but the audio jacks are a welcomed feature.
