1. Introduction

Founded in 2008 with its headquarters in Taipei, Taiwan, Prolimatech is a manufacturer of cooling components for IT systems. Led by experts with 22 years of accumulated experience in the field of computer thermal solutions, the company incorporates aerospace technology in the heat transfer domain in order to obtain the best performance.

img_0154



Official product link:

http://www.prolimatech.com/en/products/detail.asp?id=1200&page=1

2. Packaging and accessories

The fans are packaged in a blue cardboard box with silver accents, with a plastic window on the front side. The name of the model and of the manufacturer are printed in the center, while lower there is the manufacturer’s website. The background of the packaging is composed of a couple of overview images of the metallic blades of the fan.

img_0145

On the sides of the packaging there are printed both the manufacturer’s logo and the name of the product.

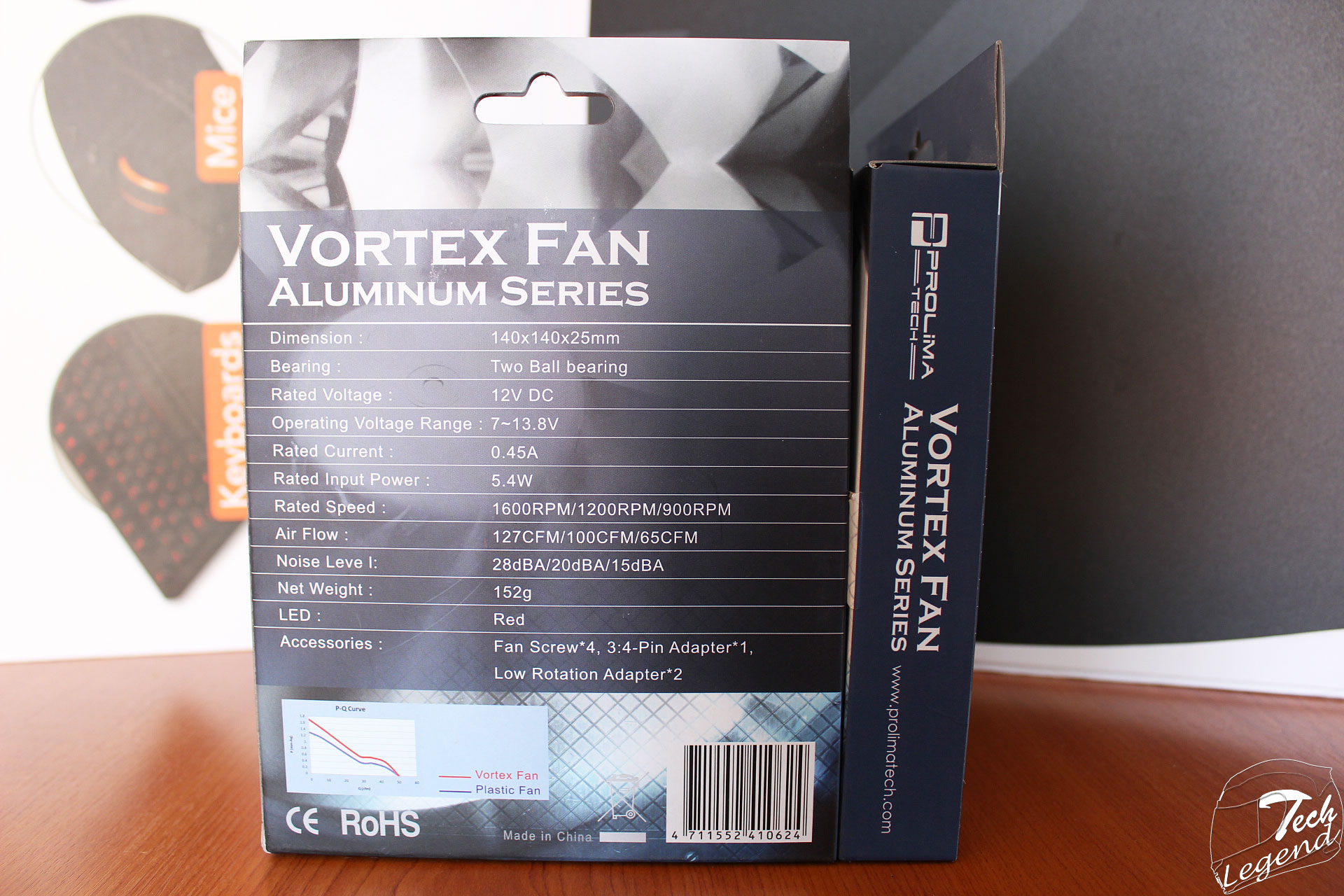

The back side of the packaging presents the product’s specifications while lower, there is a graph showing the performance of the fan. On the upper part there is the name of the product.

img_0147



Accessories

The product comes with the following accessories:

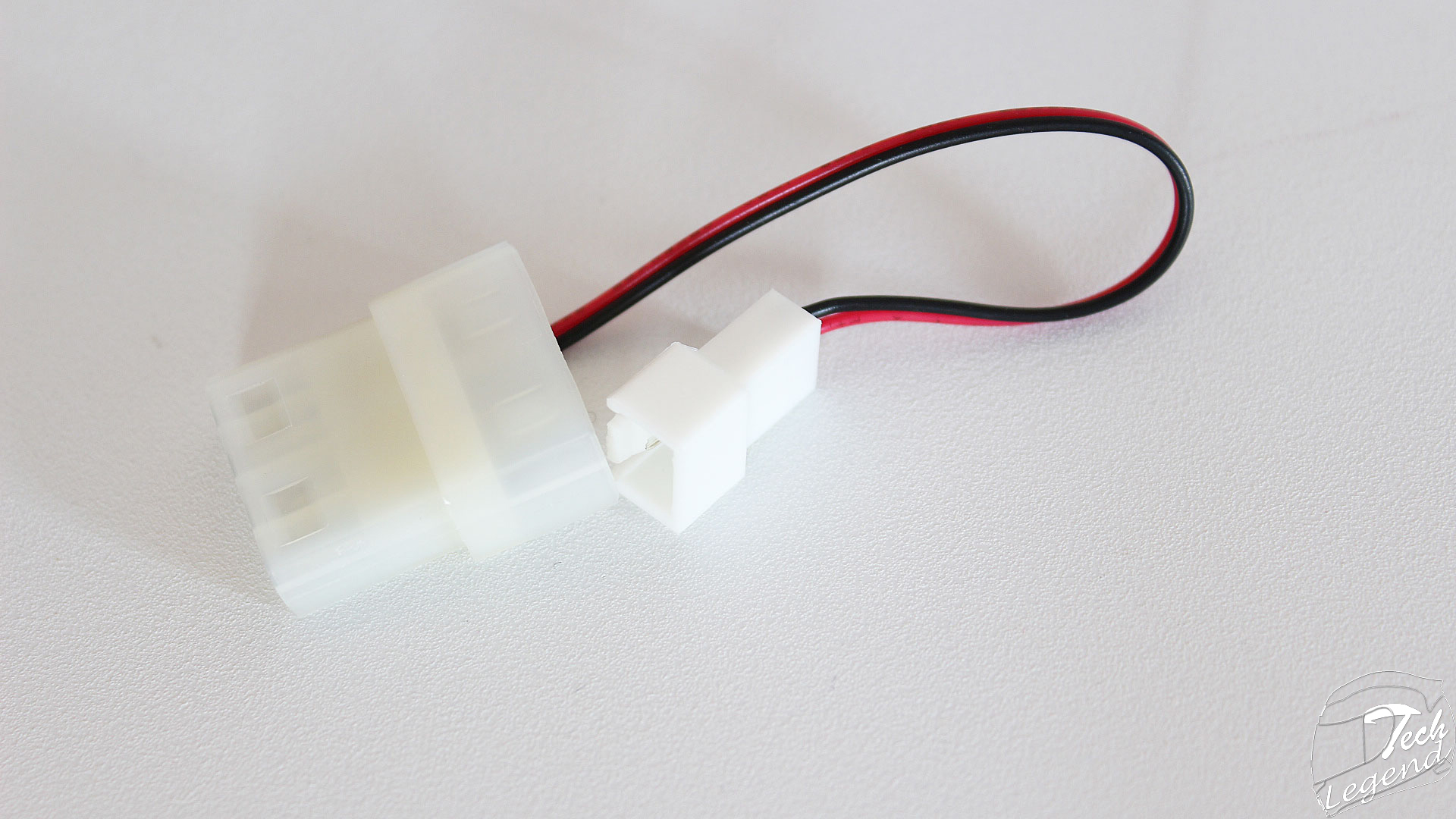

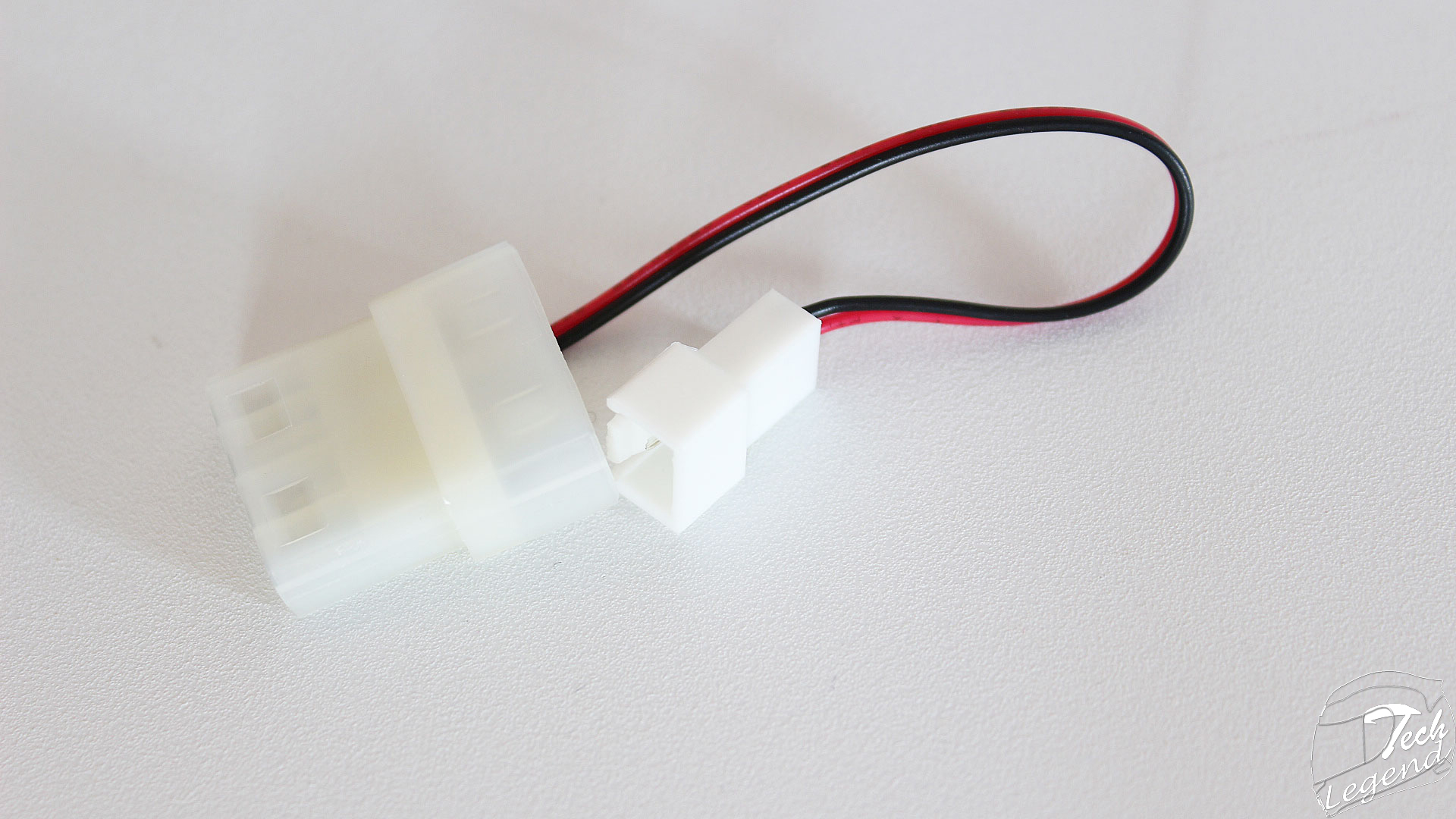

–    1x 3 to 4-Pin Molex Adapter

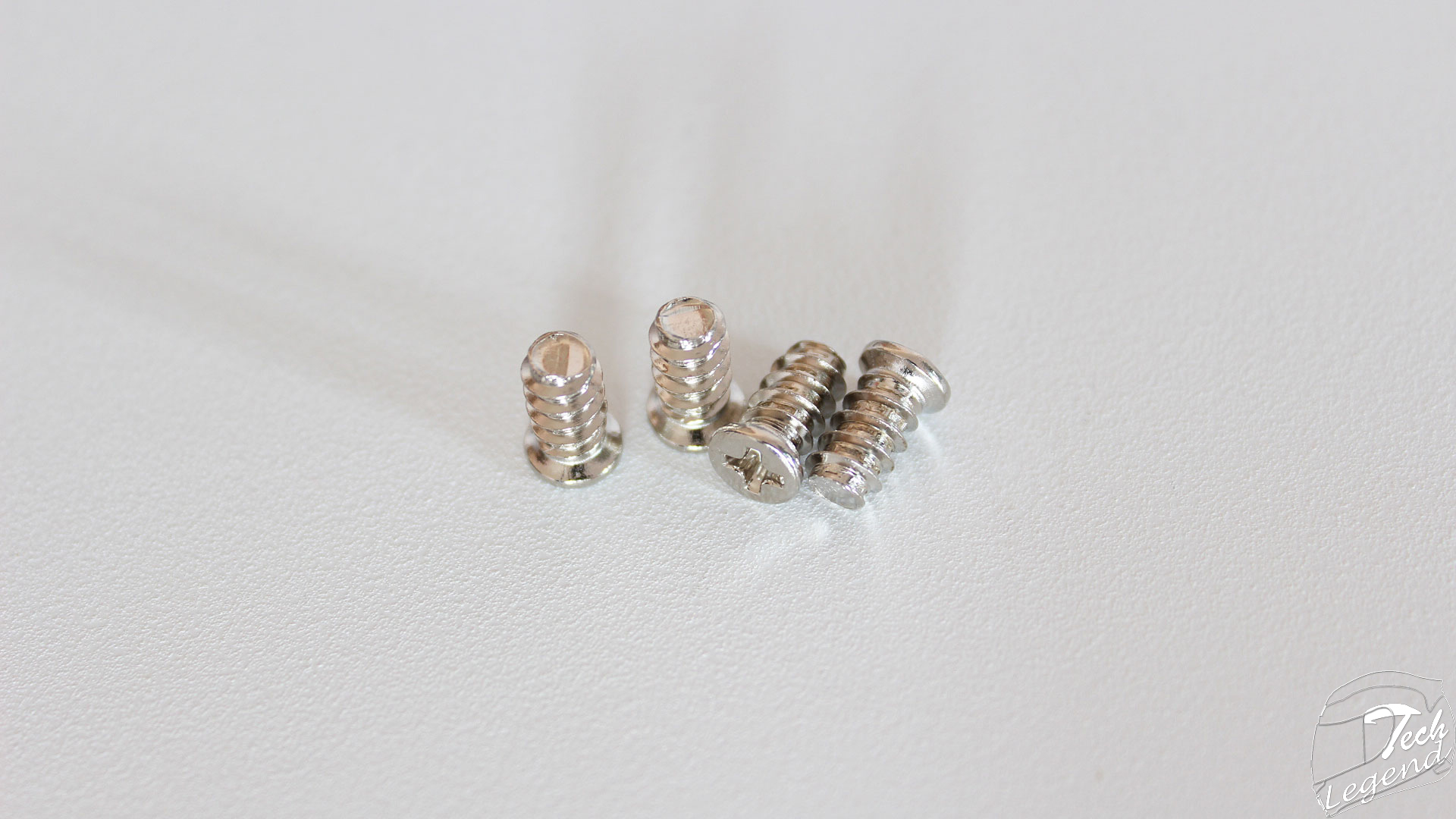

–    4x Fan screws

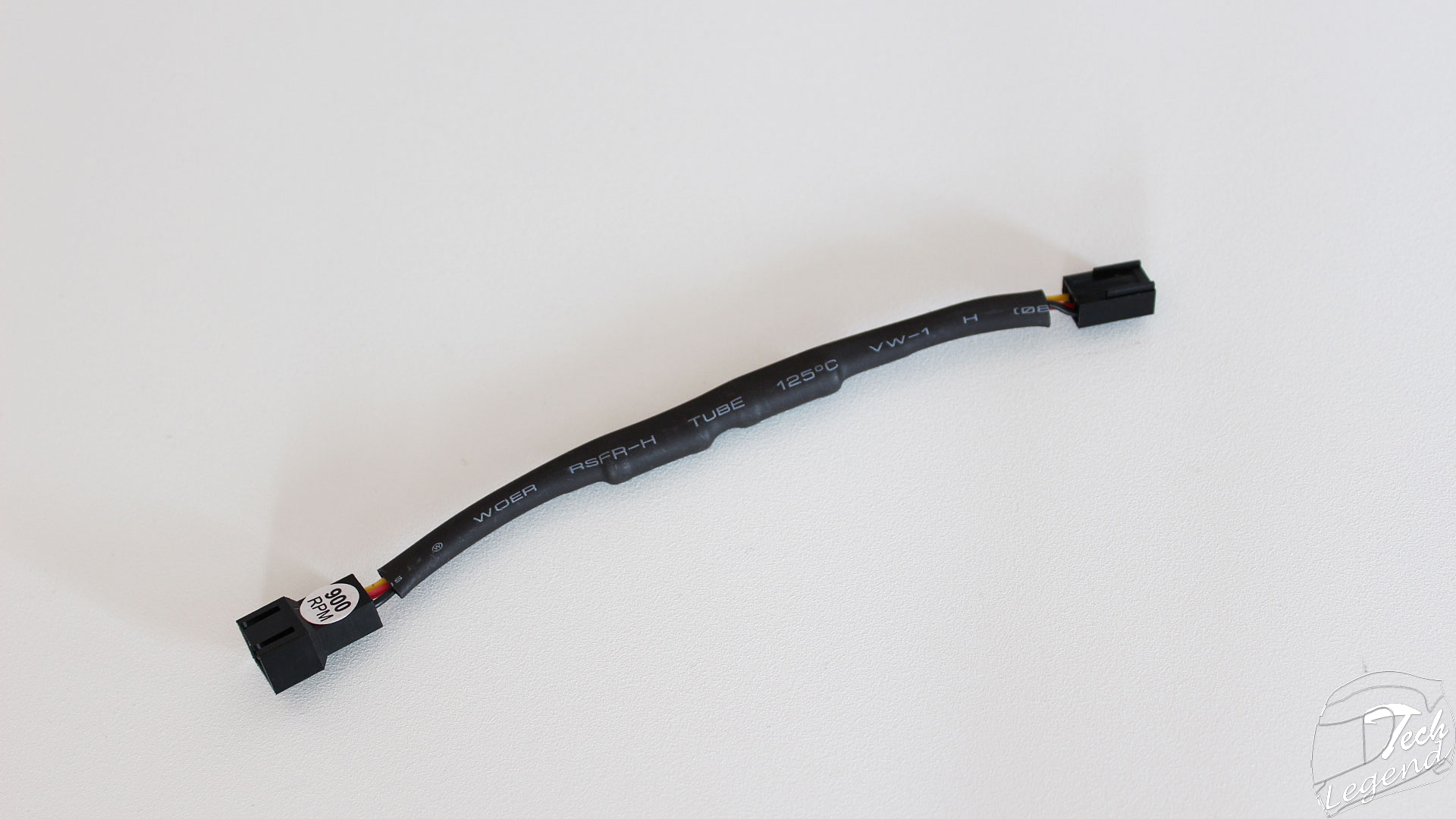

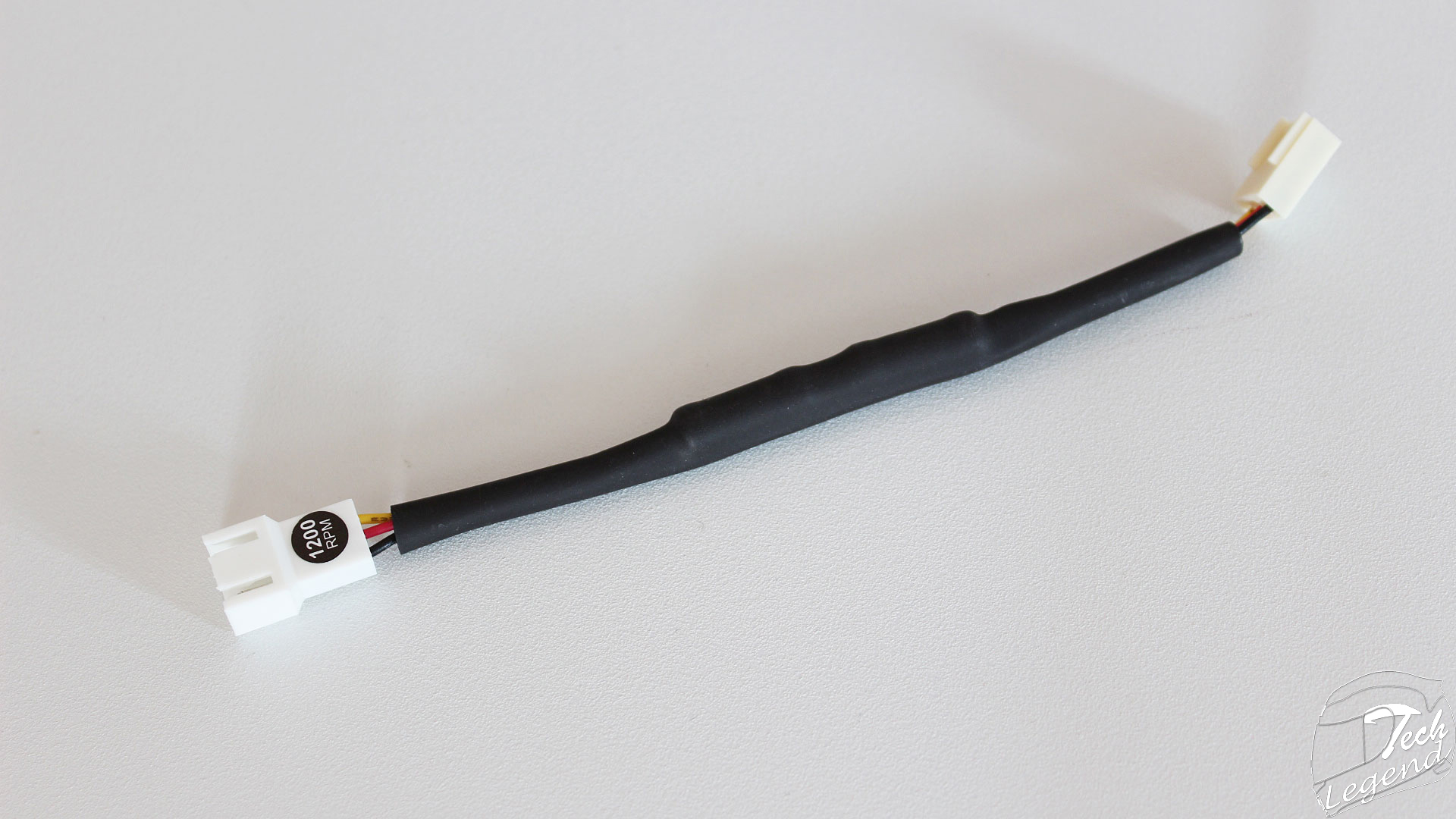

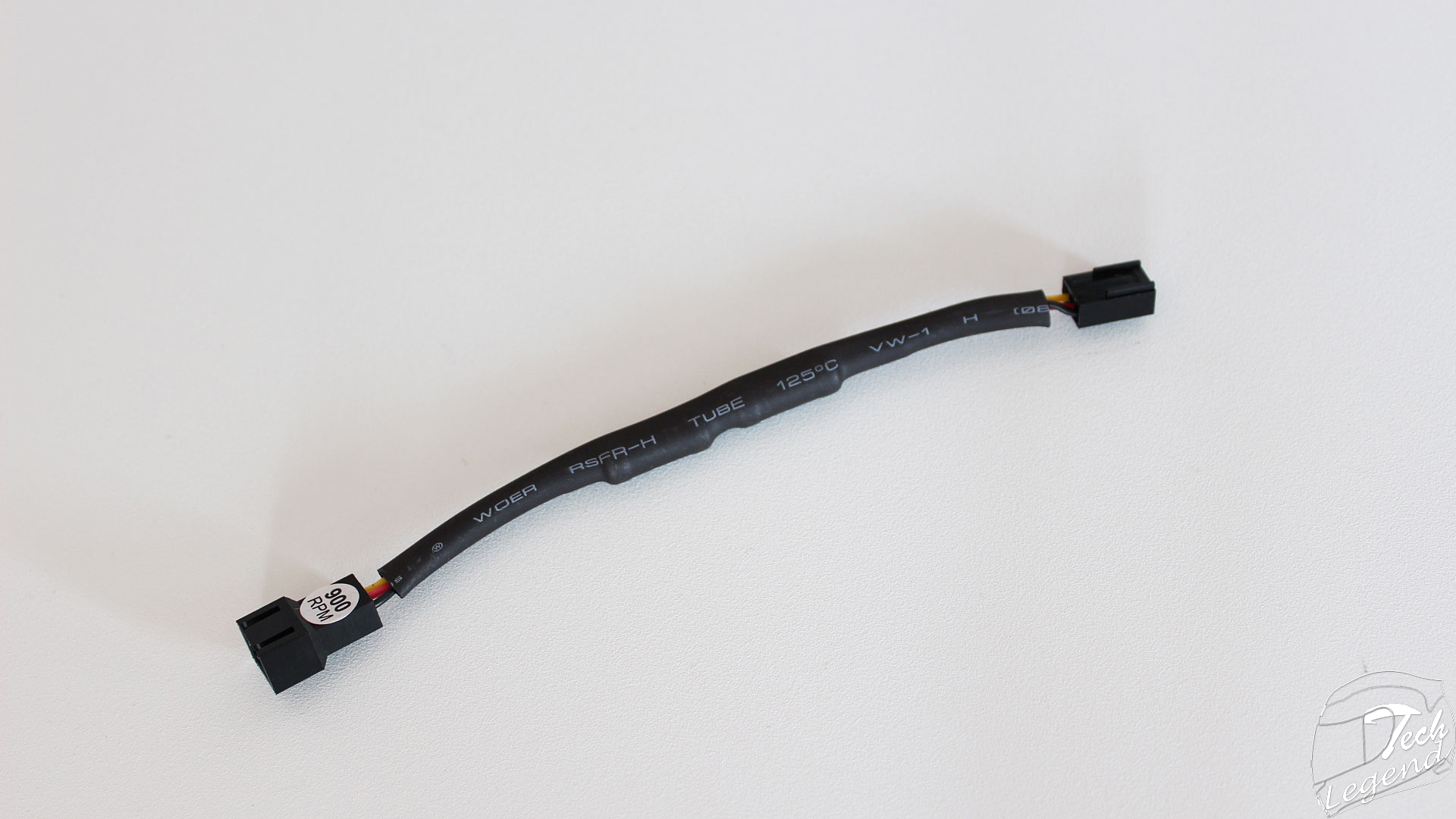

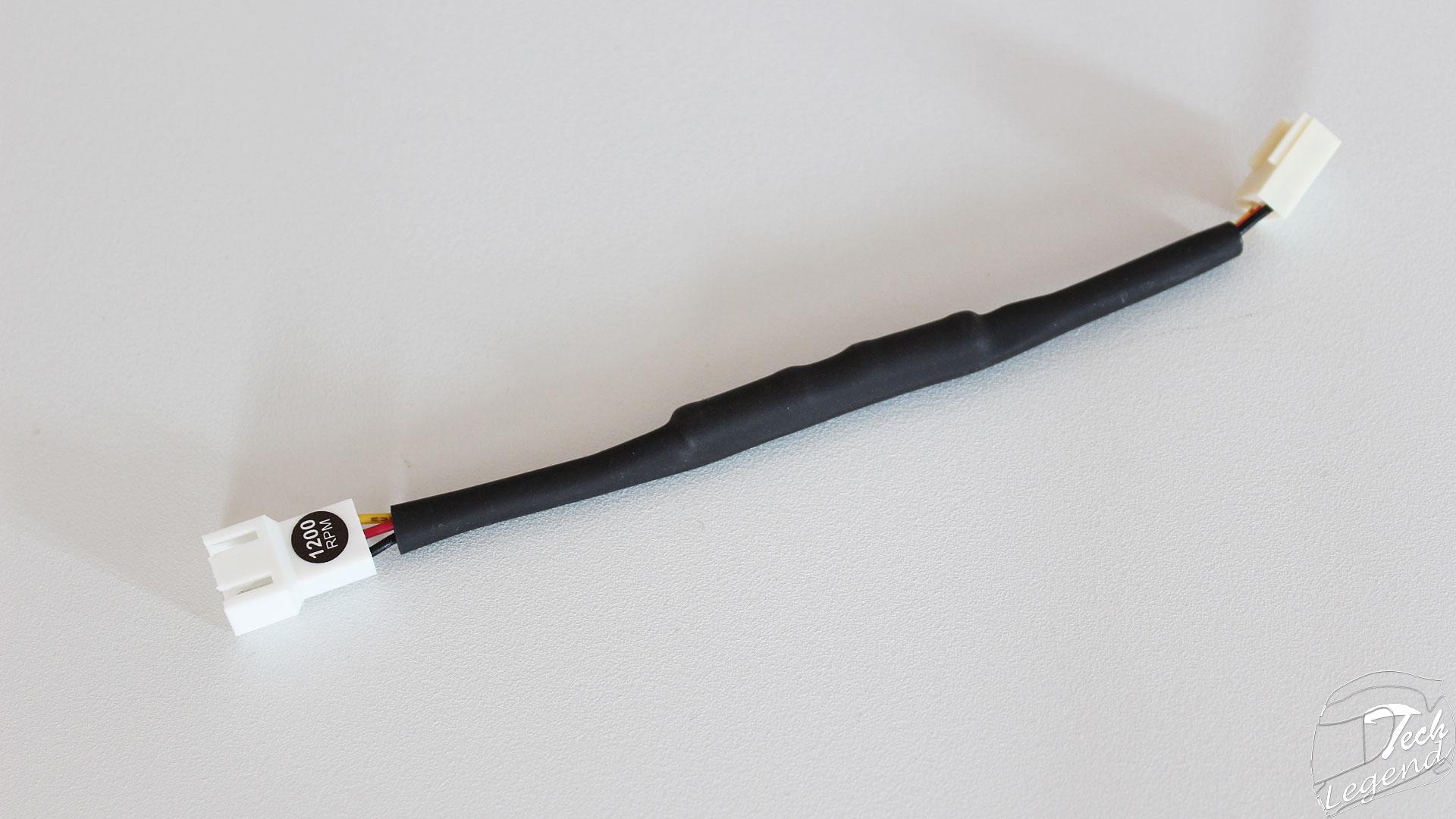

–    2x Low Speed Adapters

img_1502

3. Specifications

Model: RL4R B1402512HT3M
Dimensions (mm): 140mmx140mmx25mm
Bearing Type:  Two Ball bearing
Operating Voltage Range: 7~13.8 VDC
Operating Voltage: 12VDC
Rated Current: 0.45A
Rated Input Power: 5.4W
LED Color: Red
Speed (RPM): 1600RPM/ 1200RPM/ 900RPM
Air Flow (CFM): 127CFM/ 100CFM/ 65CFM
Air Pressure (mmH2O): 1.8 mm H2O/ 1.37 mm H2O/ 0.9 mm H2O
Noise (dB-A):  28dBA/ 20dBA/ 15dBA

Features

–    Thirteen ultra-thin, high precision alloy of aluminum fan blades.
–    Overlapped fan blade design provides extreme high statistic pressure.
–    For ruby red LED at the corners of fan frame.
–    Three choices of fan speed, 1600 RPM, 1200 RPM and 900 RPM.
–    Two ball bearing for longer life span.
–    Light weight at only 152g. (With fanguard:195g)
–    Finished Coating fan guard included for safety.

4. Visual inspection

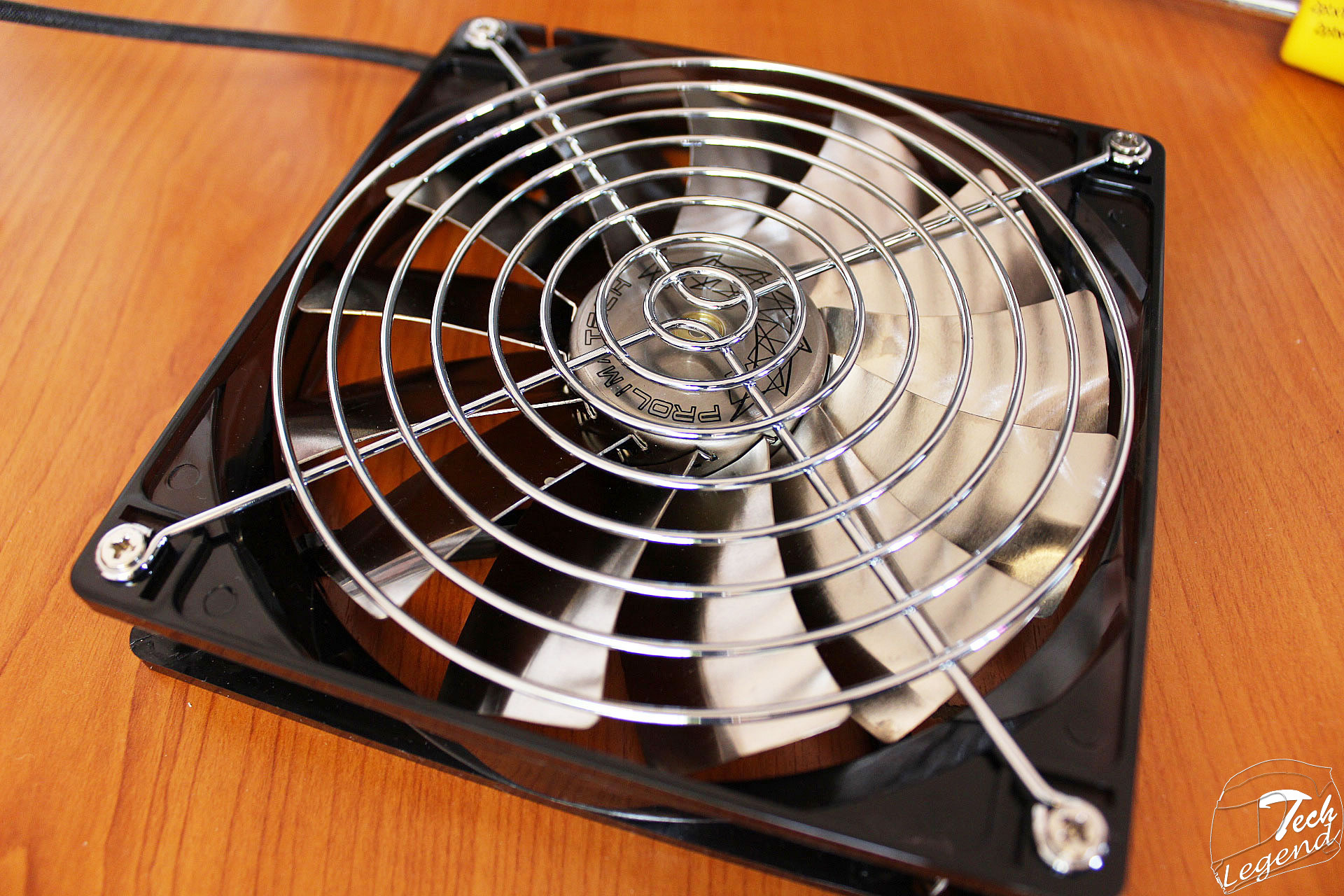

The first thing that stands out at this model are the 13 alloy of aluminum blades. The fan has a metallic grille mounted on the front to prevent possible accidents while both installing and using the fan.

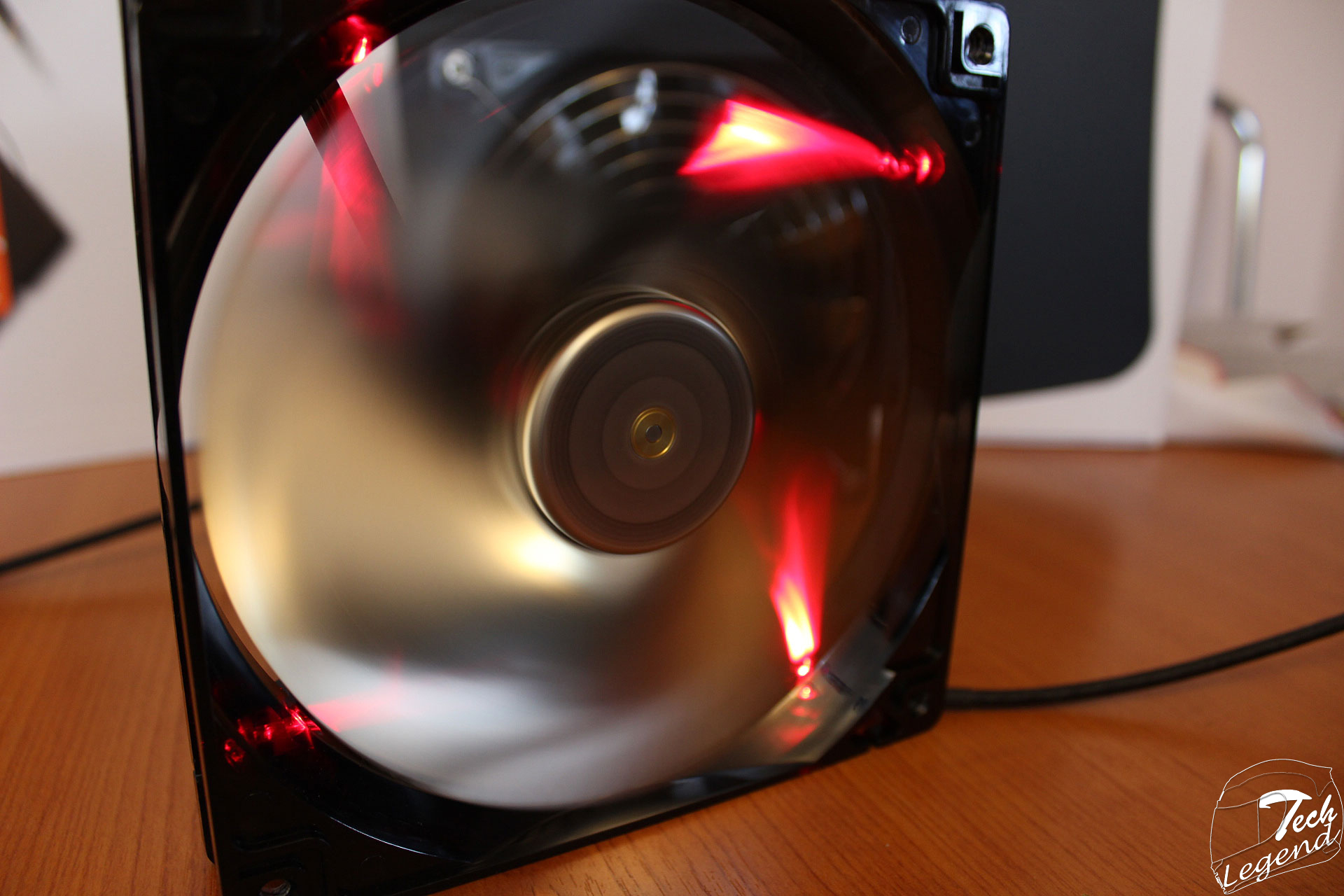

The Vortex Fan Aluminum model is available in two LED color variants, Red and Green. In this review we have the Red LED version.

img_0169img_0170 img_0183 img_0188img_0154img_0197img_0200

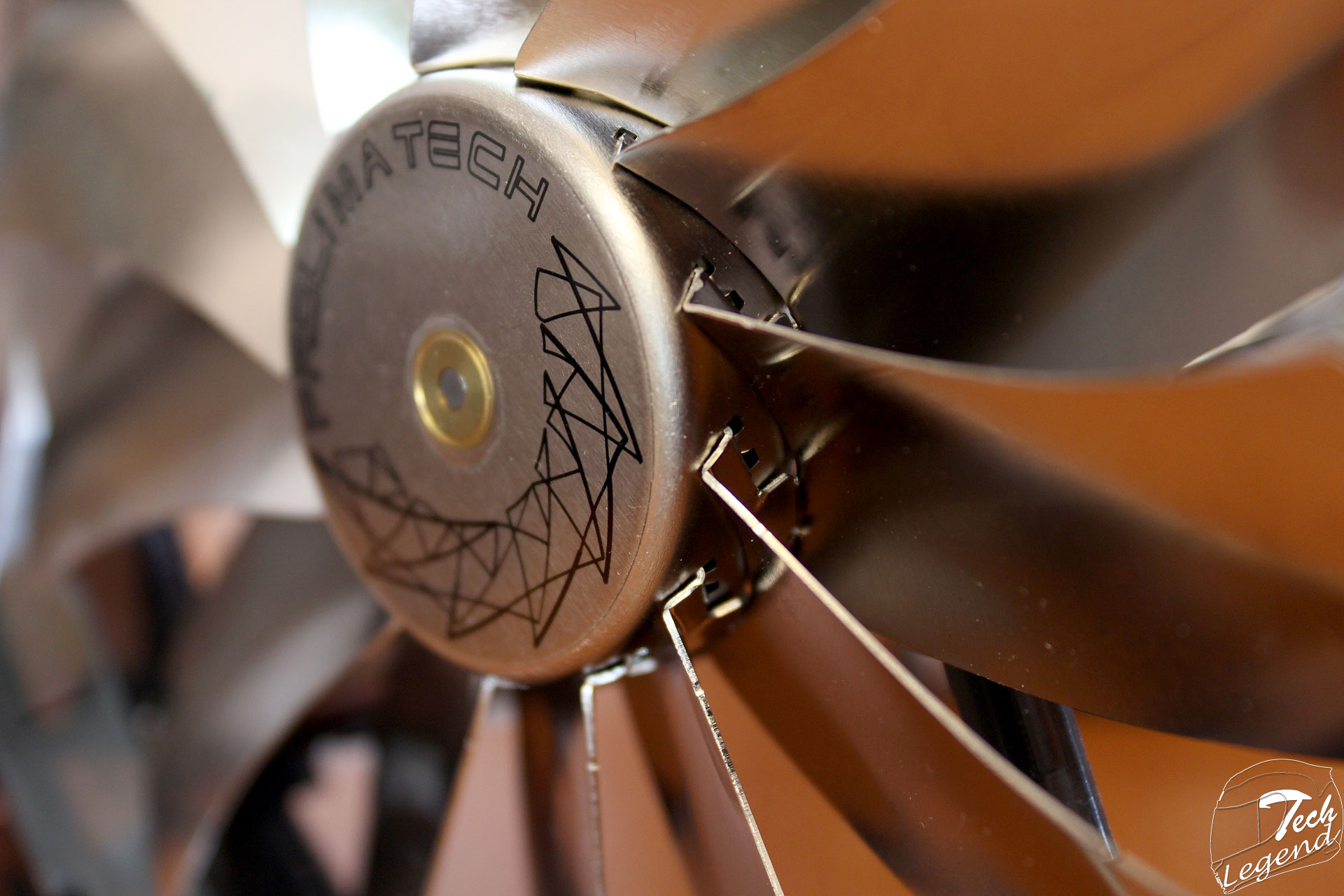

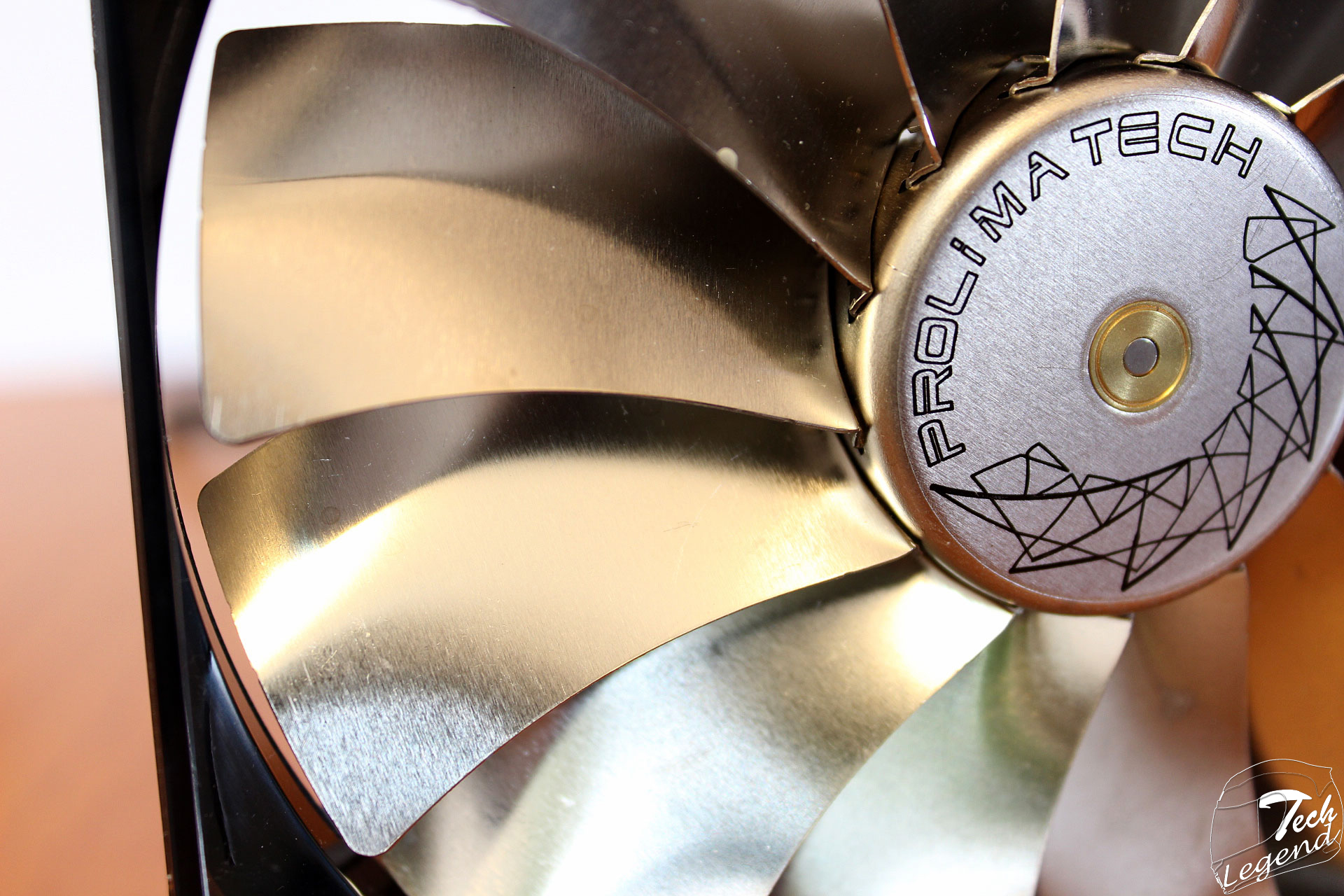

On the front side of the fans in the middle we find the manufacturer’s name alongside a design which represents the overlapping of the fan’s blades.

img_0193

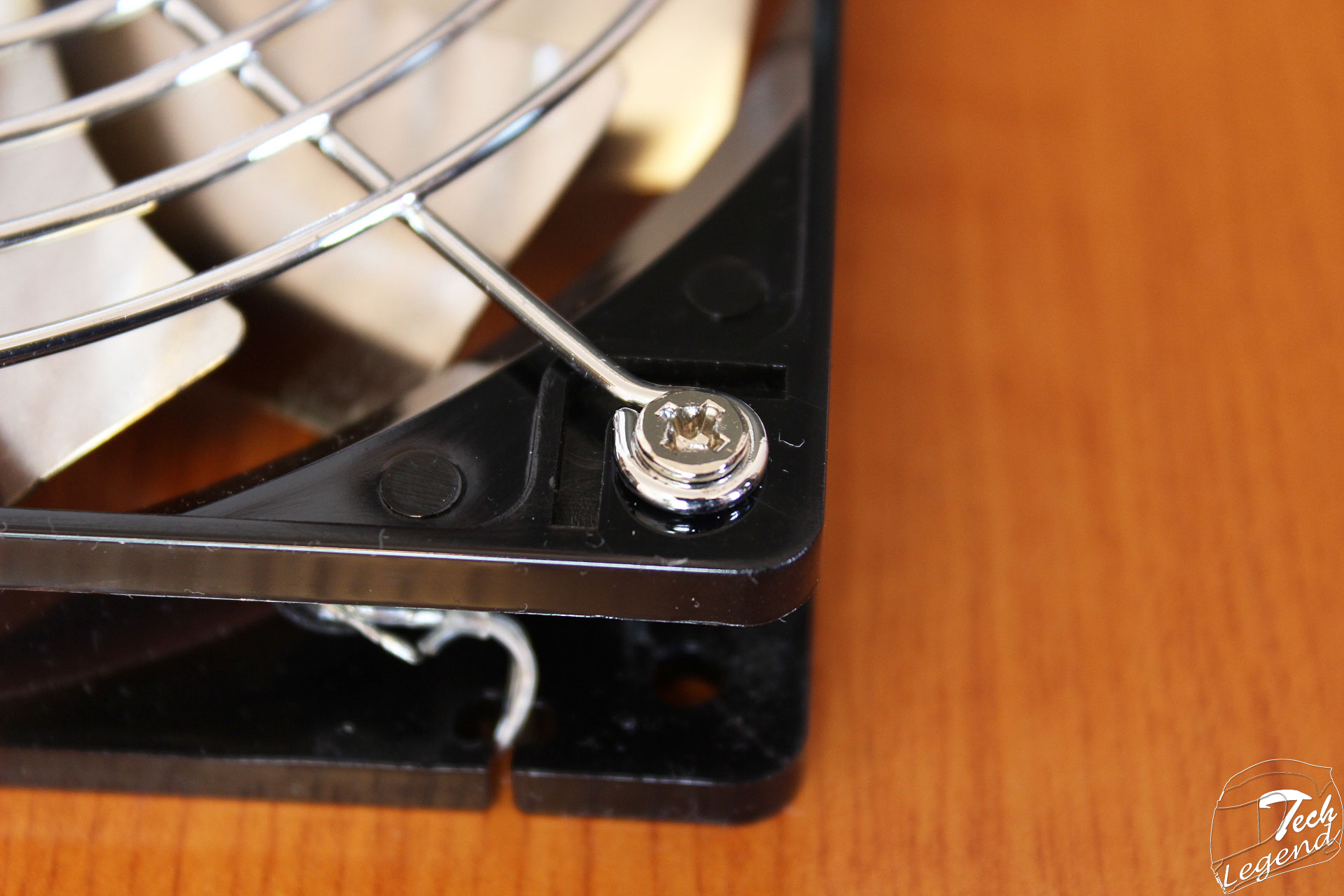

The frontal grille is fixed onto the frame of the fan using 4 metallic screws, also the frame features a glossy texture.

img_0174

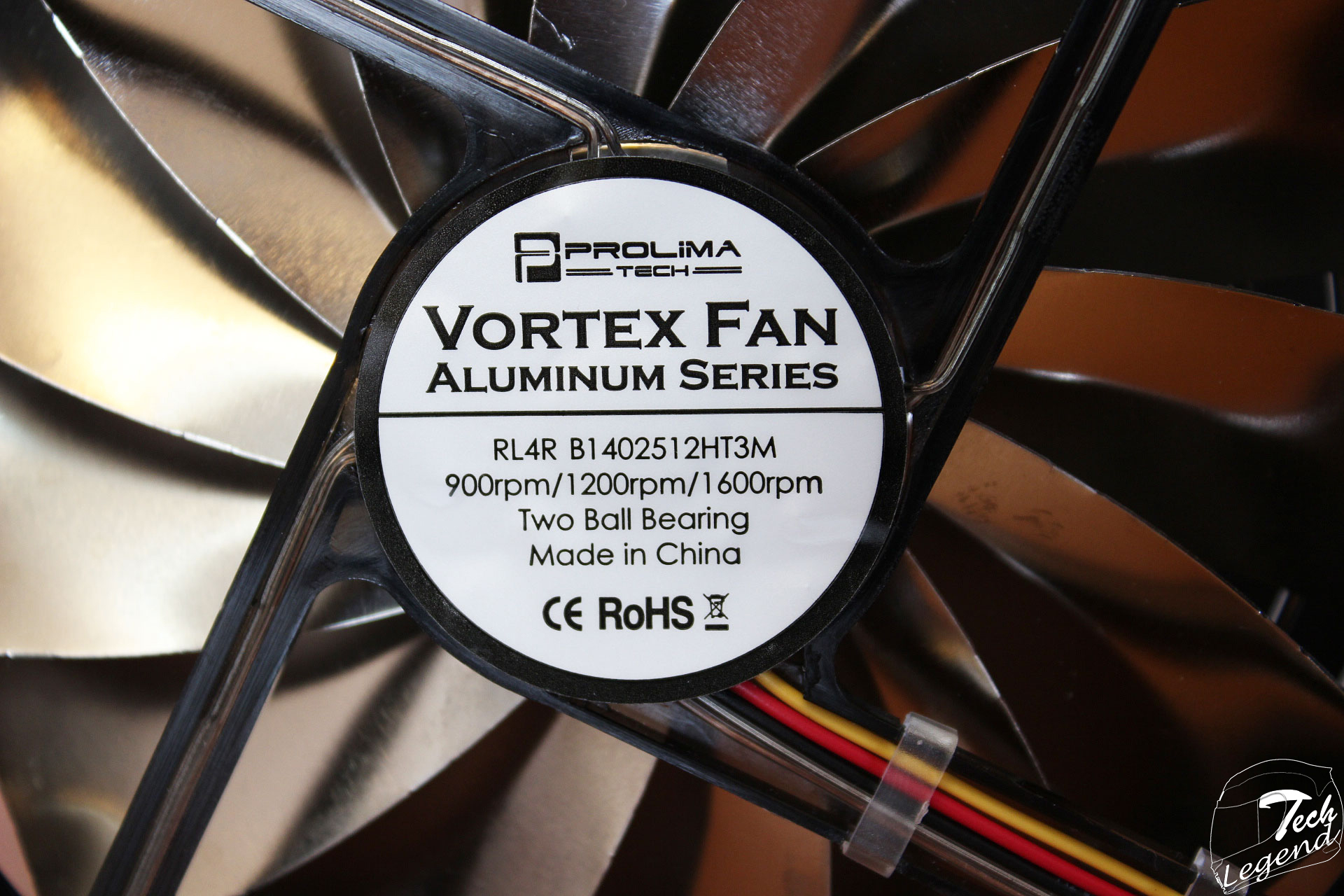

The back side of the fans feature 4 plastic beams to focus the airflow. In the middle there is a label with the model of the fan and the manufacturer’s logo.

img_0164 img_0166

For power the fan uses a 3-Pin Molex connector.

img_0195

5. Testing

The following system was used to test the fans:
–    Processor: Intel i5 6600K @ 4.5 GHz
–    Motherboard: MSI Z170A Gaming M7
–    RAM: 8GB Patriot Viper 4 Series 2400MHz CL15
–    GPU: MSI GeForce GTX 970 Armor 2X 4G
–    SSD: Samsung 840 EVO 120GB
–    HDD: Samsung SpinPoint F3 500GB
–    CPU Cooler: NZXT Kraken x61
–    Thermal compound: Arctic MX-4
–    Display: AOC i2769VM
–    Case: Fractal Design Define R5
–    OS: Windows 7 64-bit Service Pack 1

img_1448

The Vortex Fan Aluminum model has been tested using a 280mm CPU liquid cooler, the NZXT Kraken X61 at max. RPM.

CPU Temp. – 140mm fans

fansound

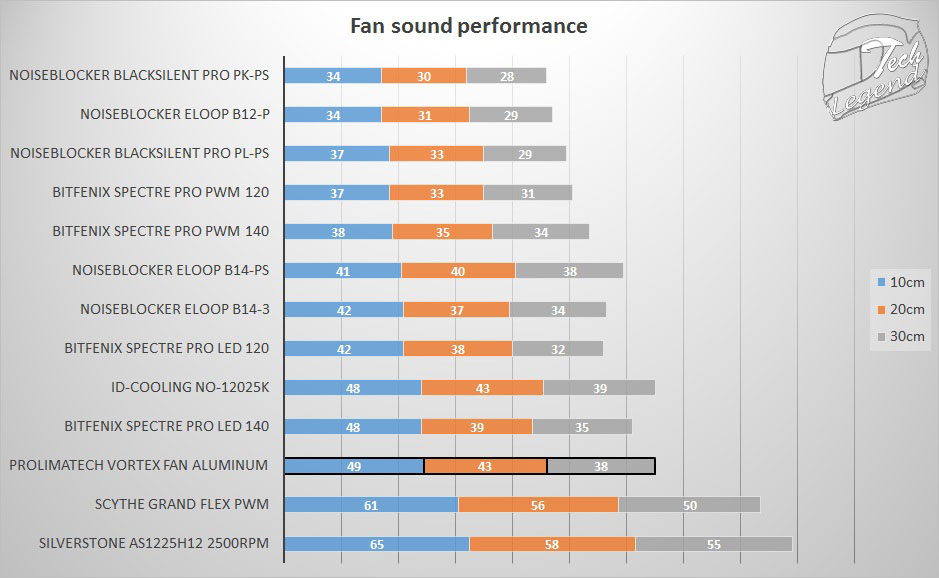

The noise level was measured at two RPMs and at three different distances from the fans (10cm, 20cm, 30cm.) the noise was measured with a margin of error of ± 5 db.

fantemp



6. Final thoughts

The Prolimatech Vortex Aluminum Fan stands out by using an alloy of aluminum in the construction of the blades, thus offering a new perspective on the materials used in the construction of fans.
During testing the fans performed very well, the only drawback being the high noise level when the fans are at their maximum speed. The noise level can be reduced by using one of the low-noise adapters included in the accessory bundle.
The price of this fan is in the same segment as fans from manufacturers such as Noiseblocker or Noctua.
In conclusion, besides its nonconformist design and good performance, the Prolimatech Vortex Fan Aluminum model comes accompanied by a comprehensive accessory bundle.
